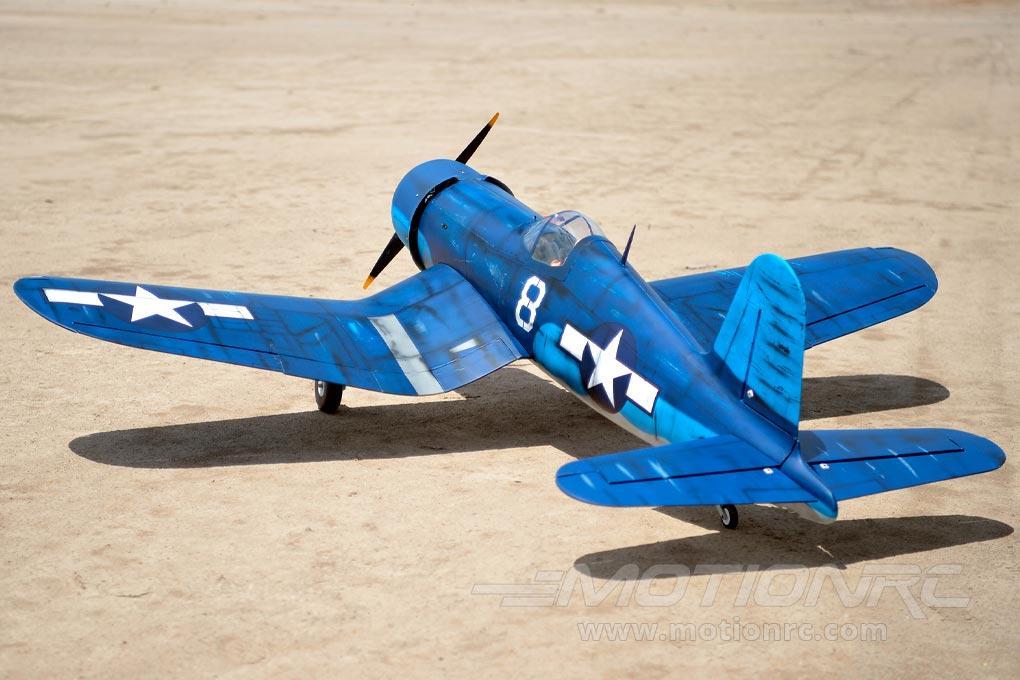

F4U-1D Corsair 2280mm (89.7") Wingspan from Black Horse - Balsa Wood ARF - BHM1000-001(OB) - OPEN BOX
Open Box Details:
- Missing Parts: The left and right wings are missing.
- Damage/Defects: None.
- Builder Notes: None.
IMPORTANT: Open Box merchandise is sold “as-is” and cannot be returned or exchanged under any circumstances (even if additional product issues are found). Open Box merchandise does not include the standard Motion RC warranty. Some Open Box merchandise are customer returns and may show signs of use. Please check the Open Box Details (above) carefully and consider these restrictions before purchasing Open Box products.
The Corsair was designed and operated as a carrier-based aircraft, and entered service in large numbers with the U.S. Navy in late 1944 and early 1945. It quickly became one of the most capable carrier-based fighter-bombers of World War II. Some Japanese pilots regarded it as the most formidable American fighter of World War II and its naval aviators achieved an 11:1 kill ratio.

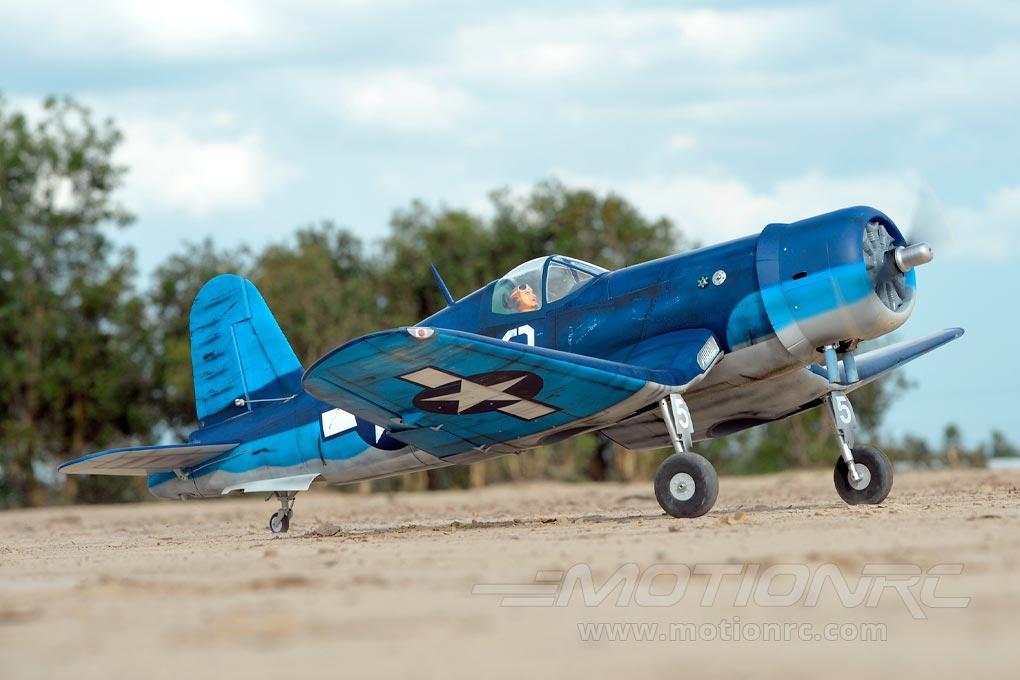

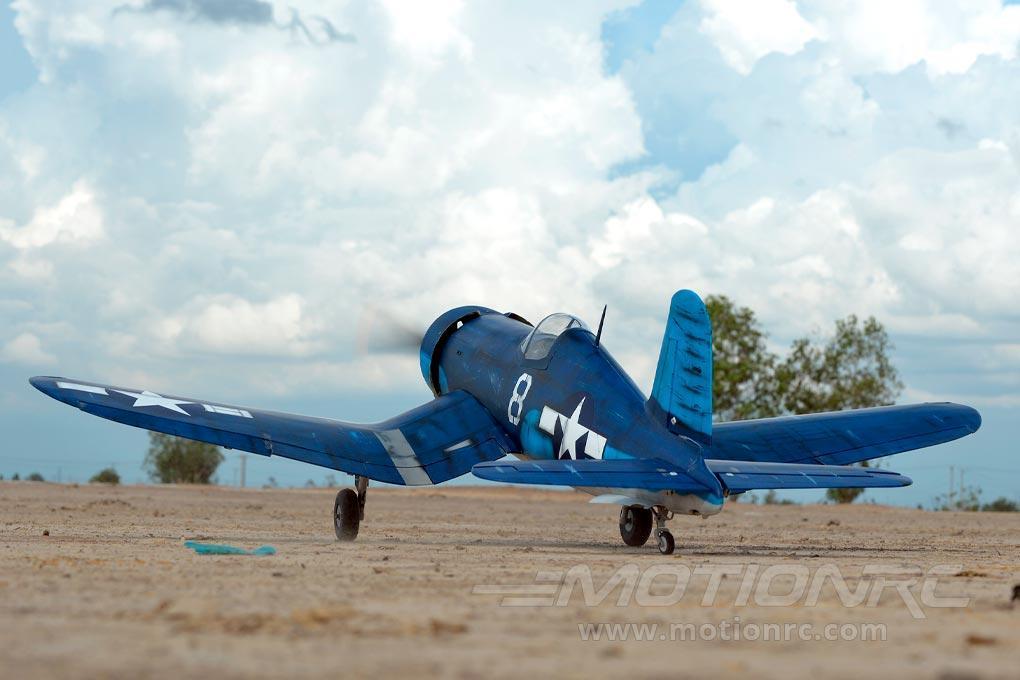

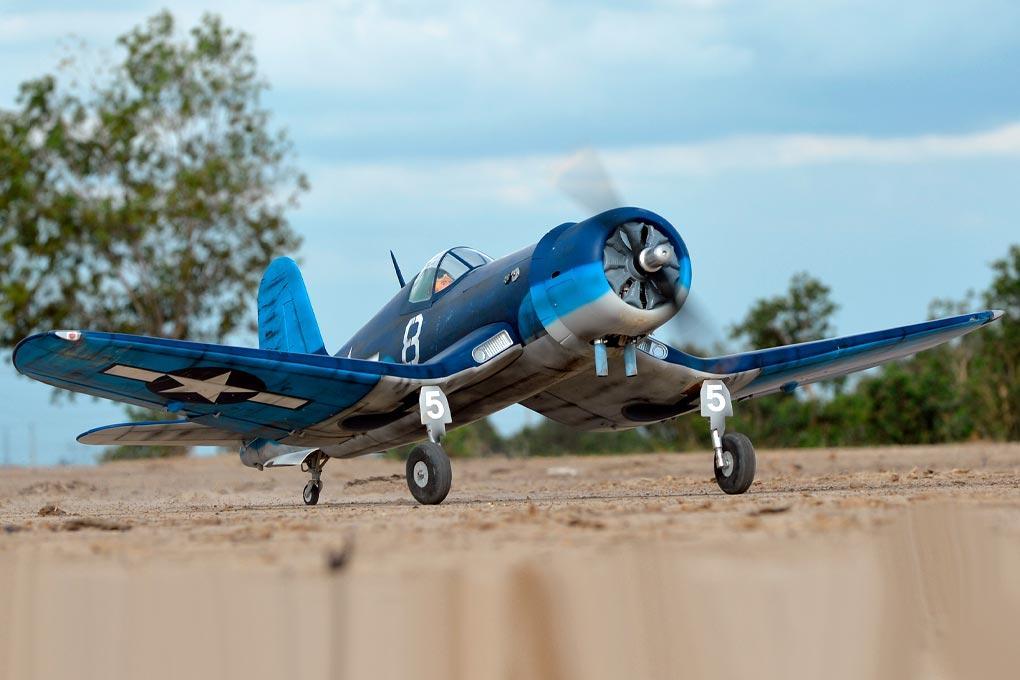

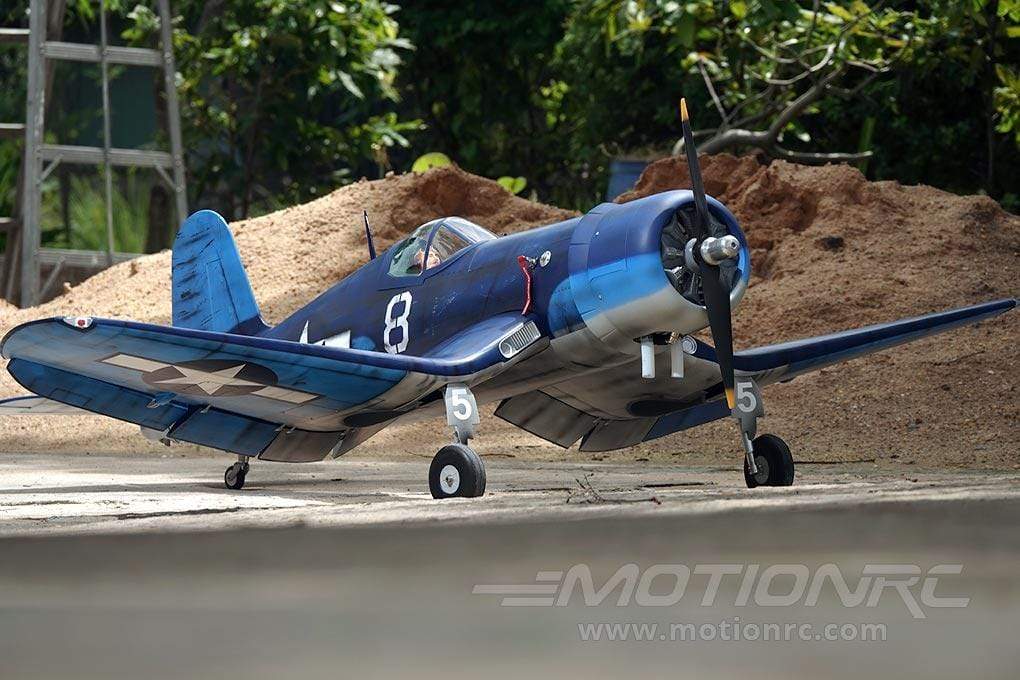

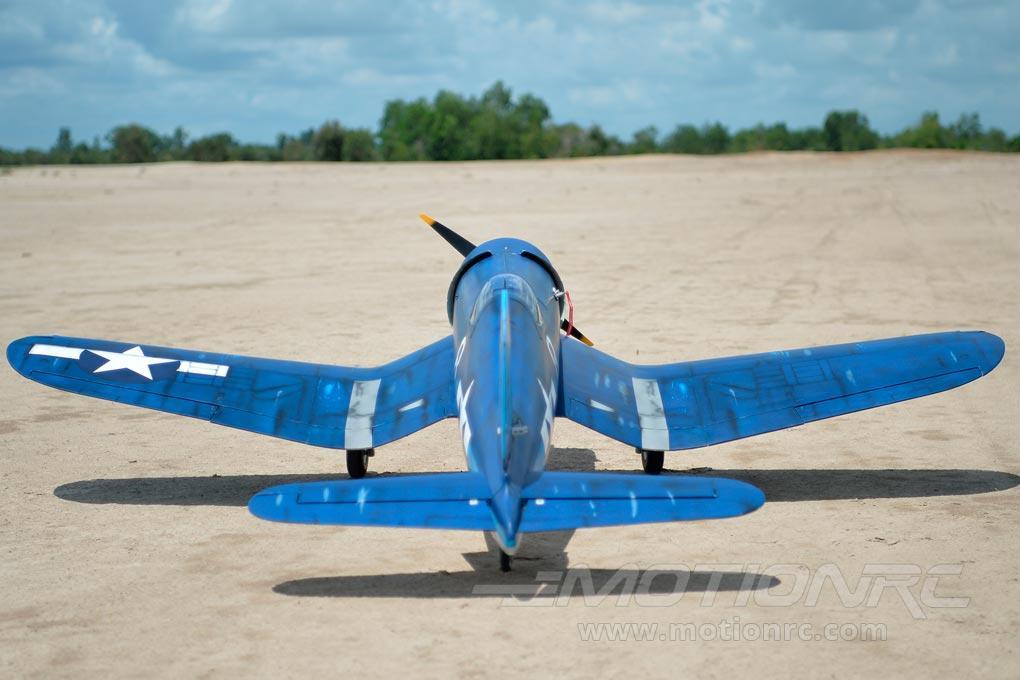

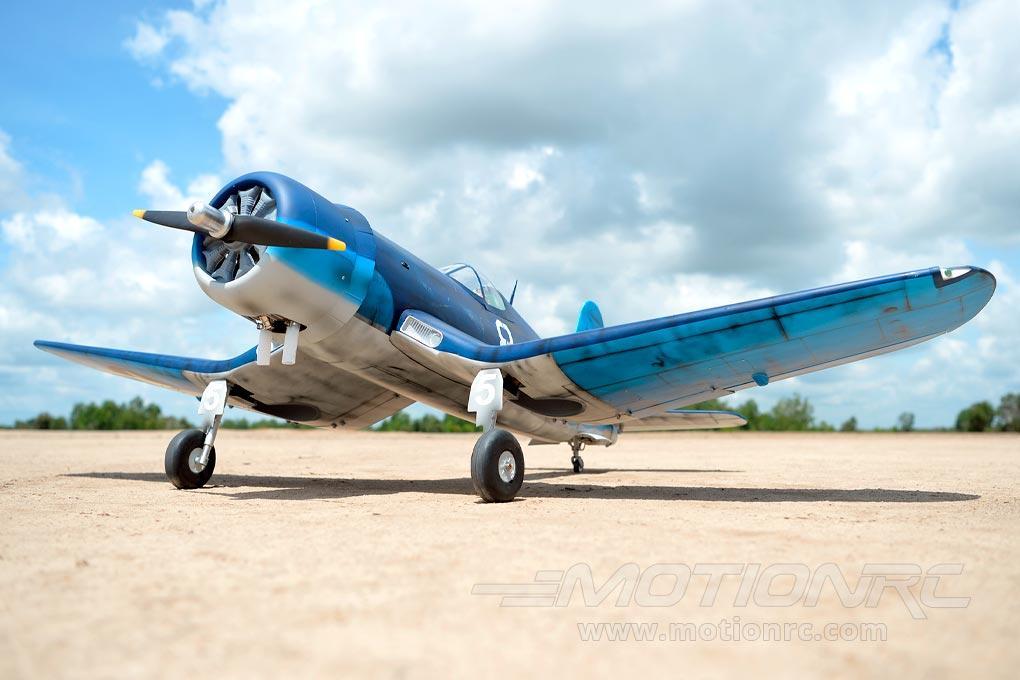

The model is scaled to approximately 1:5 and attention was paid to a true to original appearance and best flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 60cc displacement.
Visit the Official Black Horse F4U-1D Corsair 2280mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Factory Weathered Printing The printing on this model has a realistic weathering complete with rivet and panel line detail that elevates the model to a whole new level of scale appeal. |
 |

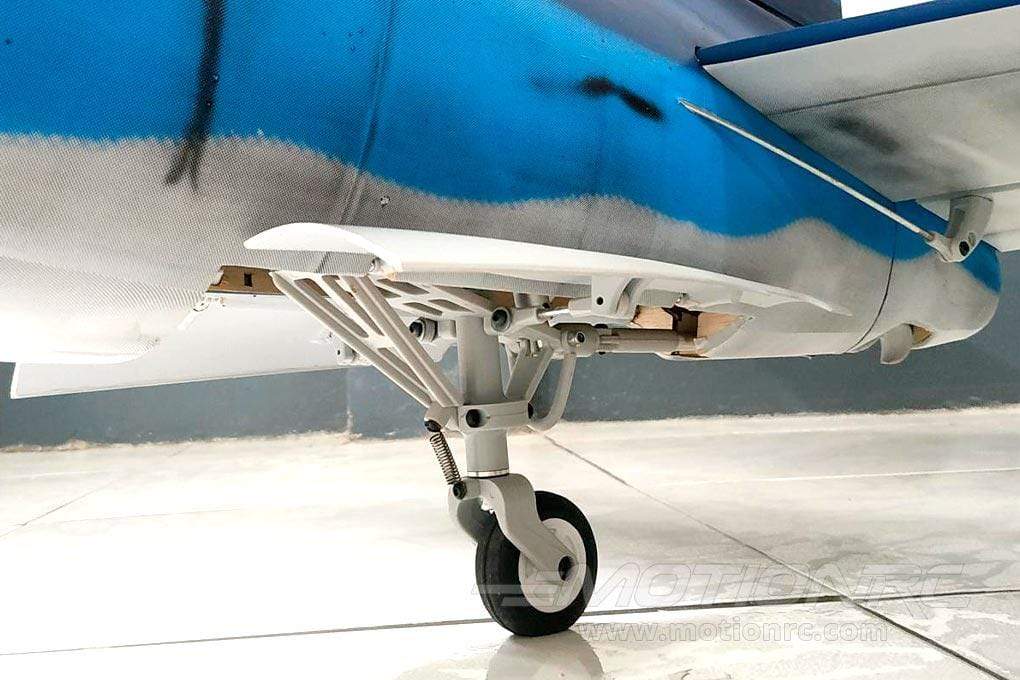

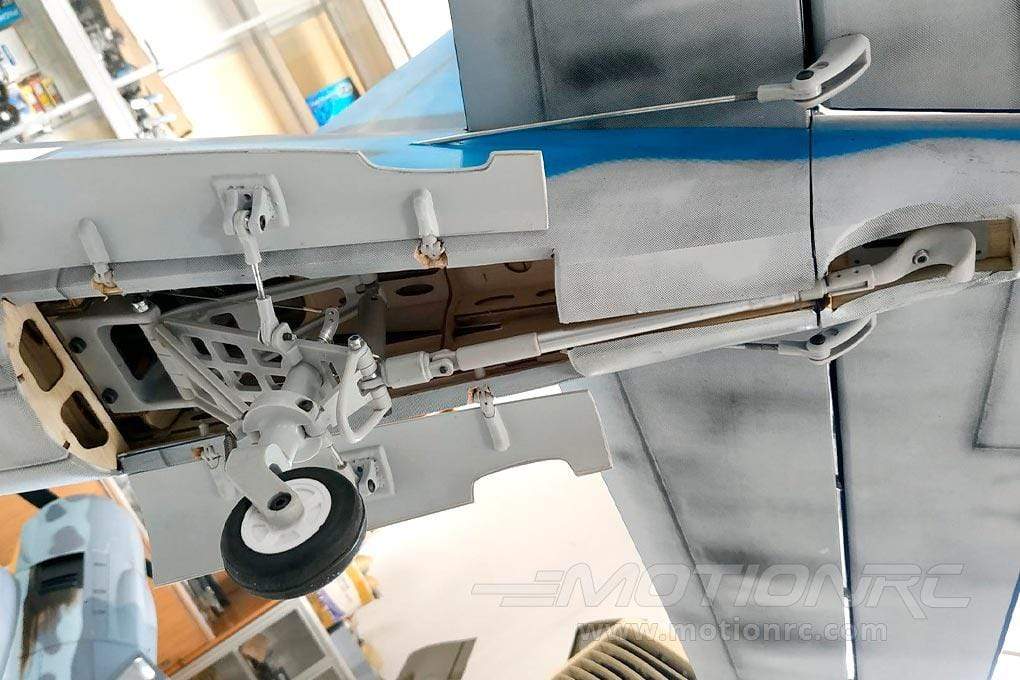

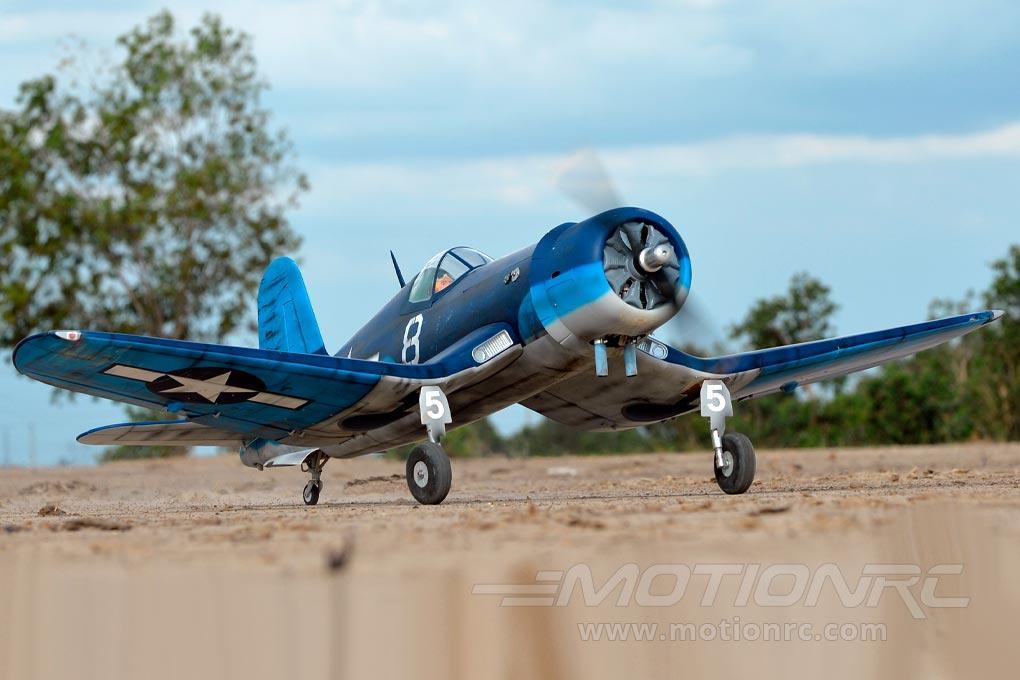

Full Retractable Landing Gear Aluminum suspension struts and included electric retracts absorb rough landings on grass surfaces. The tail landing gear is fully retractable and also included with the Corsair replicating the scale articulation. |
 |
Gas or Electric Power You can choose between gas or electric to power your model depending on your preference. |
 |
Large Wingspan The Corsair has an impressive 89.7" wingspan for impressive presence both in the air and on the ground. |
 |
Removable Main Wing Easy assembly and intuitive design allows for the main wing to be removed for transport. |
 |

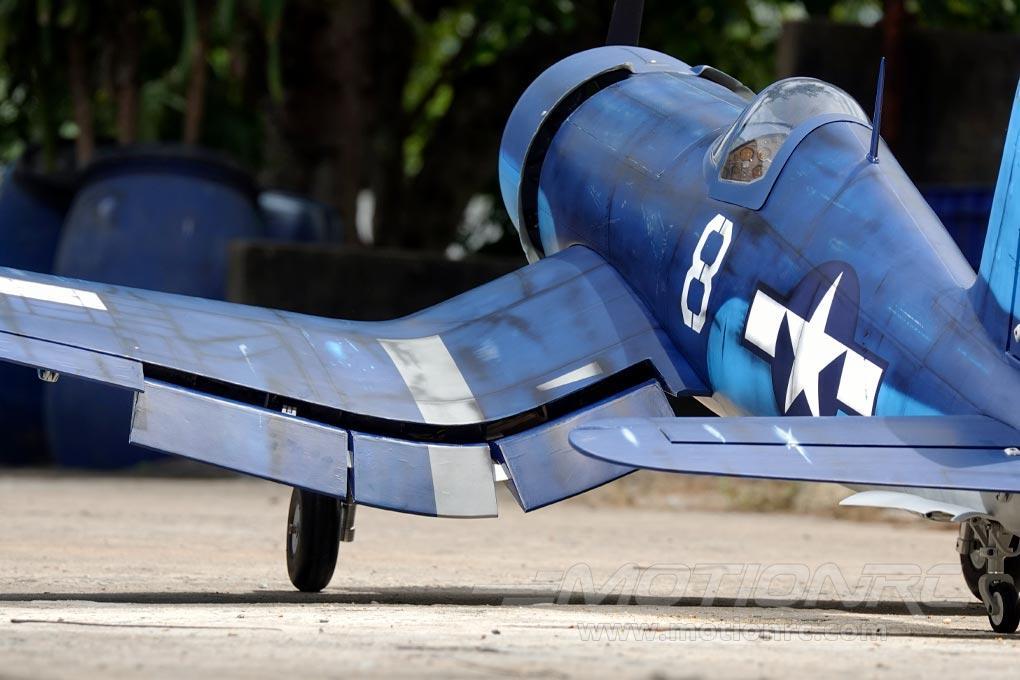

Scale Flaps The three-stage flaps are iconic and fully functional. |
Features:
- Model officially licensed by Northrop Grumman
- Included Rotary 90 degree electric main retracts with CNC suspension metal struts
- Included electric retractable tail landing gear
- High level of prefabrication right out of the box
- Lightweight, strong, laser cut balsa and plywood construction
-
Panel lines and details printed directly onto the pre-applied, high quality covering
- Aerofoiled tail surfaces
- Recessed hinges on all control surfaces
- Pre-drilled hinge mounting holes
- Heavy-duty pin hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
- Painted and detailed cockpit, pilot and interior included
- Fiberglass control horns with ball link connector
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly
- Fiberglass cowl and glass reinforced landing gear covers/pants
- Mounts for both electric and gas power options included
Includes:
- Black Horse F4U Corsair 2280mm (89.7") Wingspan - ARF
- Rotary 90 degree main electric retracts with CNC suspension metal struts
- Electric retractable tail wheel
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 180-185Kv Brushless Outrunner Motor - we recommend the Admiral GP60 8925-180Kv Brushless Motor
- 85-120 Amp Brushless ESC - we recommend ZTW Skyhawk 130A ESC High Voltage with 10A SBEC
- 8x high torque servos - we recommend 8 Hitec HS-645MG Ultra Torque Ball Bearing Metal Gear Standard Servos
- For 10S setup TWO 5 Cell 18.5V 5000 - 6000mAh LiPo Batteries with EC5 connector in series - we recommend Admiral Pro 6000mAh 5S 18.5V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
- EC5 2-to-1 series adapter - BenchCraft EC5 2 to 1 Series Adapter with 10 Gauge Silicone Wire
- Electric propeller - we recommend a APC 22x12E propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):
- Engine: 60cc gas
- Gas Propeller: 22x8
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1:5.5 Scale |
Wingspan |
2280mm / 89.7in |
Length |
1800mm /70.8in |
Weight |
8999g / 19.8lbs |
CG (Center of Gravity) |
128mm from the leading edge of the wing at the root |
Wing Area |
94.6dm2 |
Wing Loading |
93.02 g/dm2 |
Power System |
180Kv Brushless Outrunner Motor or 60cc 2 or 4-stroke (required) |
Electronic Speed Control |
HV 120A (required for electric) |
Propeller / EDF |
22x12 for electric, 22x8 for gas (required) |
Servos |
|
Landing Gear |
Rotary 90 degree retract gear |
Required Battery |
TWO 5 Cell 18.5V 4000 mAh LiPo Batteries with EC5 connector in series (required for electric) |
Required Radio |
7+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Optional |
Hinge Type |
Nylon Heavy Duty pin hinges |
Material |
Balsa and plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
