FMS Atlas 1/18 Scale Red 6x6 Crawler - RTR
- Regular price
- $13999
- Sale price
- $13999
- Regular price
- $
- (Save $-139.99)
- Unit price
- /per
-
Overview
-
Videos
-
Spare Parts
-
Q&A
-
Support
Overview
Atlas 1/18 Scale Red 6x6 Crawler - RTR from FMS - FMS002RTR-RED
Version Info: This vehicle is delivered as “RTR” but requires the additional purchase of 4 (four) AAA alkaline batteries for the transmitter.
Motion RC is pleased to offer the FMS 1:18 scale Atlas 6x6, a captivating mix of modern chassis design and old-school cool. Don’t let the compact size fool you, this mini monster is a fully-capable crawling machine that includes features normally found only in larger, more expensive machines!
The unique high-torque transmission and gearbox delivers the torque of an optimized 55-turn brushed motor to all 6 wheels via a specialized drive system. Expertly-tuned coil-over dampers allow the Atlas to articulate over rugged obstacles while anodized aluminum chassis rails maintain the ideal central chassis stiffness. Soft, big-block tires on beadlock wheels provide maximum grip over most any terrain.
Drive with confidence thanks to the Atlas’ waterproof electronics package, which allows the vehicle to operate in shallow water without a worry! In addition, an auxiliary receiver power provides convenient installation of FPV systems or additional lighting features.
Combine the versatile, go-anywhere fun of the FMS 1:18 Atlas 6x6 with Motion RC’s industry-leading customer service and product support for a package that cannot be beat!
Visit the Official FMS Atlas 1/18 Scale 6x6 Crawler Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
![]() |
Waterproof Electronics Drive your Atlas 6x6 in moisture or shallow water with the assurance provided by splash-proof electronics. |
![]() |
Crawl with Confidence Tackle most any terrain thanks to the 6-wheel drive system and powerful 55-turn brushed motor found on the Atlas. |
![]() |
Comfortable, Reliable 2.4GHz Transmitter Never worry about interference thanks to the solid control link provided by the 2.4GHz radio system. |
![]() |

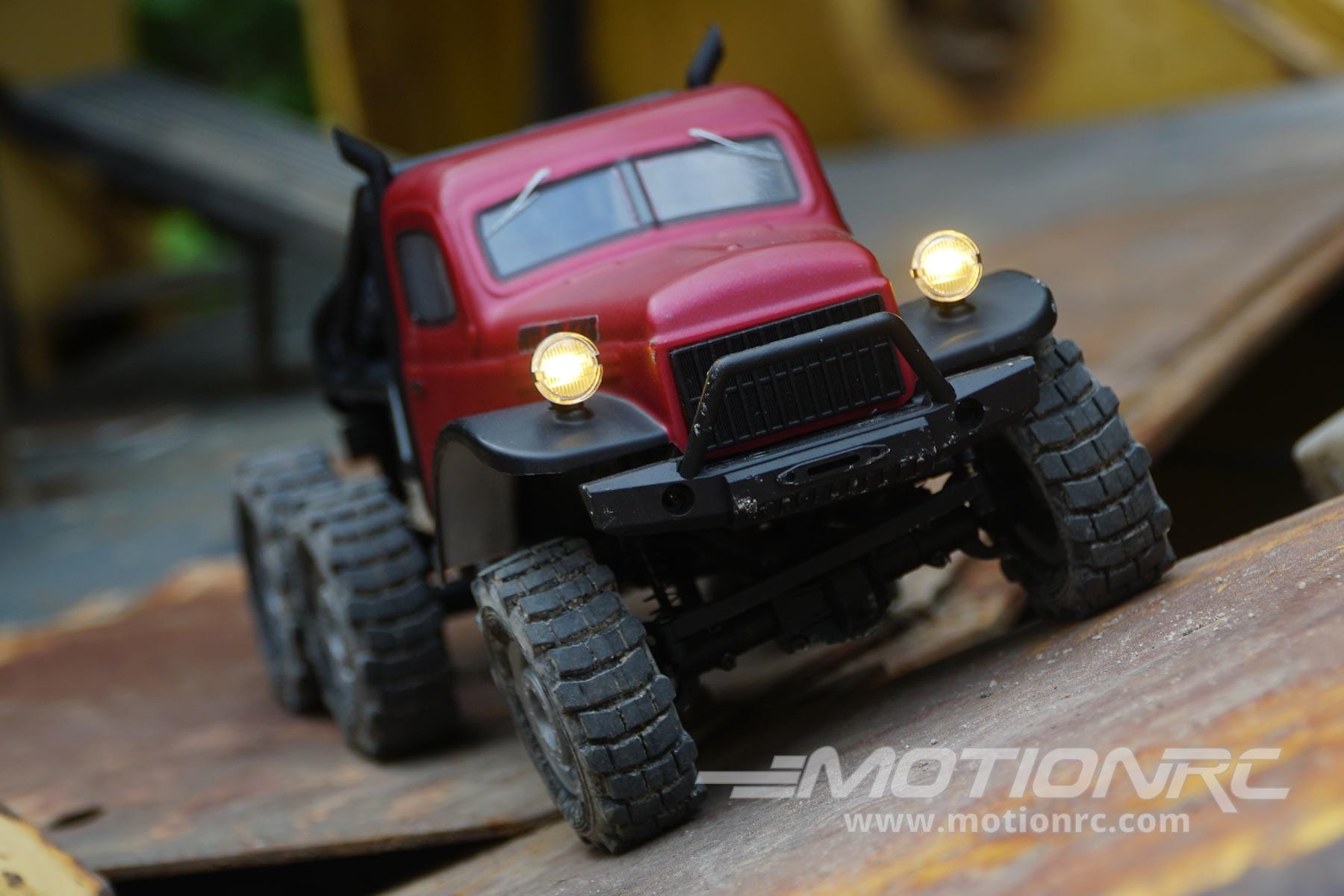

LED Headlamps and Taillights Don’t stop driving because of darkness thanks to the LED light set included with the Atlas. |
Features:
- Scale ladder frame truck chassis
- 6x6 All-wheel-drive system
- High torque transmission (104:1 final drive ratio)
- High-grip big block M/T tires
- 1” inch beadlock truck rims
- Realistic ring & pinion axle housings
- Waterproof electronics
- Matte-painted polycarbonate body with clear windows
- Front and rear LED lights
- Anodized aluminum main chassis rails
- Functional spare tire and toolbox
- 55T high-torque brushed motor
- Extended run time (up to 30 minutes on a single charge)
- CMS (chassis-mounted servo) with Panhard bar
Includes:
- FMS Atlas 1/18 Scale Red 6x6 Crawler - RTR
- FMS 2.4GHz Pistol-Grip Transmitter
- FMS 2-in-1 RX/ESC
- FMS Steering Servo
- FMS Hi-Torque 55T Brushed Motor
- 7.4V 600mAh LiPo Battery
- USB battery Charger
Requires:
- 4x AAA Alkaline batteries for transmitter
Product Specifications:
Model Scale |
1/18 |
Length |
296mm / 11.5in |
Width |
113mm / 4.4in |
Height |
129mm / 5.0in |
Weight (No Battery) |
200g / 7.1oz |
Wheelbase |
155mm / 6.0in |
Ground Clearance |
31.5mm / 1.2in |
Body |
Polycarbonate, factory painted and with clear windows |
Chassis |
Aluminum/Composite ladder-type |
Drivetrain |
6WD |
Wheel Size (Diameter x Width) |
25.4 x 12.5mm / 1.0in x 0.49in beadlock |
Wheel Hex Size |
N/A |
Tire Tread |
Big-Block Pin |
Bushing Material |
Bronze |
Suspension |
6-wheel solid axle |
Shock Type |
Friction damper |
Transmission |
6WD Shaft-driven |
Gear Pitch |
N/A |
Internal Gear Ratio |
N/A |
Final Drive Ratio |
104:1 |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
No |
Ball Bearings |
Yes |
Brakes |
Electronic |
Electronic Speed Control |
Brushed 2-in-1 RX/ESC (included) |
Motor |
55T Brushed |
Battery |
7.4V 600mAh LiPo |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
3x 1Kg High-Torque Servos |
Radio |
2 Channel |
Lights |
Yes |
Sound |
