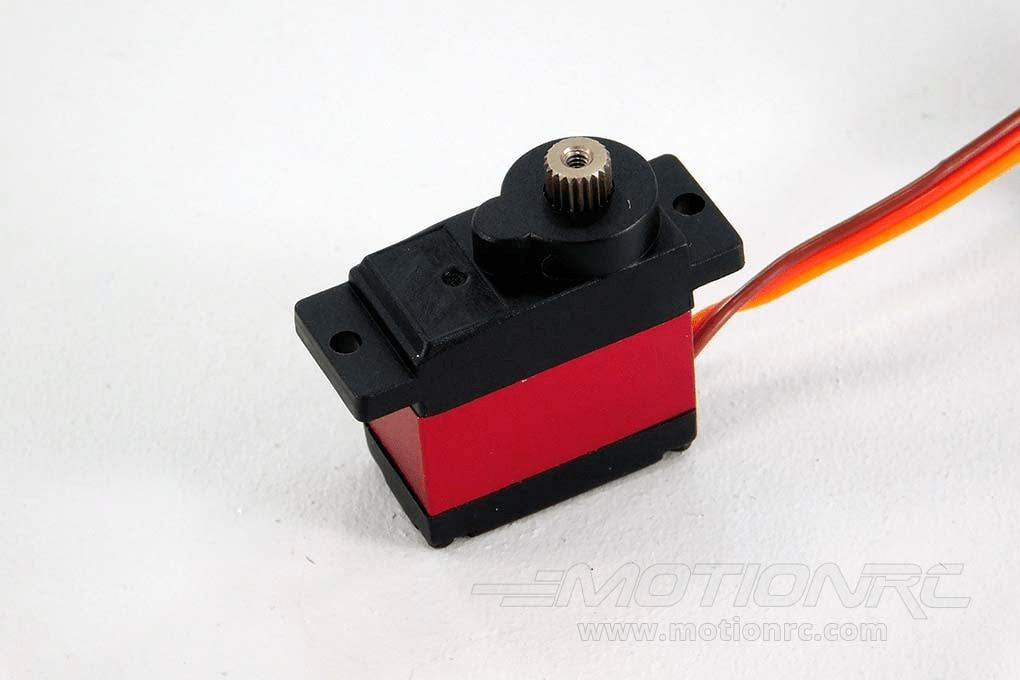

Freewing 16g Digital Metal Gear Servo with 100mm (4") Lead

Brand: Freewing /
Regular price 12.99
Status:
Share:
MD33162-100

16g Digital Metal Gear Servo with 100mm (4") Lead from Freewing - MD33162-100

This servo is used on various Freewing EDF jets.  It can be used with other aircraft with compatible specifications (see below).

Features:

  • Lightweight, efficient high torque digital metal gear servo perfect for larger-sized EDF jets

Includes:

  • Freewing 16g Digital Metal Gear Servo with 100mm (4") Lead
  • 4 mounting screws
  • 2 servo horns

Servo Measurement Key

Product Specifications:

Servo Class

16g

Servo Type

Digital

Gear Material

Metal

Direction

Standard / Normal

Operating Voltage Range

4.8V to 6V

Speed (4.8V)

0.12 sec @ 60 deg

Speed (6V)

0.10 sec @ 60 deg

Torque (4.8V)

1.6 kg/cm (22.21 oz/in)

Torque (6V)

1.9 kg/cm (26.38 oz/in)

Current Draw at Idle

13mA

Current Draw Operating (No Load)

100mA

Dimensions (L x W x H)

23 x 12.2 x 26mm

Weight

13g (.45oz)

Lead Length

100mm
