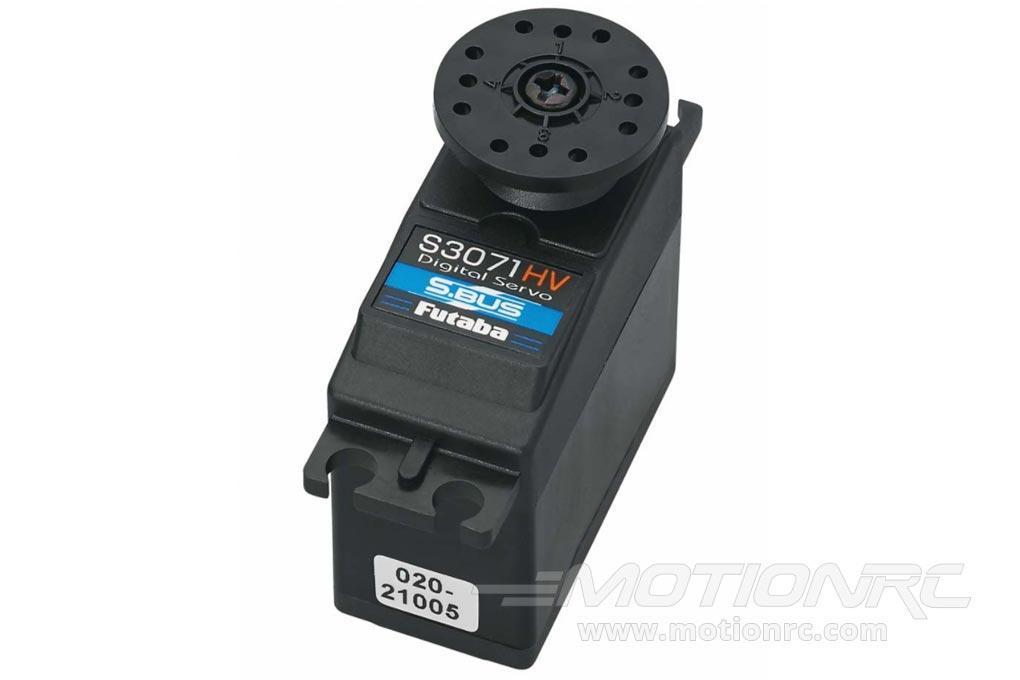

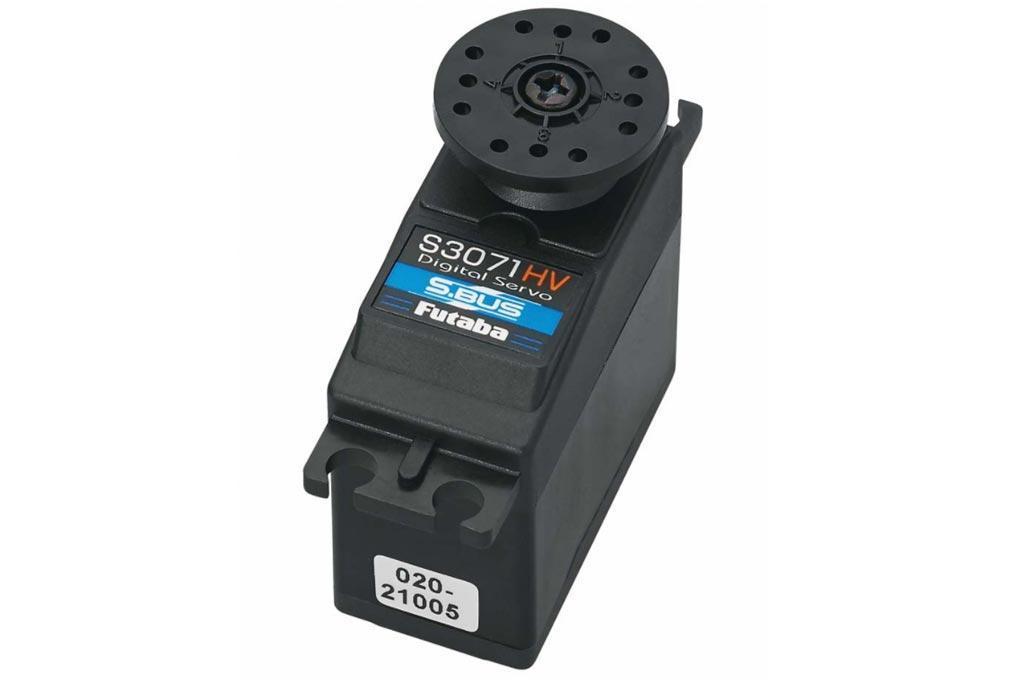

S3071HV High Voltage Ball Bearing Metal Gear Standard Servo from Futaba - FUTM0717
The Futaba S3071HV is a high voltage metal gear standard servo that works great for 2000mm wingspan and larger airplanes, turbine powered jets, and 700 to 800 helicopters. With the Futaba S3071HV you have made a choice that will fail to disappoint.
Features:
- Designed for models that require very high speed and high torque
- S.BUS servo that may also be used in conventional (non-S.BUS) systems
- Ball bearing equipped output shaft
- Metal gears
- One year warranty
Includes:
- 1x S3071HV high voltage ball bearing metal gear standard servo
- 1x 0.83" (21mm) Round Horn
- 1x 1.4" (35.8mm) diameter Round Horn
- 1x (39mm) 4-Point Horn
- 1x 1.2" (32mm) 6-Point Horn
- Instruction sheet
Product Specifications:
Servo Class |
Standard |
Servo Type |
Analog |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
6.6V - 7.4V |
Speed (6.6V) |
0.19 sec @ 60 deg |
Speed (7.4V) |
0.17 sec @ 60 deg |
Torque (6.6V) |
10 kg/cm (139 oz/in) |
Torque (7.4V) |
10.5 kg/cm (146 oz/in) |
Current Draw at Idle |
N/A |
Current Draw Operating (No Load) |
N/A |
Dimensions (L x W x H) |
40 x 20 x 38.1mm |
Weight |
49g (1.73oz) |
Lead Length |
304.8mm / 12in |
