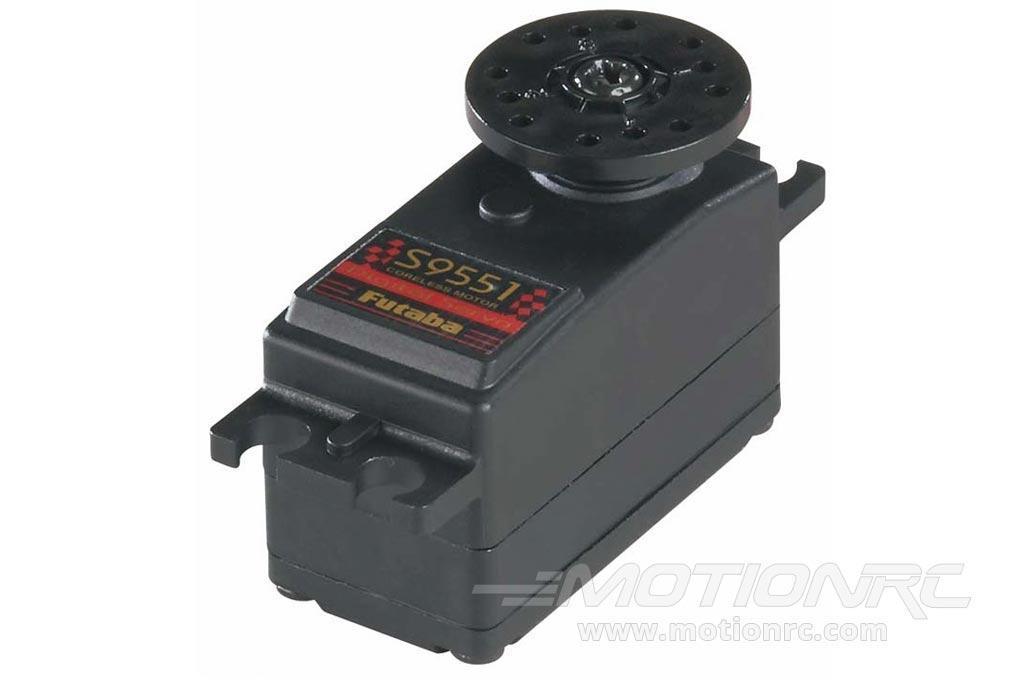

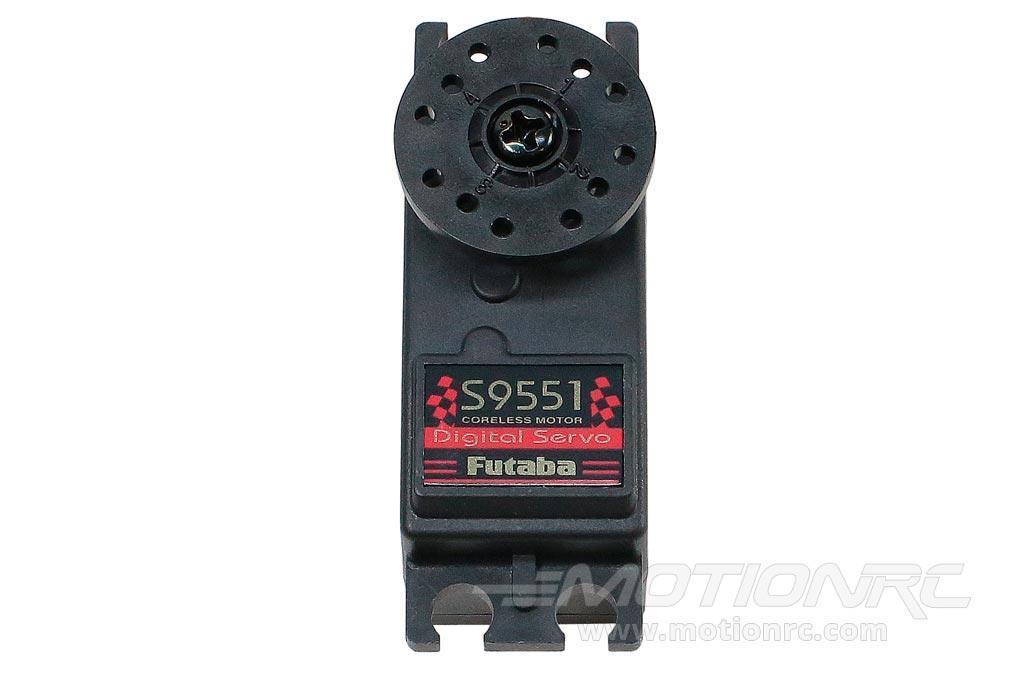

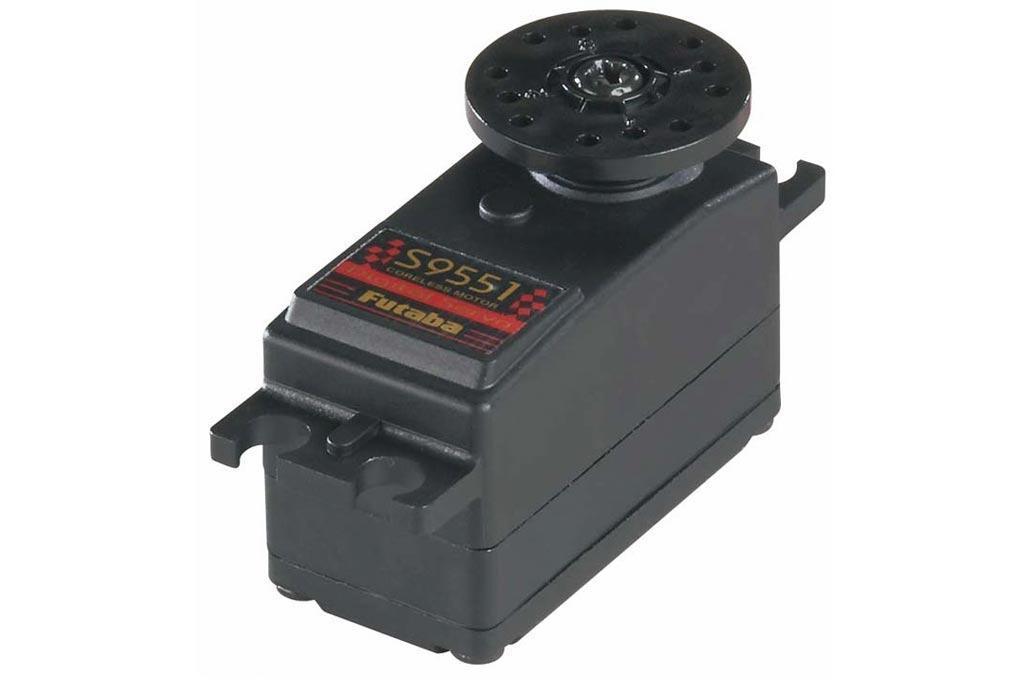

S9551 High Torque Ball Bearing Metal Gear Low Profile Digital Standard Servo from Futaba - FUTM0661
The Futaba S9551 is a high torque, low profile digital standard servo that works well for 2000mm wingspan and larger airplanes, turbine powered jets, and 700 to 800 helicopters. Comes with a coreless motor.
Features:
- Coreless motor which is lighter and results in smoother operation and faster response time
- Digitally enhanced microprocessor cuts about half of the response time from transmitter input to servo reaction

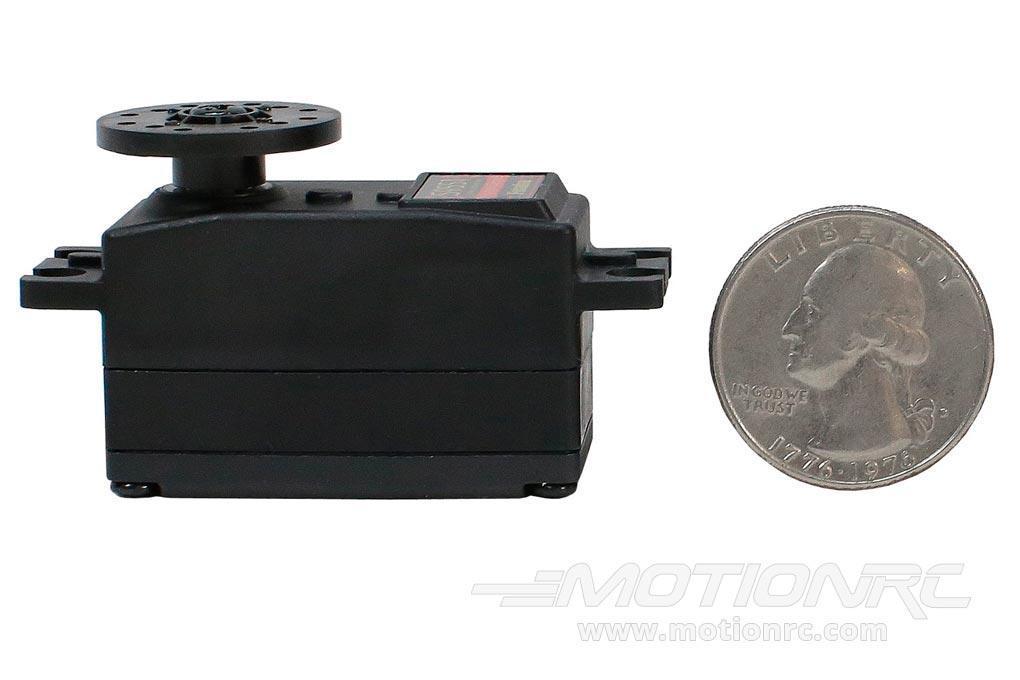

- Low profile allows for the servo to fit into wings for less obstruction
- Metal gears
- Dual ball-bearings
- Black plastic case
- Dust and water resistant (not waterproof)
- One year warranty

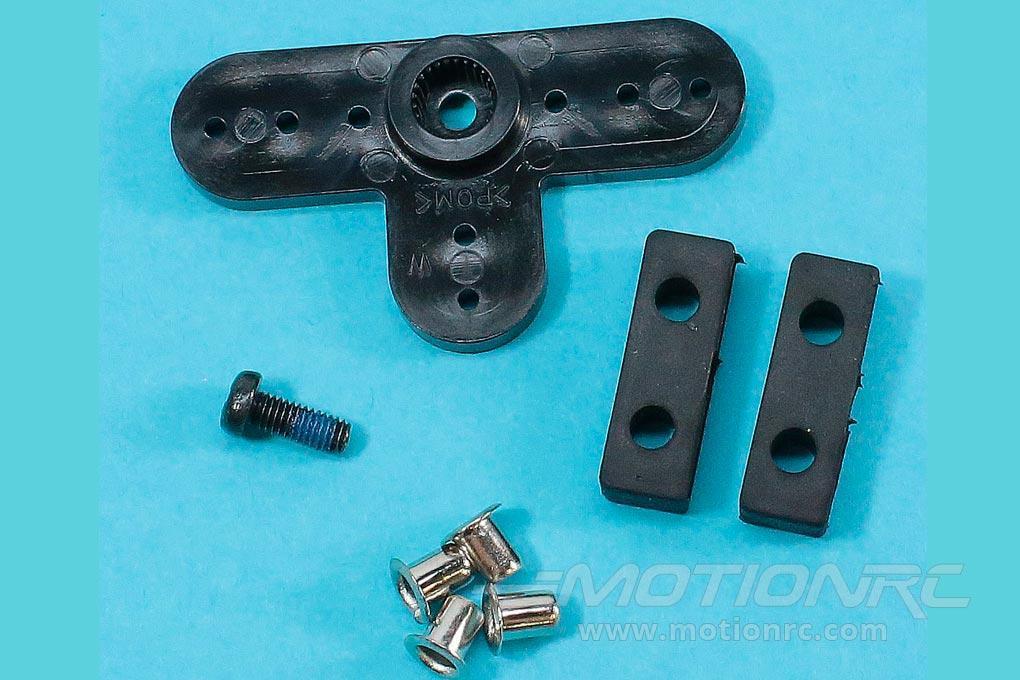

Includes:

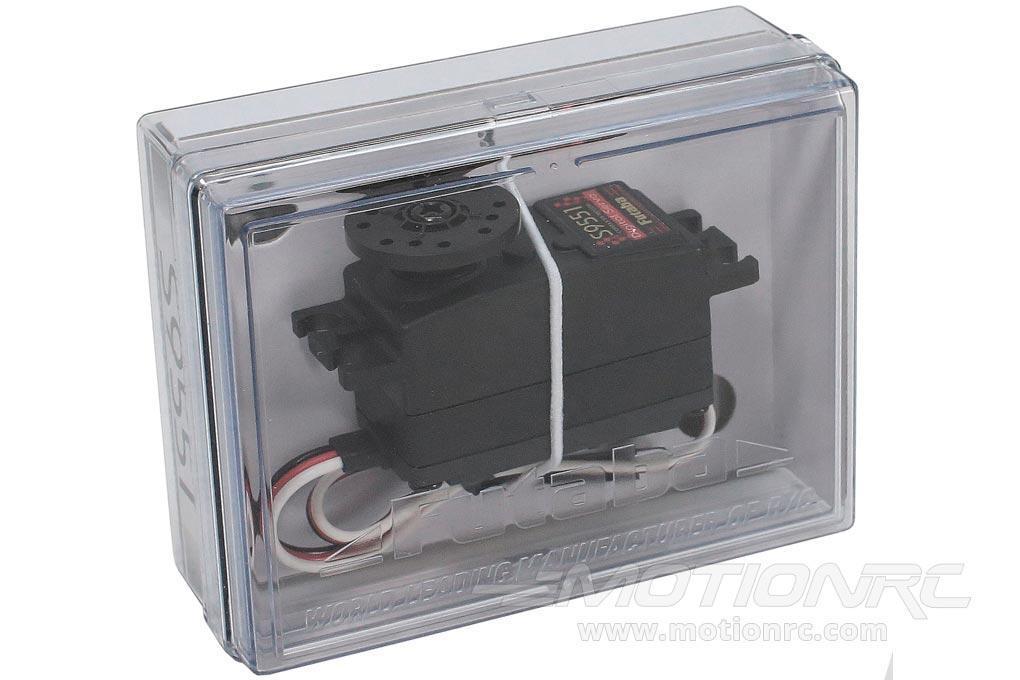

- 1x S9551 high torque ball bearing metal gear low profile digital standard servo
- 1x 0.83" (21mm) diameter round horn
- 1x 1.7" (44mm) long T-shaped horn
- 4x eyelets
- 2x rubber grommets
Tech Note: This digital servo cannot be used with the following * AM * transmitters as the servo neutral signal is: 1310us). CONQUEST AM, FG Series (T4FG, T5FGK,T6FG, T6FGK, T7FGK), New Terratop, T3EGX, T3PGE, T2NL, T2LGX, T2FR, T2PK series. For full performance use with FM, PCM and HR systems.
Product Specifications:
Servo Class |
Standard |
Servo Type |
Digital |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
4.8V - 6V |
Speed (4.8V) |
0.14 sec @ 60 deg |
Speed (6V) |
0.11 sec @ 60 deg |
Torque (4.8V) |
7.0 kg/cm (98 oz/in) |
Torque (6V) |
8.8 kg/cm (122 oz/in) |
Current Draw at Idle |
N/A |
Current Draw Operating (No Load) |
N/A |
Dimensions (L x W x H) |
41 x 20 x 25mm |
Weight |
45g (1.6oz) |
Lead Length |
304.8mm / 12in |
