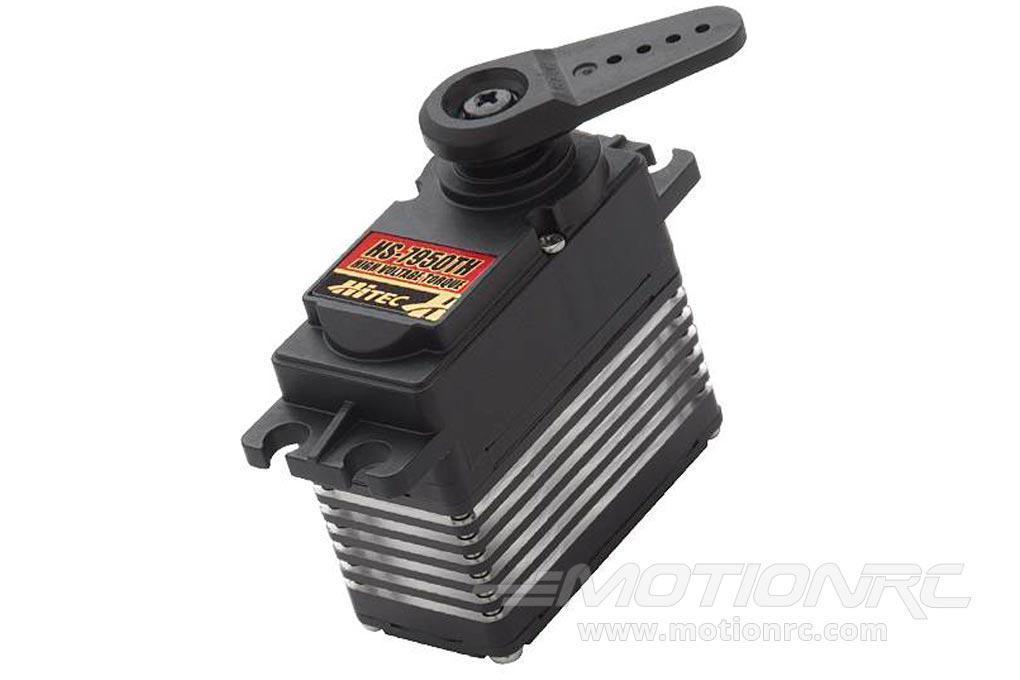

HS-7950TH High Voltage Ultra Torque Ball Bearing Titanium Gear Digital Standard Servo from Hitec - HRC37950S

The "Ultra Torque" HS-7950TH is designed to operate on a two cell LiPo pack. Featuring Hitec's high resolution "G2" second generation programmable digital circuit and our indestructible Titanium gears, The HS-7950TH has the performance and durability you've come to expect from a Hitec servo. Other features in the HS-7050TH include a 7.4v optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by axial brass bushing.

The HS-7950TH has been designed for the most demanding hobby applications including the largest aircraft. Featuring a titanic 403oz./in. of torque at 6.0 volts, while still maintaining a respectable 0.15 second transit time.

What is a coreless motor?

A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.

Features:

• Titanium gears for much longer life than conventional metal gears
• Fully programmable digital technology
• High voltage supports 2S LiPo operation
• Dual ball bearing supported output shaft
• Ultra torque for your giant scale aircraft
• Ultra performance coreless motor for precise centering and accuracy
• G2 programmable digital circuit
• heat sink casing
• High speed

Includes:

• 1x HS-7950TH high voltage ultra torque digital titanium gear standard servo with universal connector
• 1x 1" (25.5mm) single arm horn
• 1x 1" (21.5mm) aluminum single arm horn
• 1x 0.85" (32mm) heavy duty single arm horn
• 1x 2.8" (72mm) heavy duty double arm horn
• 1x 2.3" (59mm) double arm horn
• 1x 1.8" (45mm) round horn
• 4x eyelets
  4x rubber grommets
• 4x 2x15mm mounting screws
• Instruction sheet

Programmable features:

• Dead band width
• Direction of rotation
• Speed of rotation (slower)
• End points
• Neutral points
• Fail safe On/Off
• Fail safe point
• Resolution* (default is high resolution)
• Overload protection* (default is off)
• (*These features are only programmable with the HFP-20 (#44430), HPP-20 or HPP-21 (#44440) programmers)

Product Specifications:
