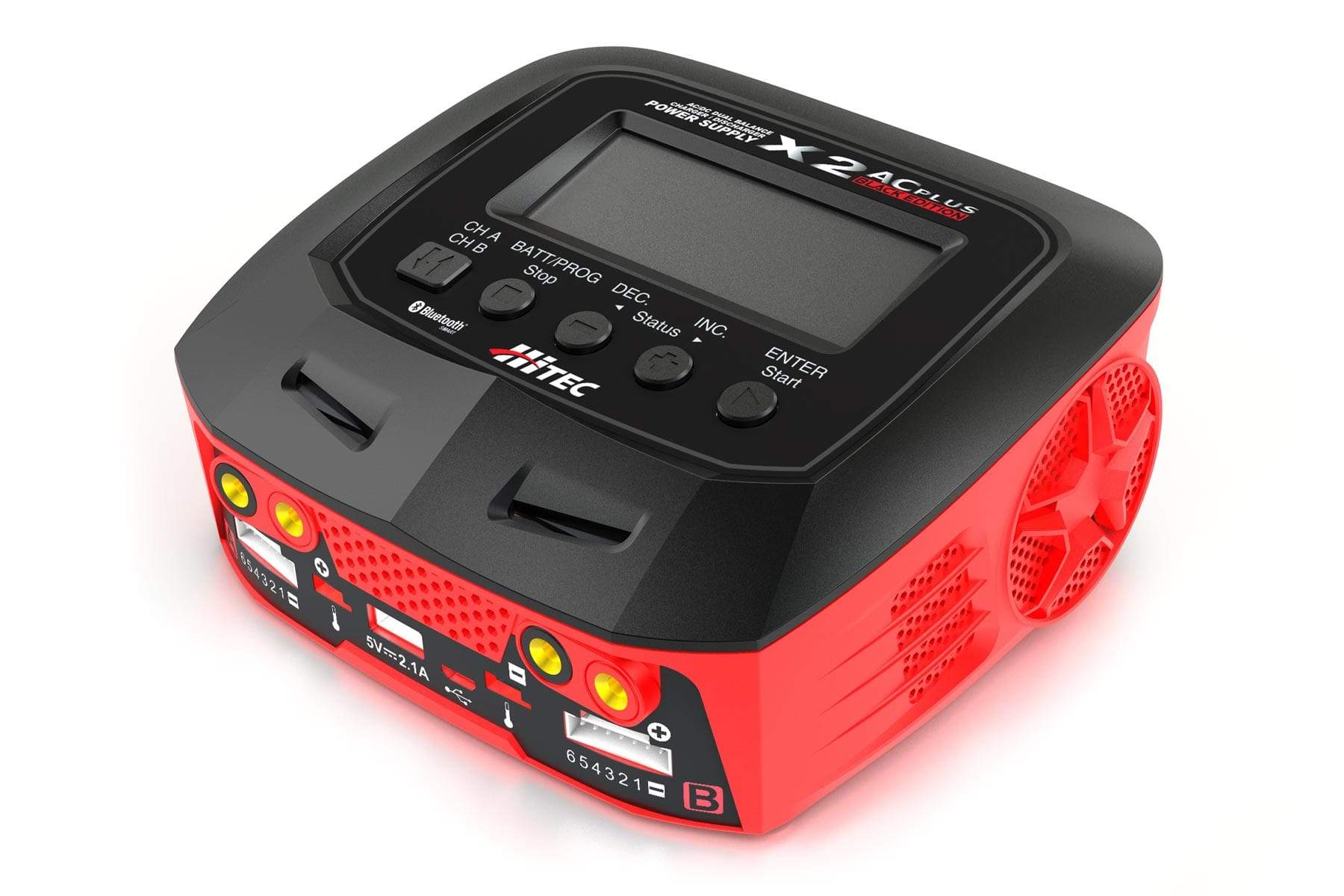

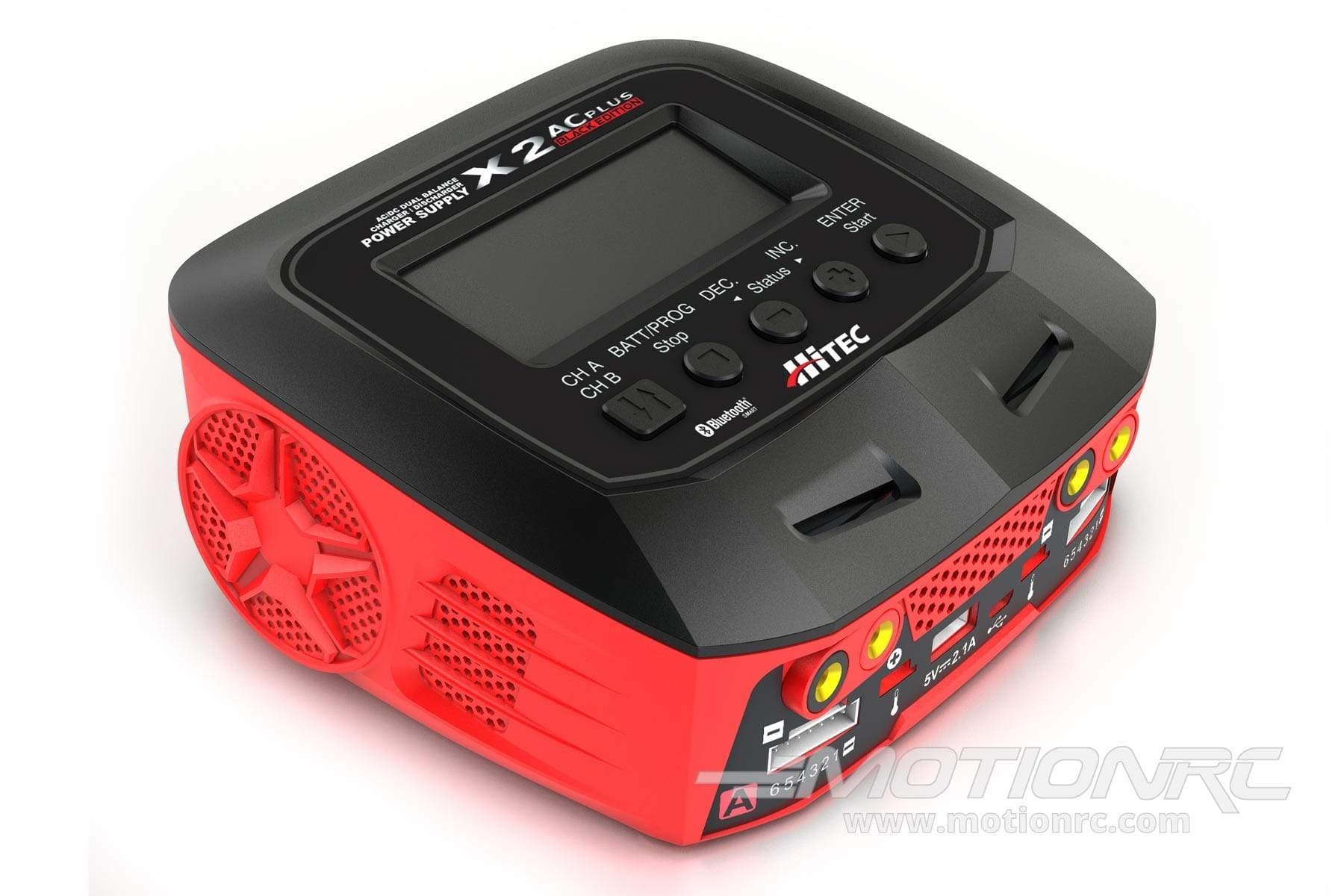

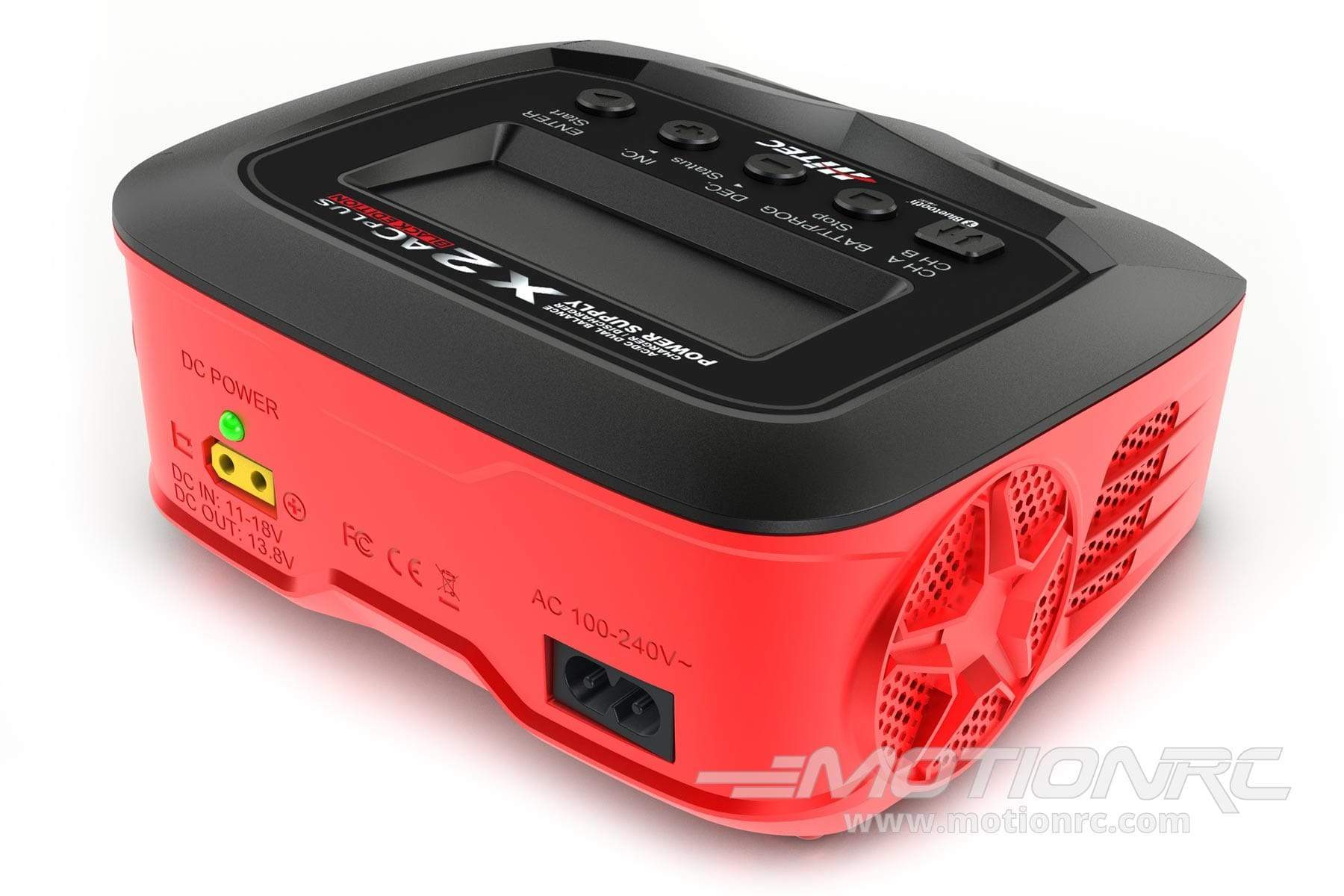

X2AC+ Black Edition 100W 6 Cell (6S) Dual Port LiPo AC/DC Charger from Hitec - HRC44270
The Hitec X2 AC Plus Black Edition AC/DC Dual Balance Charger/Discharger features increased capacity and compatibility! This portable, compact, and reliable unit affords flexible charging of all battery chemistries whether you are at home or in the field. Its leading-edge power distribution mode allows efficient assignment of output power based on individual battery requirements while the Voice Guide feature makes for easy, user-friendly communication. With a built-in 10-amp power supply, internal balancing circuits and 10 different charge/discharge profiles, the X2 AC Plus Black Edition is an absolute powerhouse. Featuring “SCAN TO GO” and Smartphone control via Bluetooth, this charger delivers the high performance and convenience that you can always expect from Hitec.
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
Features:
- Twin Channels for Simultaneous Dual Battery Charging
- Dual Input and Power Distribution
- 10 Battery Memory
- Charge/Discharge Profiles
- CHARGE MASTER Software
- “Scan to Go” Smartphone Control
- Terminal Voltage Control
- Voice Guide
- Supports DC Output Power
Includes:
- Hitec X2AC+ Black Edition 100W 6 Cell (6S) Dual Port LiPo AC/DC Charger
- AC Power Cord
- 2x XH Adaptors
- 2x Banana Connectors with XT60 Connector Charging Cable
- 2x 2 Pin T-Type Charging Cables
- 2x Bare Charge Cables
- Alligator Clip Charge Cable
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
Product Specifications:
AC Input |
100-240V |
DC Input |
11-18V |
Charge Circuit Power (AC Input) |
100W |
Charge Circuit Power (DC Input) |
200W |
| Charge Current Range | 0.1-10A x 2 |
| Max Charge Current | 2S LiPo: 6.0A |
| Discharge Current Range | 0.1-2.0A x 2 |
| Discharge Power | 10W x 2 |
LiPo/LiFe/Lilon Cells |
1-6S |
| NiMH/NiCd Cells | 1-15S |
| Pb(Lead Acid) Battery Voltage | 2-20V |
| Dimensions (L x W x H) | 184 x 146 x 70mm (7.24 x 5.74 x 2.75 in) |
| Weight | 1293g (45.6 oz) |
