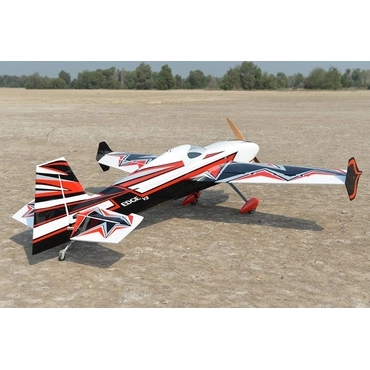

Edge 540 V3.2 1880mm (74") Wingspan from Black Horse - Balsa Wood ARF - BHM1011-001
Version Info: This is the version 2 of the Edge 540 V3. Several upgrades include a striking new paint scheme, carbon fiber landing gear, carbon fiber wing spar and fiberglass carbon plywood has been applied throughout the entire model's structure.
The Zivko Edge 540 manufactured by Zivko Aeronautics is a highly aerobatic aircraft. Capable of a 420 degree per second roll rate and a 3,700 foot per minute climb rate, it has been flown to victory on the international Unlimited aerobatics circuit several times since the mid-1990s. A tandem-seat version is sold as the Edge 540T.
The Zivko Edge 540 is the most common aircraft used in the Red Bull Air Race World Series.
Our model is scaled to approximately 1:5 and attention has been given to providing a realistic appearance with outstanding flight characteristics. The model was designed for electric power but can also be flown using a matched pair of internal combustion engines of about 35-38cc displacement.
Visit the Official Black Horse Edge 540 V3.2 2000mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Bold, Eye-Catching Scheme The new version 2 of the Edge 540 V3 comes with a striking and bold paint scheme that is sure to represent well anywhere you choose to fly. |
 |
New Carbon Fiber Struts The struts have been upgraded to carbon fiber for a superior blend of lightweight and strength. |
 |
Upgraded Materials Throughout Fiberglass carbon plywood has been applied throughout the entire model's structure for improved strength and support. |
 |
Electric or Gas You can choose your choice of power system from electric or gas setups to suit your personal preference. |
Features:
-
NEW! Lightweight, strong, and fully sheeted laser cut fiberglass carbon plywood construction
- NEW! Carbon fiber wing spar and landing gear struts
- High level of prefabrication right out of the box
- Covered in high quality Oracover
- Recessed hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
- Painted and detailed cockpit, pilot and interior included
- Fiberglass twinned control horns with ball link connector
- Pull-Pull control system on the rudder for precision control and authority
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly
- Fiberglass cowl and landing gear covers/pants
- Mounts for both electric and gas power options included
- Fully illustrated instruction manual included and also available for download (see tab above)
Includes:
- Black Horse Edge 540 V3.2 1880mm (74") Wingspan - ARF
- Fully illustrated instruction manual
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection

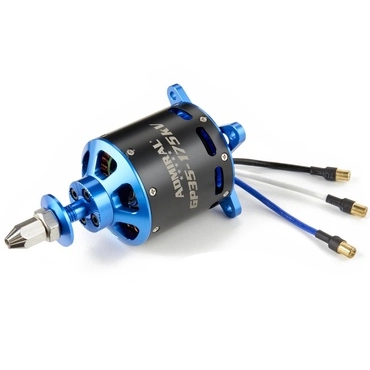

- 2500+ Watt Brushless Outrunner Motor - we recommend the Admiral GP35 C6332-175Kv Brushless Motor
- 80+ Amp Brushless ESC - we recommend Castle Creations Phoenix Edge High Voltage 80A ESC

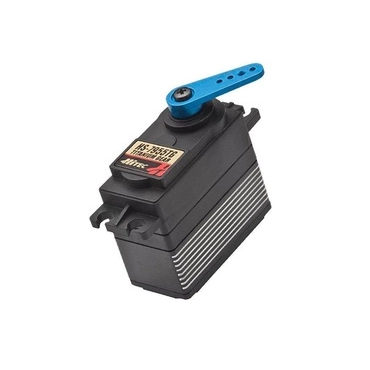

- 5x 45g standard servos - we recommend FIVE Hitec HS-7955TG
- For 12S setup TWO 6 Cell 22.2V 3500 - 5000 mAh LiPo Batteries - we recommend Admiral 4000mAh 6S 22.2V 40C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)

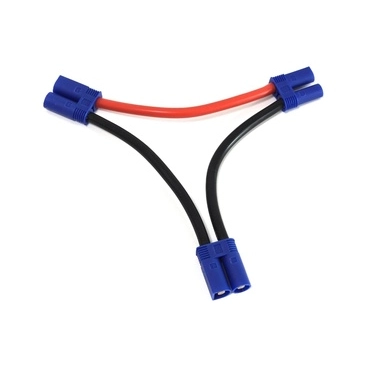

- EC5 2-to-1 series adapter - BenchCraft EC5 2 to 1 Series Adapter with 10 Gauge Silicone Wire
- 20 x 8E to 21 x 10E 2 blade electric propeller - we recommend APC 20x12 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):

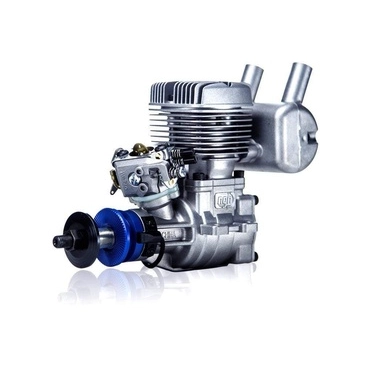

- Engine: 35cc 2-stroke (NGH GT35 recommended). 38cc 4-stroke (NGH GF38 recommended)
- Gas Propeller: 18x10 - 20x8 (2 Stroke and 4 Stroke)
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/5 Scale |
Wingspan |
1880mm / 74in |
Length |
1850mm /72.83in |
Weight |
5307-5443g / 11.7-12lbs |
CG (Center of Gravity) |
Refer to the owner's manual |
Power System |
2500 Watt+ Brushless Outrunner Motor or 35cc 2 or 38 4-stroke (required) |
Electronic Speed Control |
80+A (required) |
Propeller / EDF |
20 x 8E to 21 x 10E 2 blade electric propeller (required) |
Servos |
|
Landing Gear |
Fixed |
Required Battery |
TWO 6S 22.2V 3500-5000mAh LiPo Batteries (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
No |
Lights |
Optional |
Hinge Type |
Fiberglass |
Material |
Balsa and plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
