P-47D Thunderbolt 2259mm (88.9") Wingspan from Black Horse - Balsa Wood ARF - BHM1010-001
The Republic P-47 Thunderbolt is a World War II-era fighter aircraft produced from 1941 through 1945. Its primary armament was eight .50-caliber machine guns, and in the fighter-bomber ground-attack role it could carry 5-inch rockets or a bomb load of 2,500 lb (1,100 kg). When fully loaded, the P-47 weighed up to 8 tons, making it one of the heaviest fighters of the war. The Thunderbolt was effective as a short-to medium-range escort fighter in high-altitude air-to-air combat and ground attack in both the European and Pacific theaters. The P-47 was designed around the powerful Pratt & Whitney R-2800 Double Wasp 18-cylinder radial engine. An advanced turbosupercharger system ensured the aircraft's eventual dominance at high altitude, while also influencing its size and design.
The model is scaled to approximately 1:5 and attention was paid to a true to original appearance and best flight characteristics. The model can be operated using an electric power system or with an internal combustion engine about 50-60cc displacement.
Visit the Official Black Horse P-47D Thunderbolt 2075mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Detailed Cockpit The P-47D Thunderbolt boasts a detailed cockpit and hand-painted pilot for added realism. |
 |
Gas or Electric Power The spacious single piece molded fiberglass cowl can easily accommodate either gas of electric power systems with minimal cowl cutting. |
 |
Large Wingspan The P-47D boasts an impressive 88.9" wingspan for commanding presence both in the air and on the ground. |
 |
Printed Weathering Factory applied multi-weathered layers accentuate the realistically printed rivets and panel lined. |
Features:
- High level of prefabrication right out of the box
- Lightweight, strong, laser cut balsa and plywood construction
- Panel lines and details printed directly onto the pre-applied, high quality covering
- Airfoiled tail surfaces
- Recessed hinges on all control surfaces
- Pre-drilled hinge mounting holes
- Heavy-duty pin hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
- Painted and detailed cockpit, pilot and interior included
- Fiberglass control horns with ball link connector
- Comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly
- Fiberglass cowl and glass reinforced landing gear covers/pants
- Mounts for both electric and gas power options included
Includes:
- Black Horse P-47D Thunderbolt 2259mm (88.9") Wingspan - ARF
- Electric retractable landing gear and shock absorbing struts
Requires (Electric):
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- 180-185Kv Brushless Outrunner Motor - we recommend the Admiral GP60 8925-180Kv Brushless Motor
- 160 Amp brushless ESC - we recommend the ZTW Skyhawk 160A ESC High Voltage with 10A SBEC
- 7x high torque servos - we recommend 7 Hitec HS-645MG Ultra Torque Ball Bearing Metal Gear Standard Servos
- 2x 6 Cell 22.2V 5000 - 6000 mAh LiPo batteries in series - we recommend the Admiral Pro 6000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)

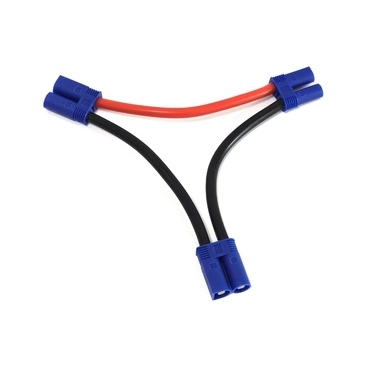

- EC5 2-to-1 series adapter - BenchCraft EC5 2 to 1 Series Adapter with 10 Gauge Silicone Wire
- Electric propeller - we recommend the APC 22x12 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):
- Engine: 50-60cc 2-4 stroke - we recommend the Admiral 60cc Two-Stroke Engine or the NGH GF60 60cc Four-Stroke Engine
- Gas Propeller: Match to your chosen engine
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/5 |
Wingspan |
2259mm / 88.9in |
Length |
2075mm / 81.7in |
Weight |
10976g / 387.2oz |
CG (Center of Gravity) |
Refer to owner's manual |
Power System |
230-240Kv brushless inrunner motor or 50-60cc gas engine (required) |
Electronic Speed Control |
120A (required for electric setup) |
Propeller / EDF |
Match to desired motor or engine (required) |
Servos |
|
Landing Gear |
Rotary 90 degree electric retract gear and CNC suspension metal struts (included) |
Required Battery |
TWO 5 Cell 18.5V 4000 - 6000mAh LiPo batteries with EC5 Connector (required) |
Required Radio |
7+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Plywood and balsa wood |
Skill Level |
Intermediate/Advanced |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
Videos
Product Videos
Spare Parts
Product Spare Parts
Admiral Pro 4000mAh 5S 18.5V 60C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
SKU: ADM6024-009
$15499
Hitec HS-645MG Ultra Torque Ball Bearing Metal Gear Servo Airplane Multi-Pack (7 Servos)
SKU: HRC6005-011
$21700
0 - 32 of 35 results
Upgrades
Product Upgrades
RunCam 6 Action Camera 4K/30FPS with Lens Protection, ND Filter, and SD Card
SKU: RC-RUNCAM6-4K-ND128G
$12499
1 - 8 of 8 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- Black Horse P-47D Thunderbolt 2259mm ARF Owner's Manual
- Black Horse Electric Retract Controller Owner's Manual
Â
If you need any additional assistance, please visit the Motion RC Help Center
