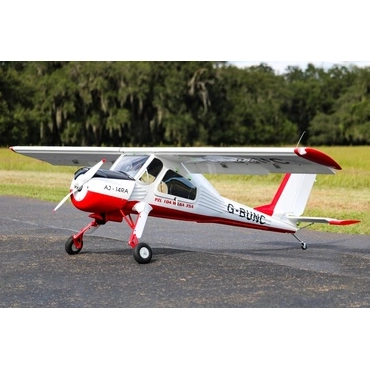

PZL-104 Wilga 2240mm (88.19") Wingspan from Black Horse - Balsa Wood ARF - BHWI00
PZL-104 Wilga is a Polish short-takeoff-and-landing civil aviation utility aircraft designed and originally manufactured by PZL Warszawa-Okęcie, and later by European Aeronautic Defence and Space Company, who had acquired the original manufacturer during 2001.
The model is scaled to approximately 1:6.5 and attention was paid to a true to original appearance and best flight characteristics. The model was designed for electric drives but can also be operated with an internal combustion engine about 15cc displacement.
Visit the Official Black Horse PZL-104 Wilga 2240mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- High level of prefabrication right out of the box
- Lightweight, strong, and fully sheeted laser cut balsa and plywood construction
- Covered in high quality Oracover
- Heavy-duty hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
- Painted and detailed dummy radial engine, cockpit and interior included
- Fiberglass control horns with ball link connector
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly.
- Fiberglass cowl
- Mounts for both electric and gas power options included
- Fully illustrated instruction manual included and also available for download (see tab above)
Includes:
- Black Horse PZL-104 Wilga 2240mm (88.19") Wingspan - ARF
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 1400-1900 Watt brushless outrunner motor - we recommend the Admiral GP20 6320-295Kv Brushless motor
- 60-100 Amp brushless ESC - we recommend ZTW Skyhawk 130A ESC High Voltage with 10A SBEC
- 7x 45g standard servos - we recommend Hitec HS-625MG
- TWO 4 Cell 14.8V 5000mAh 60C LiPo Batteries with EC5 connector - we recommend TWO Admiral Pro 5000mAh 4S 14.8V 60C LiPo Batteries with EC5 Connector
- EC5 2-to-1 series adapter - BenchCraft EC5 2 to 1 Series Adapter with 10 Gauge Silicone Wire
- Electric propeller - we recommend APC 17x10 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):
- Engine: 25-30cc 2-stroke - NGH GT25 recommended or 30-40cc 4-stroke - NGH GF38 recommended
- Gas Propeller: 15x8-16x10 (2 Stroke) 18x10-20x8 (4 Stroke)
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/7 Scale |
Wingspan |
2240mm / 88.19in |
Length |
1625mm / 63,98in |
Weight |
6.4kg / 14.08bs |
CG (Center of Gravity) |
69mm from the leading edge of the wing root |
Power System |
1400-1900 Watt Brushless Outrunner Motor or 20 - 30cc 2 or 30cc 4-stroke (required) |
Electronic Speed Control |
60-100A (required) |
Propeller / EDF |
|
Servos |
|
Landing Gear |
Fixed |
Required Battery |
TWO 4 Cell 14.8V 5000mAh 60C LiPo Batteries (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
Optional |
Hinge Type |
Nylon Heavy Duty pin hinges |
Material |
Balsa and plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
