Sbach 342 V3 2000mm (78.74") Wingspan from Black Horse - Balsa Wood ARF - BHSB000

Version Info: This is the V3 version of the Black Horse Sbach 342. All Sbach's sold after July 2022 are V3.

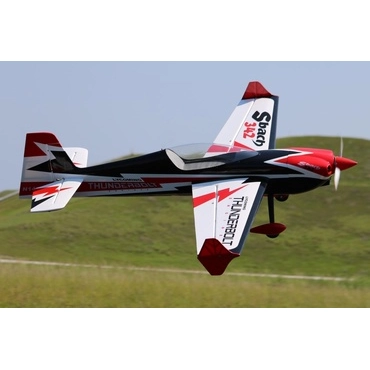

The XtremeAir Sbach 342 (XA42) is a German high performance two-seat aerobatic and touring monoplane. The Sbach 342 is a composite structure low-wing monoplane with a fixed conventional landing gear with a tailwheel and carbon fiber fuselage.

The Black Horse Sbach 342 V3 is lightweight yet durable with large, easy access hatches for your battery/fuel tank. With the recommended setup, the Sbach offers fantastic performance in an eye-catching livery sure to impress.

Visit the Official Black Horse Sbach 342 2000mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Features:

High level of prefabrication right out of the box
Lightweight, strong, and fully sheeted laser cut balsa and plywood construction
Covered in high quality Oracover
Recessed hinges on all control surfaces
Large easy access fuel tank/battery/servo access hatches with sprung loaded latches
Fiberglass twinned control horns with ball link connector
Pull-Pull control system on the rudder for precision control and authority
comprehensive control and fitting accessories included
Two-piece, plug-in wings simplify transportation and assembly.
Fiberglass cowl and landing gear covers/pants
Mounts for both electric and gas power options included
Fully illustrated instruction manual included and also available for download (see tab above)

Includes:

Black Horse Sbach 342 V3 2000mm (78.74") Wingspan - ARF

Requires (Electric):

6 Channel radio - select a minimum 6 channel radio from our Radio Collection
6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
2300-3300 Watt Brushless Outrunner Motor - we recommend the Admiral GP26 6330-245Kv Brushless Motor
85-120 Amp Brushless ESC - we recommend ZTW Gecko 120A ESC OPTO High Voltage Brushless ESC
8-18 Amp UBEC - we recommend ZTW 18A BEC / UBEC
5x standard servos
TWO 6 Cell 22.2V 5000-6000 mAh LiPo Batteries with EC5 connector in series - we recommend Admiral Pro 6000mAh 5S 18.5V 50C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
2 to 1 EC5 series adapter - we recommend Admiral EC5 2 to 1 Series Adapter
Electric propeller 10S - we recommend the APC 17x10 Thin Electric Propeller
6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection

Requires (Gas):

Engine: 30-35cc 2-stroke (NGH GT35 recommended). 38-42cc 4-stroke (NGH GF38 recommended)
Gas Propeller: 18x10-20x8 (2 Stroke and 4 Stroke)

Customer Note

Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
