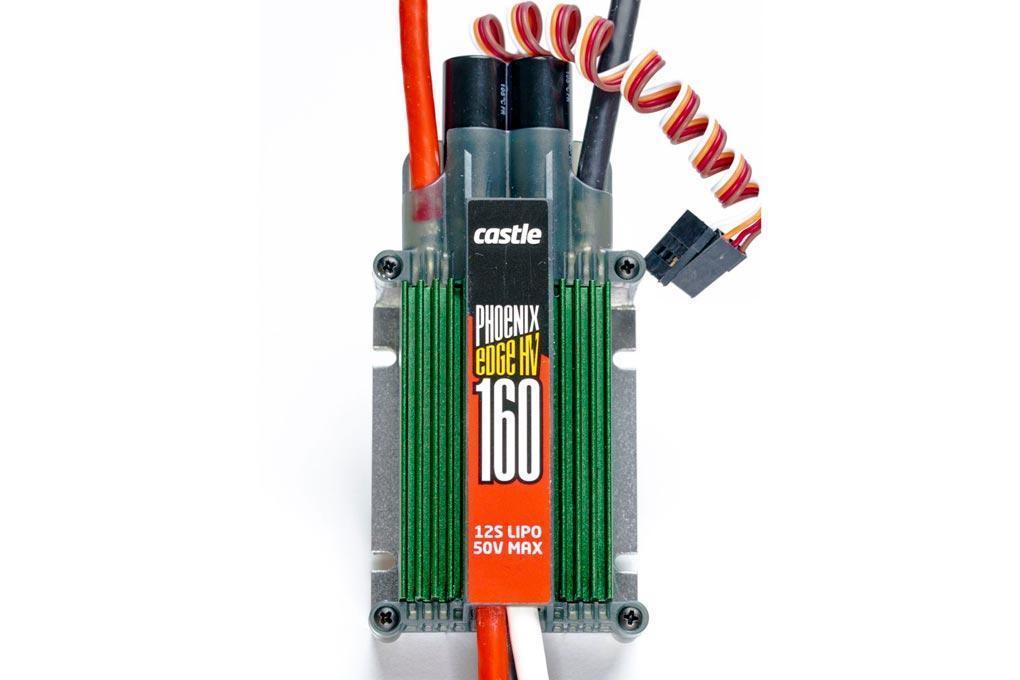

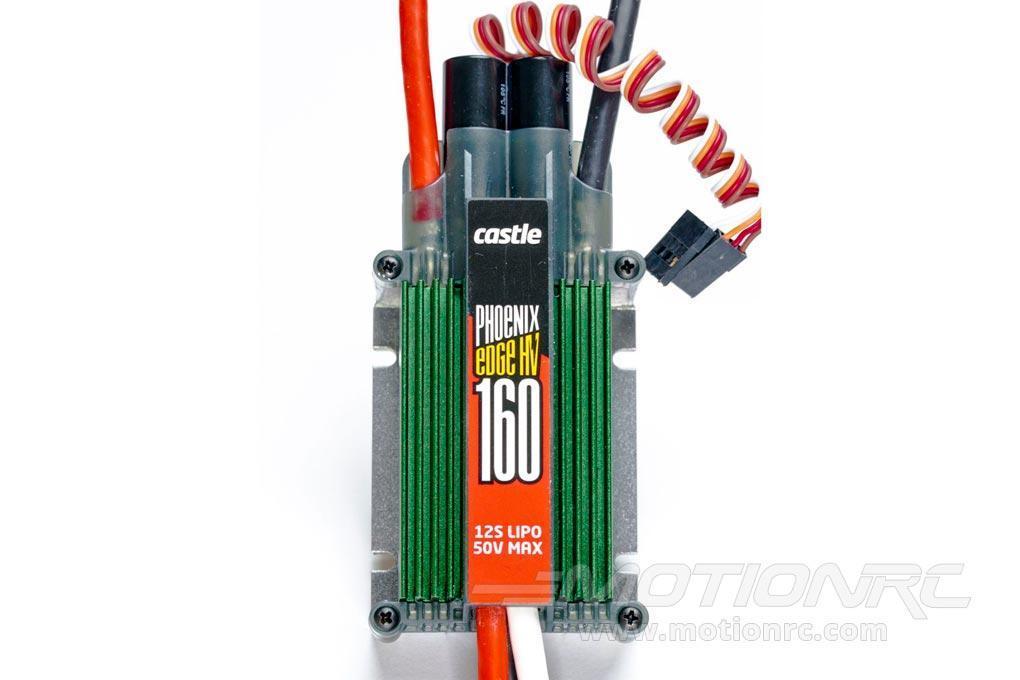

Phoenix Edge High Voltage 160A ESC from Castle Creations - 010-0103-00
This is the Castle Creations Phoenix Edge HV 160 50V 160 Amp ESC. The next evolution in speed controller technology has arrived with the debut of the Phoenix Edge series ESC's. The Edge series features a user programmable auxiliary wire capable of functions modelers have only dreamed of, until now. The white auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors, be used as an ESC arming lock or as a receiver arming lock. Combined with the data logging capability the Edge series of controllers offer, users can enjoy unparalleled versatility.
The Phoenix Edge HV 160 is intended for use in helicopters ranging from 700 to 800 size, and giant scale fixed wing aircraft. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter.
Features:
- Designed for 700-800 size helicopters but great for giant scale aircraft as well
- White auxiliary wire can be used for helicopter governor gain input adjustments mid-flight, serve as an audible beacon after an “unexpected landing”, act as an RPM output for 3-axis gyros that support RPM sensors and be used as an ESC arming lock or as a receiver arming lock
- Fully programmable using Castle Link USB adapter
- Premium performance at a great price
- Programmable using the Castle PHX-LINK USB Cable
Includes:
- Castle Creations Phoenix Edge High Voltage 160A ESC
- Female 5.5mm bullets added, male 5.5mm bullets included (will need to be added to the motor)
Requires:
- Battery connectors - select your choice of connector in our Battery Connector Collection
Product Specifications:
Length |
108.4mm / 4.3in |
Width |
50.8mm / 2.00in |
Height |
31.5mm / 1.20in |
Weight |
232.8g |
MAX Output |
Continuous Current 160A |
Burst Output |
N/A |
Battery |
3-12 Lipo |
BEC Output |
None |
Power Connector |
None |
Motor Connector |
None |
Spare Parts
Product Spare Parts
1 - 4 of 4 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
Product Updates:
- November 18, 2016 - Castle Creations ESCs are NOT compatible with Freewing motors. ZTW brand ESCs are recommended upgrades when using a Freewing motor.
