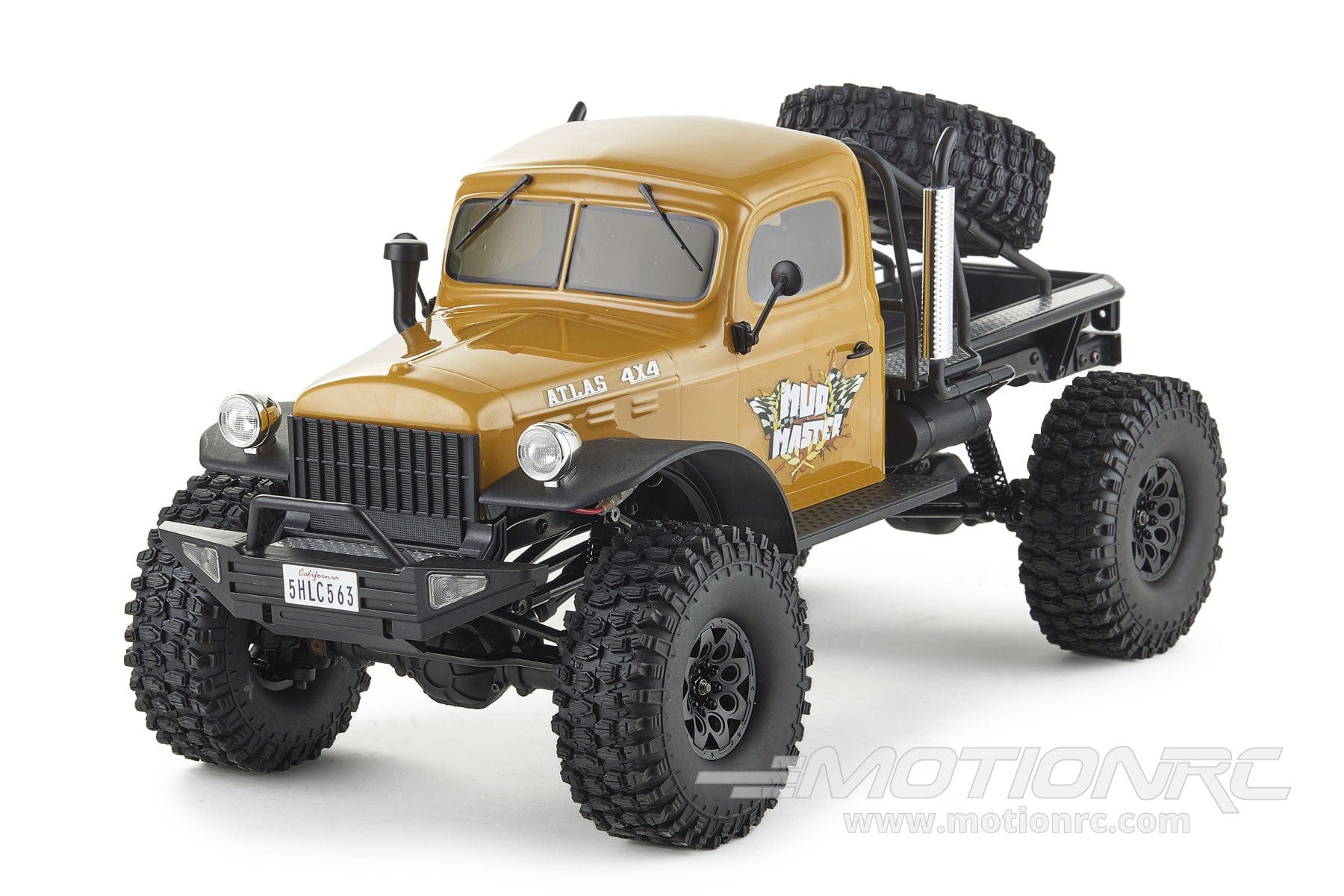

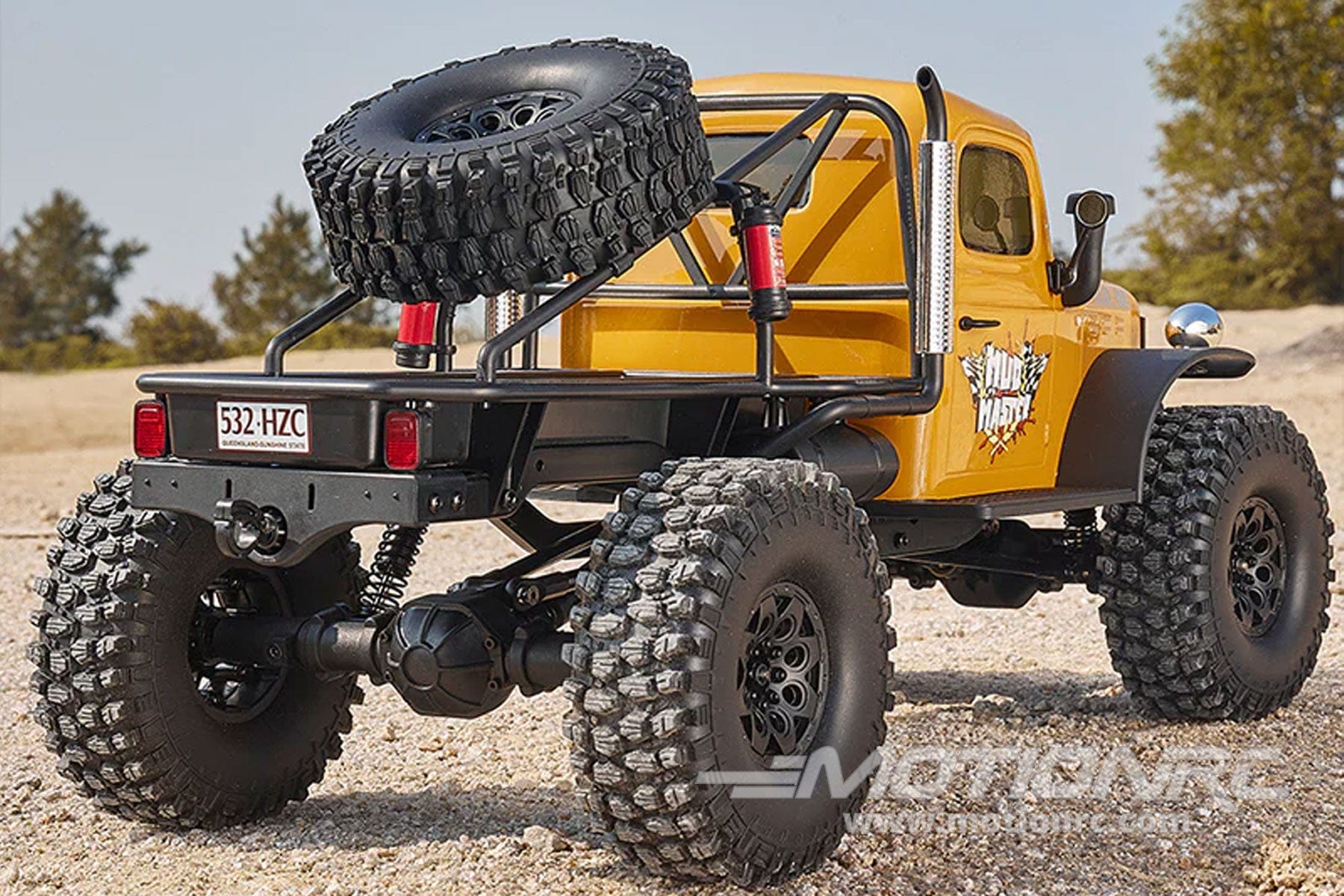

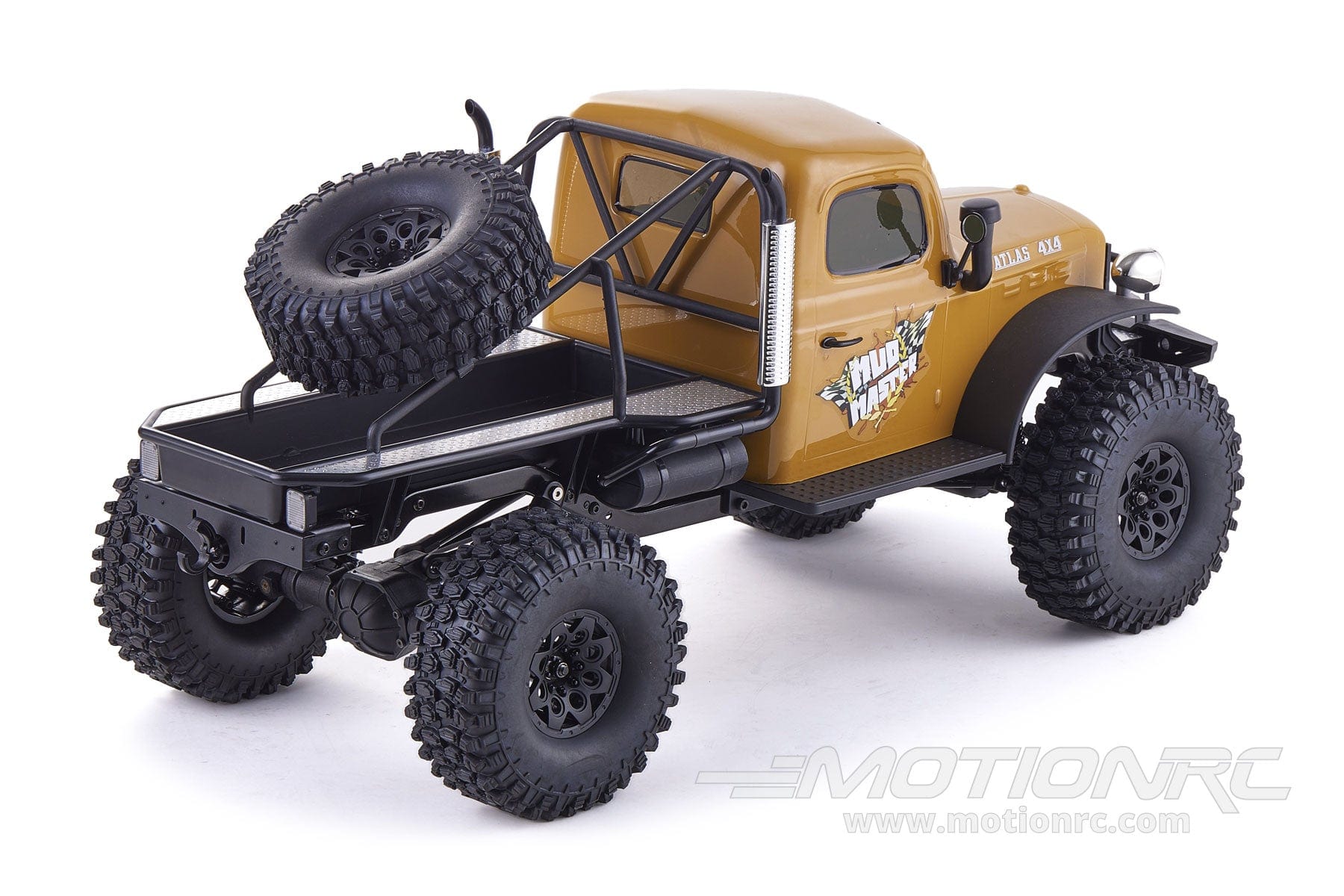

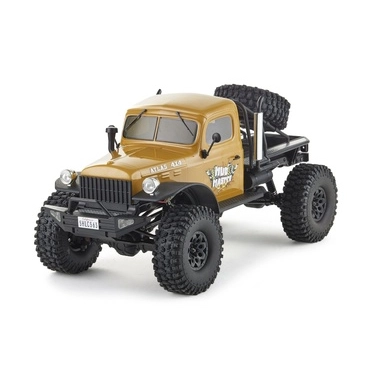

Atlas 4x4 Yellow 1/10 Scale 4WD Crawler - RTR from FMS - FMS11036RSYL
Version Info: This truck is delivered as "RTR", however does require 4 x AA batteries for the transmitter, a 2S 5000mAh LiPo with XT60 connector, and suitable LiPo battery charger (see Requires below for details).
The 1:10 Atlas 4WD crawler is perfect for hardcore crawling action and features a capable, heavy duty four-link suspension system coupled with a versatile two-speed transmission that can be remotely shifted on the fly from the transmitter. The lightweight, durable factory-painted polycarbonate bodyshell is available in three colors and conveniently designed to tilt forward, allowing easy access for battery installation/removal and maintenance. Additional realism is provided with details such as spotlights, tow hooks, muffler, fire extinguisher, and more.
Enjoy an impressive crawling experience by combining the versatile, go-anywhere fun of the FMS Atlas with Motion RC’s parts and technical support, industry-leading customer service and product selection for a package that cannot be beat!
Visit the Official FMS Atlas 4x4 1/10 Scale 4WD Crawler Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Convenient Body Mounting System The Atlas features a simple and convenient tilt-forward body mount system that allows easy access to battery and electronics. |
 |
120mm AT Tires The grippy all-terrain tires used on the Atlas deliver the perfect combination of traction and sidewall compliance to master the most challenging climbs or traverse difficult obstacles. |
 |
Metal Chassis with Four-Link Suspension Metal frame rails with a four-link suspension deliver superior climbing ability and off-road performance. |
 |
Composite Roll Cage A sturdy composite nylon roll cage offers protection for the body in the event of a rollover, and the functional spare tire provides a scale look and a practical spare. |
 |
35T 550 Brushed Motor The specifically designed brushed motor delivers the torque and smoothness required for a top-notch chassis to perform at its best! |
 |
Personalized Stickers Make the Atlas your own with various included decorative sticker options. |
Features:
- Assembled and Ready-to-Run (additional items required)
- Complete ball bearings
- 100% metal-geared transmission
- Composite nylon roll cage
- Metal chassis frame rails
- Four-link suspension
- Convenient tilt-up body mounting system
- Factory-painted and decorated body
- Includes addition stickers for personalization
- 120mm All-terrain crawler tires
- Powerful 35T 550 brushed crawler motor
- Reliable 2.4 GHz radio system
Includes:
- FMS Atlas 4x4 Yellow 1/10 Scale 4WD Crawler - RTR
- 2.4GHz transmitter
- 2-in-1 receiver / 40A ESC (installed)
- 550 brushed motor (installed)
- 15kg metal digital servo(installed)
- Product manual
Requires:
- 2 cell 7.4V 5000 mAh LiPo battery with XT60 connector - we recommend Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with XT60 Connector
- Four (4) AA size batteries for the radio transmitter we recommend Admiral NiMH AA Rechargeable Batteries (4 Pack)
- Minimum 2 cell battery charger - select a minimum 2 cell battery charger from our Battery Collection
Product Specifications:
Model Scale |
1/10 |
Length |
537mm / 20.9in |
Width |
241mm / 9.4in |
Height |
247mm / 9.6in |
Weight (No Battery) |
2,536g / 91oz |
Wheelbase |
340mm / 13.2in |
Ground Clearance |
79mm / 3.1in |
Body |
Polycarbonate, factory painted |
Chassis |
Metal/composite ladder-type |
Drivetrain |
4WD |
Wheel Size (Diameter x Width) |
N/A |
Wheel Hex Size |
12mm |
Tire Tread |
All-terrain |
Bushing Material |
N/A |
Suspension |
Four-link with dampers |
Shock Type |
Oil-filled, coil-over |
Transmission |
4WD shaft-driven |
Gear Pitch |
N/A |
Internal Gear Ratio |
N/A |
Final Drive Ratio |
N/A |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
No |
Ball Bearings |
Yes |
Brakes |
Electronic |
Electronic Speed Control |
Brushed 2-in-1 RX/ESC (included) |
Motor |
550-size brushed |
Battery |
2S 7.4V LiPo (not included) |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
1 |
Radio |
4 channel (included) |
Lights |
Yes |
Sound |
No |
Water Resistant |
Yes |
Skill Level |
Beginner |
Assembly Time |
Less than 15 minutes |
Recommended Environment |
Outdoors |
