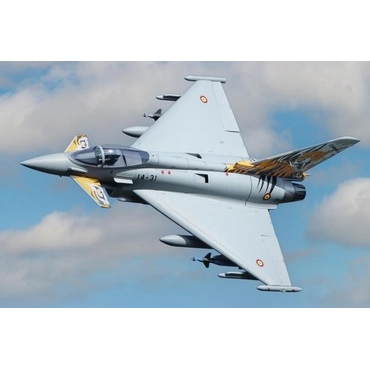

Eurofighter Typhoon 6S 90mm EDF Jet from Freewing - ARF PLUS - FJ31912AP
Version Info: This is the ARF+ version for pilots who wish to install their own power system. All primary electronics including servos and landing gear come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
Note: This new 2023 version of the Freewing Eurofighter comes with basic decals pre-applied, however the tiger decals are UNAPPLIED. This allows our customers to have more freedom to choose their own custom decals if so desired.
The Freewing Eurofighter is one of the most unique EDF jets in both looks and function, and now it's available in this all new ARF PLUS version for 2023 and beyond. This is not a retool of the old version. This is a 100% new Eurofighter. There were two big goals for this model. This model had to be fast and it had to be significantly more scale than the old version from years ago. To achieve these goals the Eurofighter has completely new molds from the ground up. Place your favorite power system in the fuselage and behold the beautiful new Typhoon!
Visit the Official Freewing 90mm Eurofighter Typhoon Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Scale, CNC Landing Gear The all-new Freewing Eurofighter Typhoon sports impressively looking scale, grey-painted landing gear, CNC-made for both outstanding looks and durability. |
 |
Functioning Scale Airbrake The Typhoon includes a functioning scale airbrake, operating on a linear electric actuator to help aid in high alpha maneuvers as well as slowing the plane down after landing. |
 |
Spring-Loaded Top Cheaters Incorporating an innovative ammenity, Freewing has added spring-loaded top-side cheaters that only open and close based on air pressure differential. |
 |
100% All-New Molding The Eurofighter 2023 addition is not a re-tooling from the older version. It is an entirely new mold with new and updated features and closer-to-scale detail that dwarfs the original version. |
Features:
- NEW! Completely redesigned mold from front to back
- NEW! Functional scale air brake for high alpha and help with shorter runways
- NEW! Tiger decals now come unapplied to allow customers the flexibility to choose their own custom decals if desired
- Scale weapon set and pylons (10 total) included
- Flight surfaces are controlled with 9g and 17g digital metal gear servos for precise movement, strength and long life
- Bright LED landing and navigation lights for enhanced realism and dawn/dusk maneuvers
- Electronic retractable landing gear with CNC shock-absorbing struts and metal trunnions
- Scale, sequenced gear doors provide added realism and improved aerodynamics
- Upgraded pushrod clevis and metal ball head connectors provide a robust connection between servo and control surface and eliminate "play"
- Nylon hinges on all control surfaces (superior to foam hinges)
Includes:
- Freewing Eurofighter Typhoon 90mm EDF Jet - ARF PLUS
- Servos, lights and retracts all pre-installed
- Scale weapon set and pylons (10 total)
Requires:
- 90mm power system (120A+ ESC, inrunner motor, and 90mm EDF unit)
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- 6 Cell 22.2V 5000 - 6000 mAh Lipo Battery with EC5 connector - we recommend the Admiral Pro 6000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Model Scale |
N/A |
Wingspan |
1030mm / 40.5in |
Length |
1450mm / 57in |
Empty Weight |
3230g |
CG (Center of Gravity) |
215mm from the leading edge of the wing's root |
Required Power System |
Brushless Inrunner Motor (required) |
Required Electronic Speed Control |
120A+ (required) |
Required Propeller / EDF |
9 to 12-Blade EDF (required) |
Servos |
|
Landing Gear |
Electronic, CNC retractable scale gear |
Required Battery |
6 Cell 22.2V 5000-6000 mAh LiPo Battery (required) |
Required Radio |
7+ Channel (required) |
Ailerons |
Elevons |
Elevator |
Elevons |
Rudder |
Yes |
Flaps |
No |
Lights |
Yes |
Hinge Type |
Nylon |
Material |
EPO Foam |
Skill Level |
Advanced/Expert |
Build Time |
4+ Hours |
Recommended Environment |
Outdoors |
