Freewing PLAAF J-10A Blue/White High Performance 90mm EDF Jet - PNP
Popular Bundle
PLAAF J-10A Blue/White with 12-Blade High Performance 6S 90mm EDF Jet from Freewing - PNP - FJ32112P
Version Note: This is the blue and white 6S version which comes with a 90mm 12-Blade EDF 6S Power System with a 3668-1960Kv inrunner brushless motor and a thrust reversing 120A ESC.
The J-10A is a medium-weight, single-engine multirole aircraft designed for air-to-air combat and other various strike missions. Produced by the Chengdu Aircraft Corporation (CAC), the J-10 is used in the People’s Liberation Army Air Force (PLAAF) and became operational in 2006. Utilizing its delta-wing aerodynamic configuration with canards and fly-by-wire system, the J-10A is capable of turning in a much tighter radius than conventional aircraft.

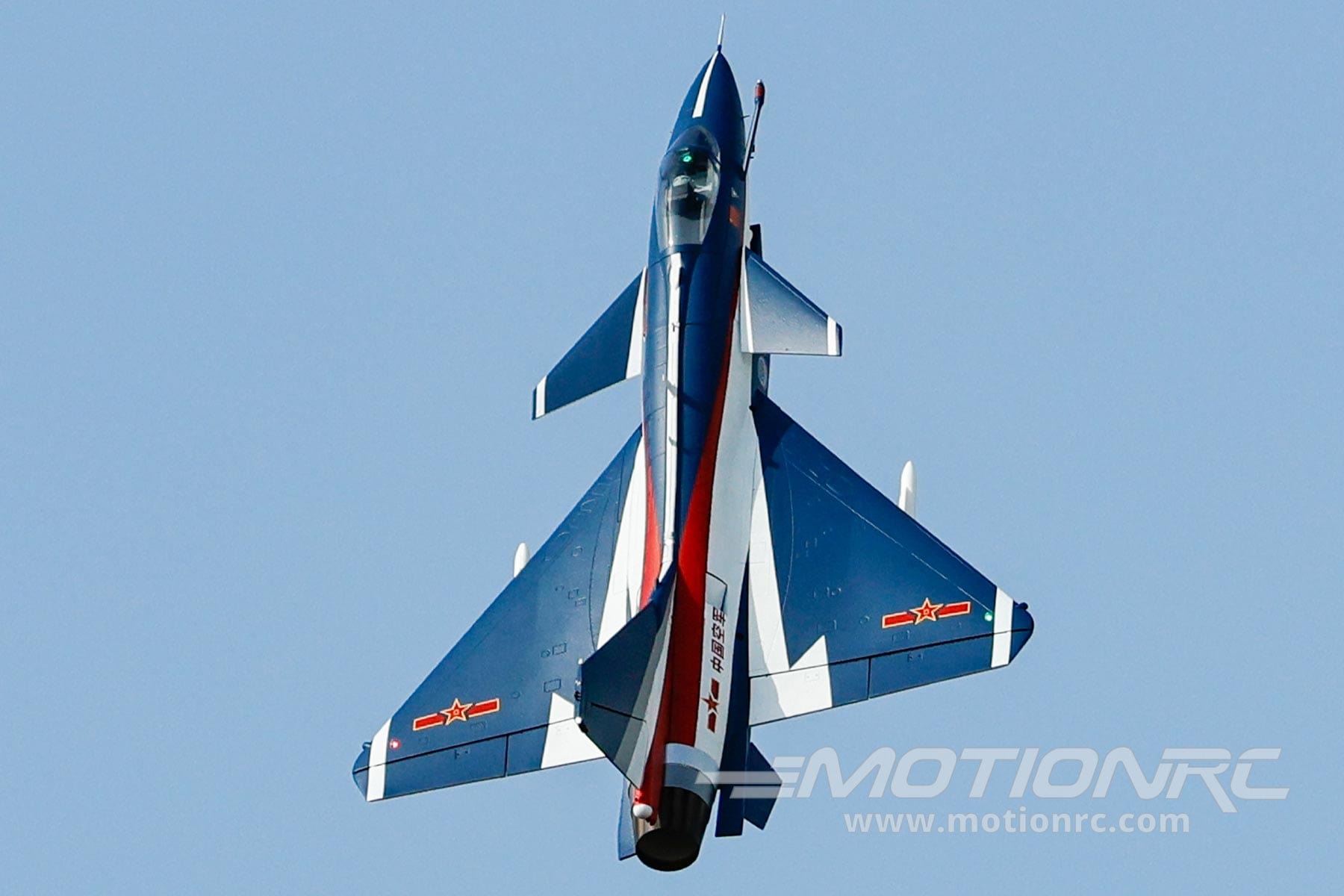

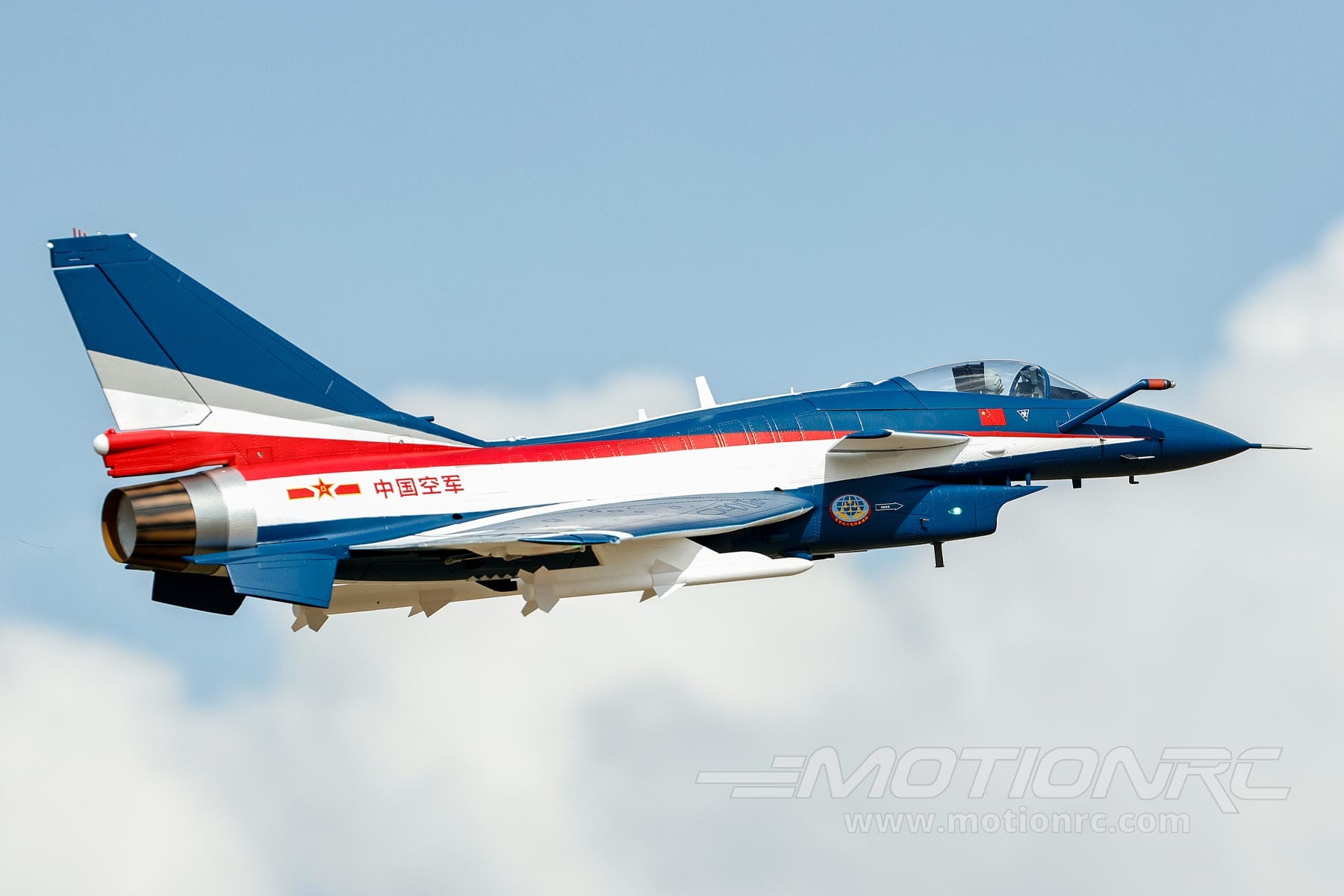

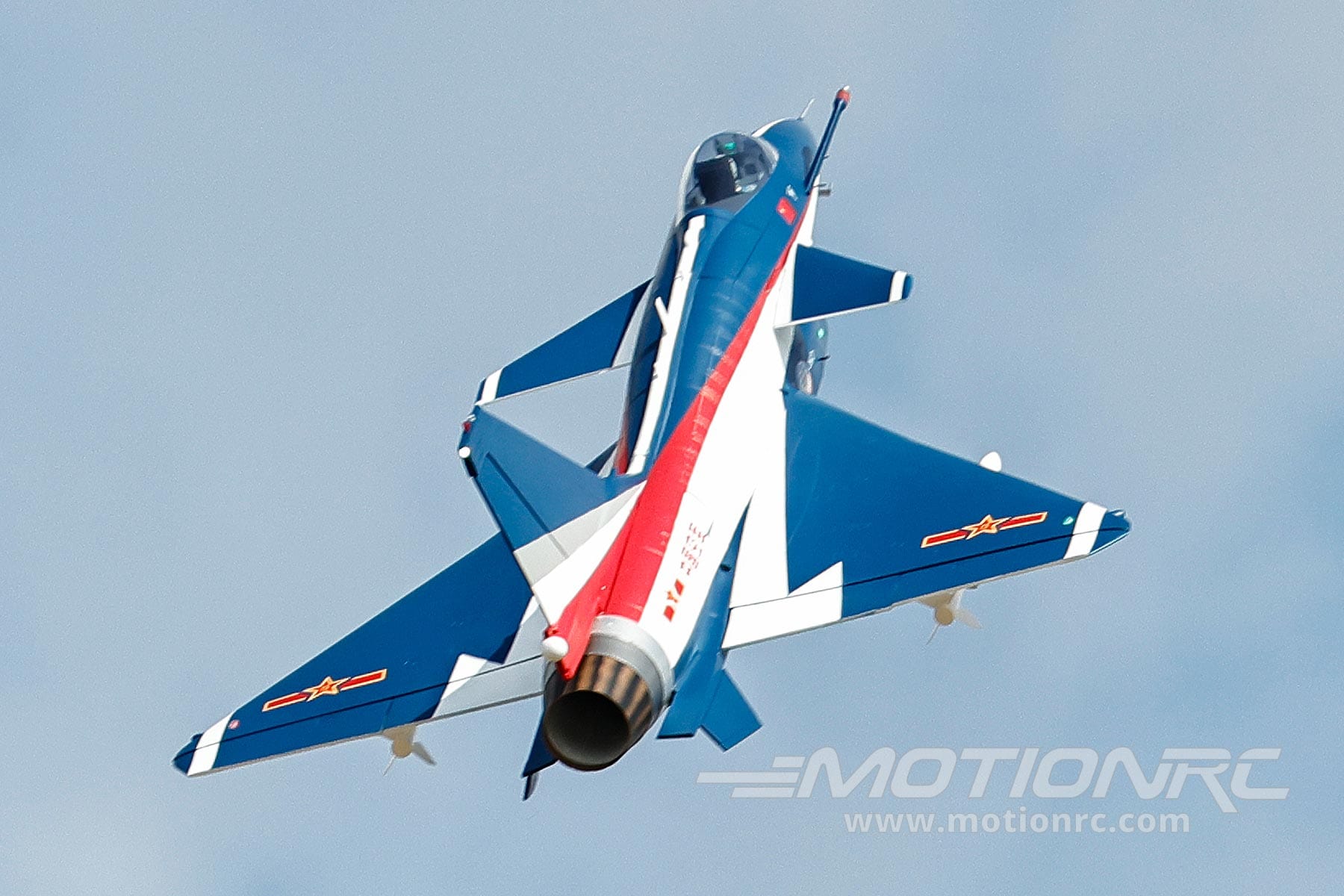

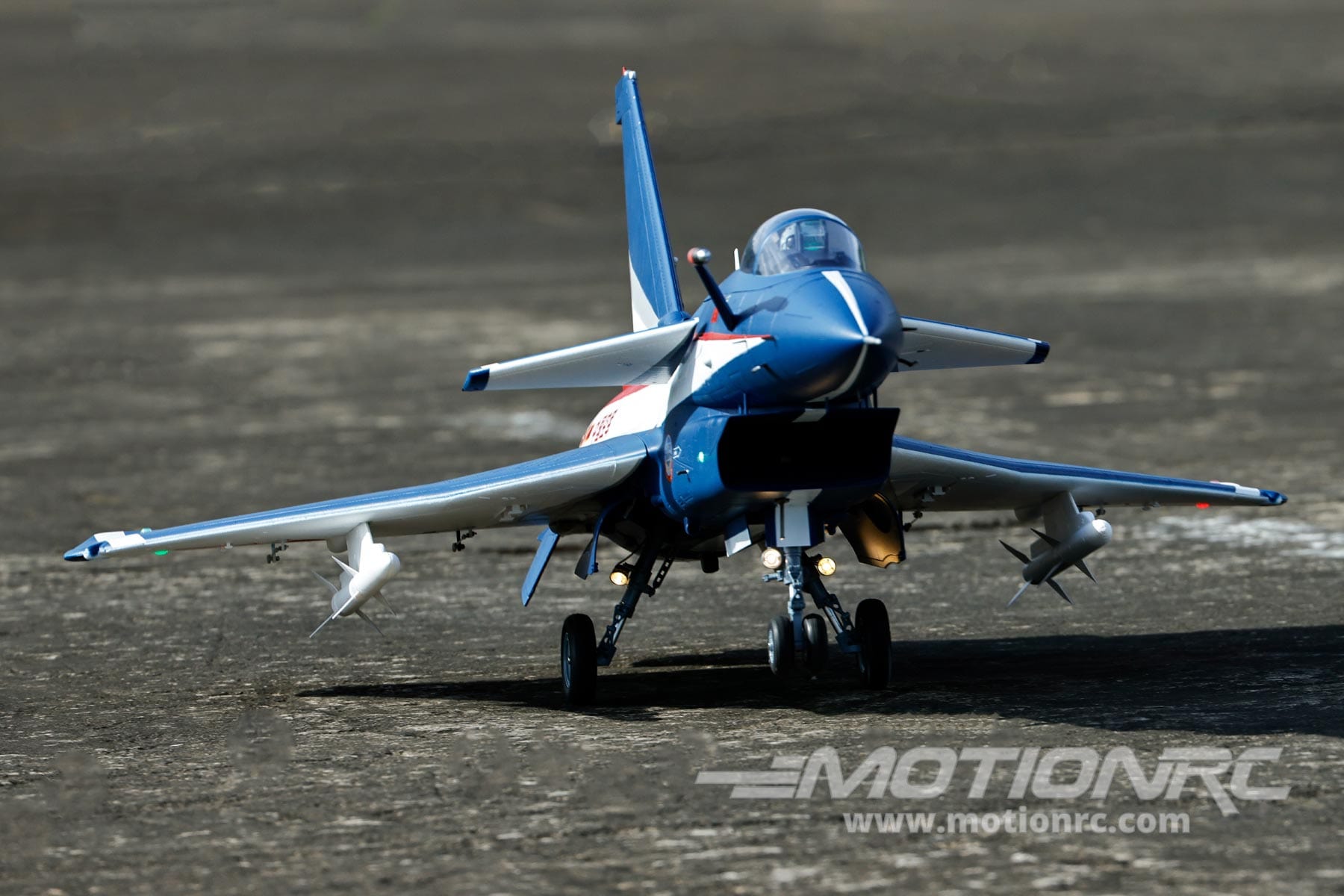

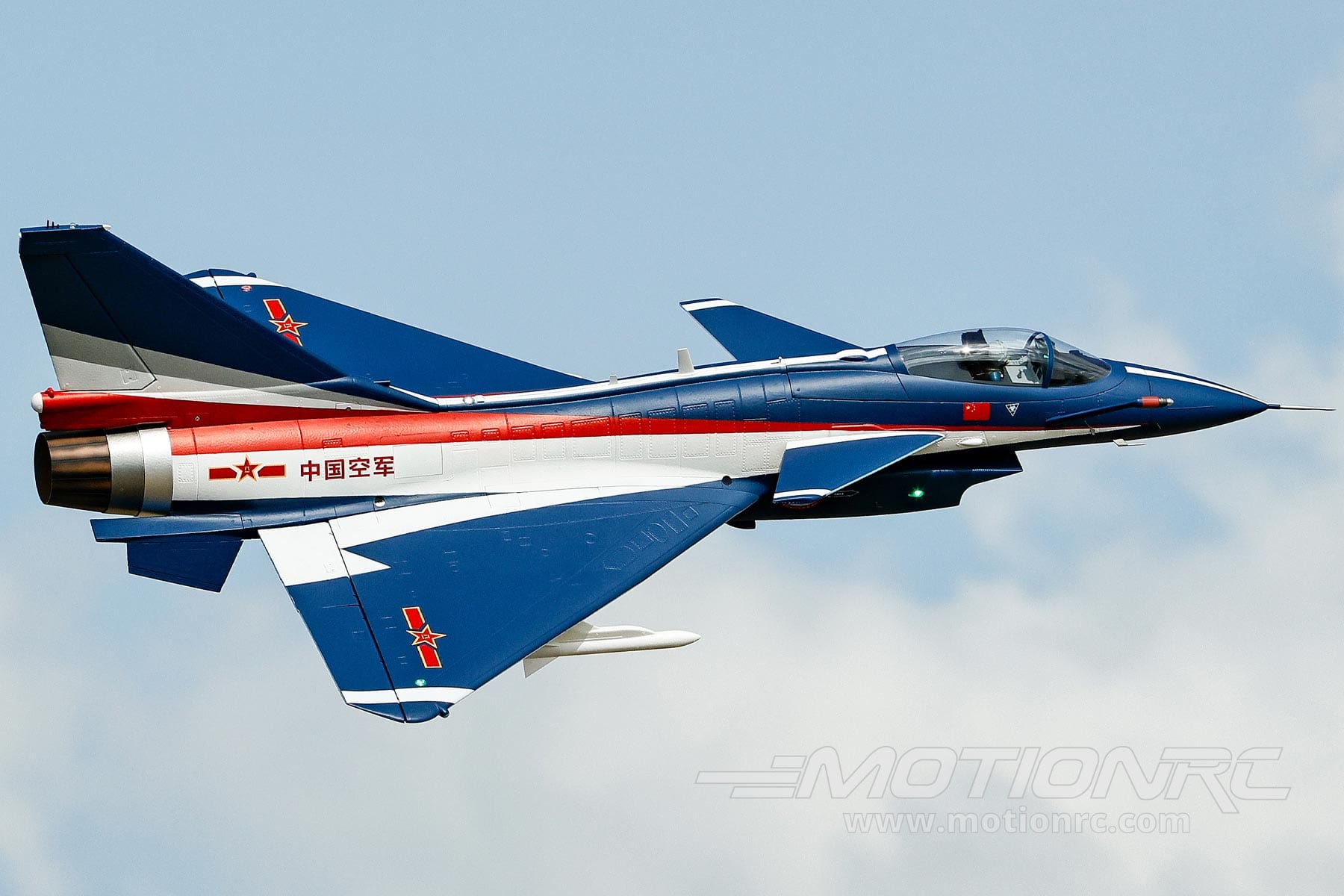

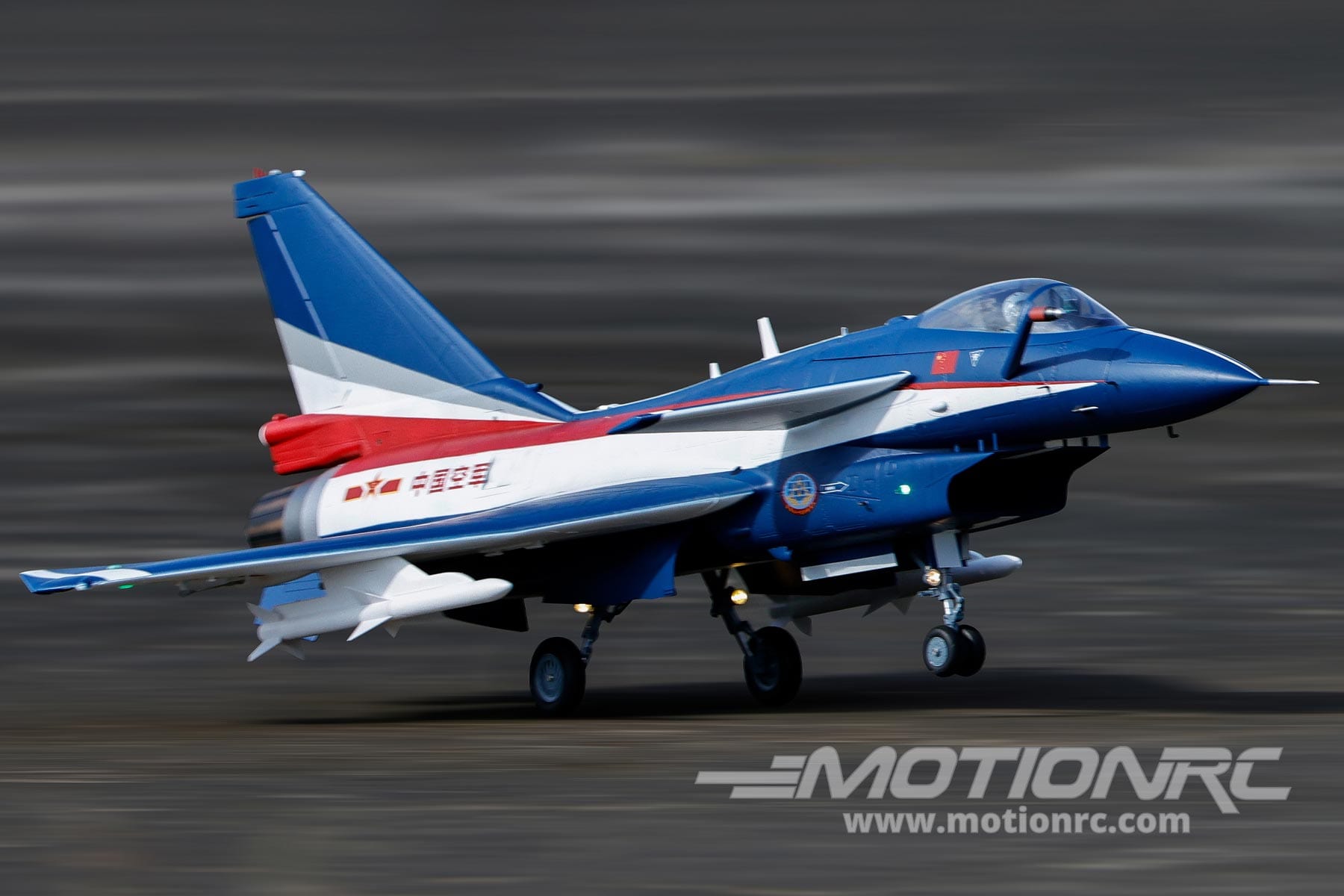

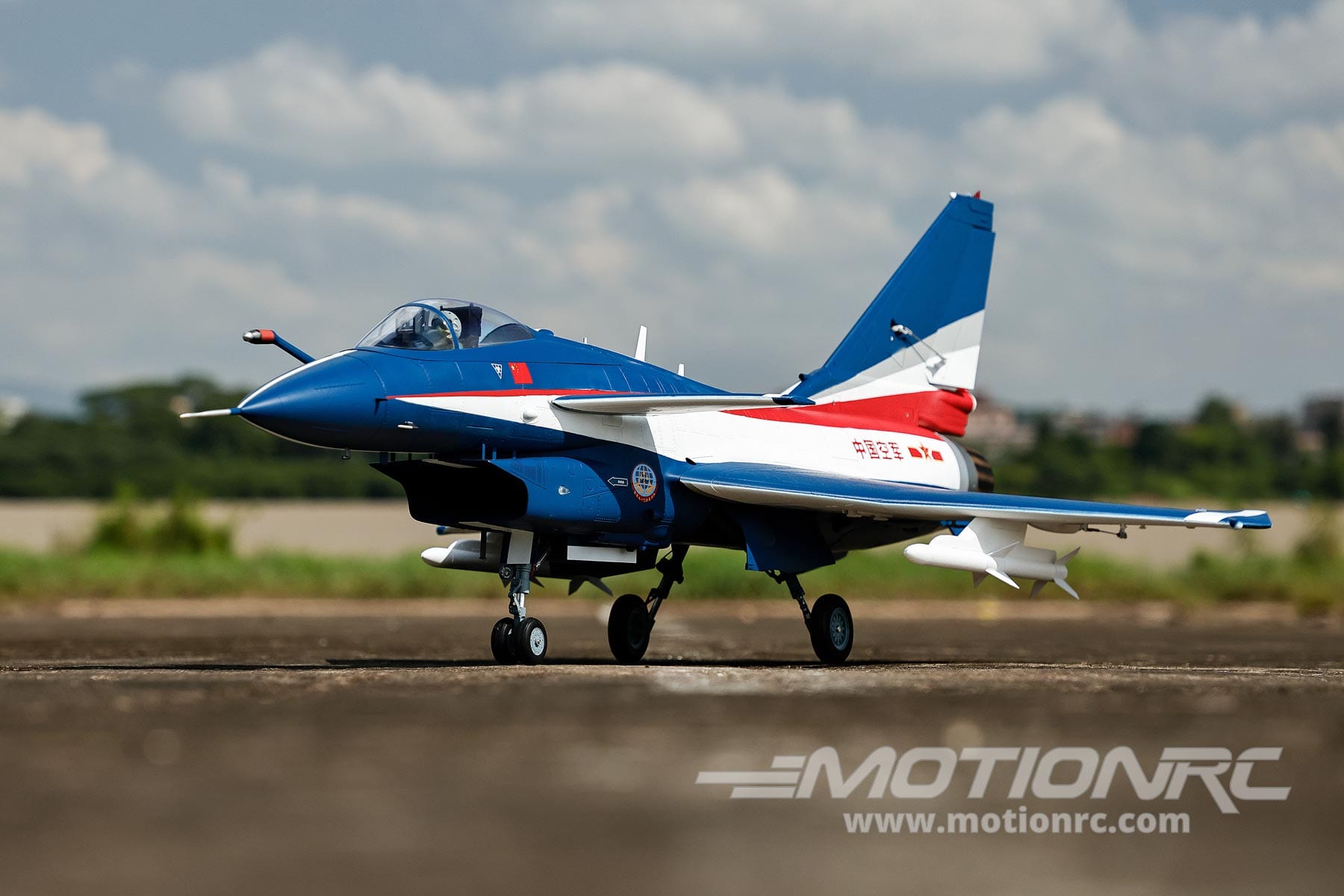

The Freewing J-10A 90mm EDF Jet is a highly detailed, scale version of the real J-10A, and features the J-10 “Blue and White” livery. One of the most detailed releases from Freewing, the J-10A features 11 daylight bright LED lights, including one to illuminate the Heads Up Display (HUD), many scale detail parts, as well as a quick-release ordnance package. Additionally, the Freewing J-10A utilizes screwless, quick-release wings making transport to and from your flying site a breeze.
 |
Super Scale Details Throughout The Freewing J-10A is incredibly well appointed for an EPO model with several attention-to-detail scale pieces. |
 |
Screwless, Quick-Release Wings The Freewing J-10A comes with screwless, quick-release wings for fast and easy access for transport or storage. |
 |
Illuminated HUD Panel A hint of a new era in the super scale EPO foam class, the J-10A includes an illuminated HUD panel. |
 |

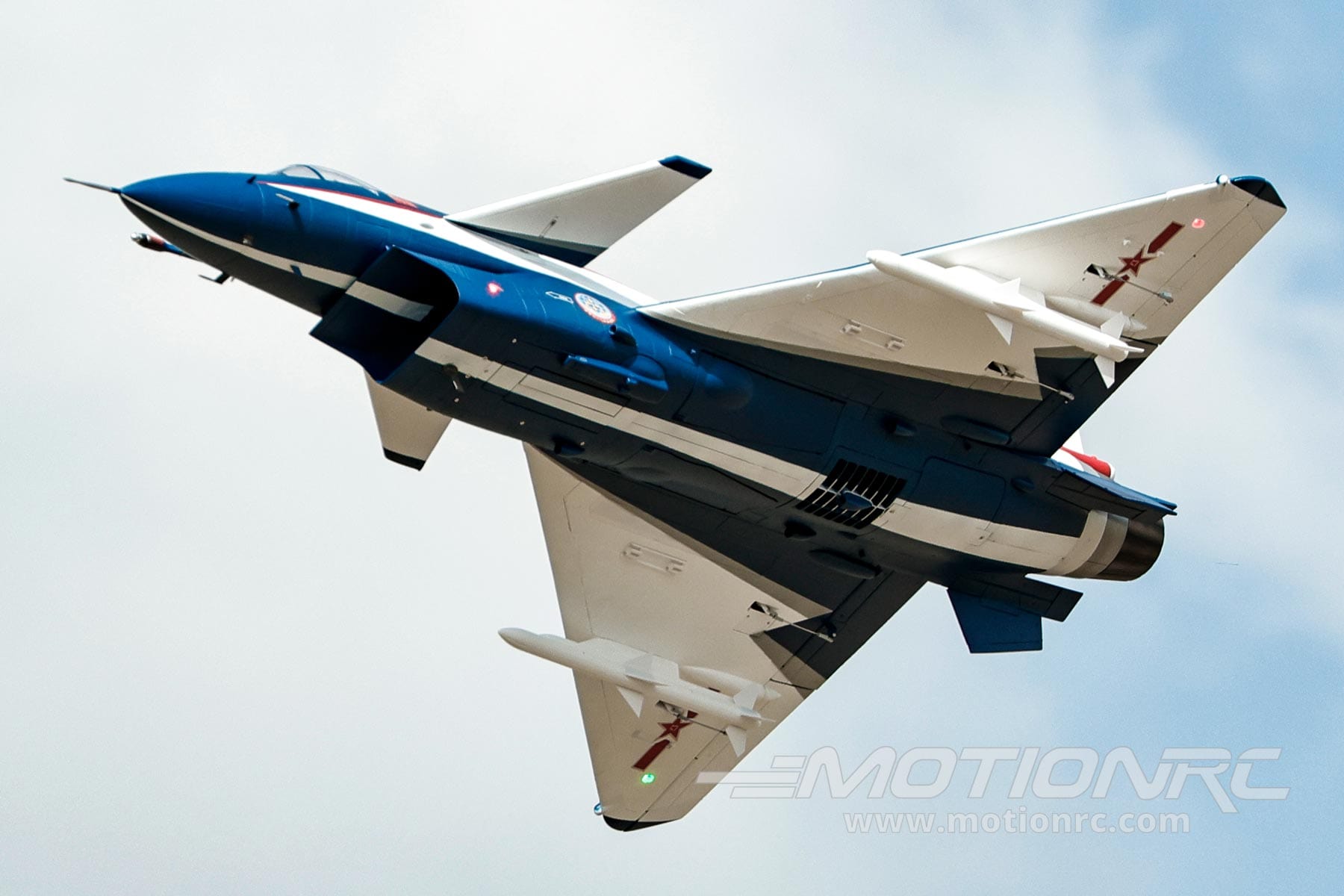

Ordnance Included The quick-release ordnance comes included right out of the box to finish off that super scale appeal. |
 |
Functioning Canards This J-10A comes with fully-functional canards enhancing the scale detail emulating the full scale version. |
 |
Spring-Loaded Top Cheaters Incorporating an innovative ammenity, Freewing has added spring-loaded top-side cheaters that only open and close based on air pressure differential. |
 |
Retracts with CNC-Machined Shock-Absorbing Struts Another primary scale appeal and feature of any detailed 90mm EDF jet, the J-10A comes with electric retracts including CNC-machined shock-absorbing struts. |
 |
11 Daylight-Bright LED Lights The 11 Daylight-Bright LED lights complete the package of scale detail and appeal in dawn, daylight and dusk hours. |
Features:
- NEW! An alternate blue and white livery from the military grey livery
- Screwless, quick release wings for fast and easy transport and storage
- Illuminated Heads Up Display (HUD) adds a new level of super scale detail
- 12 Blade factory-balanced 90mm EDF with 3668-1960Kv (6S) or 4075-1350Kv (8S) Inrunner Motor
- 120A ESC with Thrust Reversing to help decrease landing roll out
- Electronic, retractable landing gear with CNC-machined aluminum, shock absorbing struts
- Spring-Loaded Top Cheaters
- 11 Daylight bright LED lights

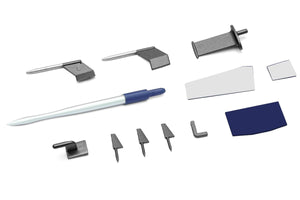

- Scale details include antennas, pitot tube, cockpit detail, lighting and ordnance
- Conveniently designed quick detach ordnance included right out of the box
- Nylon hinges on all control surfaces
- Removable, magnetic nose cone for convenient transport and replacement
Includes:
- Freewing PLAAF J-10A Blue/White High Performance 90mm EDF Jet - PNP
- 12-Blade EDF power system (installed)
- 3668-1960Kv inrunner brushless motor (installed)

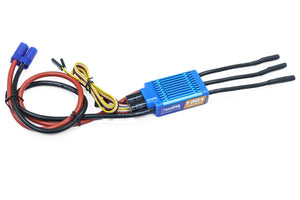

- 120A ESC with thrust reversing and EC5 connector (installed)
- Electronic retractable landing gear (installed)
- Servos, LED Lights (installed)
Requires:
- 5 Channel radio (6 for thrust reversing) - select a minimum 5 channel radio from our Aircraft Radio Collection
- 5 Channel receiver - select a minimum 5 channel receiver from our Aircraft Receiver Collection
- 6 Cell 22.2V 5000 - 6000 mAh LiPo battery - we recommend Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Power System and Electronics Compatibility:
This model is designed to operate using the included ESC and its integrated BEC, which is specifically matched to the onboard electronics. To ensure reliable performance and prevent damage, always power the aircraft's receiver and electronics through the installed ESC using the main flight battery. Do not use any power source other than the main flight battery to power the model, otherwise damage will occur to the electronics.
The receiver, servos, and other onboard electronics included with this model are rated for a maximum input voltage of 5.5V. When selecting your ESC and power system, verify that the BEC output supplied to the receiver and onboard electronics does not exceed 5.5V. Using a higher voltage will damage the aircraft's electronics.
Product Specifications:
AGE LEVEL : 18 and up
SKILL LEVEL : advanced
BUILD TIME : 3-4 Hours| Model Scale | 1/10 |
| Wingspan | 940mm / 37.0in |
| Length | 1530mm /60.2in |
| Empty Weight | 3235g / 7lbs 2oz (w/o battery) |
| CG (Center of Gravity) | 163mm (6.4") from the leading edge of the wing at the root |
| Power System | 6S 3668-1960Kv Inrunner Brushless Motor |
| Electronic Speed Control | 120A thrust reversing, EC5 Connector |
| Propeller / EDF | 90mm 12-Blade EDF |
| Servos |
|
| Landing Gear | Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
| Required Battery | 6 Cell 22.2V 5000-6000 mAh LiPo with EC5 connector |
| Required Radio | 5 Channel (6 for thrust reverse) (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Canard | Yes |
| Flaps | No |
| Lights | Yes |
| Hinge Type | Nylon Reinforced |
| Material | EPO Foam |
| Skill Level | Intermediate/Advanced |
| Build Time | 2 Hours |
| Recommended Environment | Outdoor, 150+ foot paved runway or short manicured grass |
