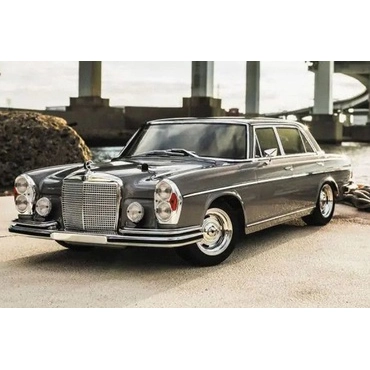

Fazer Mk2 FZ02L 1971 Mercedes-Benz 300SEL 6.3 1/10 Scale 4WD Car - RTR from Kyosho - KYO34436T1
Version Info: This car is delivered as "RTR", however does require 4x AA batteries for the transmitter, a 7.4V 5000mAh LiPo battery and a battery charger, purchased separately (see Requires below for details).
For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source.
Featuring front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included.
The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, batteries for the transmitter and it is backed by Motion RC's world-renowned customer service and technical support. Drive on!
Visit the Official Kyosho Fazer Mk2 FZ02L 1971 Mercedes-Benz 300SEL 6.3 1/10 Scale 4WD Car Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
New Chassis Design Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck. |
 |
Scale Tires Features Vintage Touring Car (VTC) tires and Rostyle type wheels to match it's vintage car style. |
 |
Optimized Handling Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency. |
 |
Two Offset Brake Disc Wheel Hubs Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths. |
 |
New Design Oil Shocks New design oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control. Equipped with long shock end allows a high ride height to pursue true scale appearance. |
 |
Wide Range of Gear Ratio Settings Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary. |
Features:
- “Ultra Scale Body” replicates the fine details of the actual body of the car.
- Full-time 4WD touring chassis with shaft drive that allows anyone to enjoy driving (FZ02L)
- Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis
- Full ball bearings that reduce drive loss equipped throughout the drive system
- Features KS202W steering servo
- Includes completely finished body with color scheme and decals applied
- Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces
- Uses button screws with hexagonal holes in each part. Reliable tightening torque can be applied, and maintenance is possible with even fewer tools
- Performance can be further enhanced by installing various optional parts
Includes:
- Kyosho Fazer Mk2 FZ02L 1971 Mercedes-Benz 300SEL 6.3 1/10 Scale 4WD Car - RTR
- Completed chassis with RC radio installed
- Factory assembled body complete with color scheme
- Syncro KT-231P+ transmitter
- Setting change parts
- Hex wrenches
- Spanner
Requires:
- 4x AA NiMH batteries - we recommend the Admiral AA NiMH 2600mAh Rechargeable Batteries (Pack of 4)
- 7.4V 4000 - 5000mAh LiPo battery - we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with T Connector
- 2S LiPo compatible battery charger - we recommend the SkyRC e3 11W 3 Cell (3S) Compact AC LiPo Battery Charger
Product Specifications:
Model Scale |
1/10 |
Length |
496mm / 19.5in |
Width |
206mm / 8.1in |
Height |
142mm / 5.6in |
Weight (No Battery) |
1650g / 58.2oz |
Wheelbase |
274mm / 10.7in |
Ground Clearance |
N/A |
Body |
ABS Plastic |
Chassis |
FZ02L |
Drivetrain |
4WD |
Wheel Size (Diameter x Width) |
64mm x 27.7mm |
Wheel Hex Size |
N/A |
Tire Tread |
167mm |
Bushing Material |
N/A |
Suspension |
N/A |
Shock Type |
Oil-filled |
Transmission |
N/A |
Gear Pitch |
N/A |
Internal Gear Ratio |
6.54:1 |
Final Drive Ratio |
N/A |
Pinion |
32T (adjustable 29T-37T) |
Spur Gear |
68T |
Differential |
N/A |
Ball Bearings |
Full |
Brakes |
N/A |
Electronic Speed Control |
N/A |
Motor |
550 size 14T brushed motor (G14L) |
Battery |
4x AA alkaline and 1x 7.4V 4000-5000mAh LiPo battery (required) |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
KS202W steering servo |
Radio |
Syncro KT-231P+ transmitter |
Lights |
No |
Sound |
No |
Water Resistant |
N/A |
Skill Level |
Beginner |
Assembly Time |
None |
Recommended Environment |
Smooth paved surfaces |
