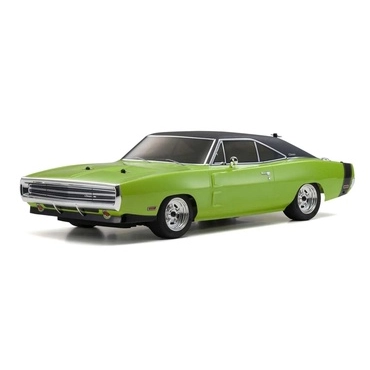

Fazer Mk2 Sublime Green 1970 Dodge Charger Hemi 1/10 Scale 4WD Car - RTR - KYO34417T2
Version Info: This car is delivered as "RTR", however does require 4x AA batteries for the transmitter, a 7.4V 5000mAh LiPo battery and a battery charger, purchased separately (see Requires below for details).
For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear.
In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis.
Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included.
The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, batteries for the transmitter and it is backed by Motion RC's world-renowned customer service and technical support. Drive on!
Visit the Official Kyosho Fazer Mk2 Sublime Green 1970 Dodge Charger Hemi 1/10 Scale 4WD Car Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
New Chassis Design Chassis features a reduced number and variety of screws by making frequently used screws the same size. Most screws are flat head screws that can be removed with a 2mm hex wrench for easy disassembly. |
 |
Brake Disc Wheel Hub Choices Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths. |
 |
Optimized Handling Handling factors such as bump steer and scrub radius are optimized on the front suspension. Simple ball-connected steering knuckles provide reliable steering and suspension movement. Interchangeable front-rear and left-right hub carriers optimize spare parts utilization and improve maintenance efficiency. |
 |
Light Handling, Precise Control New design rebuildable oil shocks mark an evolutionary step up from previous models. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control. |
 |
New VTC Tires New design Vintage Touring Car (VTC) tires & Rostyle type wheels to match vintage car style. |
 |
Wide Range of Gear Ratio Settings Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary. |
Features:
- Ultra Scale Body” replicates the fine details of the actual body of the car. Kyosho took a step further in scale realism
- New design shaft drive full-time 4WD touring chassis (FZ02)
- Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and a battery with charger for the chassis
- Equipped with 2-bevel grease-filled gear diffs on front and rear
- Large size dog bones and cup joints realize superior reliability and durability
- Belt mounting battery compartment allows various battery types to be used
- Full ball bearings that reduce drive loss equipped throughout the drive system
- Features KS202W waterproof steering servo
- Includes completely finished body with color scheme and decals applied
- Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces
- Performance can be further enhanced by installing various optional parts
Includes:
- Kyosho Fazer Mk2 Sublime Green 1970 Dodge Charger Hemi 1/10 Scale 4WD Car - RTR
- Completed chassis with R/C radio installed
- Factory assembled body complete with color scheme
- Syncro KT-231P+ transmitter
- Setting change parts
- Hexagonal wrench
- Spanner
Requires:
- 4x AA NiMH batteries - we recommend the Admiral AA NiMH 2600mAh Rechargeable Batteries (Pack of 4)
- 7.4V 4000 - 5000mAh LiPo battery - we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with T Connector
- 2S LiPo compatible battery charger - we recommend the SkyRC e3 11W 3 Cell (3S) Compact AC LiPo Battery Charger
Product Specifications:
Model Scale |
1/10 |
Length |
507mm / 19.9in |
Width |
210mm / 8.3in |
Height |
128mm / 5.1in |
Weight (No Battery) |
1650g / 58.2oz |
Wheelbase |
274mm / 10.7in |
Ground Clearance |
N/A |
Body |
ABS Plastic |
Chassis |
FZ02L |
Drivetrain |
4WD |
Wheel Size (Diameter x Width) |
64mm x 27.7mm |
Wheel Hex Size |
N/A |
Tire Tread |
167mm |
Bushing Material |
N/A |
Suspension |
N/A |
Shock Type |
Oil-filled |
Transmission |
N/A |
Gear Pitch |
N/A |
Internal Gear Ratio |
6.54:1 |
Final Drive Ratio |
N/A |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
N/A |
Ball Bearings |
Full |
Brakes |
Disc |
Electronic Speed Control |
N/A |
Motor |
550 size 14T brushed motor (G14L) |
Battery |
4x AA alkaline and 1x 7.4V 4000-5000mAh LiPo battery (required) |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
N/A |
Radio |
Syncro KT-231P+ transmitter |
Lights |
No |
Sound |
No |
Water Resistant |
N/A |
Skill Level |
Beginner |
Assembly Time |
None |
Recommended Environment |
Smooth paved surfaces |
