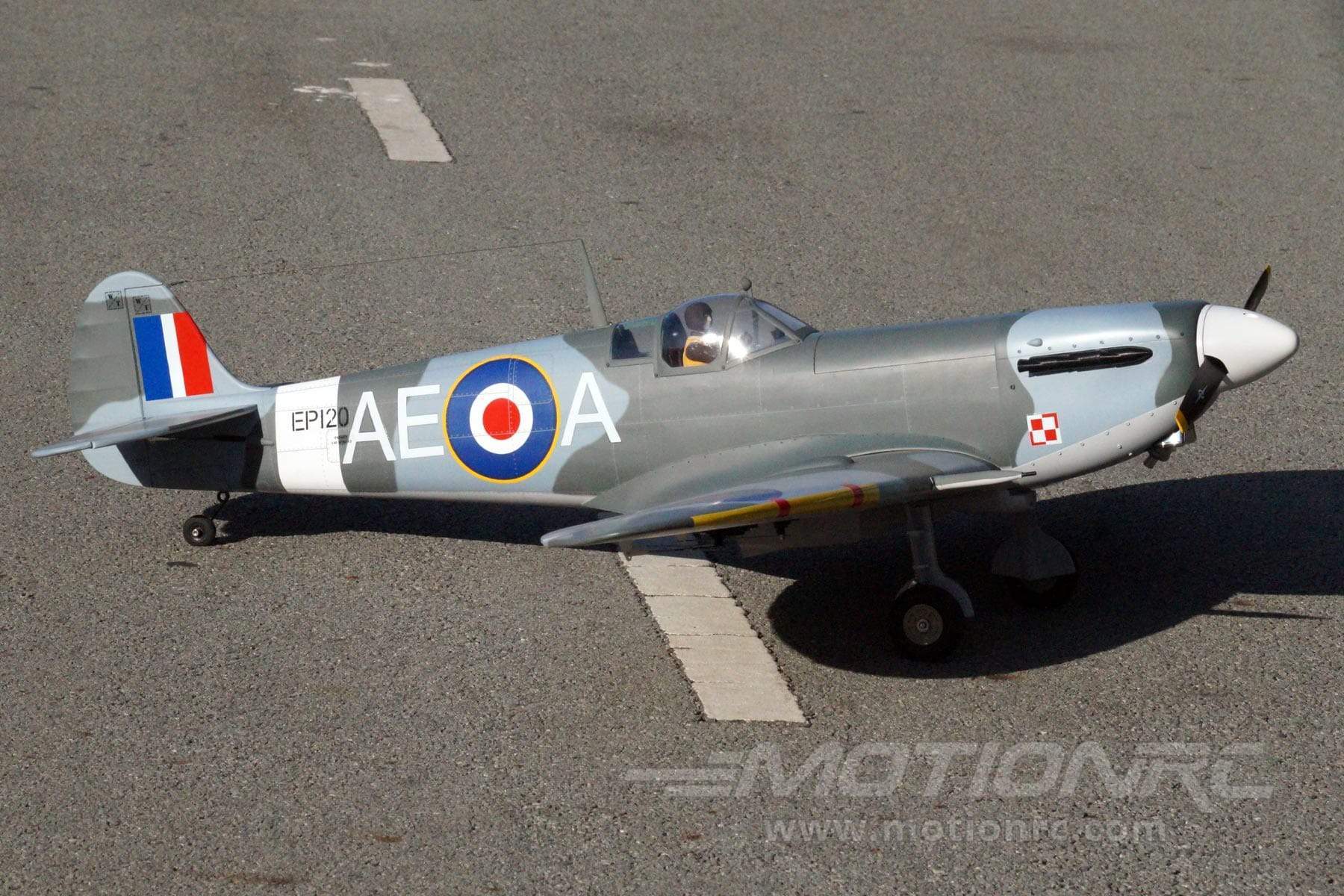

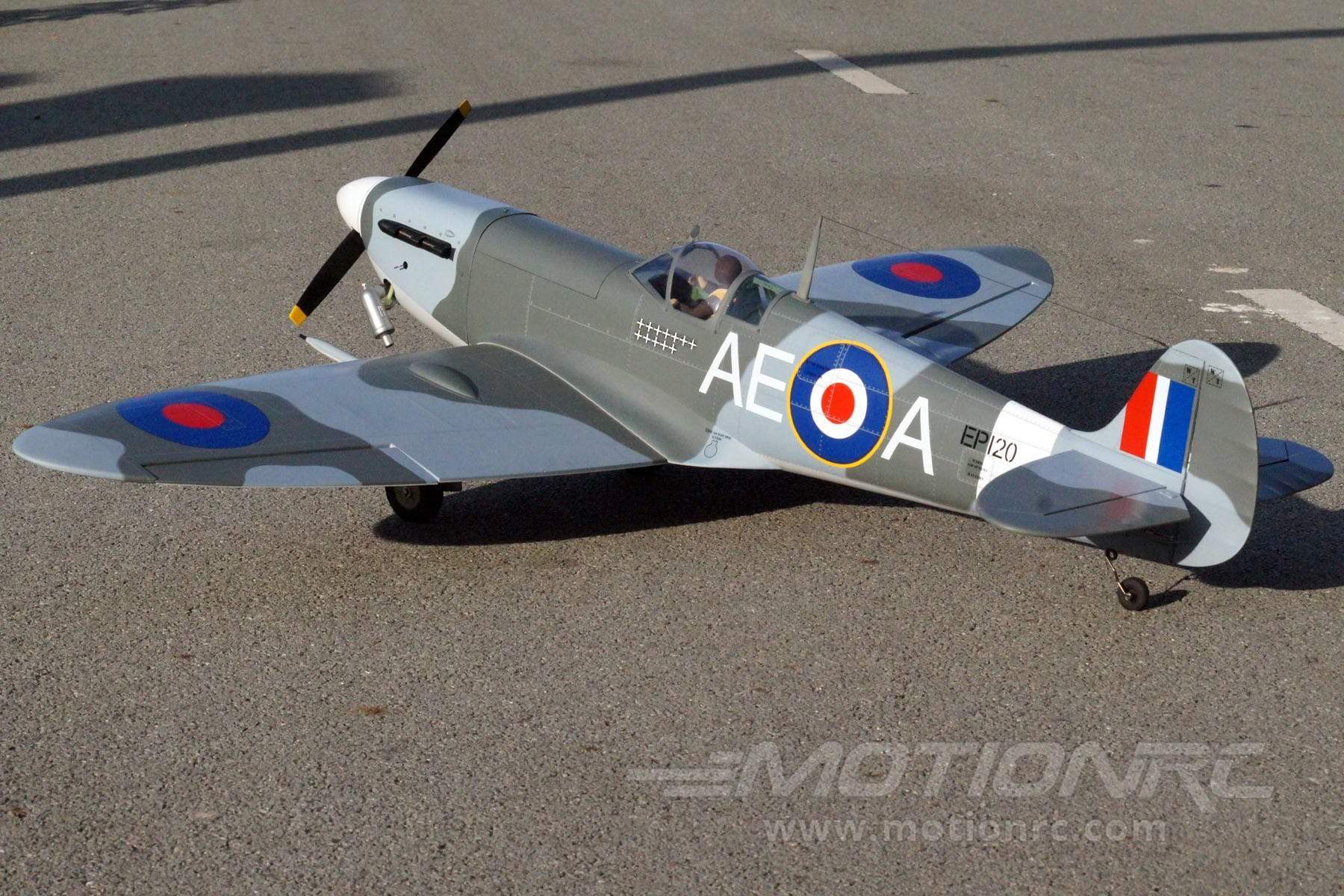

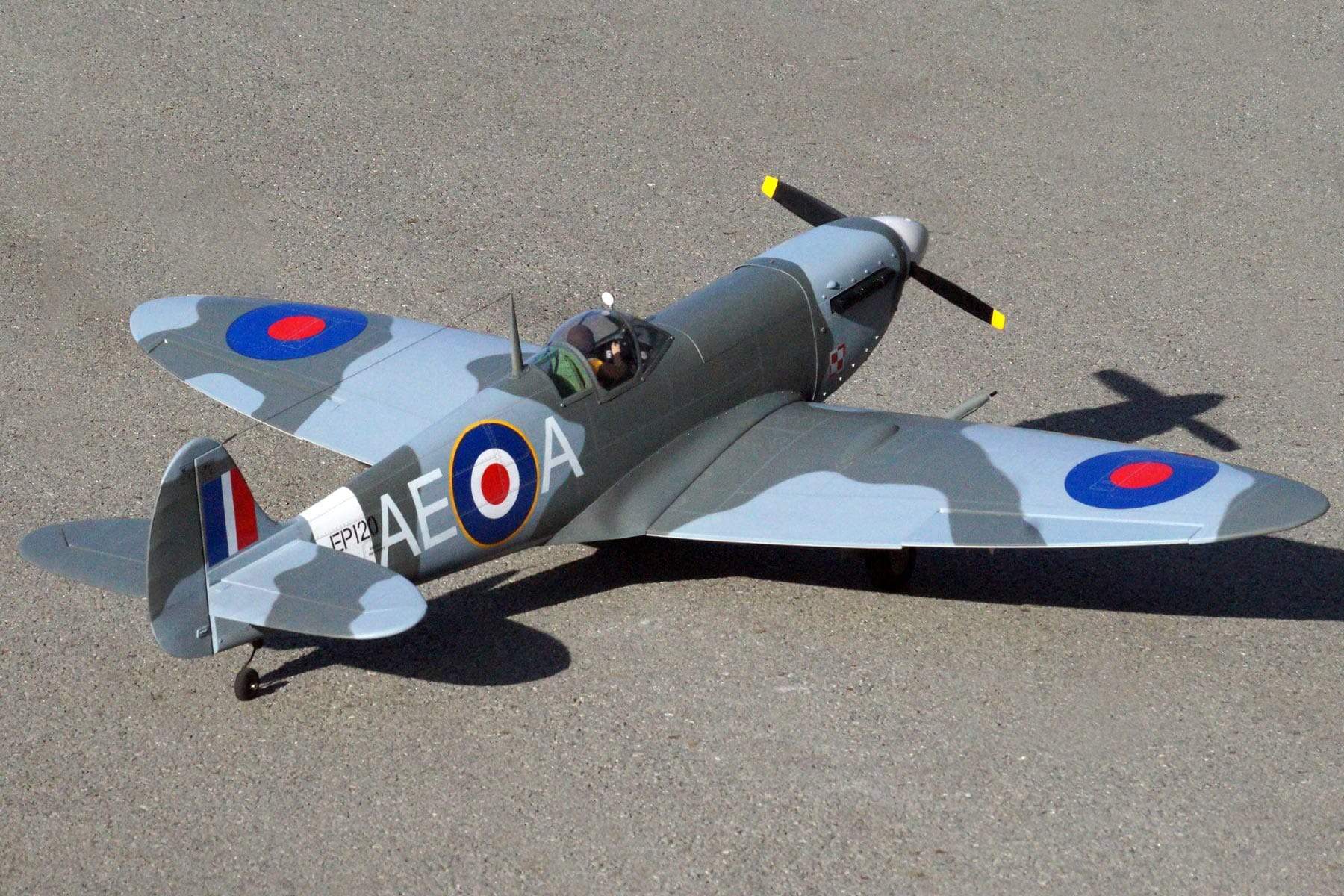

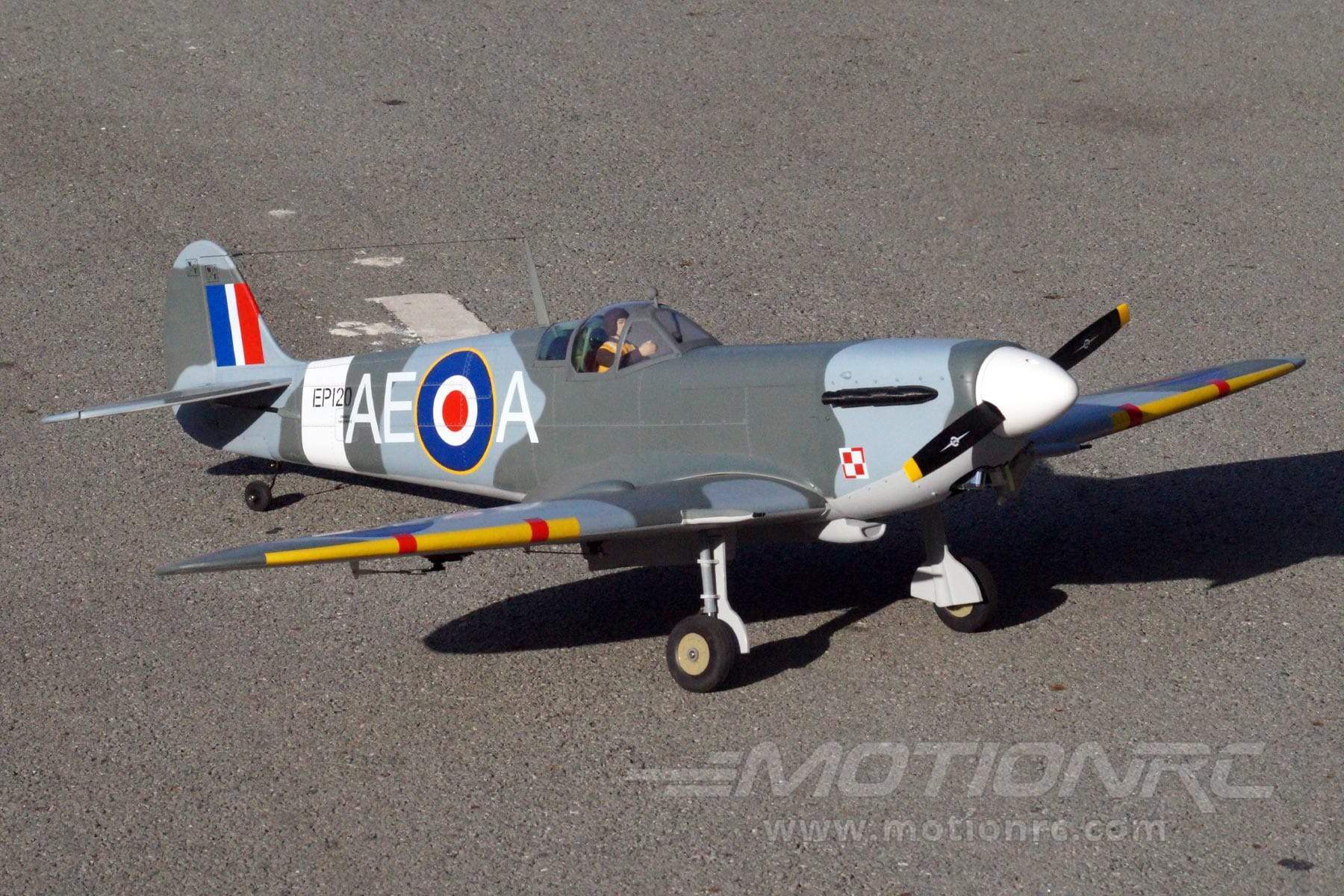

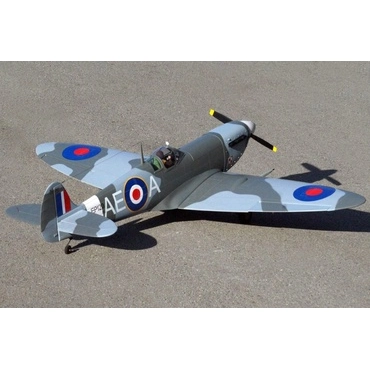

Spitfire Mk.IX 1540mm (60.6") Wingspan - ARF from Nexa - NXA1008-001
The Supermarine Spitfire is a British single-seat fighter aircraft that was used by the Royal Air Force and other Allied countries before, during, and after World War II. Many variants of the Spitfire were built, using several wing configurations, and it was produced in greater numbers than any other British aircraft. It was also the only British fighter produced continuously throughout the war. The Spitfire continues to be popular among enthusiasts; nearly 60 remain airworthy, and many more are static exhibits in aviation museums throughout the world.
The Nexa Spitfire Mk.IX is a .50 size electric or gas option scale series warbird with a 1540mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, and includes split flaps, painted pilot, machine gun, antenna and other scale details. The large battery hatch affords ample room for either electric or gas setups. Impress at your flying field with this iconic stunner!
Visit the Official Nexa Spitfire Mk.IX 1540mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered and Detailed The Nexa Spitfire Mk.IX comes fully covered including simulated panel lines, rivets, nomenclature and weathering detail. |
 |
Scale Details Throughout There is no shortage of scale details with this Spitfire including functional split flaps, antenna, machine guns and painted pilot. |
 |
Prehinged and Installed Control Surfaces All control surfaces come out of the box fully prehinged and installed for your convenience. |
 |
Easy To Transport The Spitfire with its just under 1.6M wingspan is easy to transport. |
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details including weathering, functional split flaps, printed simulated panel lines and rivets
- Fiberglass cowling for strength and durability

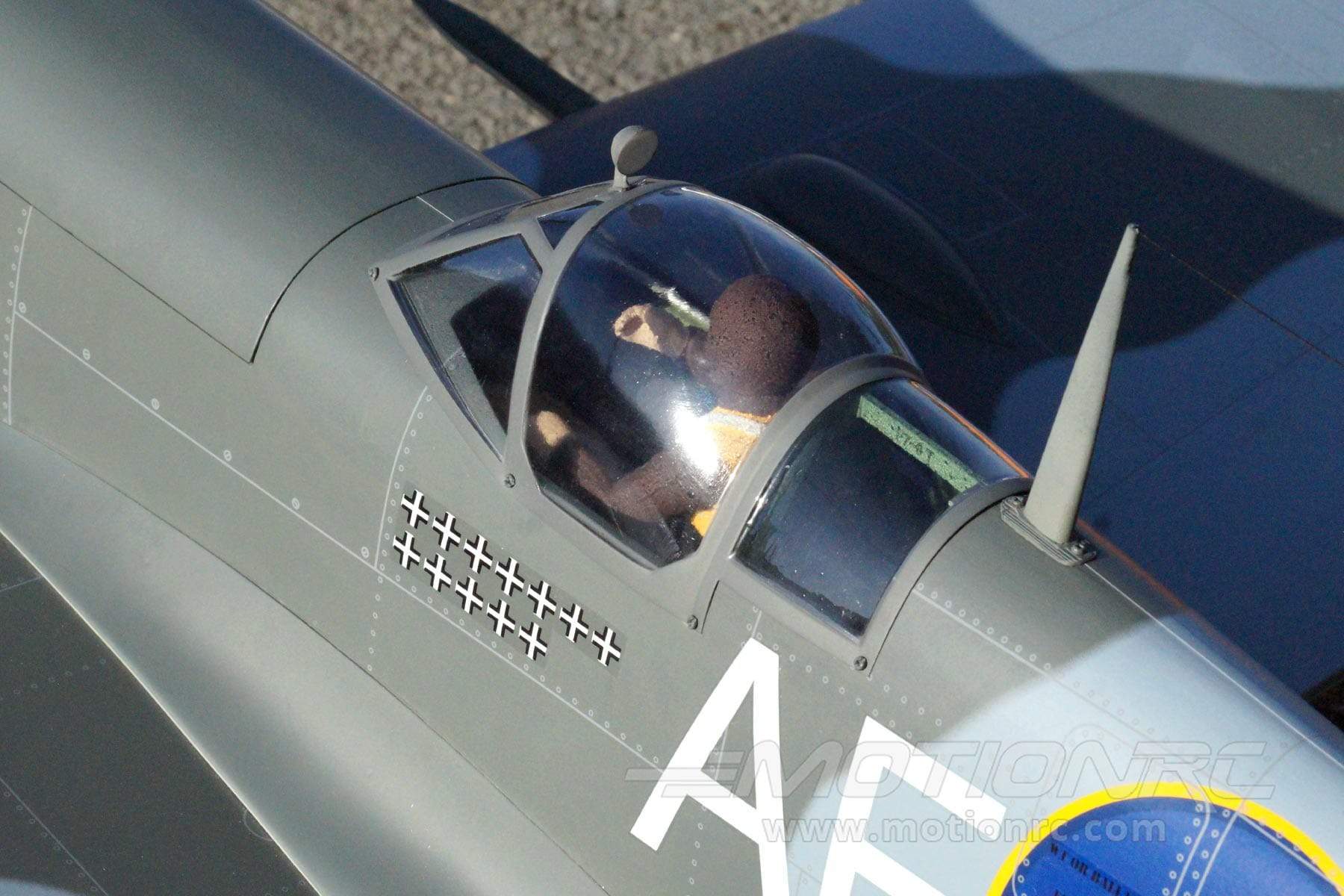

- The hand-painted pilot is ready for your added cockpit details
- All control surfaces come out of the box pre-hinged and installed for convenience

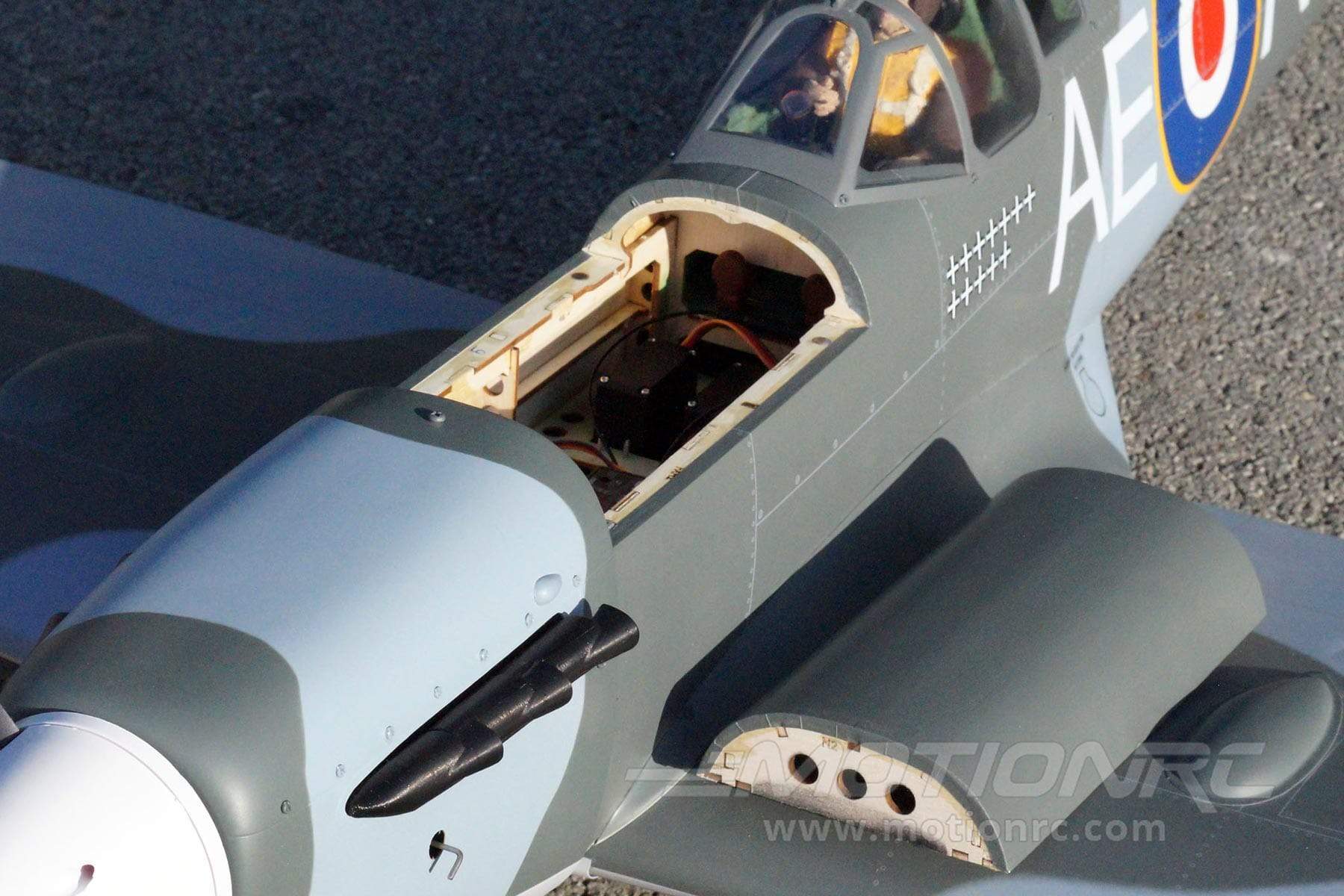

- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa Spitfire Mk.IX 1540mm (60.6") Wingspan - ARF
- Fuel tank, hardware and servo trays
Requires:
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless Motor
- 65 Amp brushless ESC - we recommend the ZTW Mantis G2 65A ESC with 8A SBEC
- 4x standard servos for ailerons, elevator and rudder - we recommend FOUR Hitec HS-485HB Deluxe Ball Bearing Karbonite Gear Standard Servo

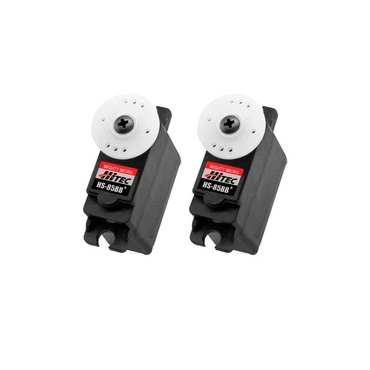

- 2x standard servos for flaps - we recommend the Hitec HS-85BB High Torque Micro Servo Airplane Multi-Pack (2 Servos)
- 6 Cell 22.2V 4000 mAh LiPo Battery - we recommend the Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- Electric propeller - we recommend the Admiral 15x10 Electric Series Wood Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Optional:

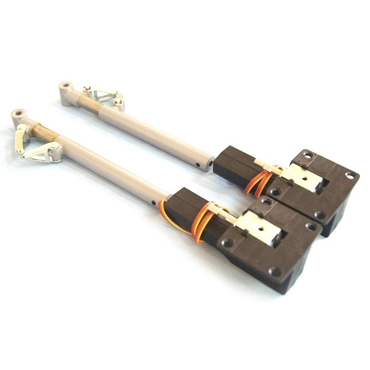

- Electronic retract set with scale struts
Gas Requires:
- 2 stroke engine - we recommend the NGH-GT9 Pro 9cc Two-Stroke Engine
- 2 blade gas propeller - we recommend the APC 15x8 Gas Propeller
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/7 |
Wingspan |
1540mm / 60.6in |
Length |
1230mm / 48.4in |
Weight |
3900g / 137.5oz |
CG (Center of Gravity) |
90-95mm from the leading edge of the wing's root |
Power System |
400Kv Brushless outrunner motor for electric or 2-stroke for gas (required) |
Electronic Speed Control |
65A (required) |
Propeller / EDF |
15x10 2-blade for electric or 15x8 gas 2-blade for gas (required) |
Servos |
|
Required Landing Gear |
Electric retractable (required) |
Required Battery |
6 Cell 22.2V 5000 mAh LiPo Battery (required) |
Required Radio |
7+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
