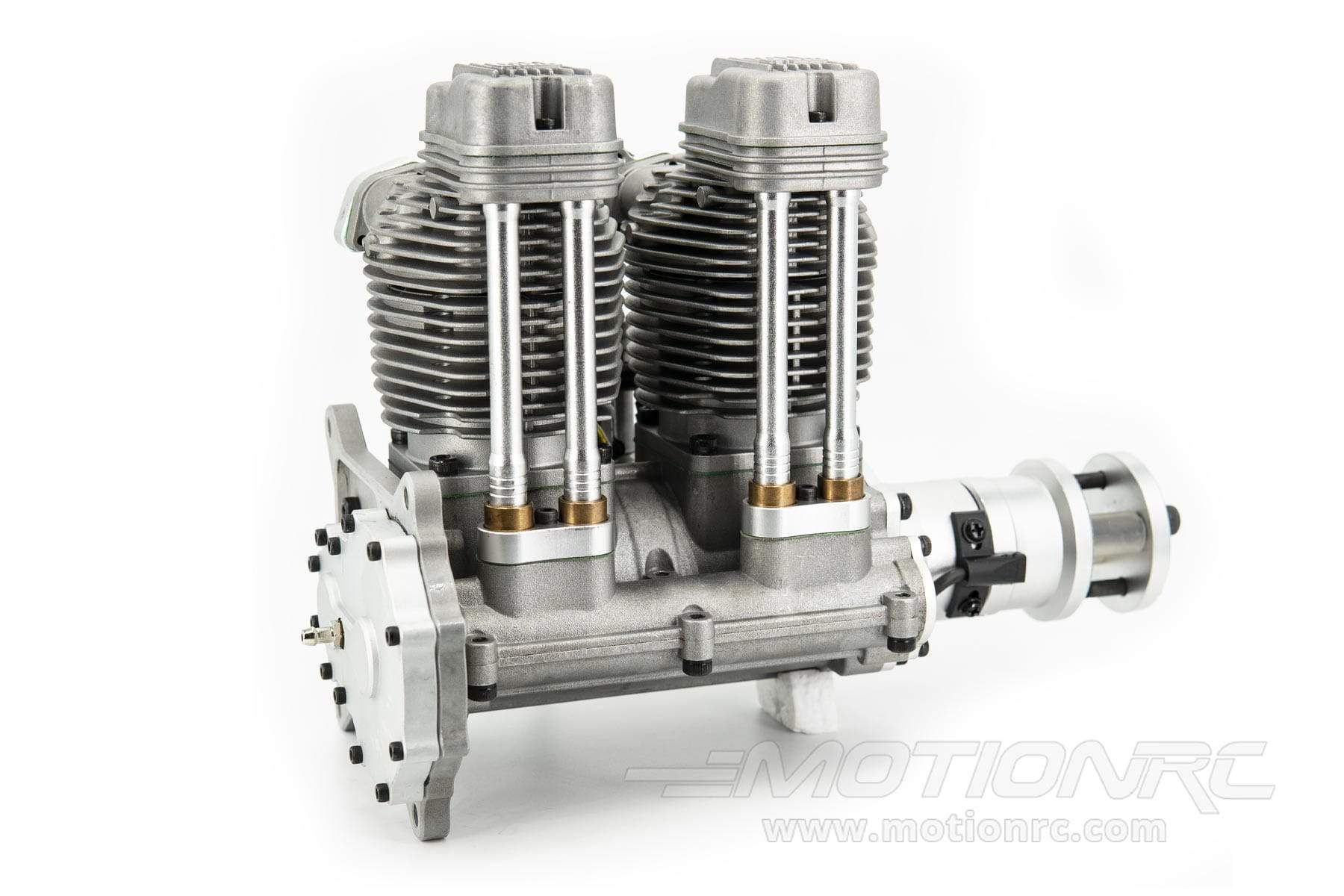

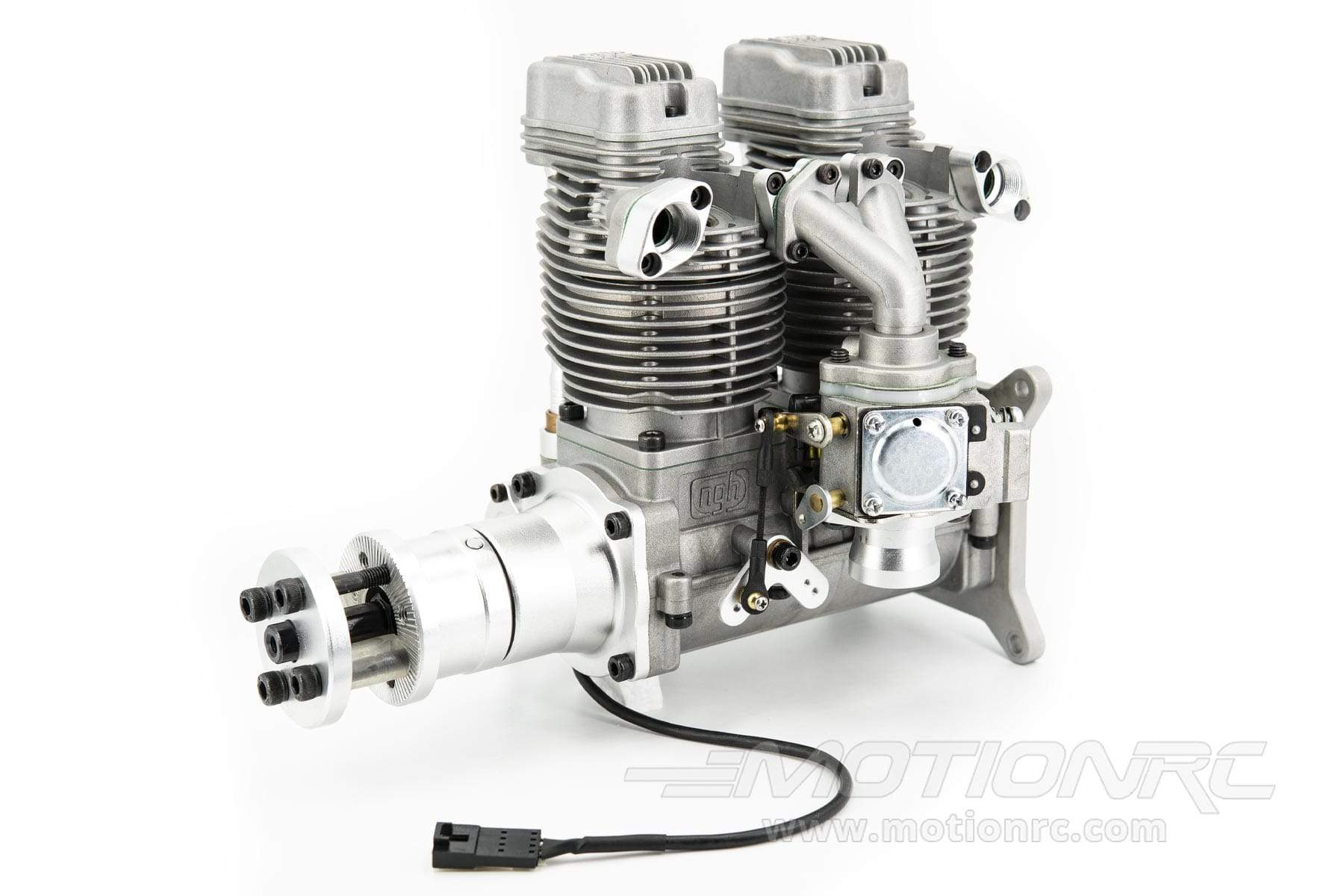

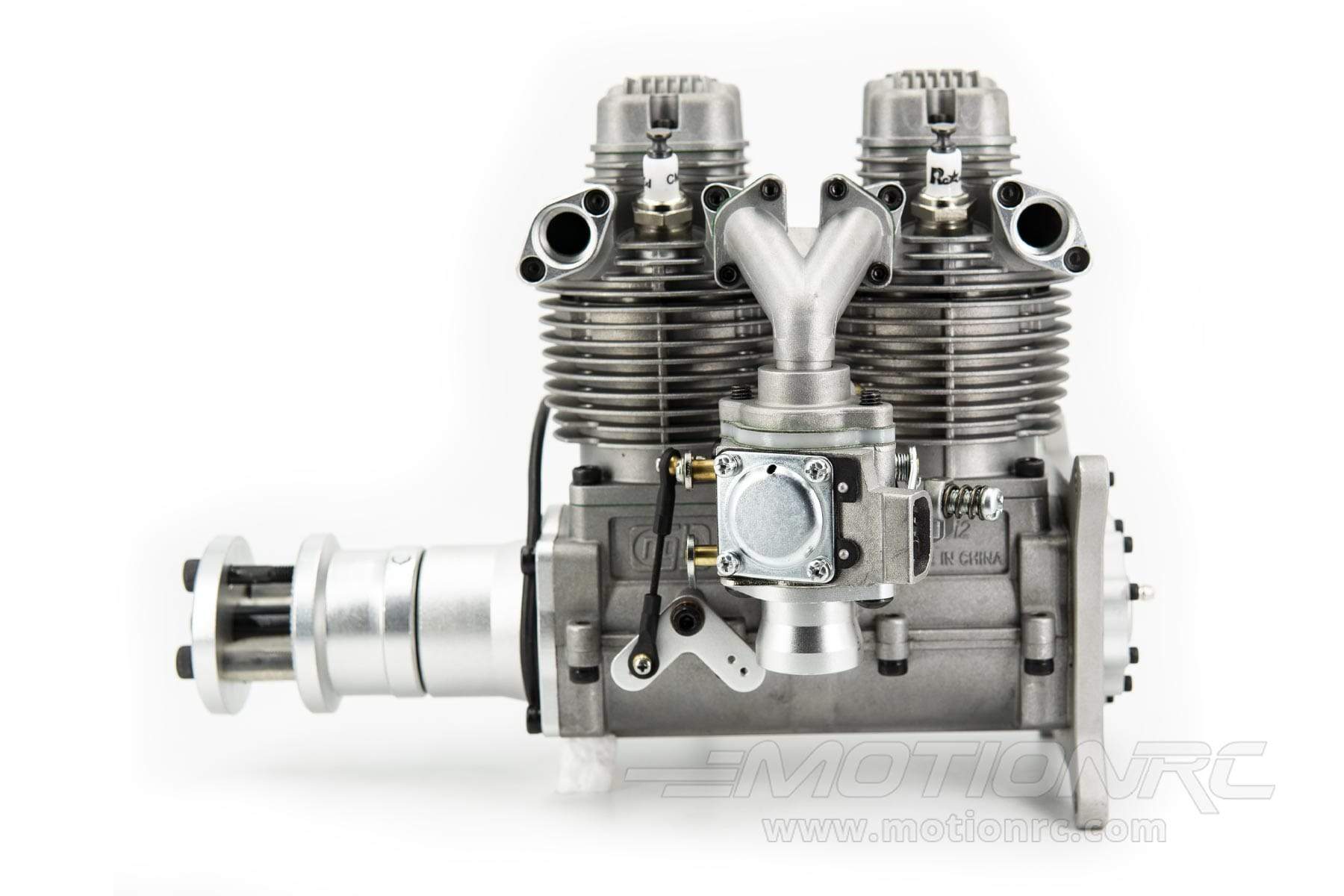

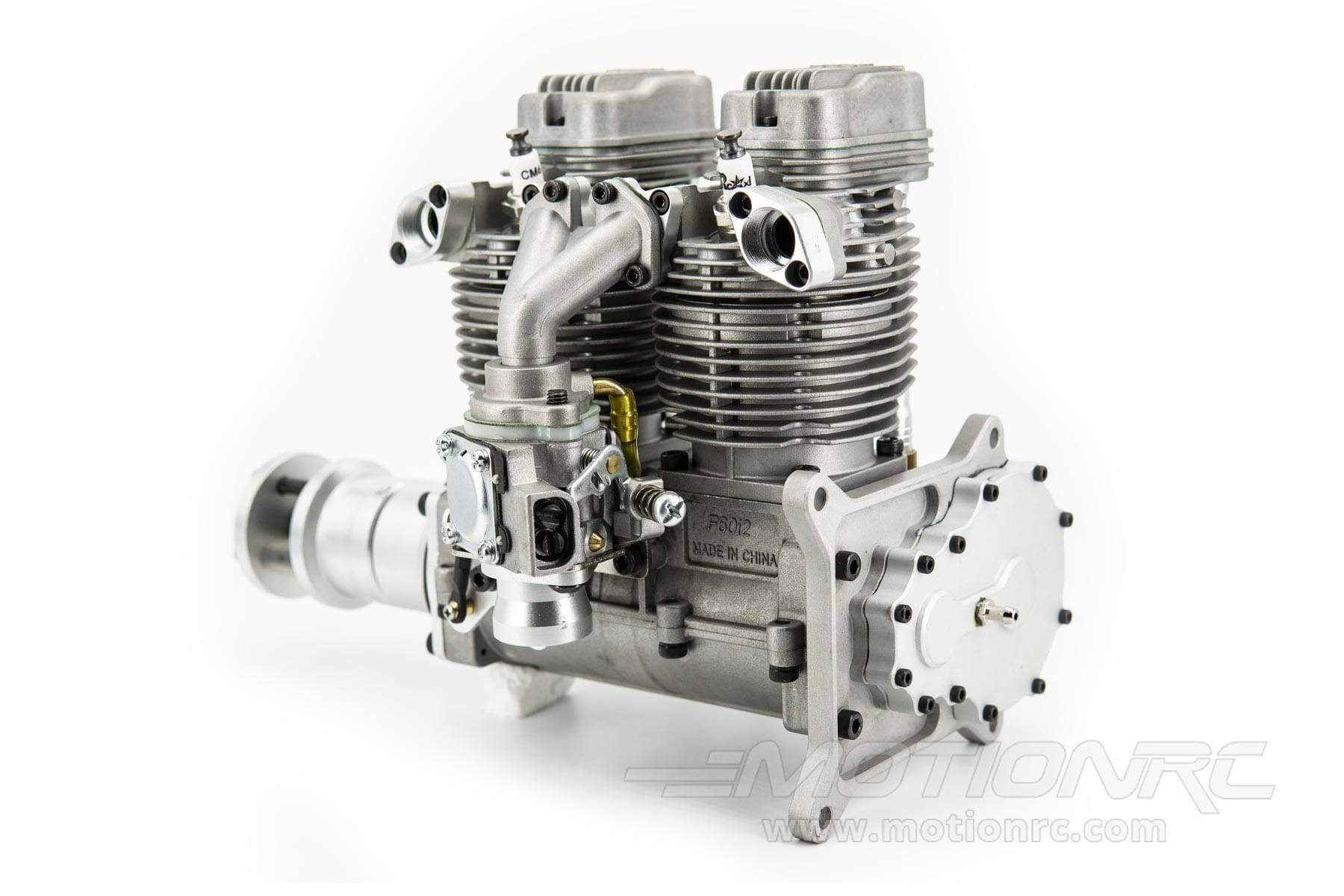

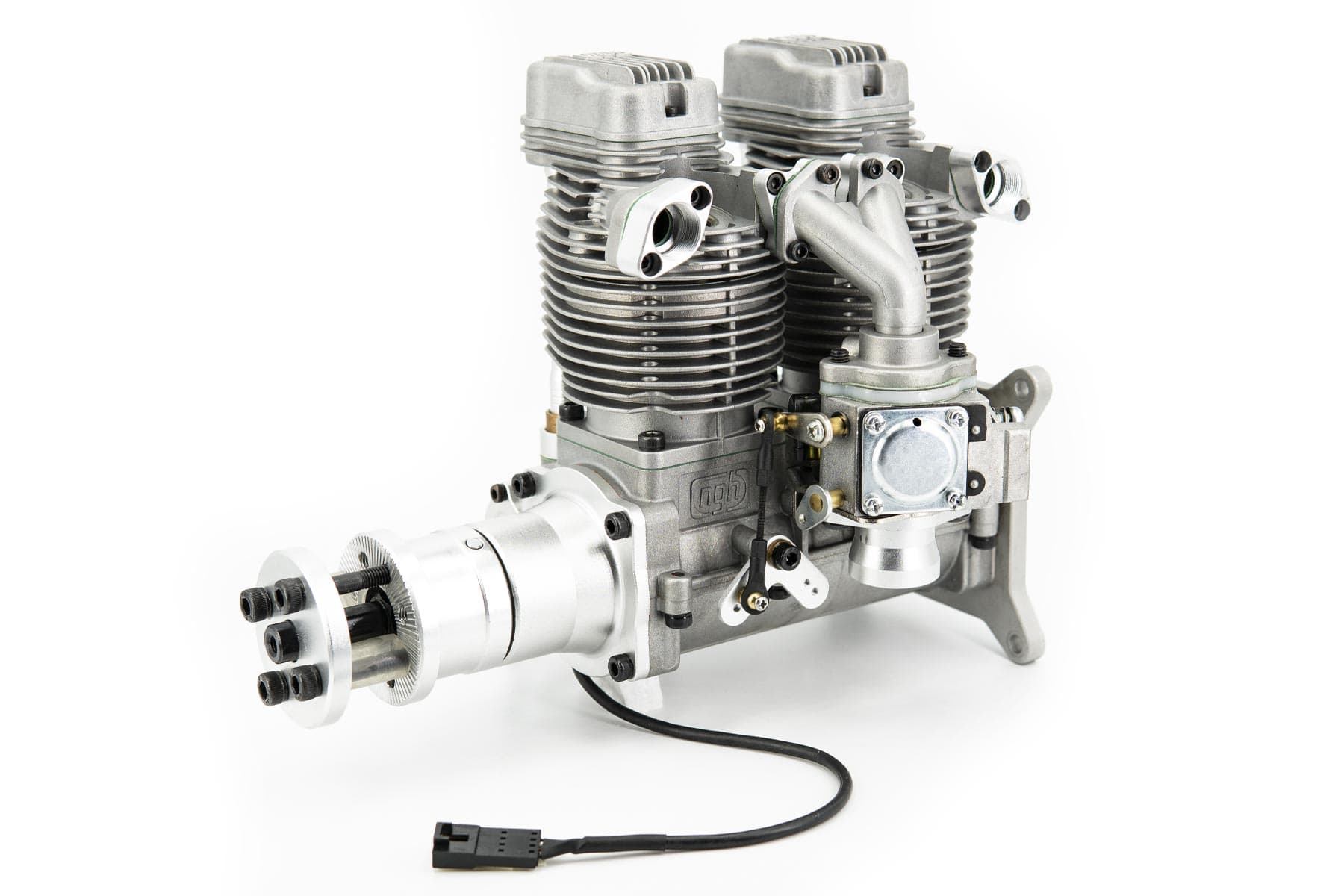

GF60 60cc Inline 2 Cylinder 4 Stroke Gas Motor from NGH - NGH-GF60
The NGH GF60i2 engine features a rare linear double cylinder four stroke design. This configuraation is much more technically difficult to produce than typical “flat” arranged engines, and its inline layout makes it an ideal fit for large warbirds.
Compared to the ordinary chrome-plated aluminum used in most RC engine cylinders, this engine’s ductile iron cylinder liner imparts much higher wear resistance, faster heat conduction, a low expansion coefficient, and excellent high-speed stability under common lubrication conditions. The slightly heavier weight and higher manufacturing cost is offset by a truly superior standard in construction and reliability. Low fuel consumption, low emission, low vibration and low noise, the GF60 can produce a power to weight ratio of greater than 2:1. After ~3-4 liters of breaking in, what we like most is the GF60i2 engine’s excellent stability at low rpm, smooth transition to higher rpm, and low vibration.
Features:
- Overhead valve and side camshaft design
- Wedge combustion chamber
- Continuous timing and low tension ring
- Good torque at low speed and excellent power at high speed
- Superb low rpm stability
- Low vibration and low fuel consumption
- Temperature difference between front and rear cylinders is less than 8℃/45 Fahrenheit

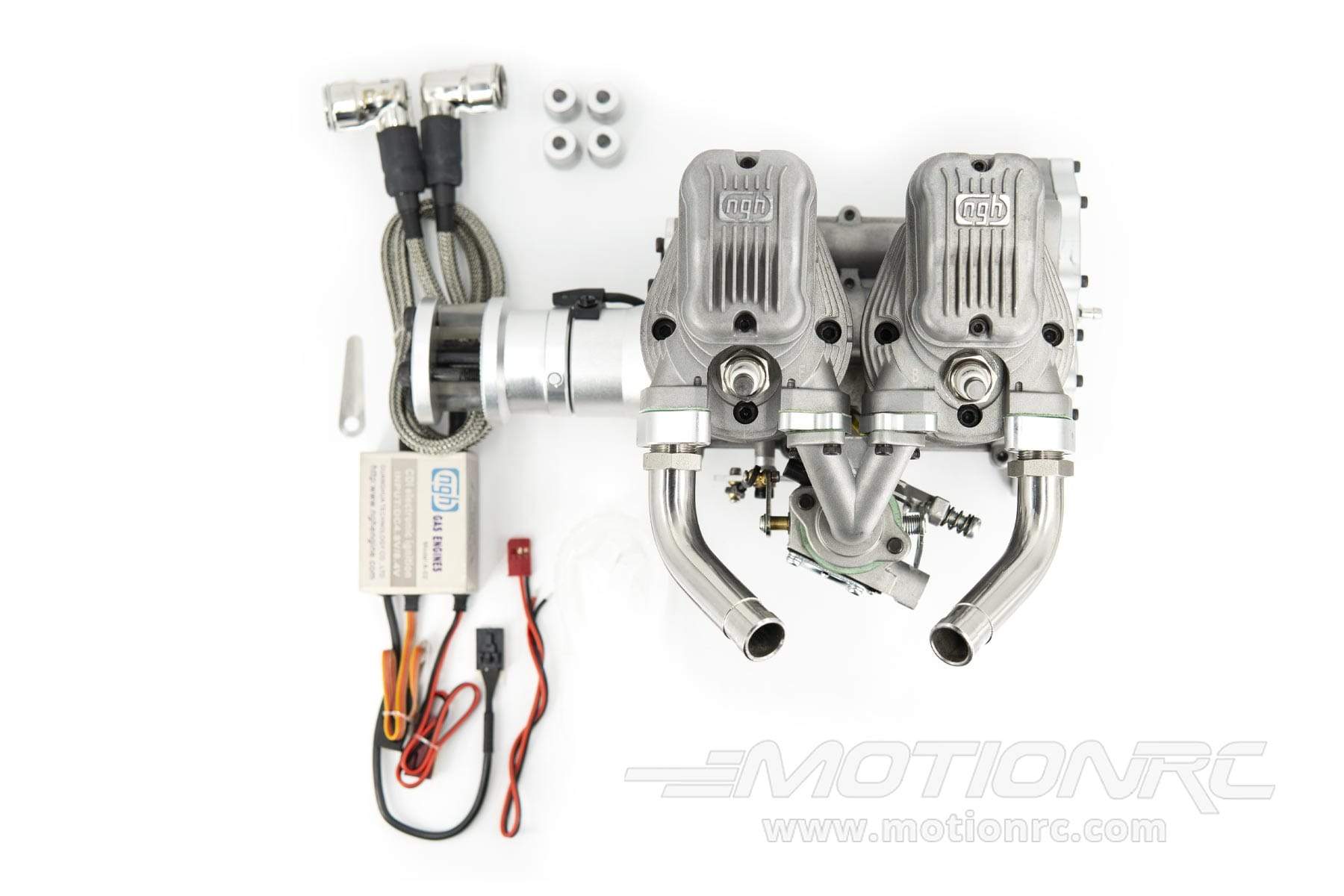

Includes:
- NGH GF60 60cc Four-Stroke Engine
- CDI
- Connecting Line
- Spark Plug
- Mounting Bracket Base
- Tool Set
- English Manual
Please note: All RC model gas-powered engines require the user to properly set up, tune, and maintain the engine in order to achieve consistent peak performance. You will need to break-in the engine initially, then perform routine maintenance including cleaning the engine, lubricating its seals and moving parts, and adjusting the fuel mixture and valves as necessary. This is considered the normal responsibility of owning and operating an RC gas engine. For further questions, please contact Customer Support.
Product Specifications:
Displacement |
60cc |
Bore |
N/A |
Stroke |
4 |
RPM Range |
6000rpm on 22x10*2, 5500rpm on 20x8*3 |
Mix Output |
N/A |
Engine Weight |
2,800g / 101.5 |
Overall Weight |
N/A |
Ignition Power |
N/A |
Recommended Propeller |
20x8x3 to 22x10x2 |
Fuel |
Gas |
Lubricant Ratio |
N/A |
Spare Parts
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- NGH GF60 60cc Four-Stroke Engine Instruction Manual
- NGH GF60 60cc Four-Stroke Engine Exploded View Chart
If you need any additional assistance, please visit the Motion RC Help Center
