D200neo 200W 6 Cell (6S) AC/DC LiPo Battery Multi-Function Smart Charger from SkyRC - SK-100196-02
The SkyRC D200neo 200W 6 Cell (6S) AC/DC LiPo Battery Multi-Function Smart Charger is an update version of the D200. It has dual ports to support most batteries in the RC industry, with features that include the SkyCharger App control, Charger Master control, PD/QC3.0 fast charge, and a newly upgraded scroll button control. Take your charging experience to the next level with this powerful and meticulously designed multi-function charger.
Note: We recommend reading this Motion RC knowledge blog article about charger amperage and wattage ratings.
 |

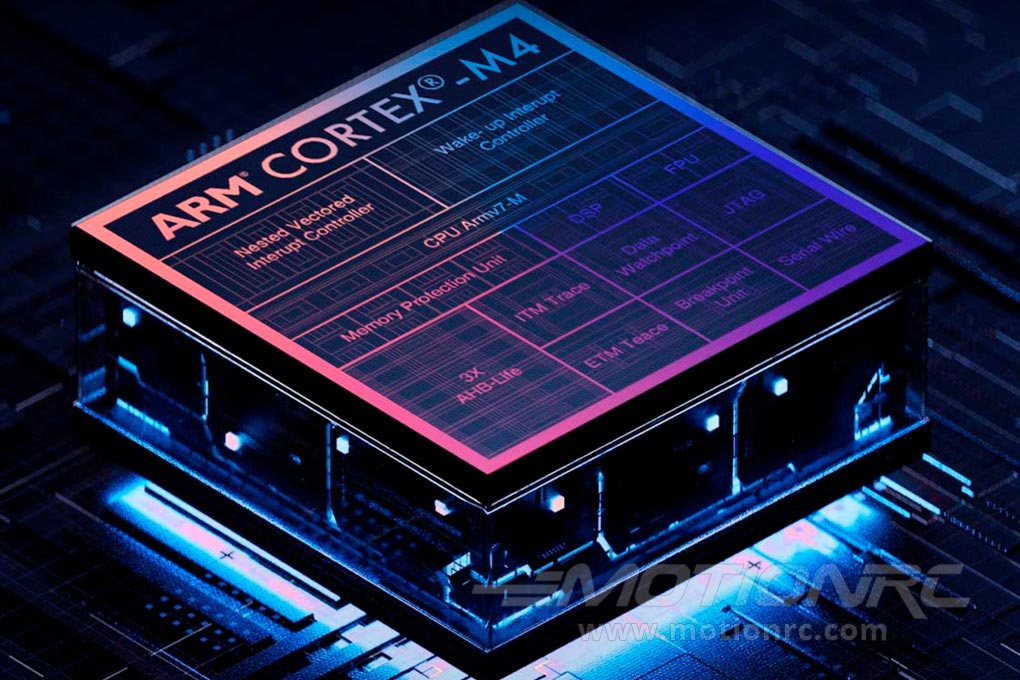

Arm Cortex-M4 Chip Offers Next Level Processing The Arm Cortex-M41 chip brings the D200neo into another stratosphere with a built-in DSP instruction. The chip core features a Floating Point Unit (FPU) that accelerates single precision floating point math operations and supports all ARM single precision instructions and data types. |
 |

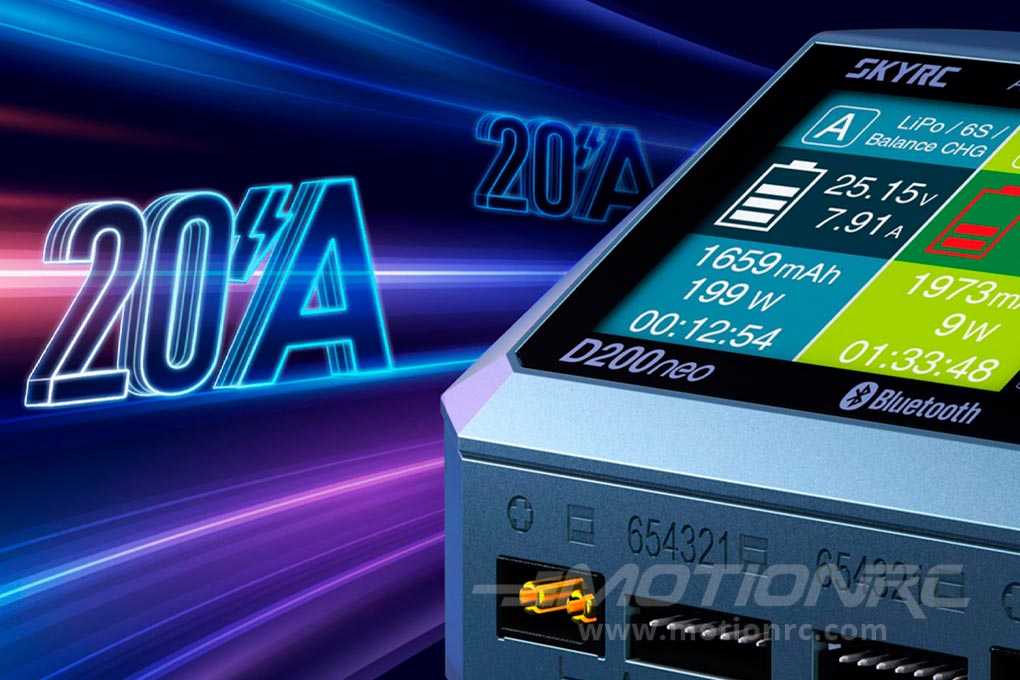

ACDC Dual Input The dual ports on the D200neo work independently to charge two battery packs efficiently and simultaneously. RC hobbyists can flexibly choose AC or DC input according to need. |
 |

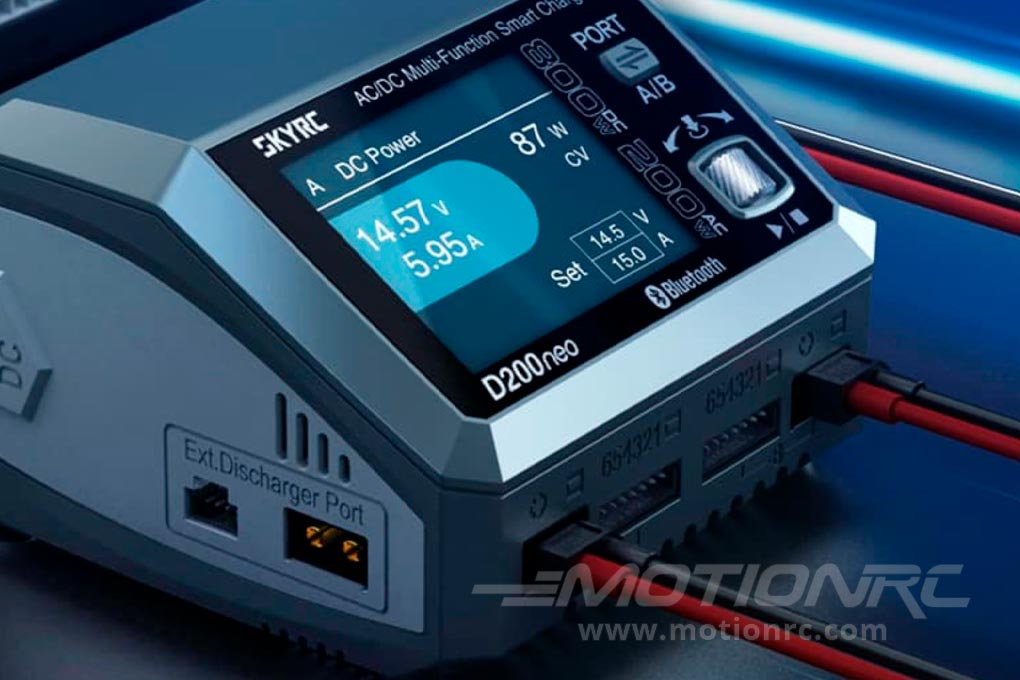

Moonlights As a Digital Power Supply The D200neo can also act as a digital power supply, offering an optimal voltage of 5-27V with a 0.1V increment and adjustable 1-15A current. Short circuit, Overload, and Reverse polarity protection are all included! |
 |

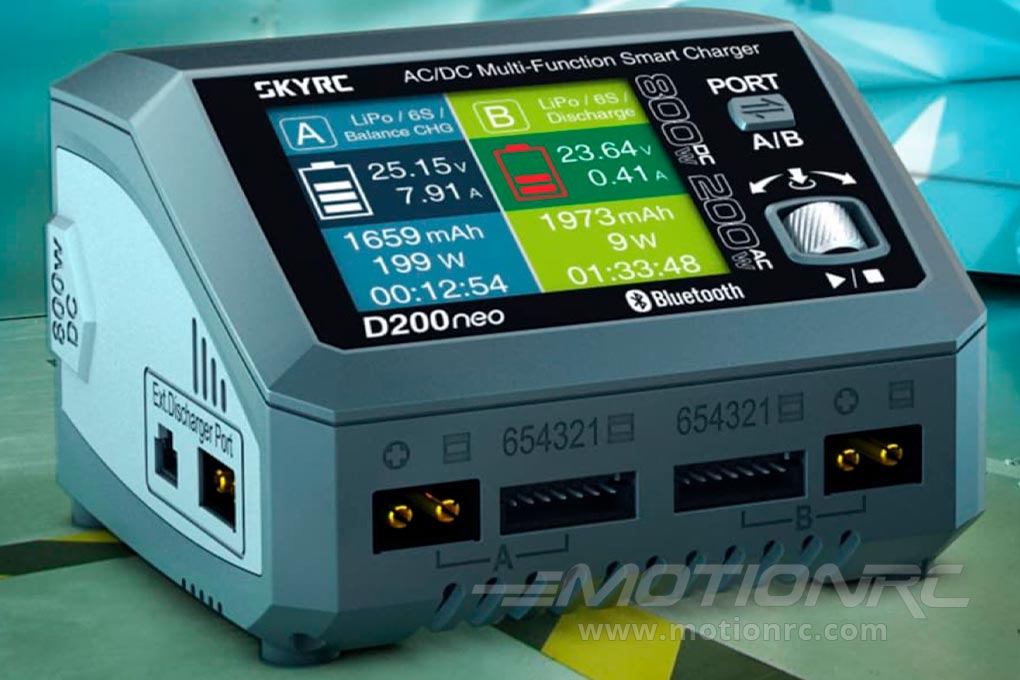

Qualified and Certified SkyRC products comply with the laws and regulations into each country we ship. Our products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose. |
Features:
- Arm Cortex-M4 chip for next level processing
- Oversampling Technology improves ADC Resolution to 16 bit
- 200 watt charging power in AC mode, 800 watt charging power in DC mode
- Dual-port parallel charging, with a fast charge current of up to 35A
- Smart Power Distribution allows intuitive charging between ports
Includes:
- SkyRC D200neo 200W 6 Cell (6S) AC/DC LiPo Battery Multi-Function Smart Charger
- AC Power Cord
- User Manual
Requires:
- Your choice of charging adapters and batteries
Optional:
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
Product Specifications:
| AC Input | 100-240V |
| DC Input | 10-30V |
| Charge Circuit Power (AC Input) | 200W |
| Charge Circuit Power (DC Input) | 800W |
| Charge Current Range | 0.1-20.0A |
| Max Charge Current | 2S LiPo: 6.0A |
| Discharge Current Range | 0.1-2.0A |
| Discharge Power | Main port: 10W |
| LiPo/LiFe/Lilon Cells | 1-6S |
| NiMH/NiCd Cells | 4-15S |
| Pb(Lead Acid) Battery Voltage | 2-20V |
| Dimensions (L x W x H) | 116 x 110 x 79mm (4.56 x 4.33 x 3.11 in) |
| Weight | 602g (1.32 lbs) |
Spare Parts
Product Spare Parts
1 - 1 of 1 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
If you need any additional assistance, please visit the Motion RC Help Center
Customer Reviews
- Reviews
SkyRC D200
Strange use of ports for balance cables. reversed from Spectrum charges but otherwise very intuitive and easy to use. Should have included a couple of converters for the XT60 ports.
-
