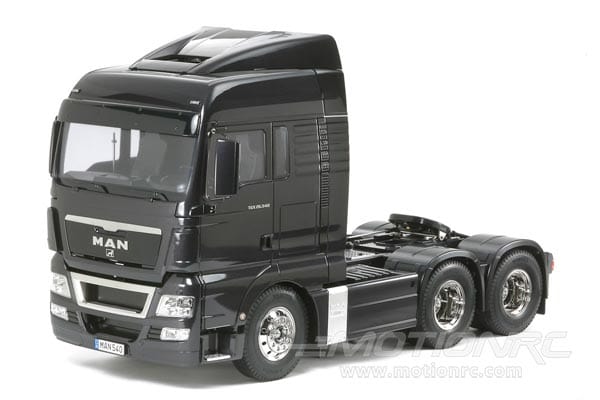

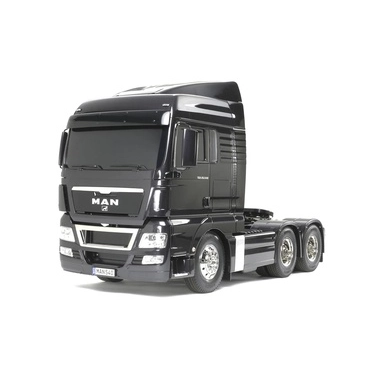

MAN TGX 26.540 6x4 XLX 1/14 Scale RC Tractor Truck - KIT from Tamiya - TAM56325
Version Info: This truck is a KIT. Assembly and painting is required. A plain white cab comes out of the box ready for paint. Photos show a completed and painted model. Minimum 4+ channel radio system, ESC, battery, charger and servos will need to be purchased separately.
Experience the realism of this expertly engineered model. An impressive representation of its real-life counterpart, which won the 2008 Truck of the Year award. Its two rear axles help it easily handle heavy loads over long distances, while its 12.4 liter turbocharged diesel engine meets the Euro 5 emissions standards for greater environmental conscientiousness. This award winning truck comes reproduced as a 1/14 scale electric RC model. The model boasts an impressive balance of style and performance with a detailed ladder frame chassis, aluminum channels, suspension with metal leaf springs, friction dampers, and differentials for realistic movement. The model's two different metal plating and metal transfers provide a true-to-scale finish, while the 3-speed transmission allows gear shifting during operation. Enhance your experience with the separately available MFC-01 or MRC-03 unit for sound and lighting actions.
Your Tamiya truck is backed by Motion RC's world-renowned customer service and technical support. Drive on!
Visit the Official Tamiya MAN TGX 26.540 6x4 XLX 1/14 Scale Tractor Truck Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |

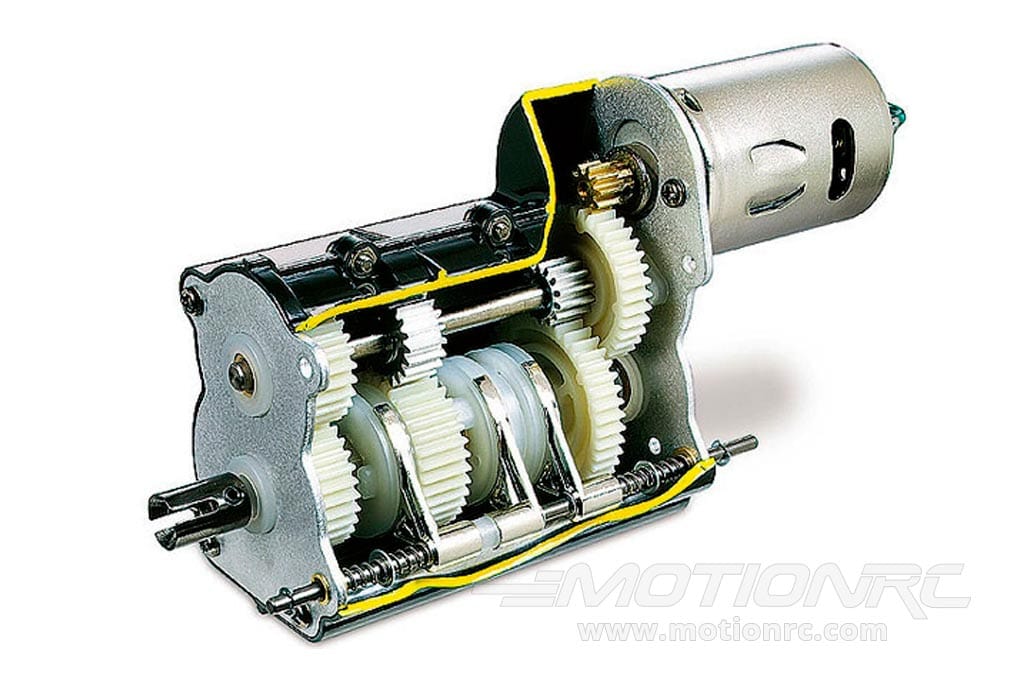

540-Sized Motor and 3-Speed Transmission The 540-sized brushed motor applies power through a selectable 3-speed transmission to drive dual rear axles. |
 |
Exceptional Scale Detail Scale details surround this truck for exceptional realism. |
 |

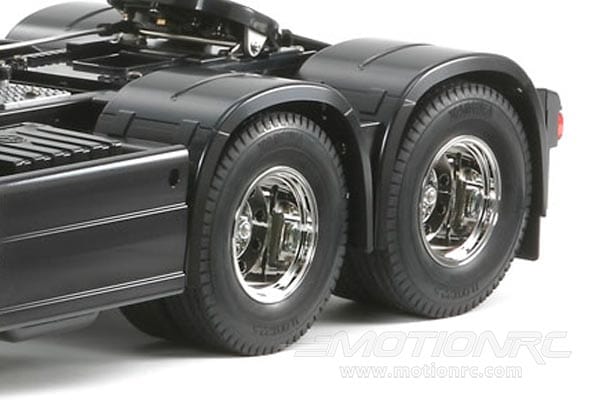

Dual Rear Axles Each axle is supported with leaf spring and shocks. |
 |

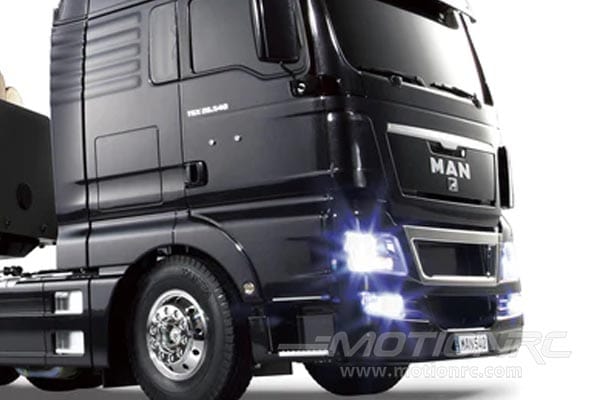

Optional Light and Sound Add your own light and sound package with the separately-sold Multi-Function Control Unit MFC-01. |
 |
1/14 Scale This truck comes in an impressive 1/14 scale. Coming in at close to 2 feet in length, it has an ideal on-road presence while being convenient to transport. |
 |

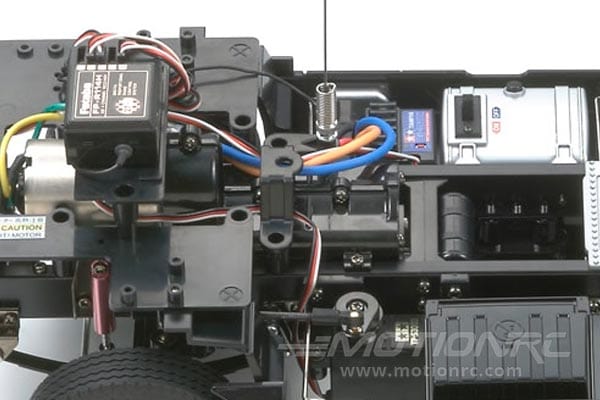

Add Your Own Electronics and Drive! Once you add your preferred electronics you're ready for those on-road adventures. |
Features:
- Exceptional scale detail and realism brings this truck to life on every level
- Includes a powerful 540-sized brushed motor driven by a 3-speed transmission
- Dual rear axles each supported with leaf spring and shocks
- Cab comes out of the box white so you can paint your chosen custom scheme
- The ladder frame chassis features aluminum channels, suspension with metal leaf springs and friction dampers, and rear axles are equipped with differentials
- Just like the actual vehicle, this model comes with large-sized curved side mirrors that feature two mirror surfaces

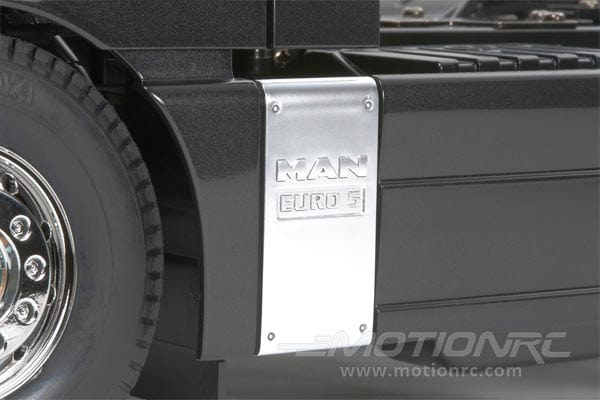

- Metal-plated parts are included to depict the MAN EURO 5 engraving and right/left step plates
- Metal transfers also recreate the MAN logo/Lion emblem on the front grille and TGX 26.540 logos on both doors respectively
Includes:
- Tamiya MAN TGX 26.540 6x4 XLX 1/14 Scale RC Tractor Truck - KIT
Requires:
- 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
- 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
- 6 Cell 7.2V NiMH Brushed ESC
- 2x standard size servos - we recommend TWO Hitec HS-311 Plastic Gear Standard Servos
- 6 Cell 7.2V 1600mAh NiMH battery with universal connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
- Acrylic paint - select some from our Paint Collection
Product Specifications:
Model Scale |
1/14 |
Length |
526mm / 20.7in |
Width |
193mm / 7.6in |
Height |
301mm / 11.9in |
Weight (No Battery) |
3800g / 134oz |
Wheelbase |
440mm / 17.3in |
Ground Clearance |
N/A |
Body |
ABS Plastic |
Chassis |
Aluminum and ABS Plastic |
Drivetrain |
2WD |
Wheel Size (Diameter x Width) |
83mm x 22mm |
Wheel Hex Size |
N/A |
Tire Tread |
Front: 156mm / Rear: 138mm |
Bushing Material |
Metal and Plastic |
Suspension |
Leaf Spring |
Shock Type |
Friction Damper |
Transmission |
3-Speed |
Gear Pitch |
N/A |
Internal Gear Ratio |
N/A |
Final Drive Ratio |
1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1 |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
Gear |
Ball Bearings |
N/A |
Brakes |
Electronic |
Electronic Speed Control |
6 Cell 7.2V NiMH Brushed ESC (required) |
Motor |
540-Brushed |
Battery |
7.2V 1600mAh (required) |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
2x standard size (required) |
Radio |
4+ Channel (required) |
Lights |
No |
Sound |
No |
Water Resistant |
N/A |
Skill Level |
Intermediate |
Assembly Time |
3+ Hours |
Recommended Environment |
On-road, smooth, paved surfaces |
