Kagama Blue 1/8 Scale 4WD Monster Truck - RTR from Team Corally - COR00274-B

Version Info: This truck is delivered as "RTR", however it does require 4 x AA batteries for the transmitter, a 4S-6S LiPo with XT90 connector (we recommend EPR53004X9) sold separately, and suitable LiPo battery charger.

Motion RC is pleased to offer Team Corally’s next-level 1:8 scale monster truck, the Kagama. Developed with a laser-focused attention to detail, this model is destined to be recognized as the toughest, fastest, best handling model that the team have ever produced. Featuring Team Corally’s new Xtreme Tough Build architecture, this next-level monster truck delivers premium workmanship in addition to top quality materials and components. Available in both ready-to-run and rolling chassis version in three different colors, the Team Corally Kagama XP 6S Monster Truck sports an impressive list of features to take your bashing enjoyment to the next level!

Enjoy an impressive driving experience by combining the versatile, go-anywhere fun of the Team Corally Kagama with Motion RC’s parts and technical support, industry-leading customer service and product selection for a package that cannot be beat!

Visit the Official Team Corally Kagama 1/8 Scale 4WD Monster Truck Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

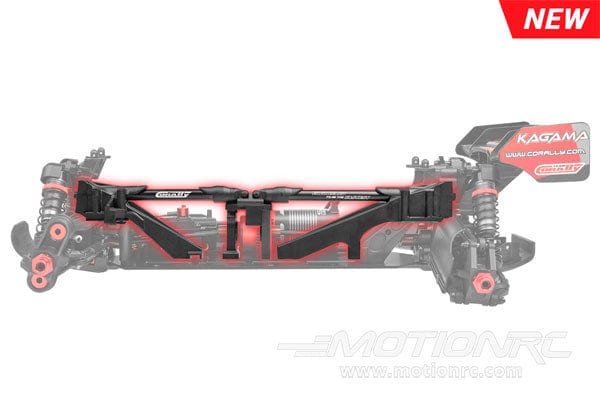

Hybrid Center Chassis Brace System This super-rigid system uses an oversized MONOBLOC composite front chassis and shock tower brace containing an integrated steering deck, while the rear MONOBLOC structure bracing the rear tower and chassis plate are connected to each other with 12mm diameter brace tubes for the ultimate in rigidity and durability.

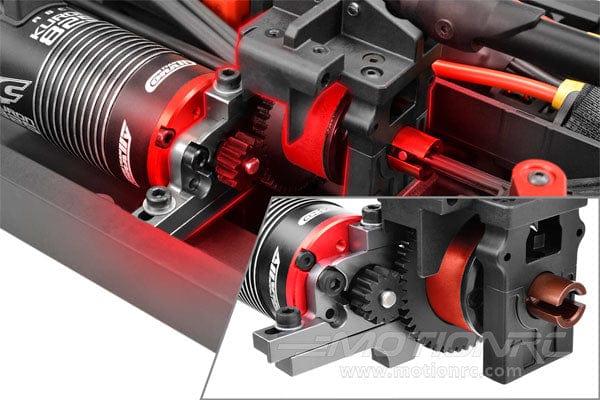

Adjustable Machined Aluminum Motor Mount Attaching the powerful brushless motor to the Kagama chassis is an extremely important job - that’s why the motor is connected to a super-thick motor mount. This CNC machined 2-piece mount is formed from billet aluminium and features a sliding mount system for precise gearing adjustments, just like you see in top competition racing cars. Setting gear mesh is easier and faster than with standard motor mounts because the single sliding piece delivers perfect alignment every time!

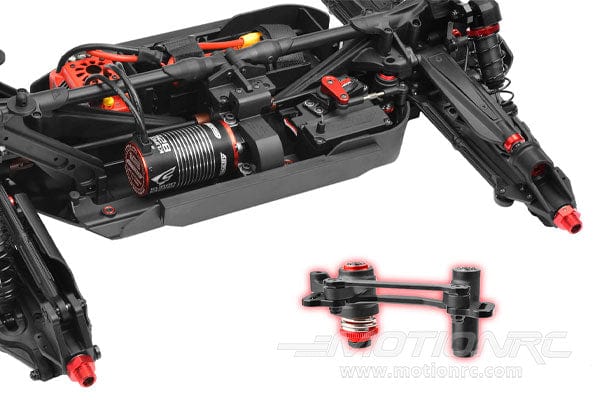

Heavy-Duty Double-Deck 3mm 7075 Aluminum Steering Plate Team Corally’s proven twin-plate steering system delivers the precision and control required for a bashing beast like the Kagama. Made from premium aluminum for strength and precision, details such as these guarantee a quality driving experience!

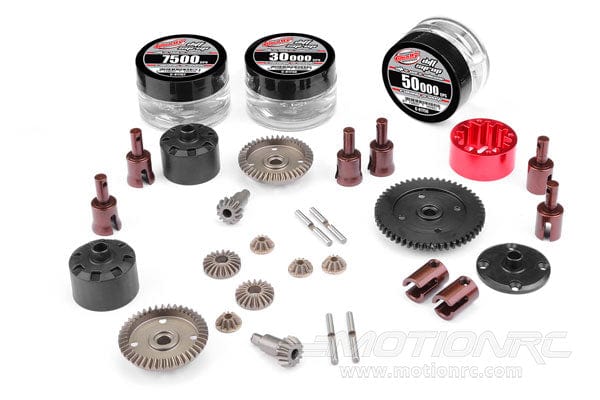

Premium Differentials The Kagama drivetrain contains three adjustable, fluid-filled differentials to efficiently transfer power to all four corners. Featuring CNC-machined and hardened spiral-cut steel bevel gears, six planetary gears and a 52 tooth spur gear on the center diff, the handling and acceleration of the truck can be controlled independently by varying the thickness of the internal fluid. The center diff includes an aluminum case for optimum heat dissipation and durability. Better acceleration, better handling, improved reliability, reduced heat fade, and less maintenance are just some of the benefits that result in maximum bashing fun.

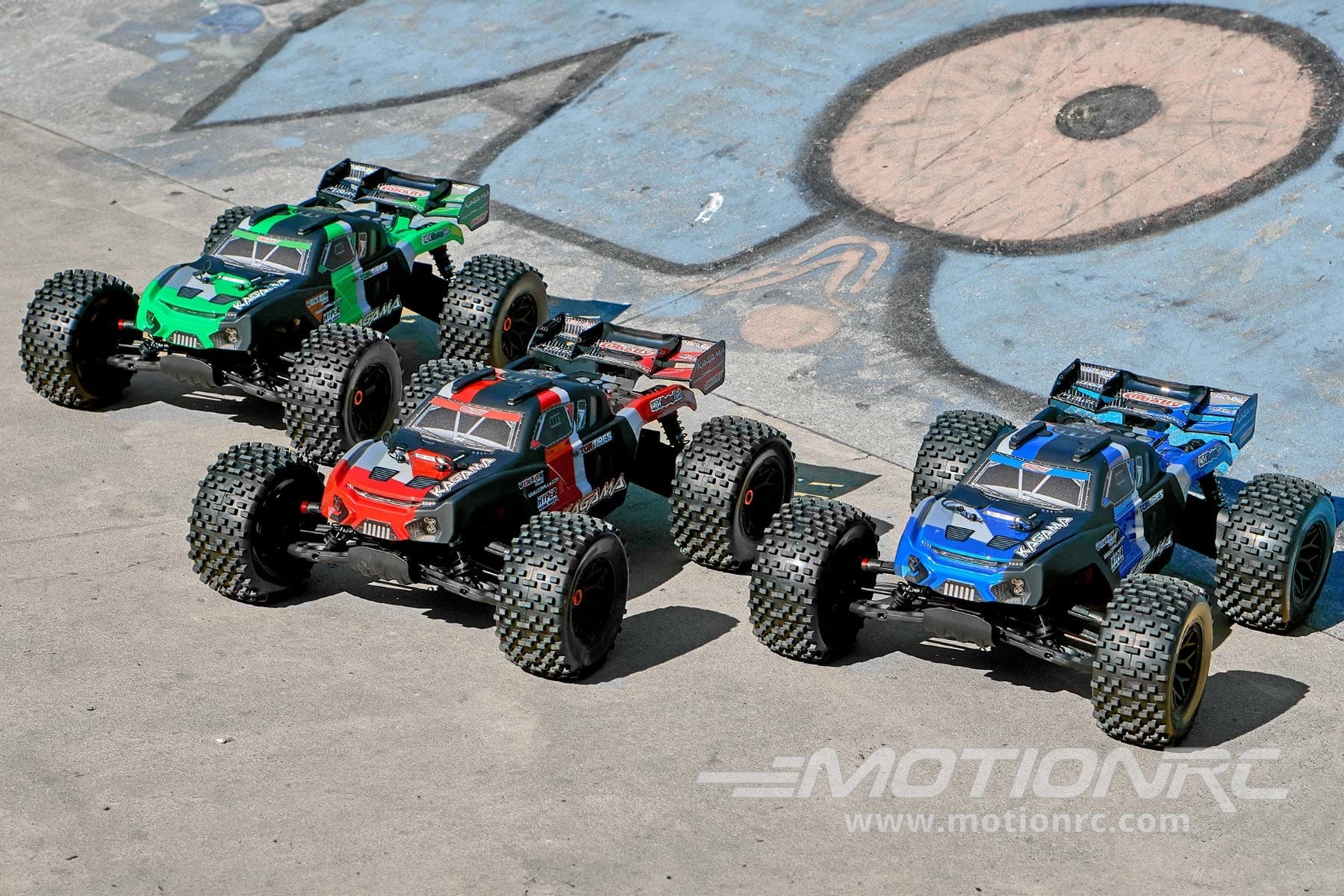

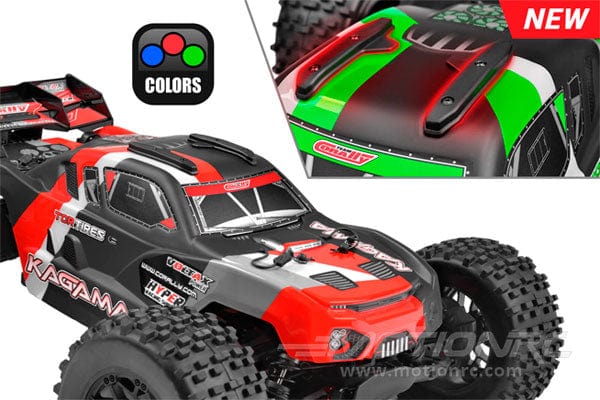

2-Tone Body Finish with Protective Roof Skids The Kagama features a unique and attractive combination of gloss and matte finish elements in its color scheme, while molded composite plastic roof guards protect the polycarbonate shell during those inevitable accidents. The modern, aggressive body design is offered in three different color combinations for additional personalization.

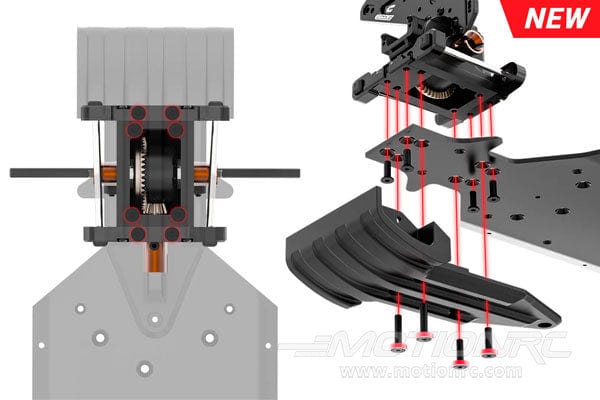

Robust Gearbox Mounting System Whereas other models secure bulkheads and pin braces using just four screws, the Kagama uses four screws for securing the suspension hinge pin braces, and an additional four to secure the bulkhead to the chassis. This 4x4 fastener system allows for isolation of the bulkheads against shocks and impacts, improving both durability and performance.

Features:

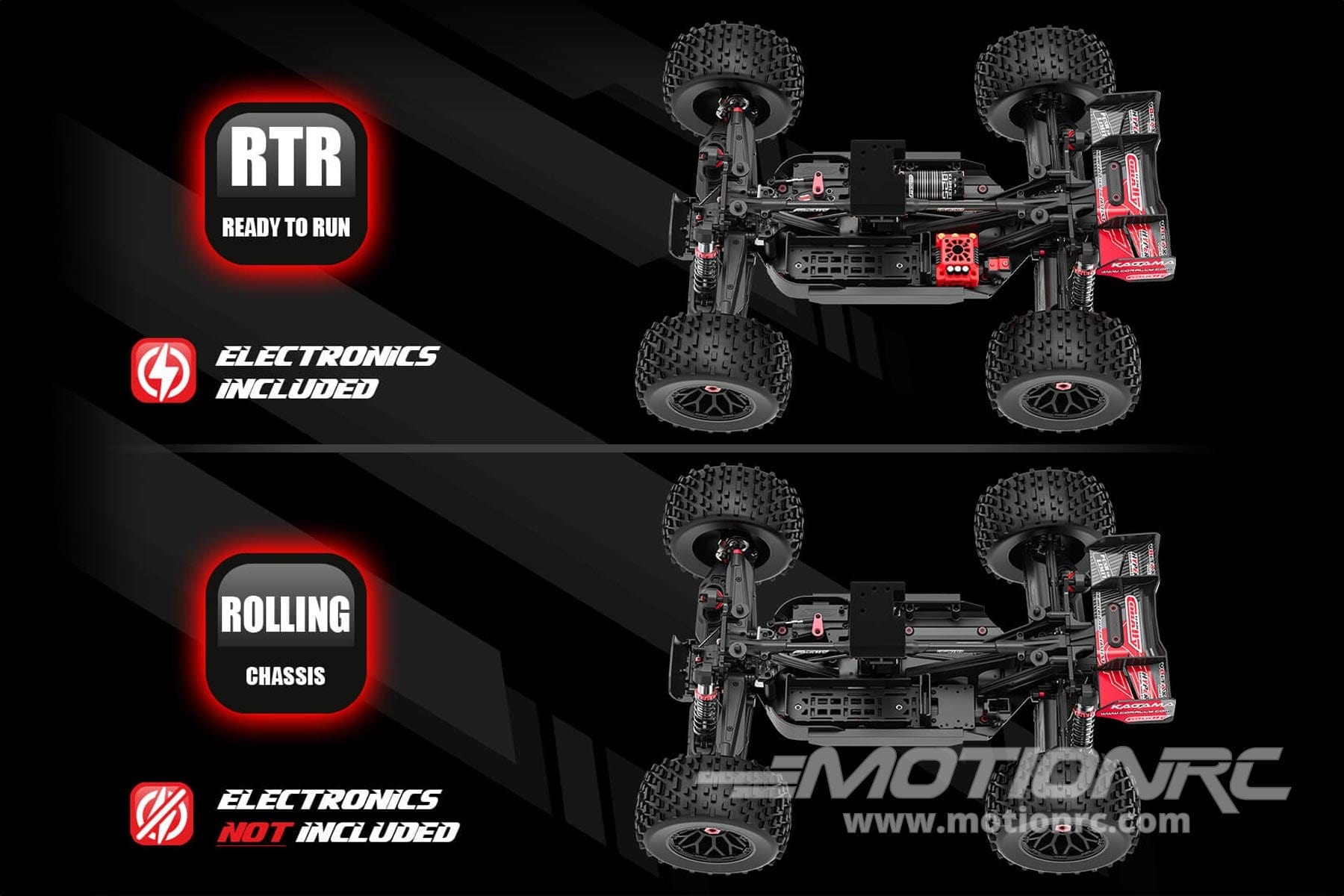

• Pre-built 1:8 monster truck available as RTR or rolling chassis
• Team Corally TOROX 185 ESC 2-6S with LiPo protection
• Team Corally Kuron 825 2050Kv 4-pole brushless motor 3-6S
• CRHV-7225 HV metal Ggear, 25Kg Torque, steering servo
• Team Corally CT2R ergonomic, interference-free 2.4GHz transmitter
• 70% Parts compatibility with existing Team Corally 1:8 scale models
• 3mm 7075 aluminum double-deck steering Ackermann system
• Aluminum servo arm
• Separate splash-proof and dustproof electronic box with transponder mount
• XL adjustable battery holder for all common LiPo batteries
• Full set of ball bearings, rubber sealed
• All transmission ball bearings are 8x16x5mm
• Hardened steel spur gear and motor pinion
• Three sealed metal differentials individually filled with silicone oil
• Aluminum/steel central differential
• Quick and easy differential access
• 2-piece aluminum motor holder with composite gear cover
• 52T steel spur gear
• Complete hard-coated S2 steel outdrives
• Extra surface hardened steel front CVD joints
• Aluminium 17mm drive hexes
• Oil-filled threaded 16mm aluminium big bore shocks
• Shock spring perches locking system
• Nylon composite shock cap protectors
• CNC aluminium shock towers, 5mm front and rear
• Independent pivot ball front suspension
• Independent double wishbone rear suspension
• Optimized, custom developed composite parts
• Aluminium pin and pivot ball collars on suspension arms
• Rear suspension arms include large mud guards to protect driveshafts from dirt and debris
• HD front steering blocks and rear hubs
• Extra thick 8mm aluminium suspension pin braces
• Ultimate bulkhead mounting system (8 x M4 screws)
• Heavy-duty one-piece composite suspension links and tie rods
• Team Corally RSP anti-roll bar system, front and rear
• Massive, 3mm thick aluminum main chassis plate with machined pockets
• Reinforced chassis side guards with integrated body protection
• Heavy duty front and rear chassis braces
• New hyper-rigid central tube chassis brace system with 12mm aluminum tubes
• Reinforced high downforce wing and wing holder with tower connecting brace
• Front and rear bumper with integrated skid plates
• Pre-glued “gripper” tires on BBS style rims
• Durable, elaborately printed polycarbonate body include additional molded roof skids

Includes:

• Team Corally Kagama Blue 1/8 Scale 4WD Monster Truck - RTR
• Torox 185 ESC (factory installed)
• Kuron 825 brushless motor (factory installed)
• Varioprop CRHV-7225 servo (factory installed)
• Custom painted body (factory installed)
• CT2R 2.4GHz transmitter and receiver (factory installed)
• Instruction manual
• Basic tools

Requires:

• 4x AA batteries for 2.4GHz radio transmitter - we recommend Admiral 1.2V 2600mAh NiMH AA Rechargeable Batteries (4 Pack
• 4S to 6S (14.8V to 22.2V) LiPo Battery with XT90 connector - we recommend the Admiral 5300mAh 4S 14.8V 60C Hard Case LiPo Battery with XT90 Connector
• 4 Cell to 6 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
