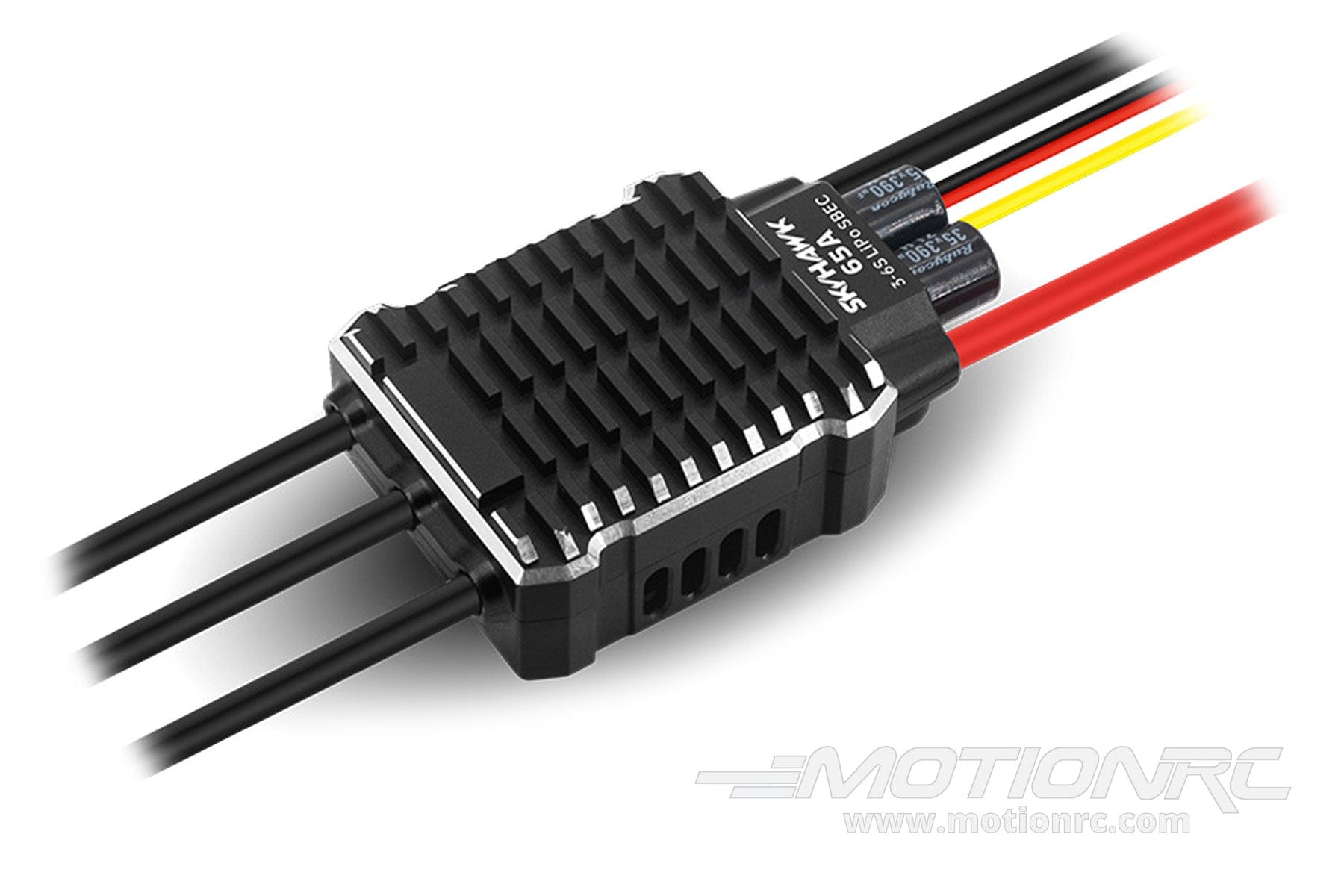

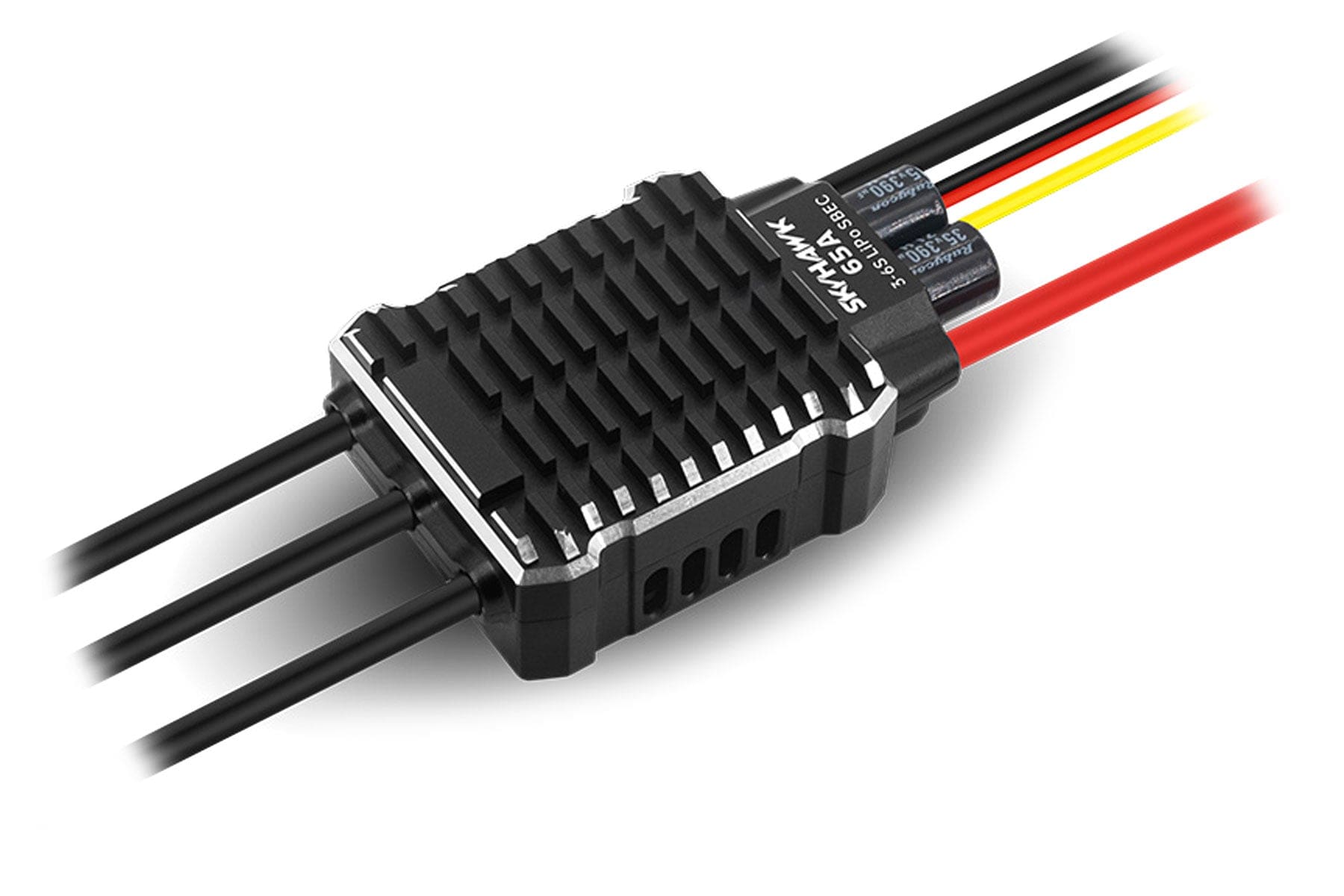

Skyhawk 65A ESC with 8A SBEC from ZTW - ZTW4065211
This ZTW Skyhawk ESC is a premier quality brushless electronic speed control with an integrated switch-mode BEC; eliminating the need for a separate receiver battery, it conserves weight and simplifies wiring. Crafted with an aluminum heat sink body, it is lightweight and disperses heat efficiently. With a BEC specifically designed to support high-powered applications, you won't encounter any unexpected power shutdowns, while it can also handle multiple servo operations seen on big airplanes and 3D helicopters. If you're in search of a top-of-the-line, full-featured ESC at a great price, the Skyhawk is your best bet.
 |
32-Bit Microprocessor Equipped with a powerful high-performance 32-bit microprocessor, the ESC responds faster, start-up is smoother, and the throttle linearity is optimized. |
 |
Fully Protected Includes protection for start-up, overheating, low-voltage cut off, signal loss, etc., to ensure your components stay in working order. |
Features:
- High-performance 32-bit M4 microprocessor running at 170MHz
- Data logging system such as temperature, voltage, current, and RPM
- SBEC Voltage Output 6.0, 7.4, and 8.4V
- High SBEC Current Output designed to meet your high current applications
- Power on protection, over-heat protection, low-voltage protection and lost-signal protection
- Super smooth and accurate throttle linearity
- Support for most motors, including high RPM motors
- Programmable motor timing
- Utilizes new MOSFET technology for low heat and high reliability
- Aluminum finned heat sink
- Programmable throttle input range
- ESC firmware and program settings can be updated via the Android or Apple mobile APP (bluetooth module sold separately)
Includes:
- ZTW Skyhawk 65A ESC with 8A SBEC
- Pre-installed XT-60 Connector (power connector) and 3.5mm bullet (motor connector) for your convenience
- Instruction Manual
Optional:
- ZTW G2 LCD Programming Card - Click here for more info
- ZTW Bluetooth Programming Module - Click here for more info
Product Specifications:
Length |
60mm / 2.36in |
Width |
34mm / 1.34in |
Height |
22mm / 0.87in |
Weight |
55g |
MAX Output |
Continuous Current 65A |
Burst Output |
85A |
Battery |
2-6LiPo/5-18NC |
BEC Output |
6.0, 7.4, 8.4V Adjustable/8A |
Power Connector |
XT60 |
Motor Connector |
3.5mm bullets |
