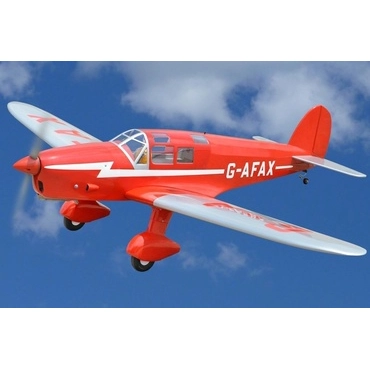

B.A. Eagle 1790mm (70.47") Wingspan from Black Horse - Balsa Wood ARF - BHBA000

The B.A. Eagle was a light aircraft manufactured in the United Kingdom during the 1930s. It was a three-seat low-wing monoplane built by the "British Klemm Aeroplane Company" (which later became known as the British Aircraft Manufacturing Co.) Production was limited, with 43 aircraft built.

Eagles were mainly sold to private owners, with a few also being used by flying clubs or as executive transports. Eagles were also used for air racing, with several being entered into the King's Cup Races between 1935 and 1937. Single examples were also entered into the MacRobertson Air Race of 1934 between Britain and Australia and the 1936 Schlesinger Race between England and South Africa.

Our model is scaled to approximately 1:6.7 and attention has been given to providing a realistic appearance with outstanding flight characteristics. The model was designed for electric power but can also be flown using a matched pair of internal combustion engines of about 15cc displacement.

Visit the Official Black Horse B.A. Eagle 1790mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Features:

High level of prefabrication right out of the box
Lightweight, strong, and partially sheeted laser cut balsa and plywood construction
Covered in high quality Oracover film
Large easy access fuel tank/battery/servo access door
Detailed and hand painted pilot included
Fiberglass control horns
Mylar C/A hinges on all control surfaces
comprehensive control and fitting accessories included
Two-piece, wings simplify transportation and assembly
Painted and details fiberglass cowl
Mounts for both electric and gas power options included
Fully illustrated instruction manual included and also available for download (see tab above)

Includes:

Black Horse B.A. Eagle 1790mm (70.47") Wingspan - ARF

Requires (Electric):

6 Channel radio - select a minimum 6 channel radio from our Radio Collection
6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
1100-1600 Watt brushless outrunner motor - we recommend the Admiral GP10 5030-400Kv Brushless motor
60-100 Amp brushless ESC - we recommend ZTW Mantis G2 85A ESC with 8A SBEC
7x 45g standard servos - we recommend HS-425BB
6 Cell 22.2V 3000-6000mAh LiPo Battery with EC5 connector - we recommend Admiral 4000mAh 6S 22.2V 40C LiPo Battery with XT60 Connector
Electric propeller - we recommend APC 14x10 Thin Electric Propeller - Black
6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection

Requires (Gas):

Engine: 15-18cc Gas / .91ci Nitro, NGH GT-17 recommended
Gas Propeller: 14x6 - 16x8 recommended

Customer Note

Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
