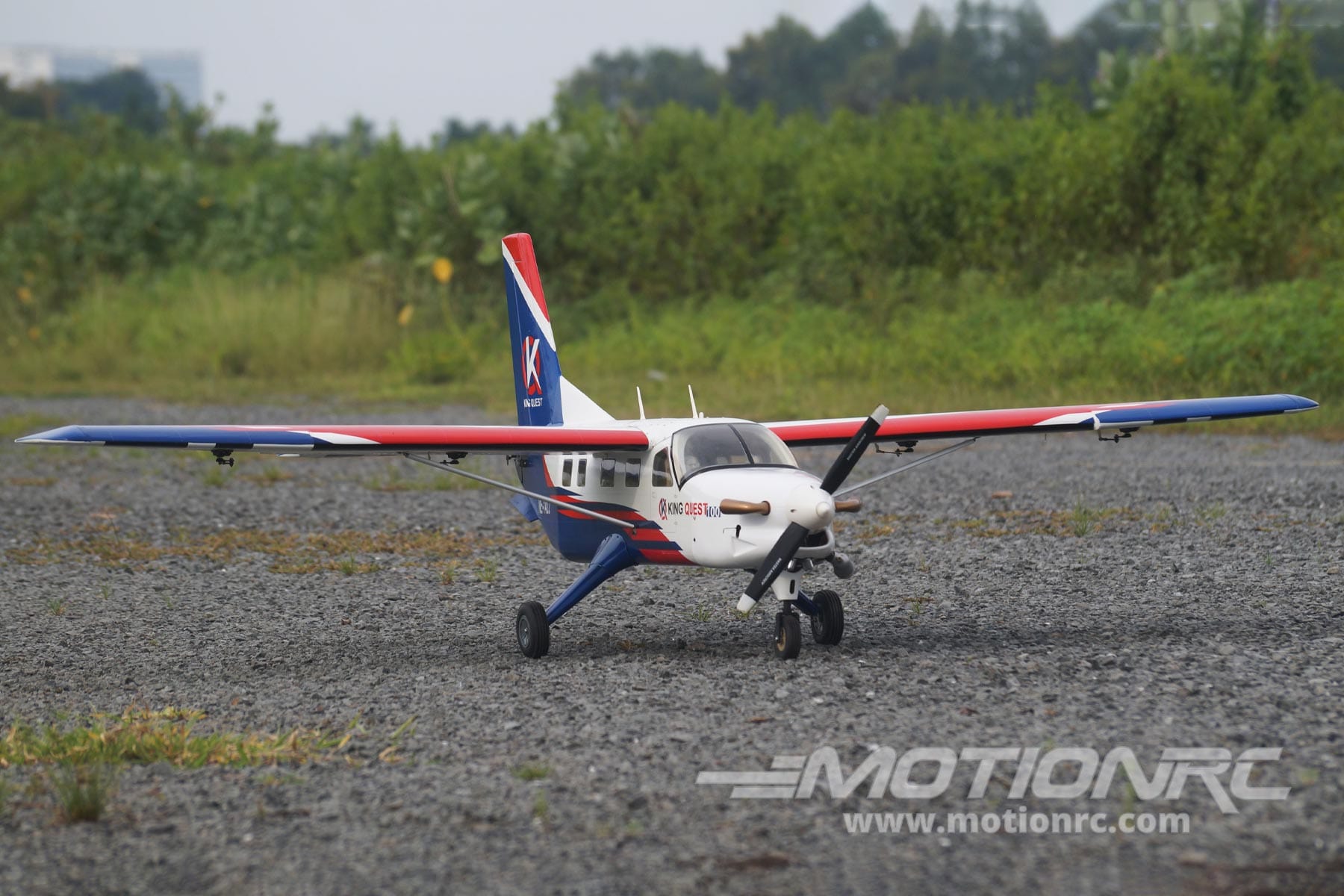

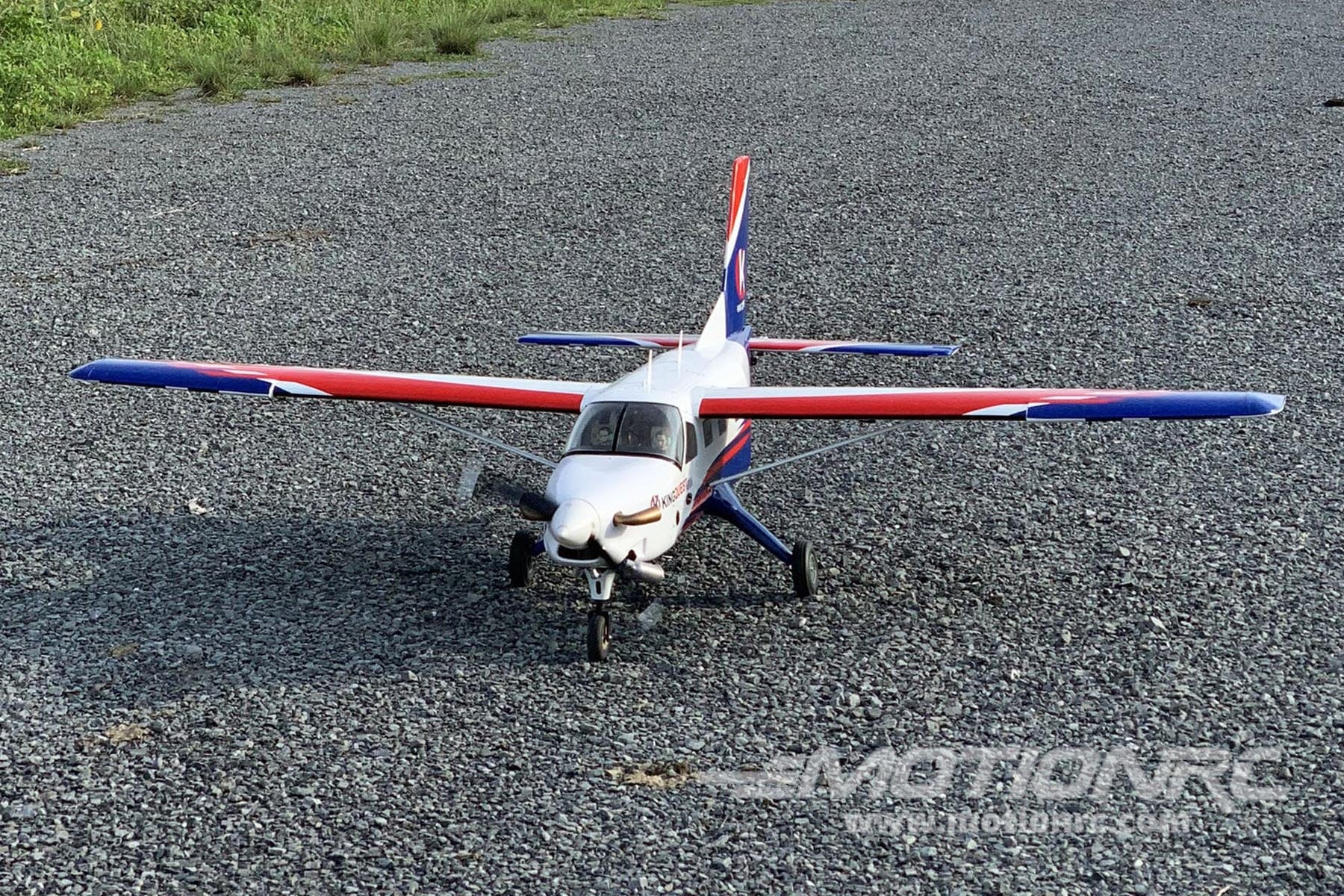

King Quest Kodiak 2210mm (87") Wingspan - ARF from Nexa - NXA1052-001
This Nexa King Question Kodiak is brand new to the Nexa lineup at the end of 2022. This brand new aircraft is absolutely full of scale details. The full size King Quest Kodiak is a multi-purpose STOL plane and this model is a gorgeous replica of the original. With all the scale details and a 2200mm wingspan, this model is impressive from both near and far. Though this plane is large, the 2 piece wing can be fairly easily removed for transportation to and from the field. As with the original, this plane does not require a lot of runway for takeoff and landing. Handling is fantastic.
This Nexa model can be setup with either gas or electric power system. The super large hatch allows easy access to either battery or fuel tank. Servo pockets make installed the standard size servos (control surfaces) and micro sized servos (flaps) a breeze.
Visit the Official Nexa King Quest Kodiak 2210mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Completely covered from tip to tail in scale details as shown
- Large battery hatch allows for your chosen electric or gas setup
- Functional pre-hinged landing flaps
- Hand painted pilot
- Stable landing gear with steerable nose gear
Includes:
- Nexa King Quest Kodiak 2210mm (87") Wingspan - ARF
- Landing gear and wheels
Requires:
- 7 Channel radio - select a minimum 7 channel radio from our Radio Collection
- 7 Channel receiver - select a minimum 7 channel receiver from our Receiver Collection
- Brushless outrunner motor - we recommend the Admiral GP26 6330-245Kv Brushless Motor
- 120 Amp brushless ESC - we recommend the ZTW Skyhawk 130A ESC High Voltage with 10A SBEC
- 5x 45g standard servos for ailerons and nose gear wheel - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (5 Servos)
- 3x 17g standard servos for elevators, nose gear wheel, and flaps - we recommend Hitec HS-82MG Metal Gear Micro Servo Multi-Pack (3 Servos)
- 2x 5 Cell 18.5V 6000mAh LiPo Battery - we recommend TWO of the Admiral Pro 6000mAh 5S 18.5V 50C LiPo Battery with EC5 Connector
- Series adapter - we recommend the BenchCraft EC5 2 to 1 Series Adapter
- Electric propeller - we recommend the Admiral 18x10 Electric Series Wood Propeller
- 5 Cell compatible battery charger - select a minimum 5 cell (5S) charger from our Charger Collection
Gas Requires:
- 2-stroke engine - we recommend the NGH GT17 17cc Two-Stroke Engine
- 2-blade gas propeller - we recommend the APC 14x8 Gas Propeller
- Silicone fuel tube
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/6 |
Wingspan |
2210mm / 87in |
Length |
1580mm /62.2in |
Weight |
5900g / 208.12oz |
CG (Center of Gravity) |
95mm from the leading edge of the wing's root |
Power System |
245Kv or equivalent brushless outrunner motor for electric or 2-stroke for gas (required) |
Electronic Speed Control |
130A (required) |
Propeller / EDF |
18x10 2-blade for electric or 14x8 2-blade for gas (required) |
Servos |
|
Landing Gear |
Fixed (included) |
Required Battery |
6 Cell 22.2V 5500mAh LiPo batteries (required) |
Required Radio |
7+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
7+ Hours |
Recommended Environment |
Outdoors |
