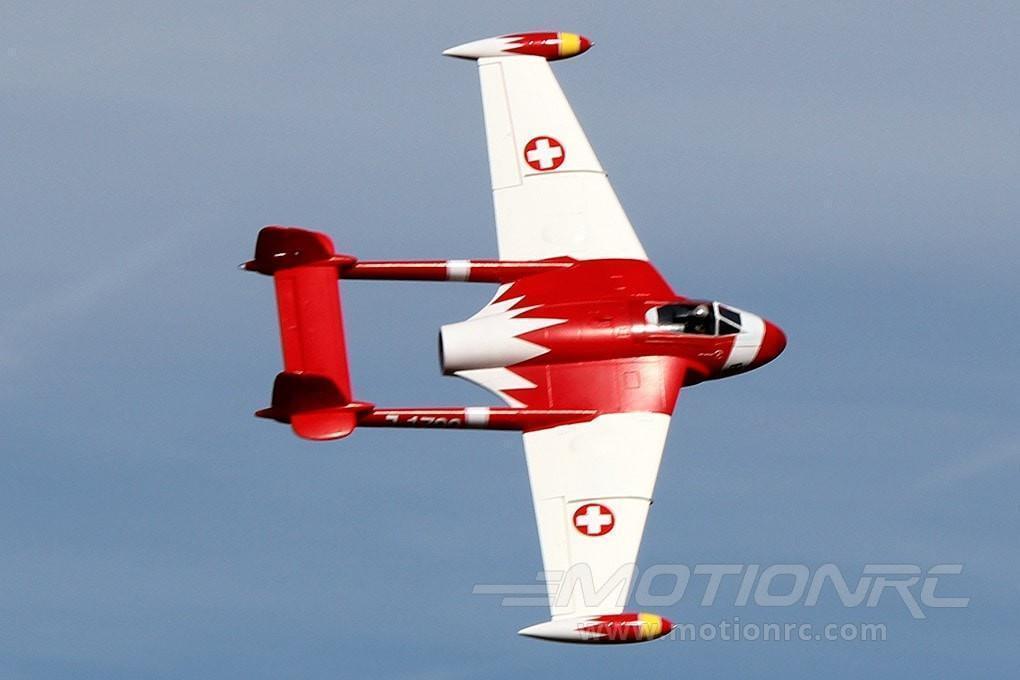

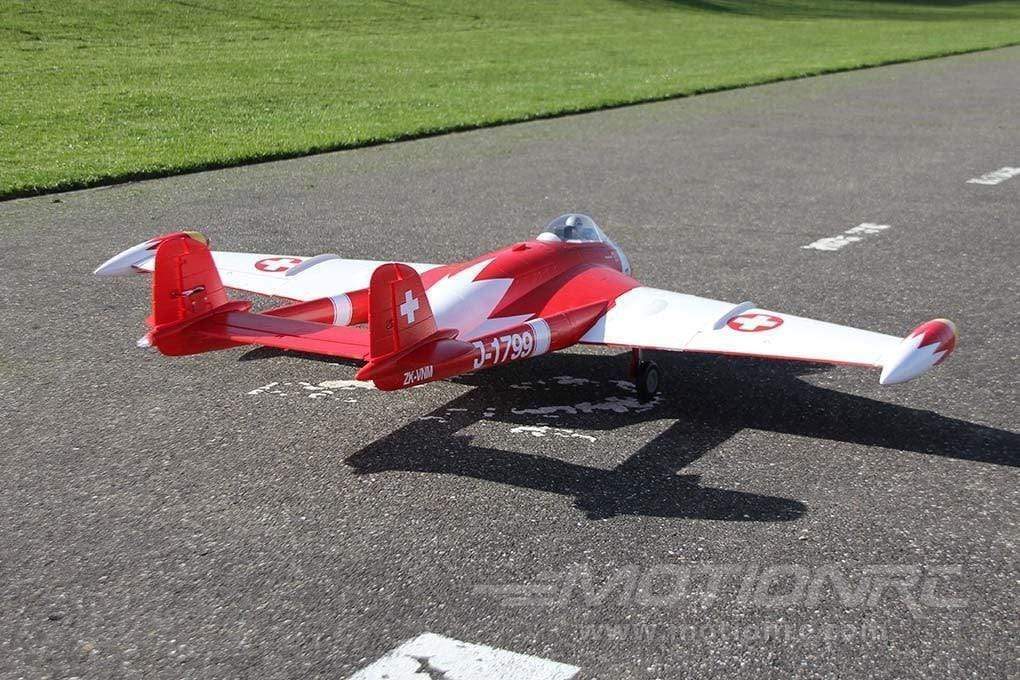

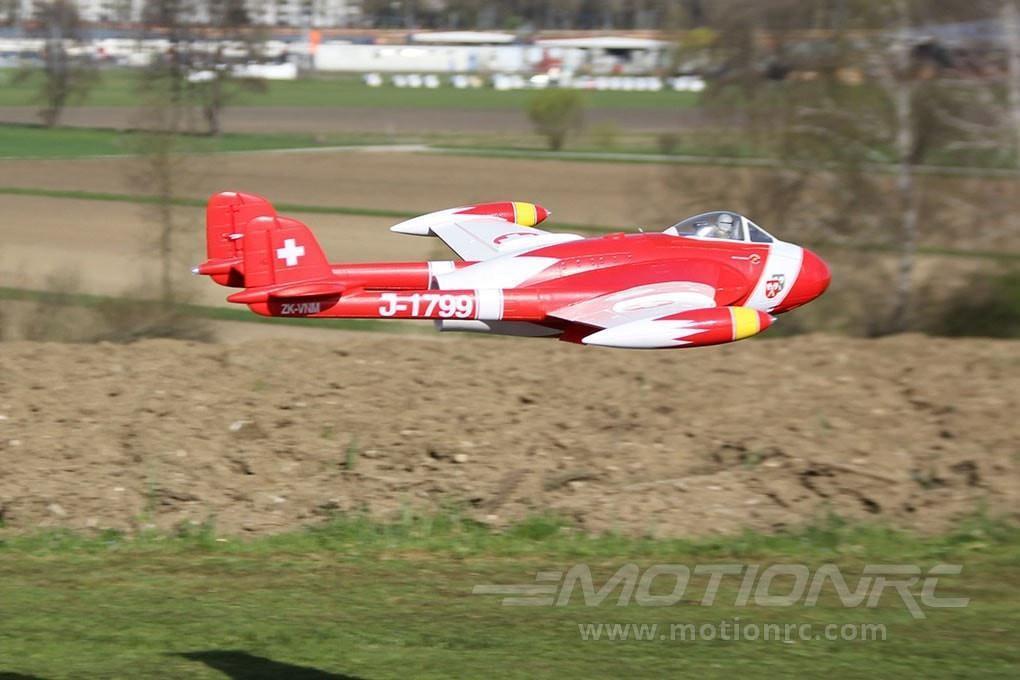

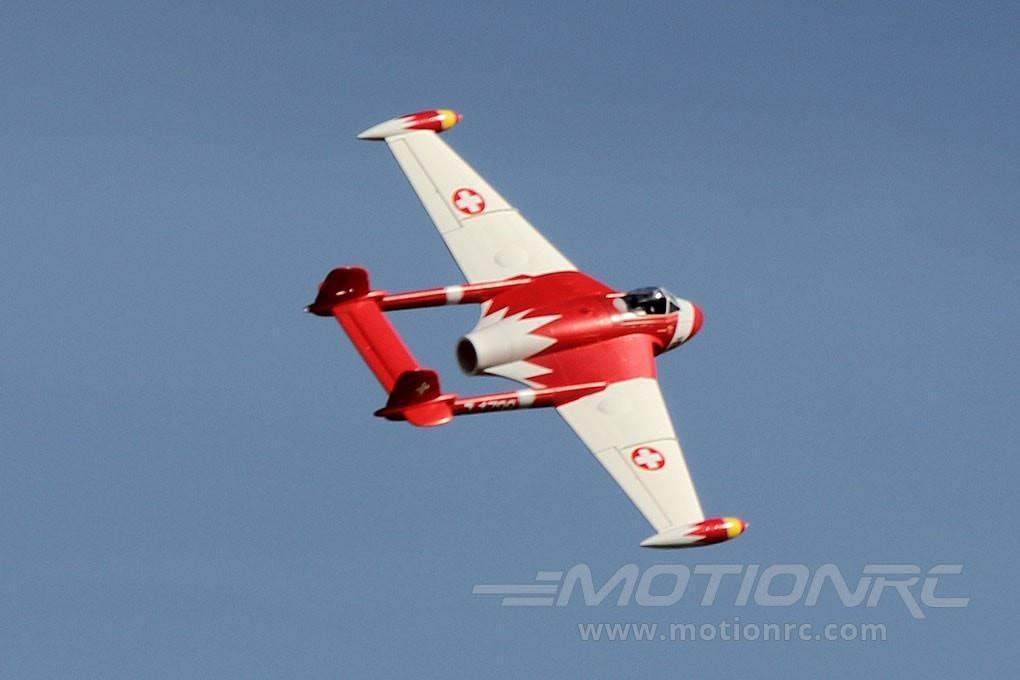

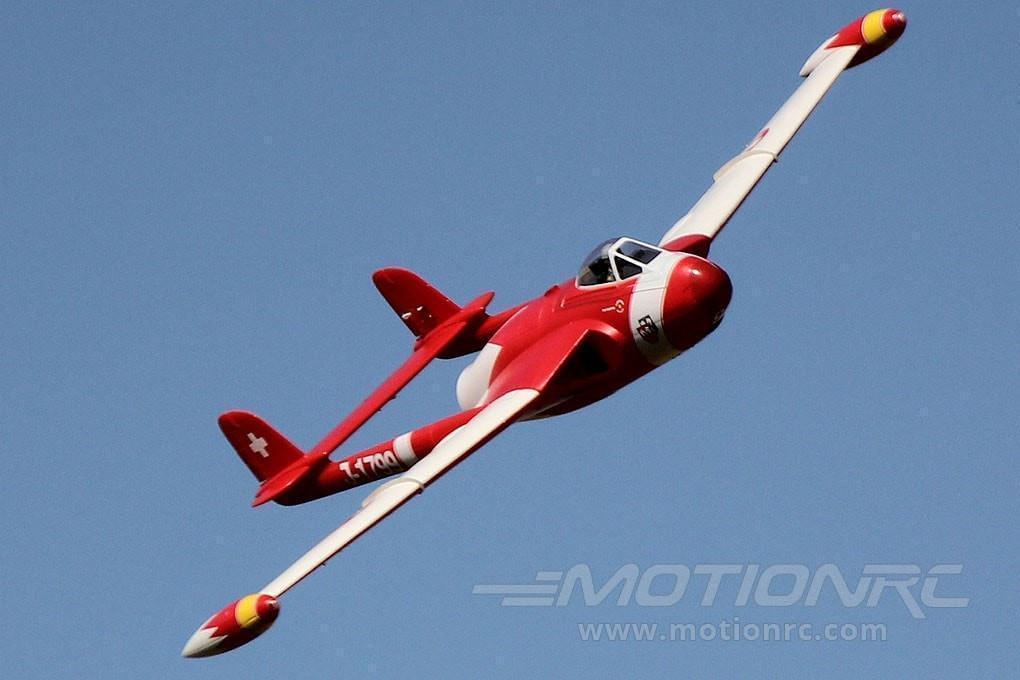

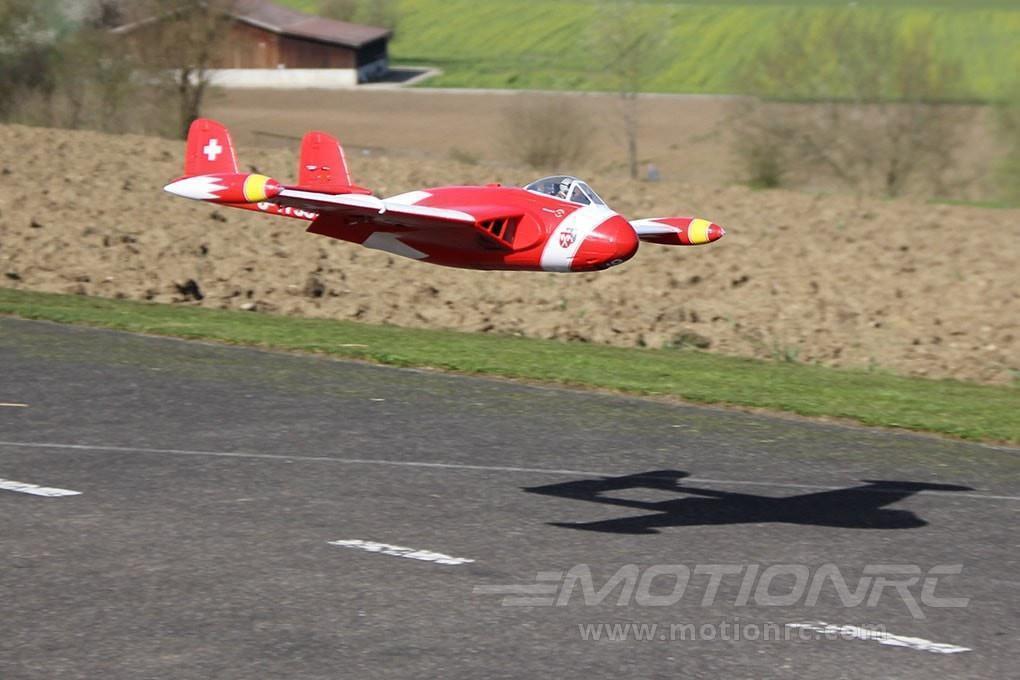

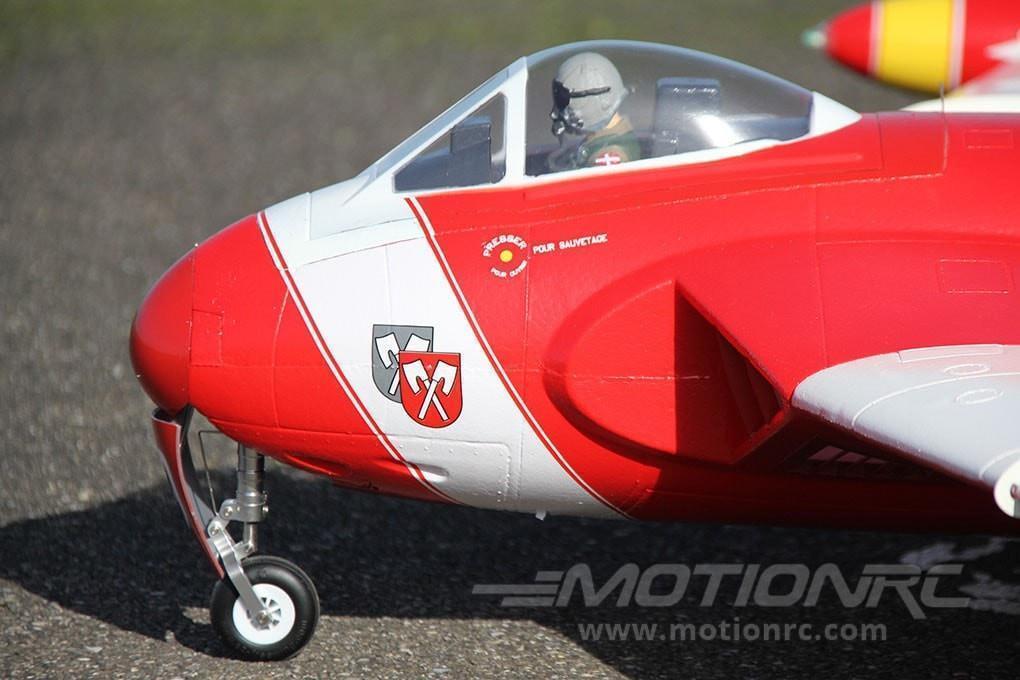

Freewing 90mm EDF de Havilland DH 112 Venom Jet Version 2 Swiss High Performance Red Scheme - Receiver Ready (PNP) - RJ30233P
Version Info: This is the High Performance which includes a powerful 3672-1900Kv inrunner motor with new 9-blade fan.
This is the new version 2 (V2) of Freewing's Venom EDF Jet with Swiss red livery. This upgraded version has significant upgrades to both the power system and the airframe. This High Performance Venom V2 now includes a new 9-blade fan, 130A Hobbywing ESC, and powerful 3672-1900Kv brushless inrunner motor. Structural upgrades include an increased number of carbon wing spars for rigidity, strengthening of the overall tail section, and a complete redesign of the horizontal and vertical stabilizer sections for improve performance and scale appearance.
This model does not include the optional bomb/mount set.
Features:

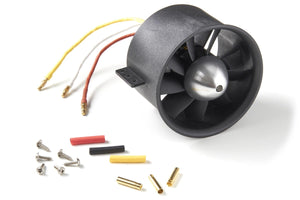

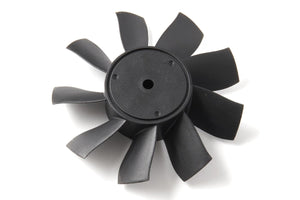

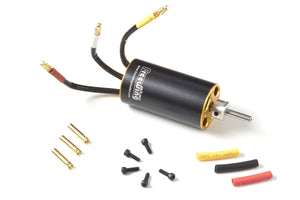

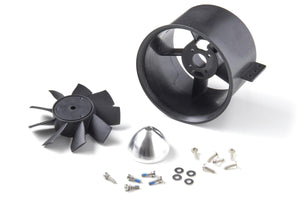

- New! 90mm 9-blade ducted fan and powerful 3672-1900Kv brushless inrunner motor provides awesome power and incredible real life jet turbine sound

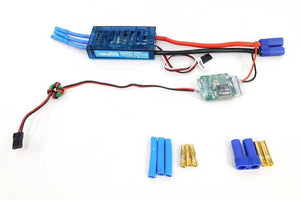

- Premium quality 130 Amp Hobbywing ESC with 8A UBEC

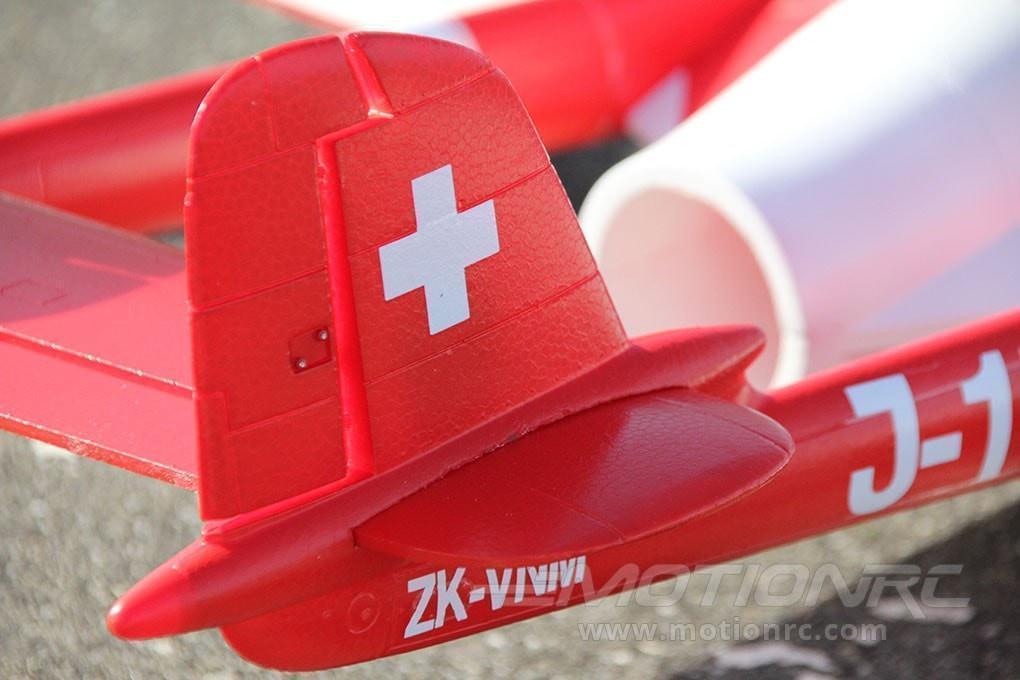

- Stronger tail section, with revised rudder and elevator
- Increased carbon spar count and EPO foam construction provide the perfect balance between strength and flexibility

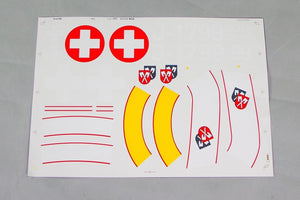

- Incredible scale details including hand painted pilots, scale canopy, shock absorbing landing gear, sequenced landing doors, and stunning Swiss Air Force graphics package
- Large, nearly 5 foot, wingspan provides incredible scale detail and easy to see even at high speeds

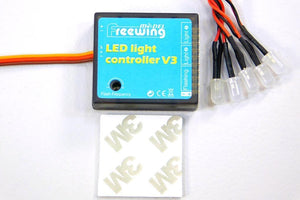

- Bright LED navigation lights for enhanced realism and dawn/dusk maneuvers.

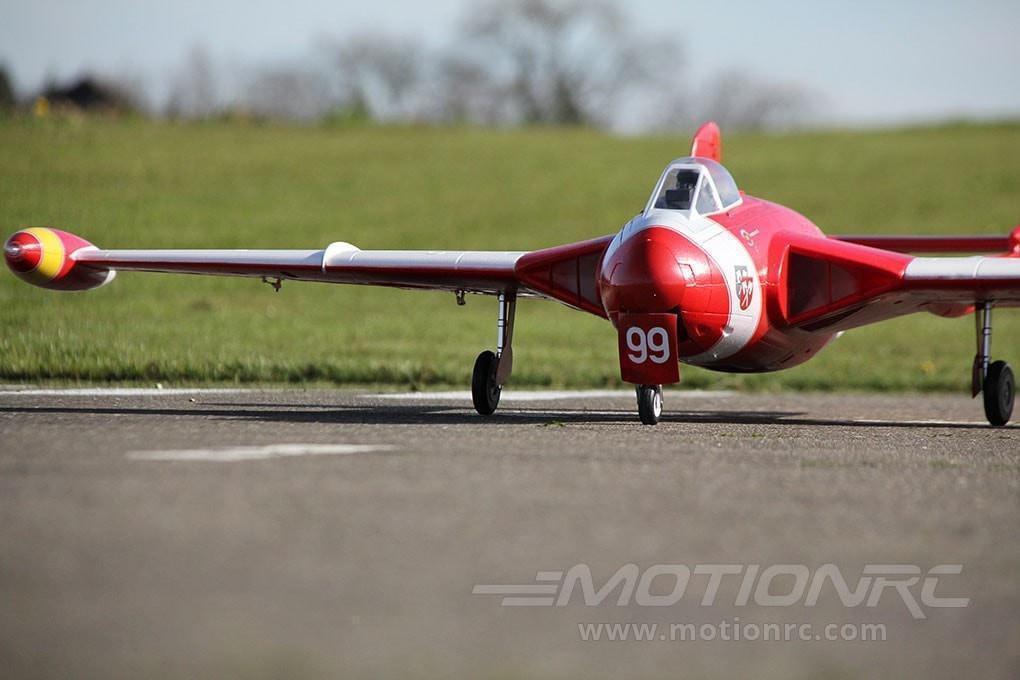

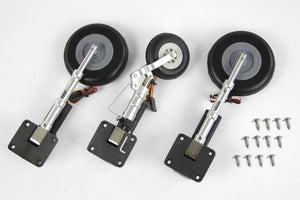

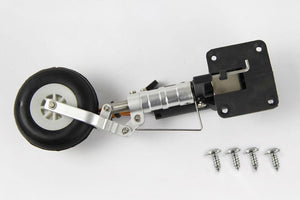

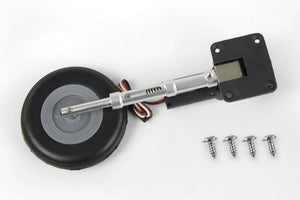

- Electronic retractable landing gear with aluminum shock absorbing struts and sequenced gear doors
- Full function flaps allow shorter take-off distances and slow, scale landings.
- Nylon hinges on all control surfaces (superior to foam hinges)
- Motor, servos, ESC and EDF come pre-installed for your convenience
Includes:
- Freewing de Havilland DH-112 Venom V2 Swiss Red High Performance 90mm EDF Jet - PNP
Requires:
- 6 Channel Radio - Select a minimum 6 channel radio from our Radio Collection
- 6 Channel Receiver - Select a minimum 6 channel receiver from our Receiver Collection

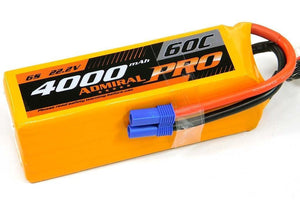

- 6 Cell 22.2V 4000mAh LiPo Battery with EC5 connector - EPR40006PRO
- 6 Cell Compatible Battery Charger - Select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Wingspan |
1500mm / 59in |
Length |
1100mm / 43.3in |
Flying Weight |
2500g / 88.2oz |
CG (Center of Gravity) |
See Manual |
Power System |
3672-1900Kv Brushless Inrunner Motor |
Electronic Speed Control |
130A, 8A UBEC with EC5 connector |
Propeller / EDF |
90mm 9-Blade EDF |
Servos |
|
Landing Gear |

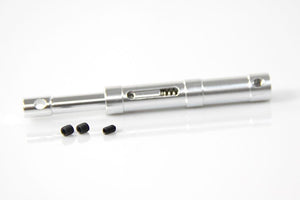

Nose and main gear have electronic retracts with shock-absorbing aluminum struts |
Required Battery |
6S 22.2V 3600-4000mAh 40C LiPo with EC5 connector |
Required Radio |
6 Channel |
Ailerons |
Yes |
Elevator |
Yes |
| Rudder | Yes |
Flaps |
Yes |
Lights |
Yes |
Hinge Type |
Nylon hinges |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
2 Hours |
Recommended Environment |
Outdoor |
