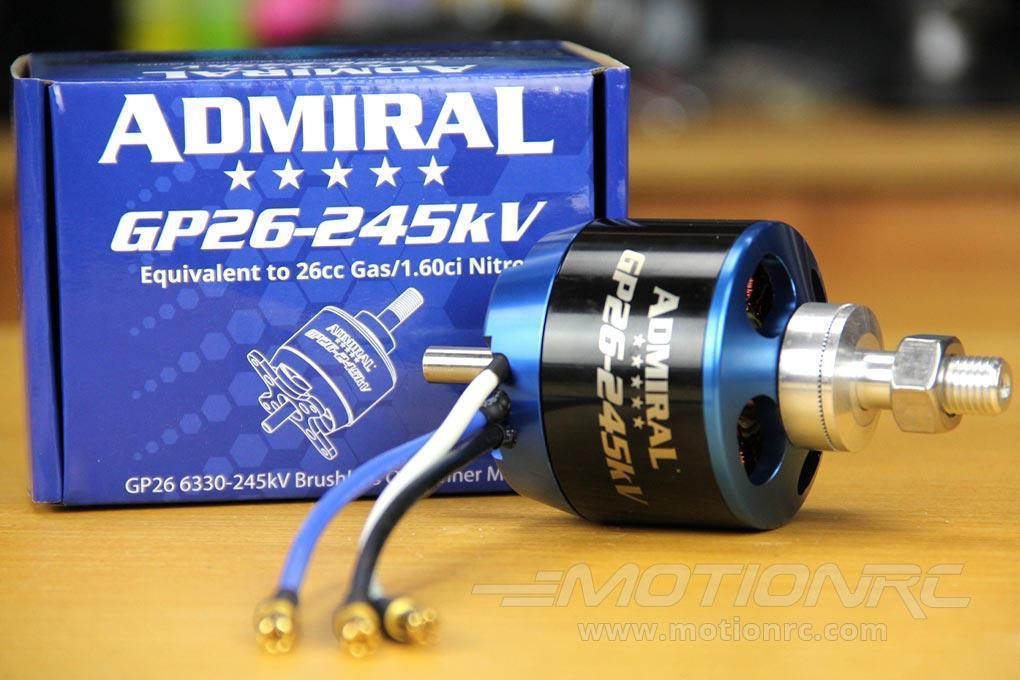

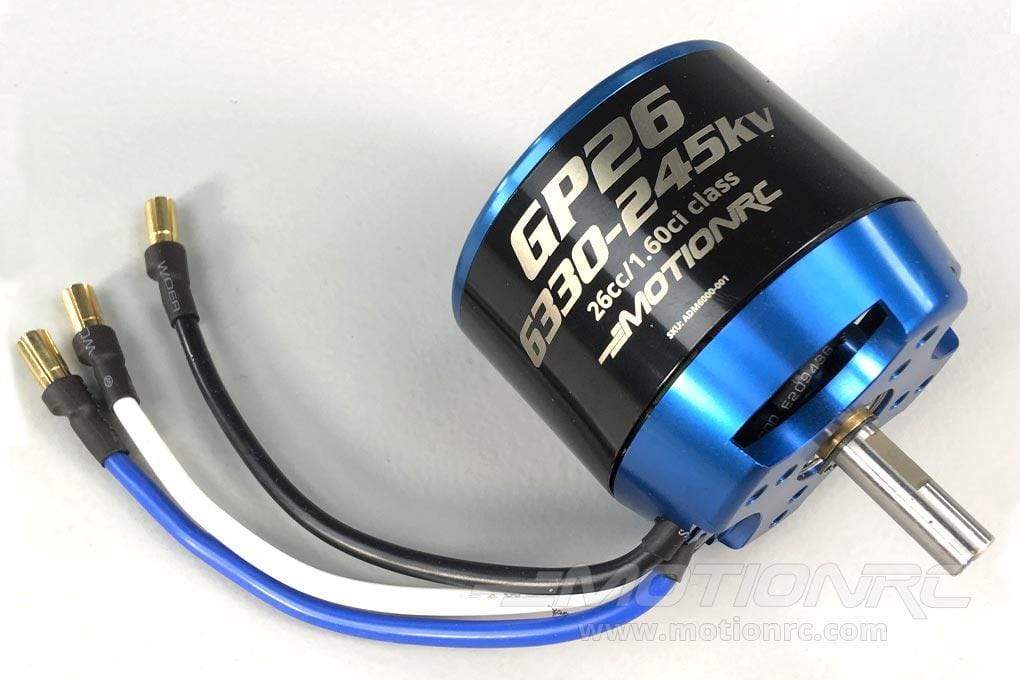

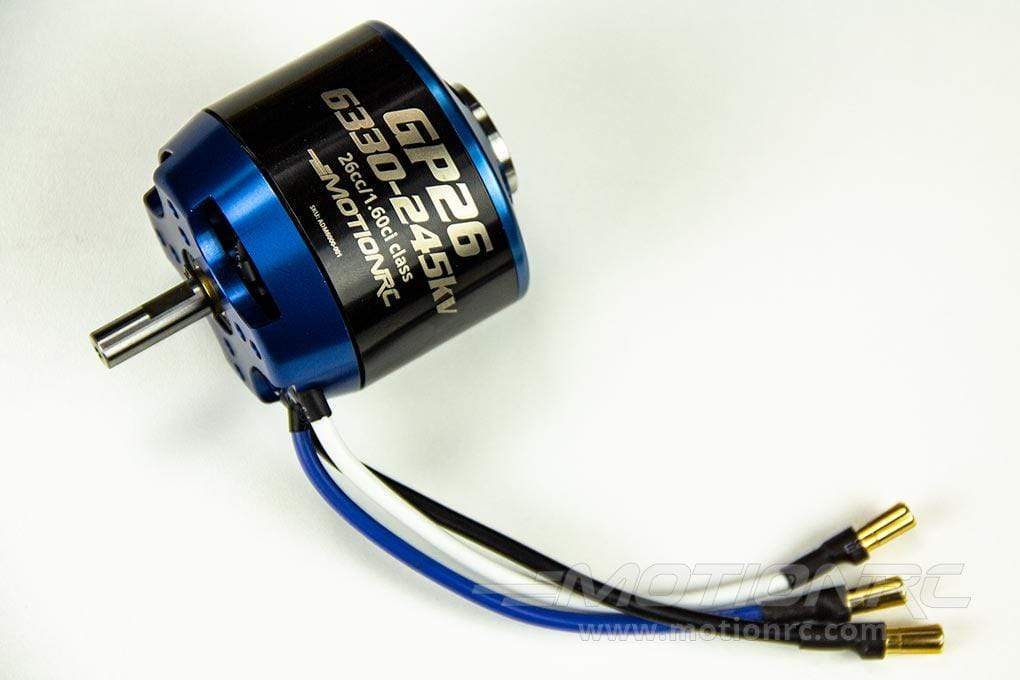

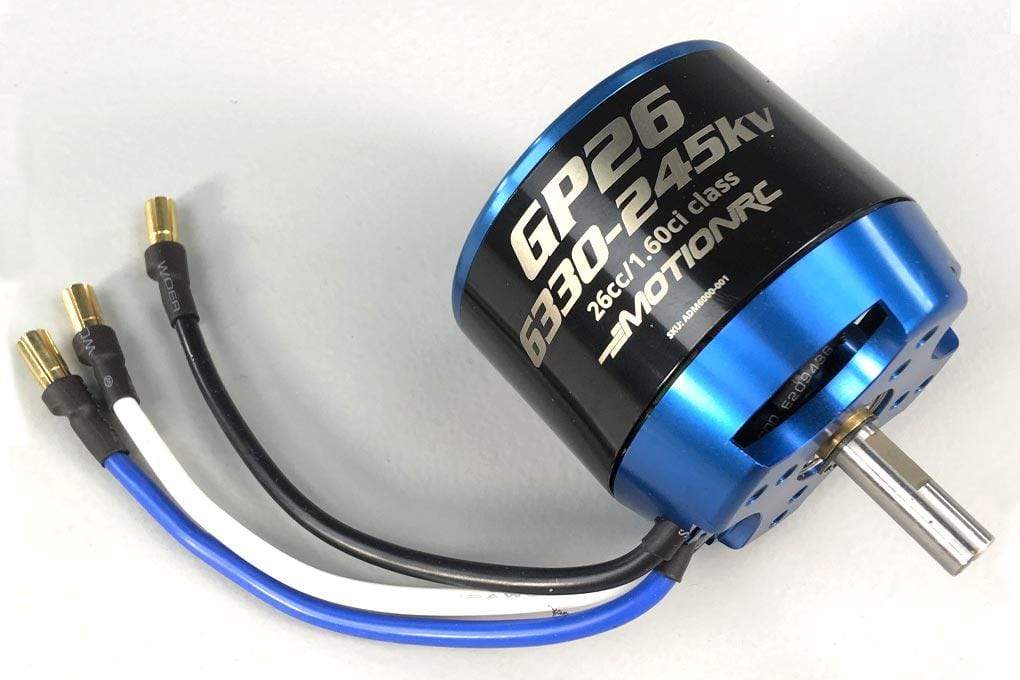

GP26 6330-245Kv Brushless Motor from Admiral - ADM6000-001
Placed firmly at the top of most peoples 'go to' brand for power with our renowned Admiral LiPo's, Admiral is proud to present the latest addition to our Power range, the Admiral 'GP' Series Brushless Electric Outrunners. The Admiral 'GP' series was created specifically for the powering of balsa models traditionally designed for Glow/nitro and Petrol/gas planes, offering a equivalent 'drop in' replacement for a wide range of models from .15ci/2.4cc right through to 1.60ci/25cc class large scale models and beyond, resulting in greater all round performance over 'wet' power systems, without any of the mess! Our GP motors are designed to a high standard, manufactured to a high quality and optimized for maximum power, efficiency and performance, giving you everything you'd expected from an Admiral Power product and all at a very affordable price.
Admiral GP26 6330-245Kv is rated up to 2700 watts and an equivalent to a 1.60ci nitro/26cc gas engine and ideal for large sport and scale models weighing between 5.4 - 9kg (12-20lbs), be it your latest large scale balsa ARF project or converting a large glow/gas model to electric, the GP26 is the perfect choice for those larger scale models when used with LiPo batteries up to 10S. As with all Admiral GP series motors, the GP26 comes supplied complete with a comprehensive set of mounting hardware, tools, X-plate mount and bolt on prop shaft along with rear shaft extension for reverse mounting.
Features:
- Rear shaft extension
- Equivalent to 1.60ci nitro/glow or 26cc gas engine
- Ideal for sports/scale models weighing between 5.4 - 9kg (12-20lbs), or 3D/aerobatic models up to 6.8kg ( 15lbs)
- Suitable for models requiring up to 2700 watts of power
- Rated up to 70 amps
- 5.5mm gold pin connectors
- High torque output
- Mounting hardware and accessories included
- Admiral blue anodized finished.
- Quiet and lightweight alternative to nitro/gas
- Hardened steel 8mm shaft supported by high quality ball bearings
- 8mm rear shaft for reverse installation
- Designed for use with props from 17x9 - 20x10 and 6-10S LiPo
- Recommended motor for the BlackHorse Lysander, Fairchild 24, Storch

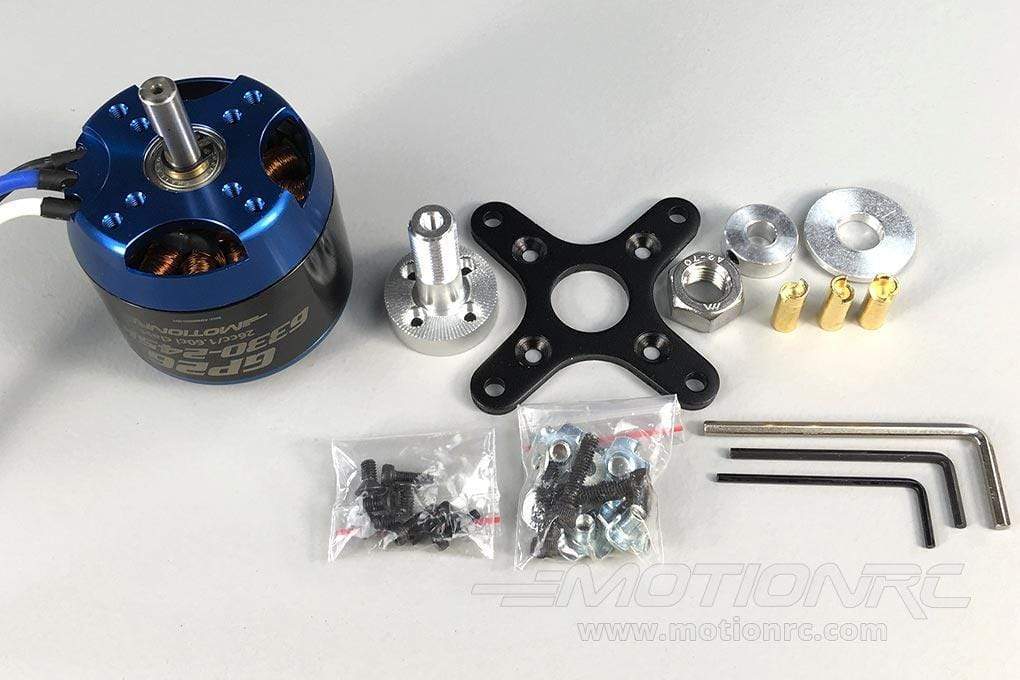

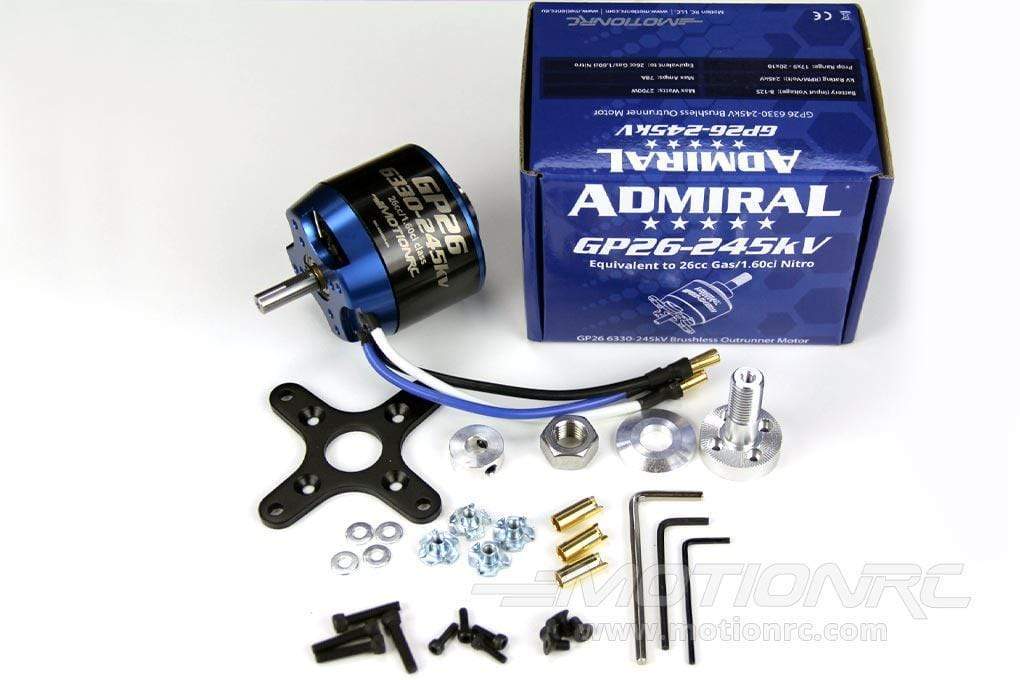

Includes:
- Admiral GP26 6330-245Kv Brushless Motor
- Bolt on 12mm prop shaft
- Mounting hardware
- X-mount plate and accessories
- 5.5mm gold pin connectors
Requires:
- Please review the specification table at the bottom of this page for battery, ESC and other recommendations that will work best for this motor
Product Specifications:
Motor Type |
Outrunner |
Kv Rating (RPM/Volt) |
245Kv |
Maximum Watts |
2700W |
Maximum Burst Current |
78A |
Recommended Battery (Input Voltage) |
9S to 10S recommended but will work with 6S - 10S |
Recommended ESC |
120A |
Recommended Propeller / EDF |
17x9 to 20x10 |
Slots, Poles |
12, 14 |
Shaft Diameter (A) |
8mm |
Shaft Length (B) |
14mm |
Motor Length (C) |
30mm |
Motor Diameter (D) |
63mm |
Overall Length (E) |
38mm |
Weight |
650g / 22.92oz |
Connector Type |
5.5mm Bullet |
