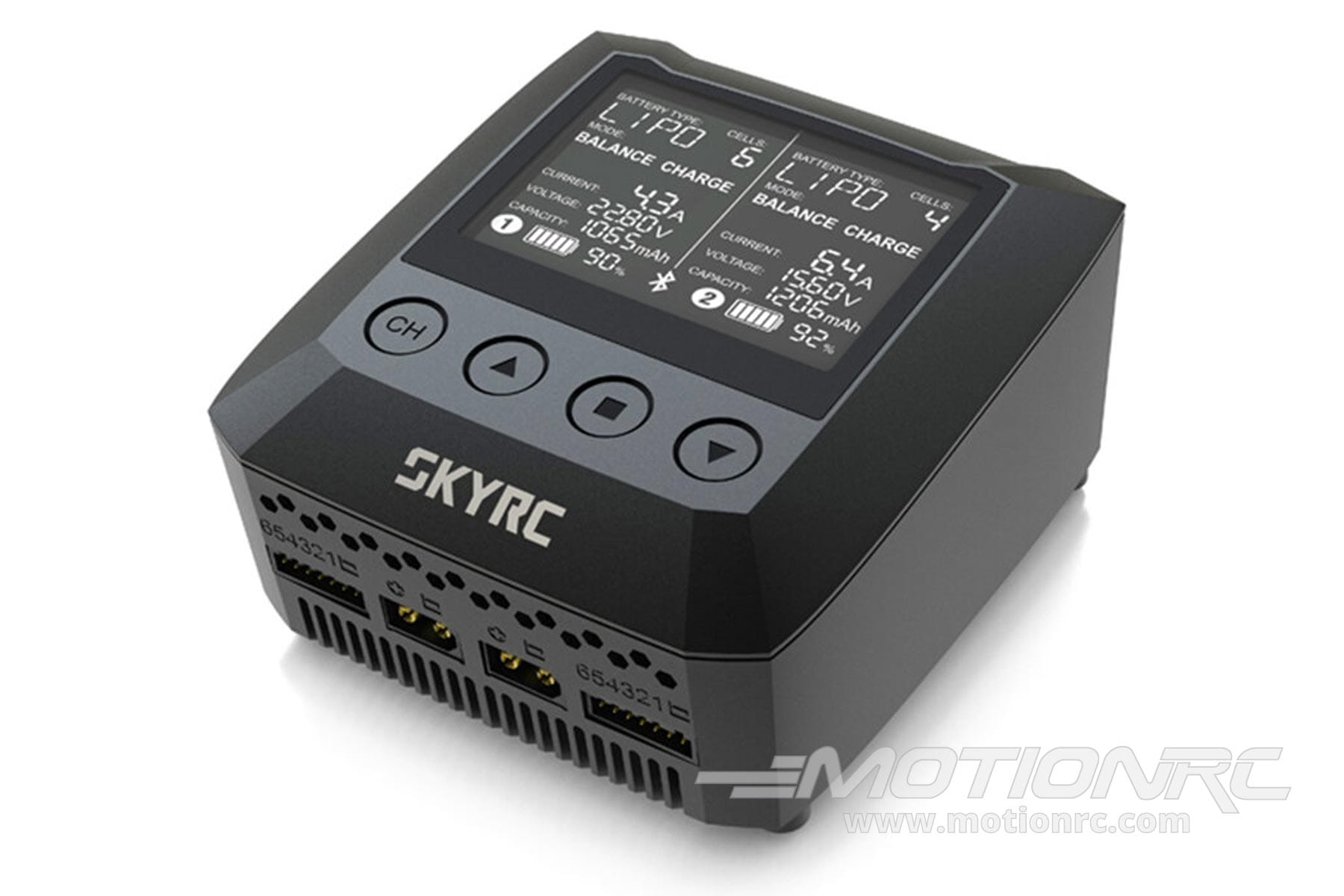

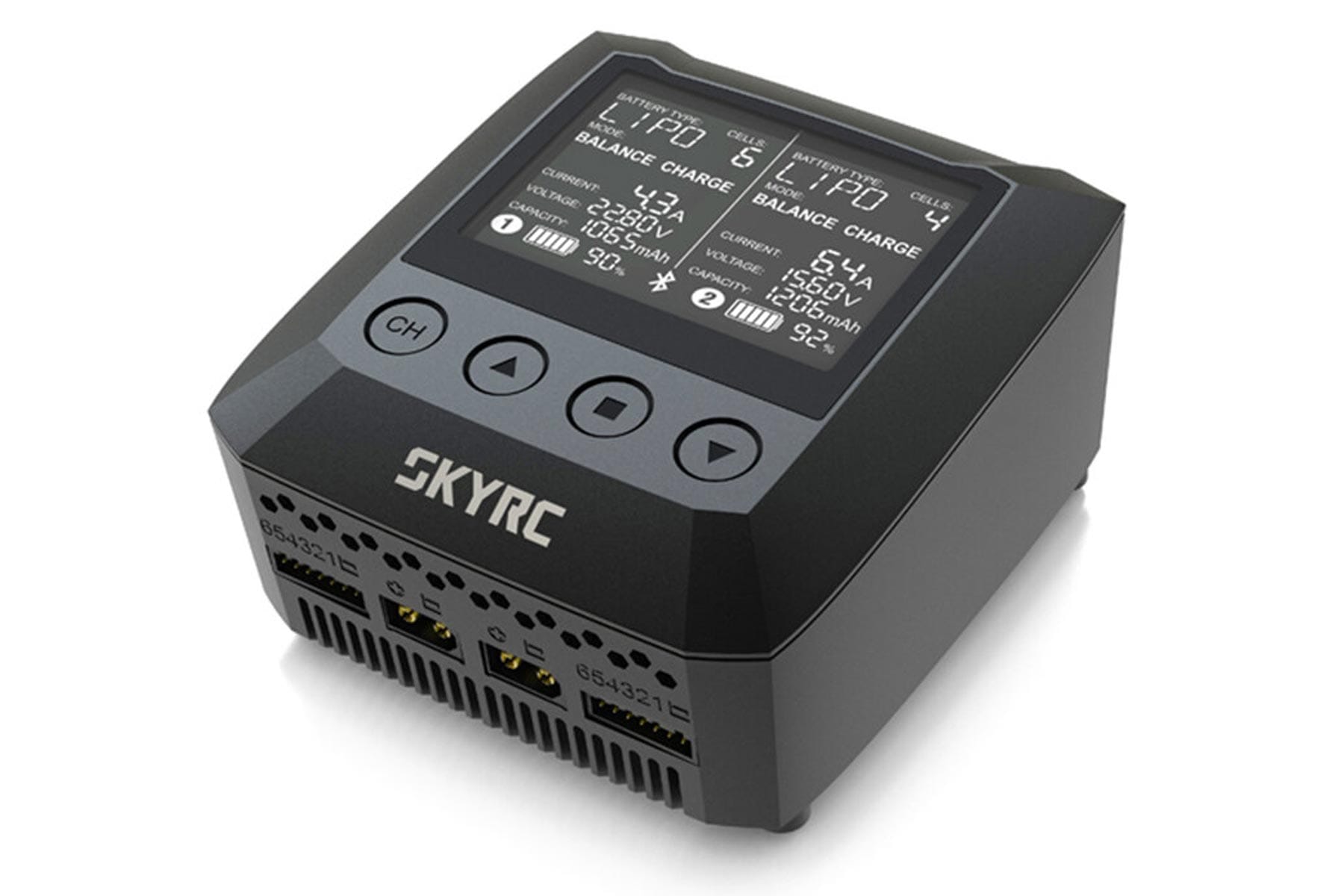

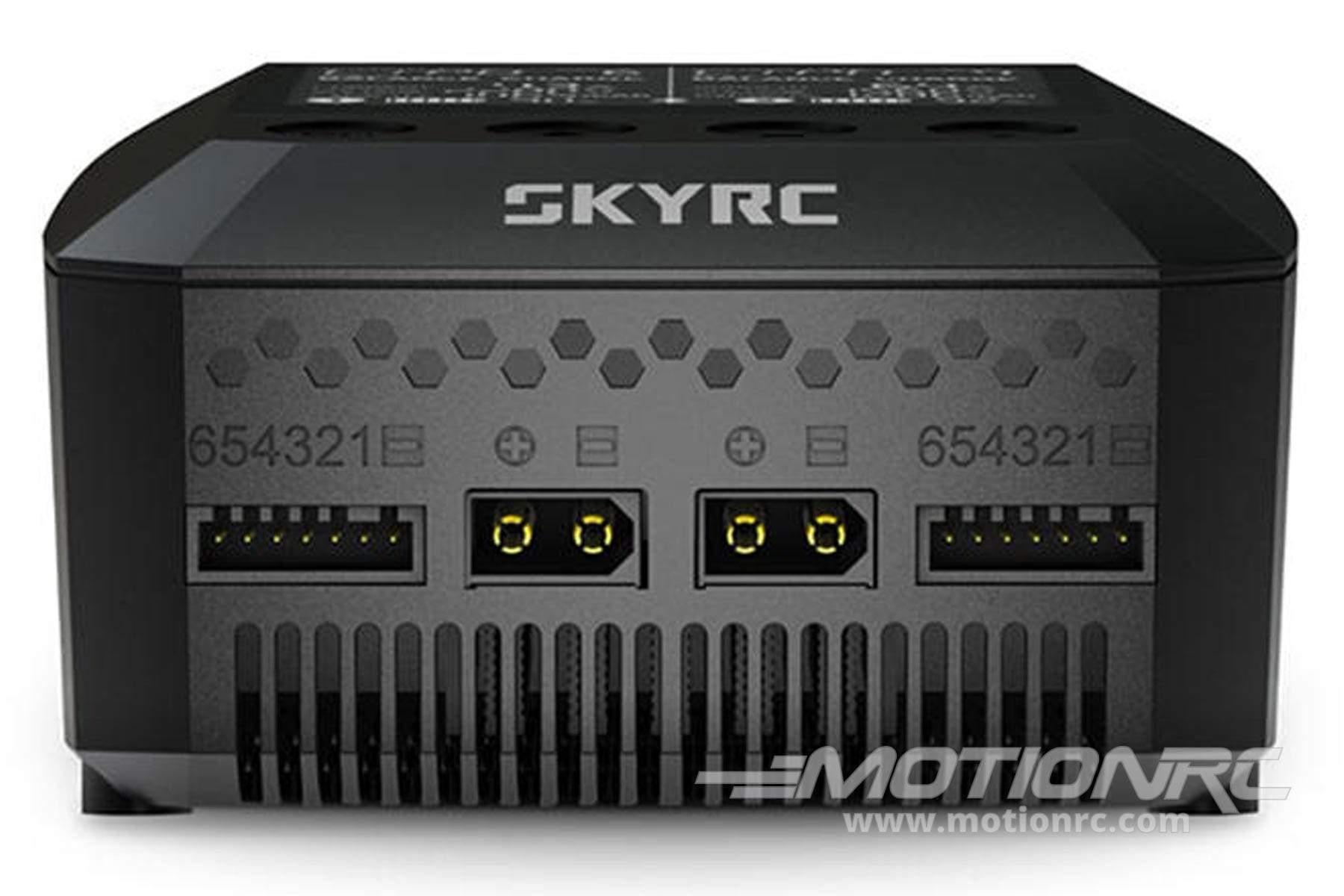

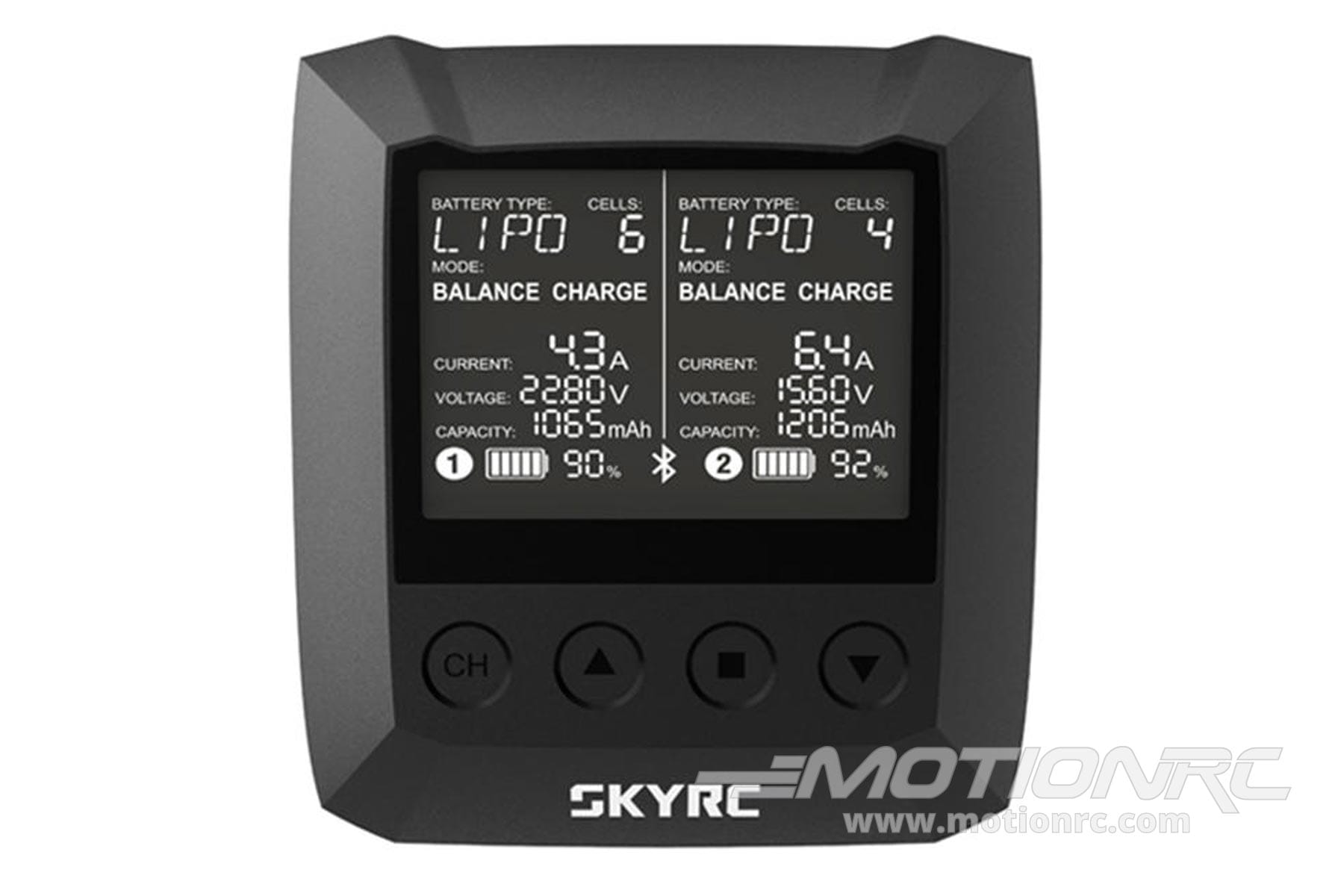

B6 Nano DUO 200W 6 Cell (6S) Duo AC LiPo Battery Charger from SkyRC - SK-100146
The operation and UI of the SkyRC B6 nano duo two channels charger has been optimized to be hassle-free for basic usage. Being app-enabled, the user experience can be largely expanded, more features and advanced settings are provided within the free app. Multiple safety protections are implemented, such as, reverse polarity protection, charging time limit, charging capacity limit.
Note: This charger does not include any charge leads.
Features:
- A compact and powerful dual charger capable of charging 2 batteries at once, the SKyRC B6 Nano Duo is packed with features. SkyRC "App" connectivity means you can control and adjust remotely, and the "Scan to go" compatibility means you can set simply scan a sticker you print and place on each pack to automatically configure the charger for the pack.
- If only 1 channel is being used up to 200W is available from the other channel, and if both are being used at the same time then up to 100W per channel is available. Touch-sensitive buttons are easy to operate and keep dirt and debris from entering charger, and advance screen layout means no more scrolling to find what you need!
Includes:
- SkyRC B6 Nano 200W 6 Cell (6S) Duo LiPo Battery Charger
- AC power cord with US plug
Never, under ANY circumstances, leave your charger unattended while charging a LiPo battery. Keep the charger away from moisture, dust, direct sunlight, or any heat sources. The charger should always be placed on a heat-resistant, non-flammable surface during charging. Never overcharge or exceed a 1C charge current. A 1C charge current means the charge current equals the capacity of the battery. For example, a 2200mAh battery should never be charged using a current greater than 2.2 Amps (2200mAh).
Product Specifications:
AC Input |
100-240V |
DC Input |
N/A |
Charge Circuit Power (AC Input) |
200W |
Charge Circuit Power (DC Input) |
N/A |
| Charge Current Range | 0.1-3.0A |
| Max Charge Current | 0.1A-15.0A |
| Discharge Current Range | 0.1A-3.0A |
| Discharge Power | N/A |
LiPo/LiFe/Lilon Cells |
2-6S |
| NiMH/NiCd Cells | 100-50000mAh |
| Pb (Lead Acid) Battery Voltage | N/A |
| Dimensions (L x W x H) | 127x115x71mm |
| Weight | 561g / 19.7oz |
Spare Parts
Product Spare Parts
BenchCraft 300mm (12") Charge Lead Extension with X60 Male to XT60 Female Connector
SKU: BCT5002-026
$299
Sold out
1 - 10 of 10 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
- SkyRC B6 Nano DUO 320W 6 Cell (6S) Dual LiPo Battery Charger Instruction Manual
- SkyRC B6 Nano DUO 320W 6 Cell (6S) Dual LiPo Battery Charger Quick Start Guide
If you need any additional assistance, please visit the Motion RC Help Center
Customer Reviews
- Reviews
Works well for me on two 6S packs
Tested it on two big 7000 mah 6s packs it charged them fine iPhone interface works very nice on my SE2020.
non EU plug
fan is a bit loud different plug than advertised
Great charger
Does exactly what it was designed to do. Very user-friendly.
Excellent
This small in stature charger is big in performance. I received it no nicely boxed and secured, opened it up and put a 6s 5000mah battery on each channel and...read more
Well it worked a few minutes
Item packaged well, connected new 6s lipo to do first balance charge and it started doing its job. 10 minutes later it was completely turned off and wouldn’t turn back...read more
The fan is poor quality
ADVANTAGES: It is compact considering it has 320 Watts. It has very nice high resolution screen. It occupies 1/4 of the space of my SkyRC 400 Watt charger. It is...read more
-
