Freewing Yak-130 Green 70mm EDF Jet - ARF PLUS - FJ20921AP
Version Info: This is the ARF+ version for pilots who wish to install their own power system. All primary electronics including servos and landing gear come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
Introducing the green ARF version of the popular Freewing 12 blade 70mm EDF Yak-130! On the ground and in the air, the Yak-130 looks fantastic at any angle. The new high visibility green scheme gives pilots a scale model which is still very easy to orient in the sky. A detailed canopy and high scale fidelity profile capture the unique lines of this modern jet trainer, and over 50 waterslide decals are meticulously applied by hand to complete the look.
Even beyond its striking visual appeal, where the Yak-130 truly excels is its performance envelope. Pre-installed flaps shorten takeoff roll on pavement to a brief ~75 feet, and with full flaps the model can land to a stop in less than 100 feet with a slight headwind. The stock PNP’s 6S power system propels the Yak-130 to speeds approaching 90mph straight and level and gives the aircraft nearly unlimited vertical. With its large vertical stabilizer, the Yak-130 can hold a rock steady knife edge or execute the most stable four point roll of any Freewing jet in this class. The stall is very gentle and slowly nose down, forecasted by a telltale wing rocking which gives pilots plenty of notice to power up.
The battery bay is spacious to accommodate CG with a 6s 3000-4000mAh lipo. For pilots interested in installing a 70mm 4s power system, we found that a 4s 4000mAh lipo is ideal for a lightweight setup. The simplified landing gear is durable, utilizing metal trunions and steel coiled struts on the mains for dependable operation on pavement, geomat, or very short and evenly cut grass. For the ultimate in versatility, the landing gear can also be removed and the aircraft can be hand tossed and belly landed.
Assembly is very straightforward. The wings each attach to the fuselage with two screws and a primary carbon wing spar. The vertical stabilizer and horizontal stabilizer tail group is glued on; we recommend 5 minute epoxy. The layout still allows easy access to the elevator servos for adjustment or replacement. A neat feature we enjoy is that the wingtip rails are smartly sheathed in plastic, to ward against dings or scratches during transport or a tipped landing. The EDF is easily accessed by a removable hatch on the aircraft’s belly, and the ESC is kept secure in a channel along the inner spine of the fuselage to give it sufficient cooling without obstructing airflow.
Freewing’s 70mm Yak-130 offers pilots the perfect transition aircraft from 64mm/70mm into 80mm/90mm jets. We found the Yak-130 to be ideal as a first or second jet with retracts for pilots looking to gain experience and confidence before making the jump into larger models. Even expert level pilots will appreciate the fun flight envelope of this unique modern jet trainer.
Visit the Official Freewing 70mm Yak-130 Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- NEW! Now offered in a green scheme for high visibility and appeal
- Simplified EPO construction for comfortable handling at all speeds
- Removable wings and carbon spar

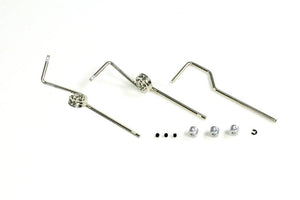

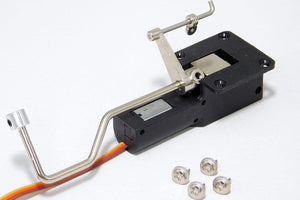

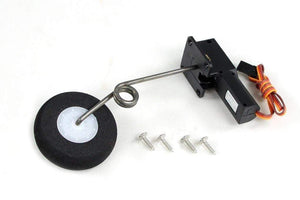

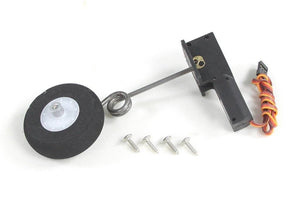

- Electronic retractable landing gear with 3mm steel wire struts and metal trunnions
- Nylon hinges on aileron and elevator
- Plastic-sheathed nose cone and wingtip missile rails for added durability

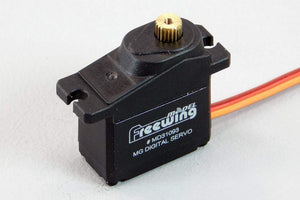

- Servos and retracts come pre-installed for your convenience
- Some gluing and assembly required
Includes:
- Freewing Yak-130 Green 70mm EDF Jet - ARF PLUS
- Servos and retracts pre-installed
Requires:
- 70mm power system (60A+ ESC, motor, and 70mm EDF unit)
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 6 Cell 22.2V 3000 - 4000 mAh LiPo Battery with XT60 Connector - we recommend the Admiral 4000mAh 6S 22.2V 40C LiPo Battery with XT60 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Wingspan |
920mm / 36.22in |
Length |
1050mm / 41.33in |
Weight |
1720g / 60.67oz |
CG (Center of Gravity) |
72mm from the leading edge of the wing at the root with the landing gear retracted and the model upright |
Power System |
Required |
Electronic Speed Control |
60A - 80A (required) |
Propeller / EDF |
70mm 6-Blade EDF (required) |
Servos |
|
Landing Gear |

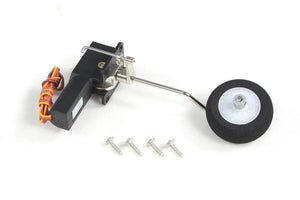

Full electronic retractable nose and main landing gear with metal trunnions |
Required Battery |
6S 22.2V 3000 - 4000mAh LiPo with XT60-Connector (required) |
Required Radio |
6 Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon hinges on ailerons and elevator |
Material |
EPO Foam |
Skill Level |
Intermediate |
Build Time |
1 Hour |
Recommended Environment |
Outdoor |
