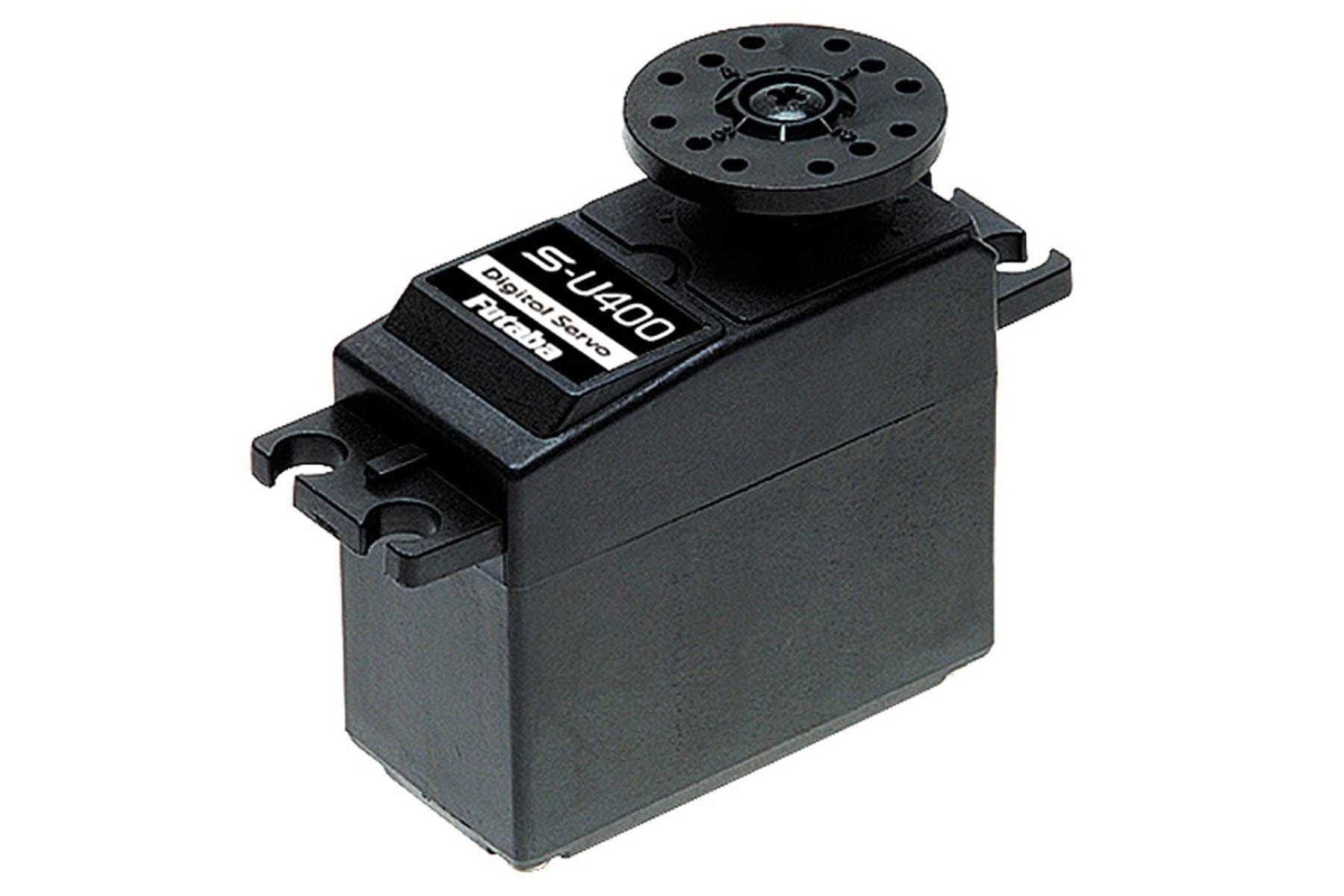

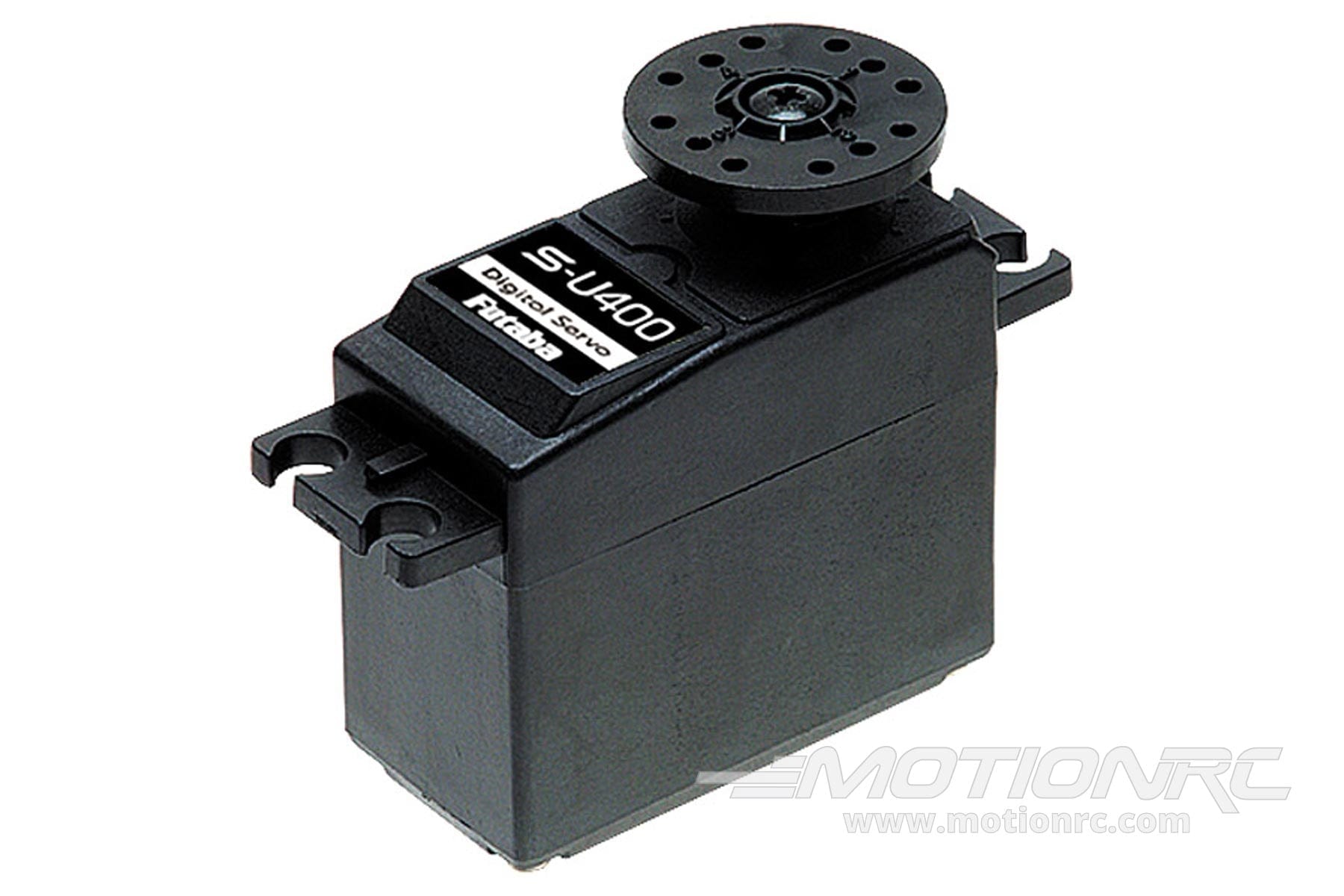

S-U400 High Torque Digital Standard Servo from Futaba - FUT01102333-3
When you need a quality high torque standard size servo that works well for 2000mm wingspan and larger airplanes, turbine powered jets, and 700 to 800 helicopters the Futaba S-U400 is an excellent choice.
Features:
- Comes with heavy duty wiring that can handle higher current loads
- Ball bearing output shaft
- Nylon gears
- High torque
- One year limited warranty
Includes:
- 1x S-U400 high torque digital standard servo
- 4x Rectangular grommets
- 4x Chrome bushings
- 4x Mounting screws
- 1x Large round horn
- 1x Six arm horn
- 1x Four arm horn
- Instruction sheet
Product Specifications:
Servo Class |
Standard |
Servo Type |
Digital |
Gear Material |
Nylon |
Direction |
Standard / Normal |
Operating Voltage Range |
6.6V - 7.4V |
Speed (6.6V) |
0.14 sec @ 60 deg |
Speed (7.4V) |
0.13 sec @ 60 deg |
Torque (6.6V) |
98.6 oz/in |
Torque (7.4V) |
109.7 oz/in |
Current Draw at Idle |
N/A |
Current Draw Operating (No Load) |
N/A |
Dimensions (L x W x H) |
1.59 in x 0.79 in x 1.50 in |
Weight |
39g (1.38oz) |
Lead Length |
N/A |
