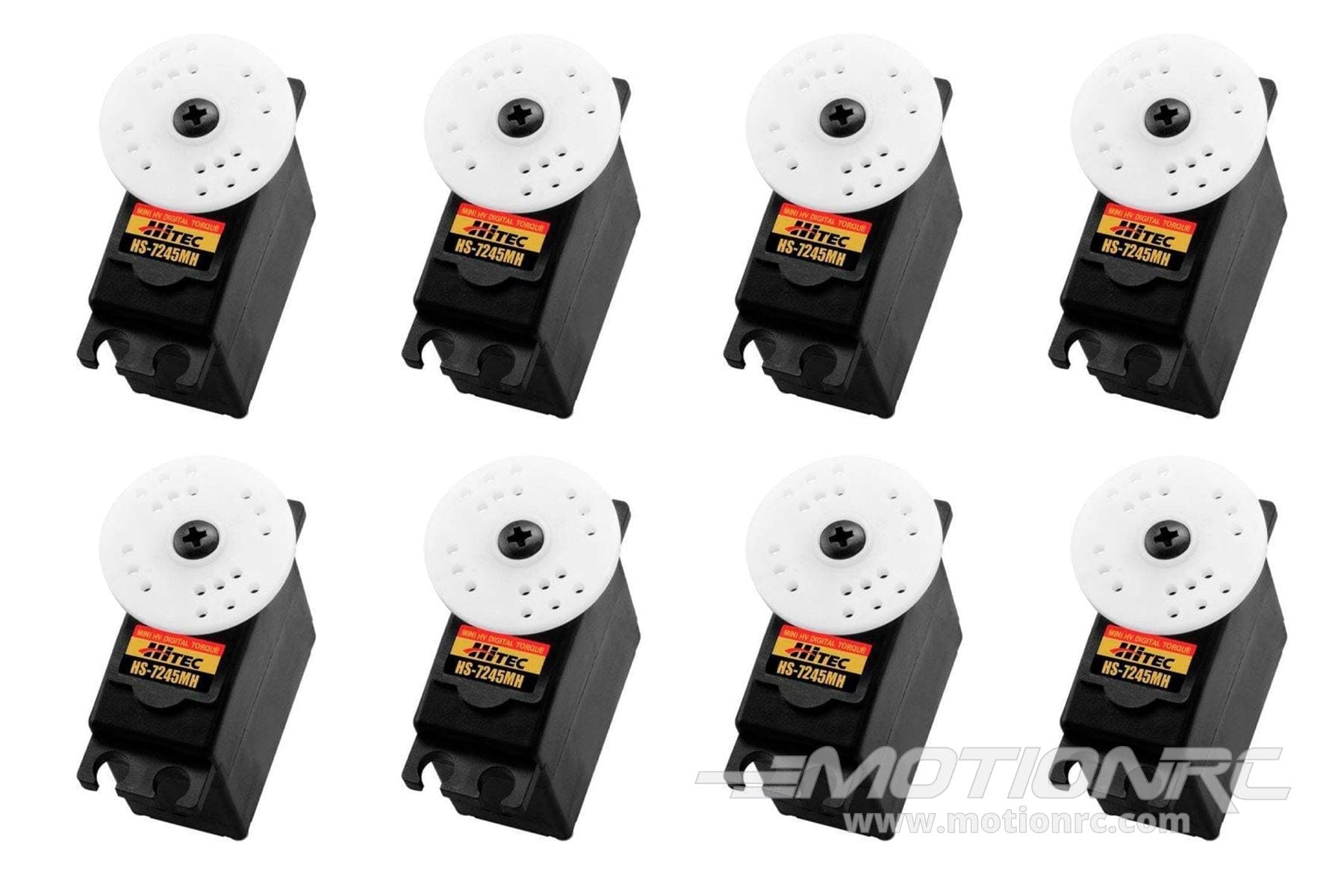

Airplane Multi-Pack - 8 Pack of HS-7245MH High Voltage High Torque Digital Metal Gear Mini Servos from Hitec - HRC37245S

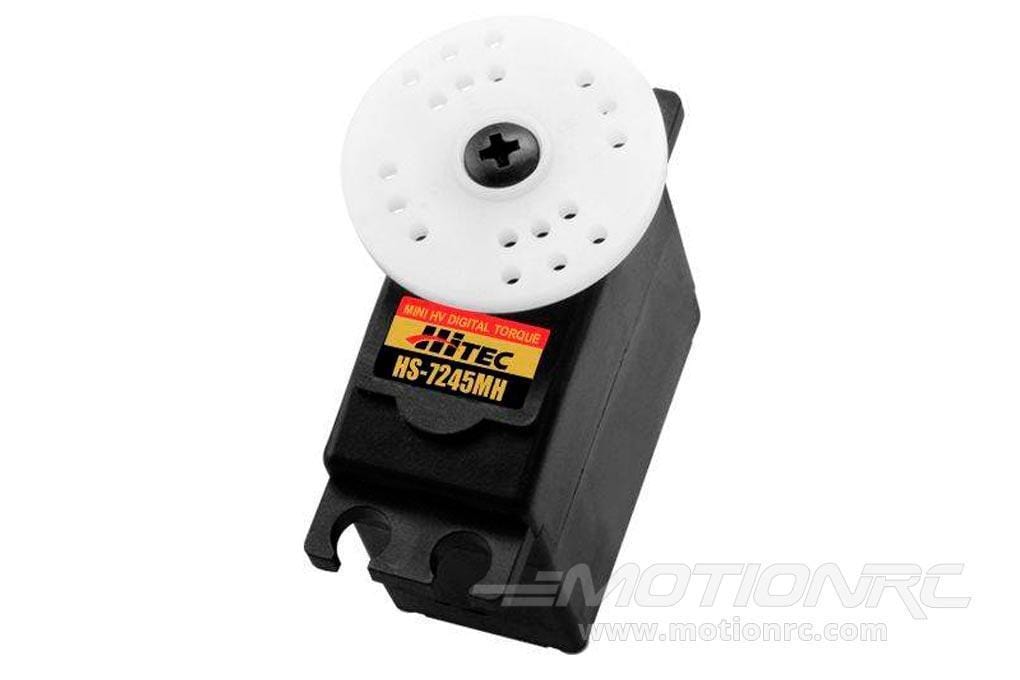

The HS-7245MH High Torque HV metal gear digital servo was designed to run on a 2-cell 7.4V LiPo battery to give you extra torque and speed. Featuring a heavy-duty metal gear train and Hitec's exclusive programmable digital circuit for reliable, durable performance, these servos can be used in a wide range of applications.
Features:
- Convenient eight-pack of Hitec servos is perfect for balsa ARF models
-
Ideal for electric powered 500/600 class helis, 1/12-1/18 scale gliders, balsa ARFs, and electric aircraft
- Coreless motor optimized for 7.4V operation
- Heavy-duty metal gear train with dual ball bearings
- Water and dust resistant
- G2 high resolution digital amplifier with MOSFET drive
- Two year limited warranty through Hitec beginning at date of purchase
Includes:

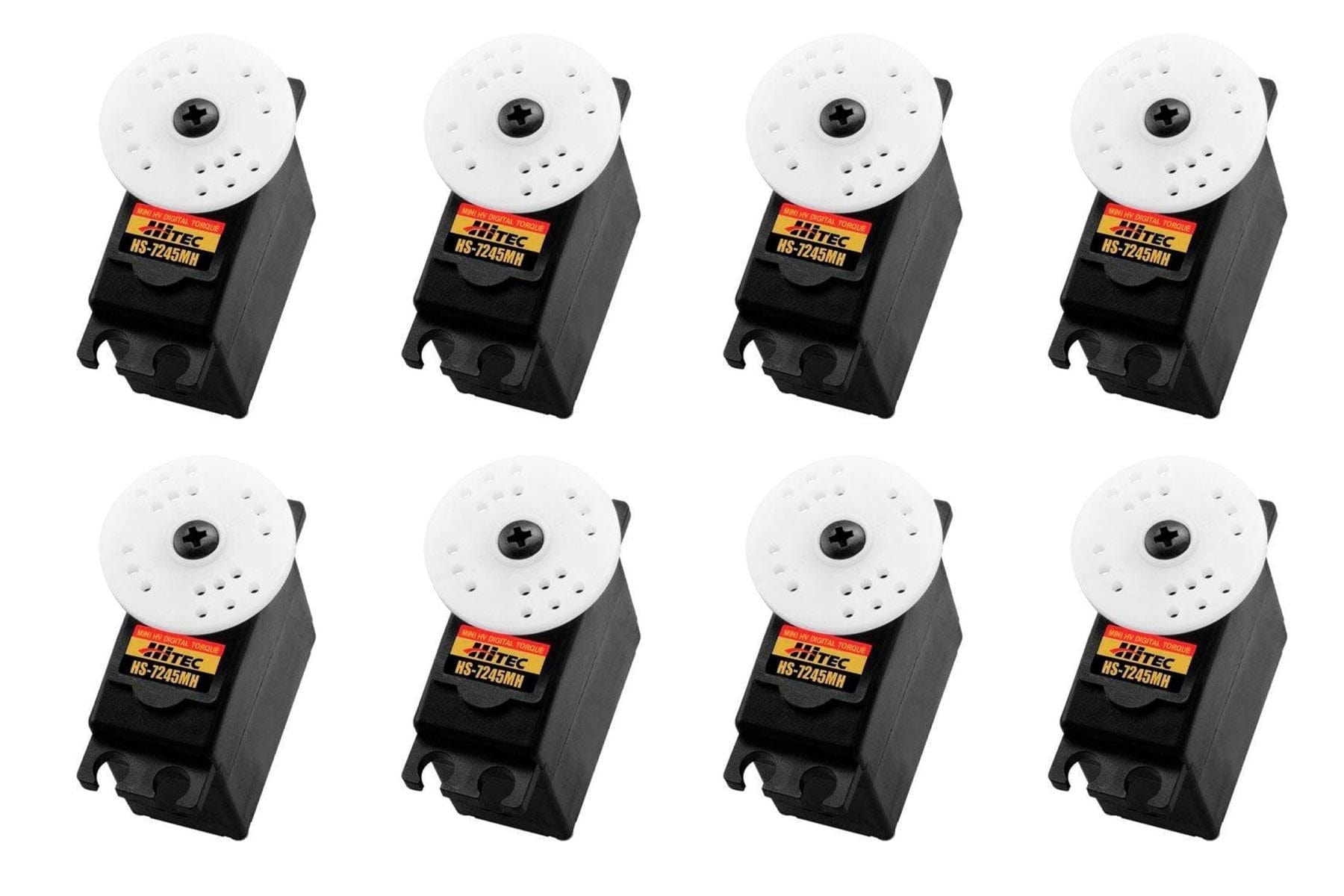

- 8x HS-7245MH high voltage high torque digital metal gear mini servos with universal connector
- 8x 1.3" (34mm) Double arm horn
- 8x 1.2" (30mm) Single arm horn
- 8x 0.94" (24mm) Round horn
- 8x 1.2" (31mm) Four point horn
- 8x 0.87" (22mm) Aluminum single arm horn
- Mounting hardware
Product Specifications:
Servo Class |
Mini |
Servo Type |
Digital |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
6V to 7.4V |
Speed (6V) |
0.13 sec @ 60 deg |
Speed (7.4V) |
0.11 sec @ 60 deg |
Torque (6V) |
5.2 kg/cm (72.21 oz/in) |
Torque (7.4V) |
6.4 kg/cm (88.88 oz/in) |
Current Draw at Idle |
12 mA |
Current Draw Operating (No Load) |
190 mA |

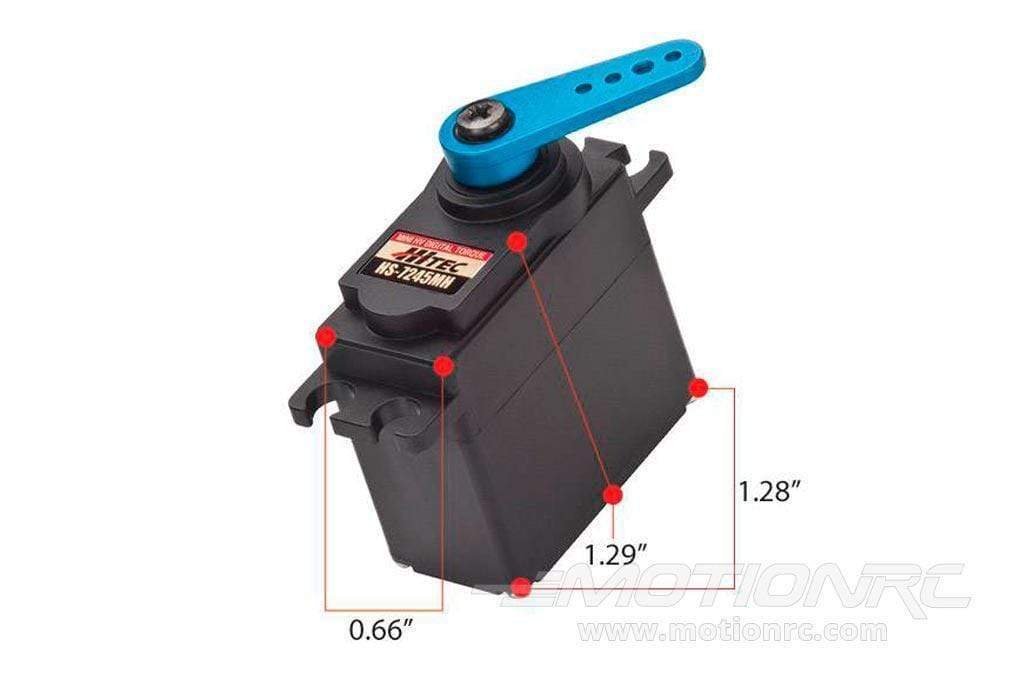

Dimensions (L x W x H) |
32.4 x 16.8 x 32.8mm |
Weight |
34g (1.2oz) |
Lead Length |
260 |
