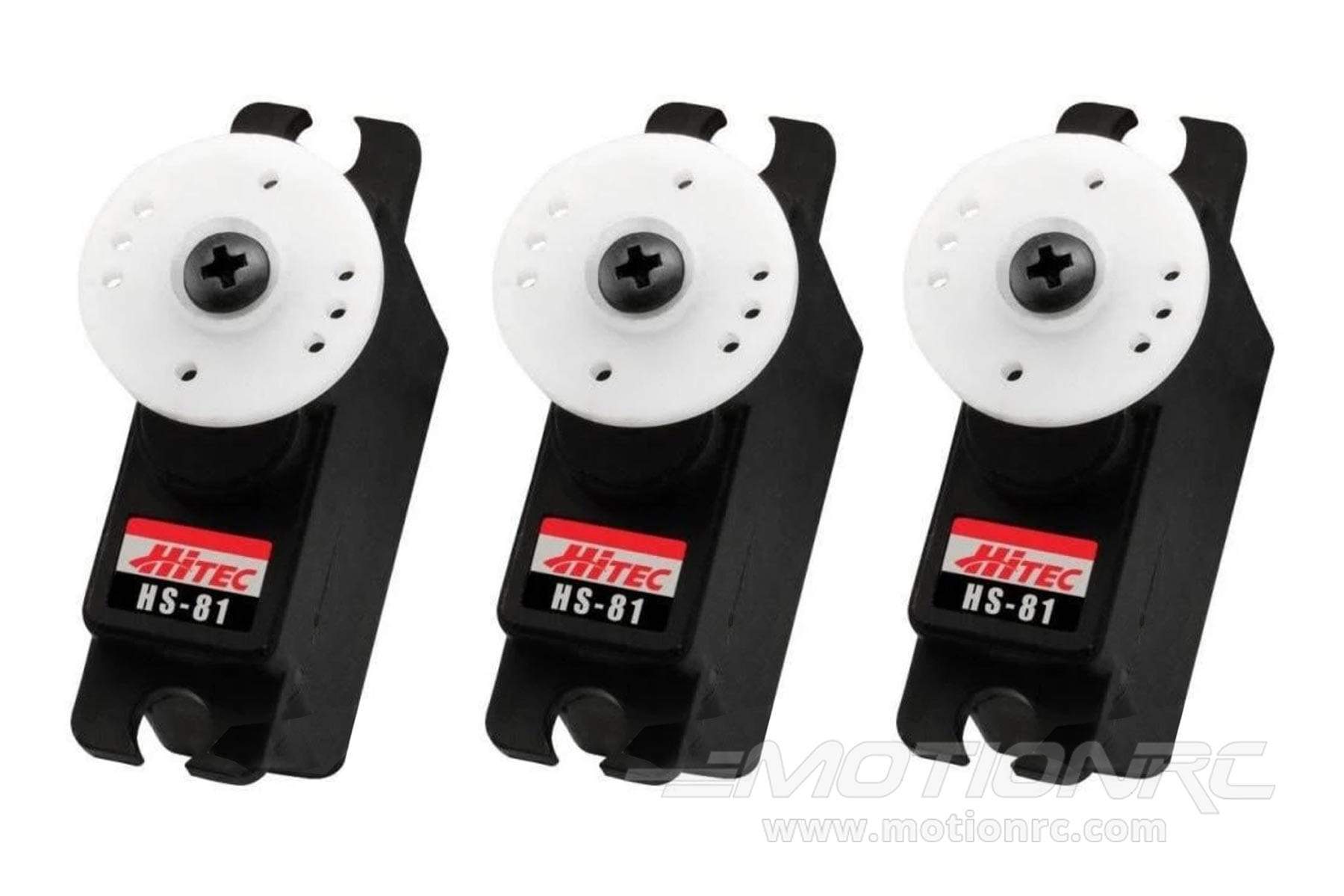

Airplane Multi-Pack - 3 Pack of HS-81 Micro Servos from Hitec - HRC31081S
The Hitec HS-81 is a high quality low cost 17g "size" analog servo. It is light weight and a good choice for most planes with 17g servos. The resin gear train is very reliable and the torque and speed of this servo is very good for the price. The servo features a universal connector which works with nearly all receivers. It will fit Futaba J, Hitec S, JR, and Airtronics Z-type Connectors. See specifications tab for full specs.
Features:
- Convenient servo three pack is perfect for balsa ARF models
- Resin gears
- Light weight
- Universal connector
- High torque
Includes:
- Three (3) HS-81 Micro Servos with 6-3/4" connector wire
- Three (3) 7/8"x7/8" X-shaped servo horns
- Three (3) 1-1/8" long straight servo horns
- Six (6) brass eyelets
- Six (6) mounting screws
- Six (6) servo grommets
- Three (3) servo horn screw
Product Specifications:
Servo Class |
Micro |
Servo Type |
Analog |
Gear Material |
Plastic / Nylon |
Direction |
Standard / Normal |
Operating Voltage Range |
4.8V to 6V |
Speed (4.8V) |
0.11 sec @ 60 deg |
Speed (6V) |
0.09 sec @ 60 deg |
Torque (4.8V) |
2.6 kg/cm (36.10 oz/in) |
Torque (6V) |
3 kg/cm (41.66 oz/in) |
Current Draw at Idle |
8.8mA |
Current Draw Operating (No Load) |
280mA |
Dimensions (L x W x H) |
29.8 x 12 x 29.6mm |
Weight |
16.6g (.58oz) |
Lead Length |
280mm |
