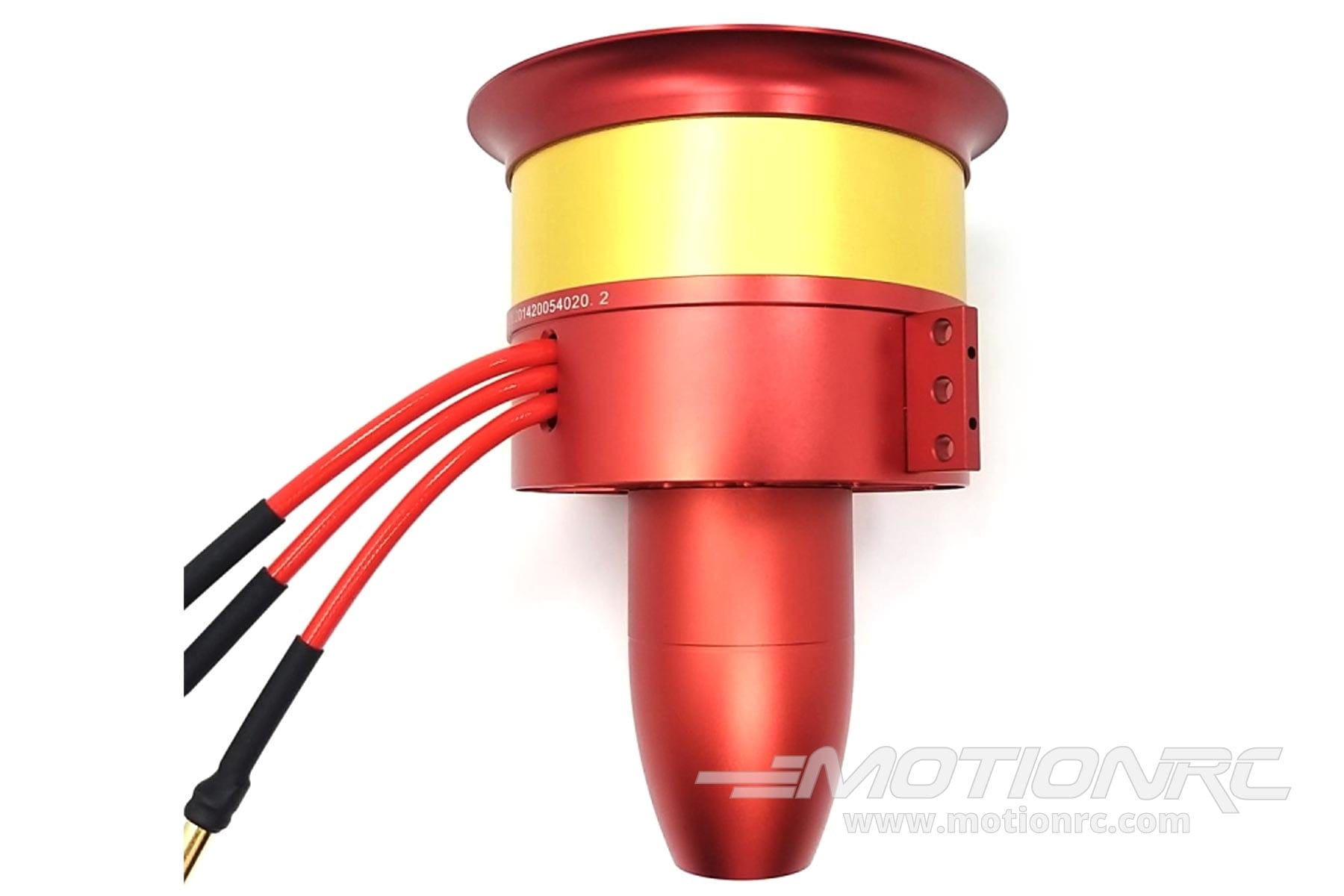

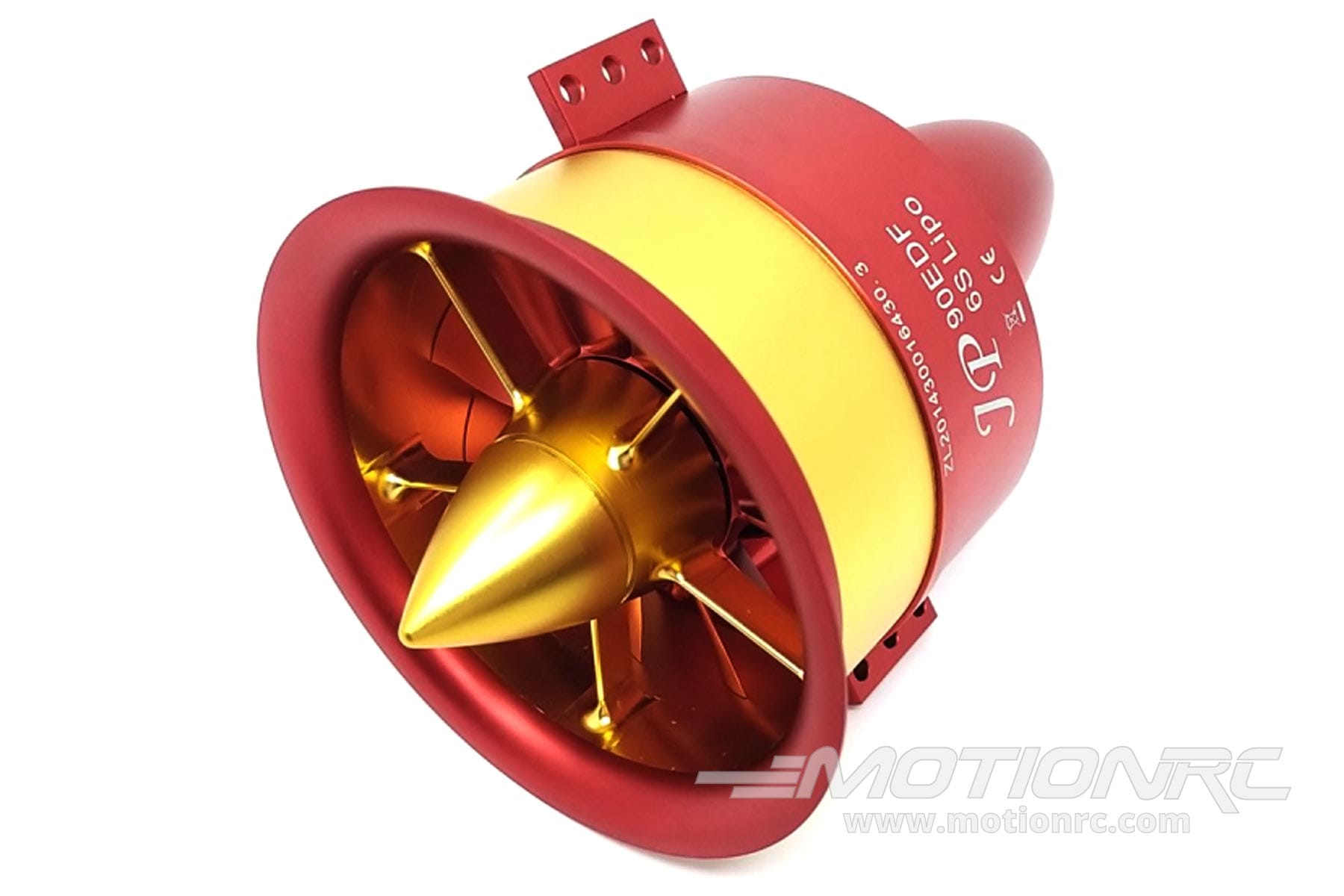

90mm 12-Blade EDF 8S Power System w/ 1400Kv Motor from JP Hobby - JPH6007-103
JP Hobby offers exceptional electric ducted fan (EDF) units that redefine performance and efficiency in the RC hobby industry. Utilizing high-grade aluminum alloy material, these units provide a highly rigid structure while remaining lightweight. The innovative shroud design acts as a heat sink, effectively removing heat from the motor for more efficient operation. This setup not only enhances peak performance but also extends the lifespan of the motor, making it an ideal choice for high-powered applications.
Each EDF unit is engineered to withstand high RPMs, producing extremely high efflux velocity for maximum speed and efficiency. The all-metal design ensures that the blades are safely contained within the shroud, minimizing the risk of damage and offering a safer alternative to traditional plastic or carbon shrouds. Each metal blade is crafted with precision from high-grade aluminum alloy, generating optimal jet airflow. Rigorous testing, including eight hours of metal fatigue analysis and dynamic balancing, guarantees a superior and safer user experience.
This EDF unit comes fully assembled and dynamically balanced from the factory so you can spend less time on the bench and more time in the air. This commitment to quality and innovative design improves the overall flying experience, showcasing why so many pilots trust JP Hobby for their EDF needs.
Features:
- Fully assembled and dynamically balanced from the factory
- High-grade aluminum alloy construction ensures maximum rigidity while keeping the structure lightweight
- The aluminum shroud effectively dissipates heat, promoting efficient motor operation and extending lifespan
- Robust structure allows for high RPM operation, producing extremely high efflux velocity for maximum speed and efficiency
- All-metal design safely contains blades within the shroud, minimizing the risk of damage and offering a safer alternative to plastic or carbon shrouds
- Precision metal blades crafted from high-grade aluminum alloy generate optimal jet airflow, with rigorous testing for metal fatigue and dynamic balance
- The EDF system can be easily assembled with any motor without losing dynamic balance
Optional:
- 160A High Voltage ESC - we recommend ZTW Mantis G2 160A High Voltage OPTO ESC
Product Specifications:
Motor Kv: |
1400Kv |
Motor Type: |
JP 4250-VI-1400Kv 12 poles outrunner (6mm shaft) |
Recommended Battery (Input Voltage): |
8S (29.6V) |
External Diameter: |
92.5mm |
External Diameter w/lip: |
110mm |
Rotor Diameter: |
90mm 12 blades aluminum |
Maximum Thrust: |
4.66kg |
Maximum Efficiency: |
90% |
Maximum RPM: |
75,600 |
Weight (including motor): |
450g |
Connector Type: |
5.5mm bullet connector |
Thrust Figures/Data: |
|
