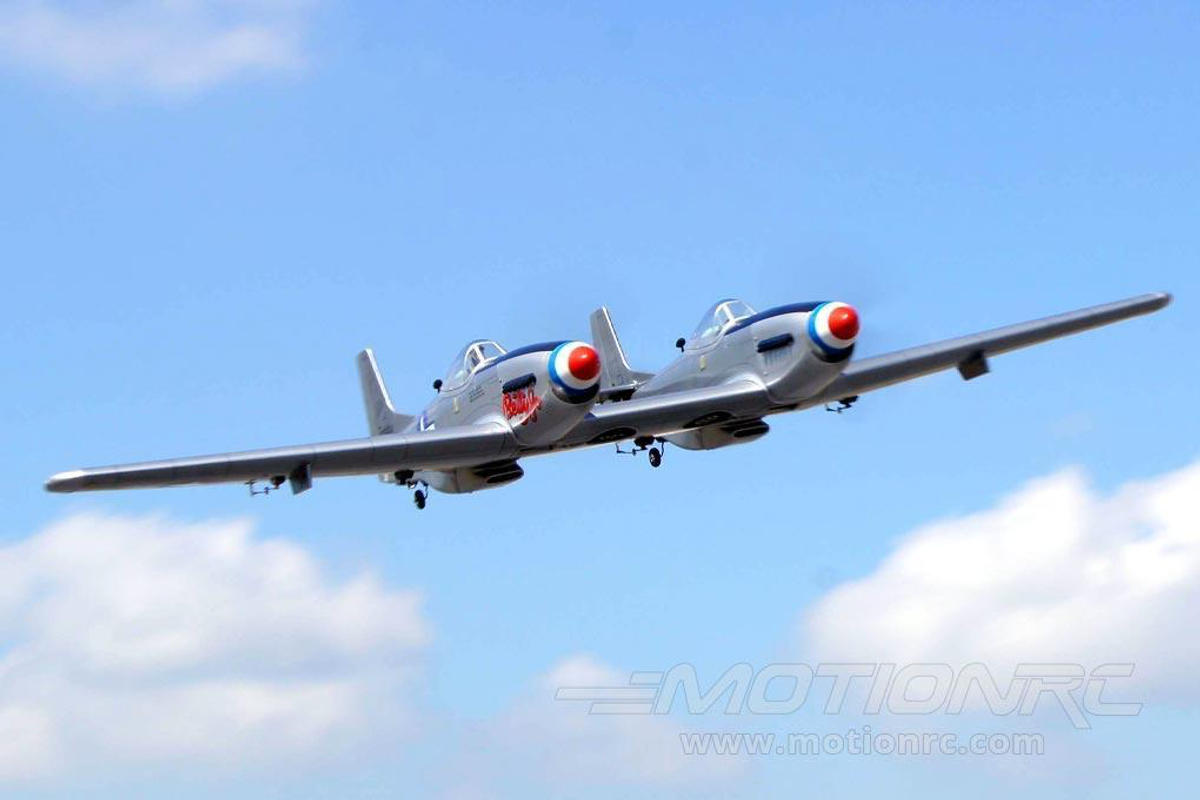

F-82 Twin Mustang 2100mm (82.6") Wingspan - ARF from Nexa - NXA1007-001
The North American F-82 Twin Mustang was the last American piston-engine fighter ordered into production by the United States Air Force. Based on the P-51 Mustang, the F-82 was originally designed as a long-range escort fighter in World War II; however, the war ended well before the first production units were operational.
The Nexa F-82 Twin Mustang is a .50 size electric scale series warbird with a 2100mm wingspan, constructed primarily from balsa wood and fully covered. This ARF requires assembly and installation of your choice of servos and power system, and includes a three piece wing design with aluminum wing joiners, flaps, large battery hatch in both fuselages, painted pilot and pre-hinged and installed control surfaces. A rarity in the hobby, this model would be the talk of any RC airfield.
Visit the Official Nexa F-82 Twin Mustang 2100mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered and Detailed The Nexa F-82 Twin Mustang comes fully covered in the US Air Force WWII livery "Betty Jo" complete with weathering, panel lines and rivet detail. |
 |
Scale Details Throughout There is no shortage of scale details with this F-82 Twin Mustang including two painted pilots, and operational flaps. |
 |
Two Large Hatches Large hatches in both fuselages allow for an incredible amount of space for any battery and electronic requirements. |
 |
Three Piece Wing For Easy Transportation The Nexa F-82 comes with a three piece wing and wing joiners for easy transportation. |
Features:
- US Airforce WWII "Betty Jo" livery that shows brilliantly in the skies
- Complete Balsa and lite-ply construction for rigidity and durability
- Three piece wing with aluminum wing joiners for easy transport
- Functional flaps for shorter takeoffs and slower landings
- Covered from tip to tail in scale details including two painted pilots and nicely detailed cockpit
- Fiberglass cowling for strength and durability
- All control surfaces come out of the box pre-hinged and installed for convenience
- Large battery hatches in both fuselages allows for your chosen electric setup
Includes:
- Nexa F-82 Twin Mustang 2100mm (82.6") Wingspan - ARF
- Wheels, wheel covers
- Hardware and decals
Requires:
- 8 Channel radio - select a minimum 8 channel radio from our Radio Collection
- 8 Channel receiver - select a minimum 8 channel receiver from our Receiver Collection
- 2x .50 size brushless outrunner motors - we recommend Admiral GP5 4220-770Kv Brushless Motor Multi-Pack (2 Motors)
- 2x 85 Amp brushless ESC - we recommend ZTW Mantis G2 85A ESC with 8A SBEC Multi-Pack (2 ESCs)
- 4x high voltage/torque servos for ailerons, elevator and rudder - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (4 Servos)
- 3x 17g standard servos for flaps - we recommend Hitec HS-85BB High Torque Micro Servo Airplane Multi-Pack (3 Servos)
- Electric retracts - we recommend Nexa 2100mm F-82 Twin Mustang Main Retract
- Struts - we recommend Nexa 2100mm F-82 Twin Mustang Scale Strut Set
- TWO 4 Cell 14.8V 4000 - 5000 mAh LiPo Batteries - we recommend Admiral Pro 5000mAh 4S 14.8V 60C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries)
- 2x Electric propellers - we recommend APC 12x8 Thin Electric Propeller - Black Multi-Pack (2 Propellers)
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/7 |
Wingspan |
2100mm / 82.6in |
Length |
1240mm / 48.8in |
Weight |
6000g / 211.64oz |
CG (Center of Gravity) |
Refer to the manual |
Power System |
2x .50 size brushless outrunner motors for electric (required) |
Electronic Speed Control |
2x 85A (required) |
Propeller / EDF |
12x8 2-blade for electric (required) |
Servos |
|
Landing Gear |
Electric retracts and struts (required) |
Required Battery |
2x 4 Cell 14.8V 4000 - 5000mAh LiPo batteries (required) |
Required Radio |
8+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
Nylon |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
6+ Hours |
Recommended Environment |
Outdoors |
