Mercedes Benz Arocs 3348 6x4 Red 1/14 Scale Dump Truck - KIT from Tamiya - TAM56361
Version Info: This truck is a KIT. Assembly is required. Minimum 4+ channel radio system, ESC, battery, charger and servo will need to be purchased separately.
This is a special edition of the R/C Mercedes Benz Arocs tipper truck kit, the stylish 3-axle truck with movable bed and distinctive bucket tooth grille. It is a great option for R/C enthusiasts without the time or confidence to apply a paint job to their creation, as parts come pre-painted in TS-8 Italian red (cab) and TS-17 Gloss aluminum (rear bed), and given a urethane clear coating for a beautiful, lasting finish.
Tamiya is world-renowned for producing industry-leading RC scale tractor trucks for generations. The Tamiya Mercedes Benz Arocs 3348 6x4 Red is powered by a 540 motor and 3-speed transmission, its durable drivetrain spins both rear dually axles supported on a realistic leaf spring and shock suspension. The Mercedes Benz Arocs 3348 6x4 Red's metal C-Channel ladder frame keeps the power to the pavement when hauling optional accessories. Your Tamiya truck is backed by Motion RC's world-renowned customer service and technical support. Drive on!
Visit the Official Tamiya Mercedes Benz Arocs 3348 6x4 Red 1/14 Scale Dump Truck Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
540-Sized Motor and 3-Speed Transmission The 540-sized brushed motor applies power through a selectable 3-speed transmission to drive dual rear axles. |
 |
Exceptional Scale Detail Scale details surround this truck for exceptional realism. |
 |
Dual Rear Axles Each axle is supported with leaf spring and shocks. |
 |
Optional Light and Sound Add your own light and sound package with the separately-sold Multi-Function Control Unit MFC-01 or MFC-03. |
 |
1/14 Scale This truck comes in an impressive 1/14 scale. Coming in at nearly 2 feet in length, it has an ideal on-road presence while being convenient to transport. |
 |
Add Your Own Electronics and Drive! Once you add your preferred electronics you're ready for those on-road adventures. |
Features:
- Exceptional scale detail and realism brings this truck to life on every level
- The Arocs 3348 form is recreated by an injection molded body, with separate side mirrors and visor, etc
- Cab parts are molded in red PS (polystyrene) and pre-painted in Italian red (TS-8), while bed parts are molded in gray ABS and pre-painted in Gloss aluminum (TS-17). All parts have a urethane top coat
- The 3-axle chassis has a tough ladder frame with aluminum side channels and resin cross members
- Truck bed section is comprised of metal subframe and resin panel sections for durability
- Compatible with Electric Actuator Set for realistic truck bed motion
- TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the bed
- Rear tires, rear fenders and taillights have dedicated tipper truck model designs
- 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter
- Metal leaf spring dampers with built-in coil springs provide durable suspension
- Use with Multi-Function Control Unit MFC-03 or MFC-01 for realistic lights and sounds
Includes:
- Tamiya Mercedes Benz Arocs 3348 6x4 Red 1/14 Scale Dump Truck - KIT
Requires:
- 4 Channel radio - select a minimum 4 channel radio from our Radio Collection
- 4 Channel receiver - select a minimum 4 channel receiver from our Receiver Collection
- 6 Cell 7.2V NiMH Brushed ESC
- Standard size servo - we recommend the Hitec HS-311 Plastic Gear Standard Servo
- 6 Cell 7.2V 1600mAh NiMH battery with universal connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Model Scale |
1/14 |
Length |
576mm / 22.6in |
Width |
190mm / 7.4in |
Height |
267mm / 10.5in |
Weight (No Battery) |
N/A |
Wheelbase |
272mm / 10.7in |
Ground Clearance |
N/A |
Body |
ABS Plastic |
Chassis |
Aluminum |
Drivetrain |
3-Speed |
Wheel Size (Diameter x Width) |
N/A |
Wheel Hex Size |
N/A |
Tire Tread |
N/A |
Bushing Material |
Metal and Plastic |
Suspension |
Leaf Spring |
Shock Type |
Friction Damper |
Transmission |
3-Speed |
Gear Pitch |
N/A |
Internal Gear Ratio |
N/A |
Final Drive Ratio |
1st gear 32.49:1, 2nd gear 17.76:1, 3rd gear 10.66:1 |
Pinion |
N/A |
Spur Gear |
N/A |
Differential |
Gear |
Ball Bearings |
N/A |
Brakes |
Electronic |
Electronic Speed Control |
6 Cell 7.2V NiMH Brushed ESC (required) |
Motor |
540-Brushed |
Battery |
7.2V 1600mAh (required) |
Max Battery Dimensions (L x W x H) |
N/A |
Servos |
1x standard size (required) |
Radio |
4+ Channel (required) |
Lights |
No |
Sound |
No |
Water Resistant |
N/A |
Skill Level |
Intermediate |
Assembly Time |
3+ Hours |
Recommended Environment |
On-road, smooth, paved surfaces |
Spare Parts
Product Spare Parts
1 - 3 of 3 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
If you need any additional assistance, please visit the Motion RC Help Center
Customer Reviews
- Reviews

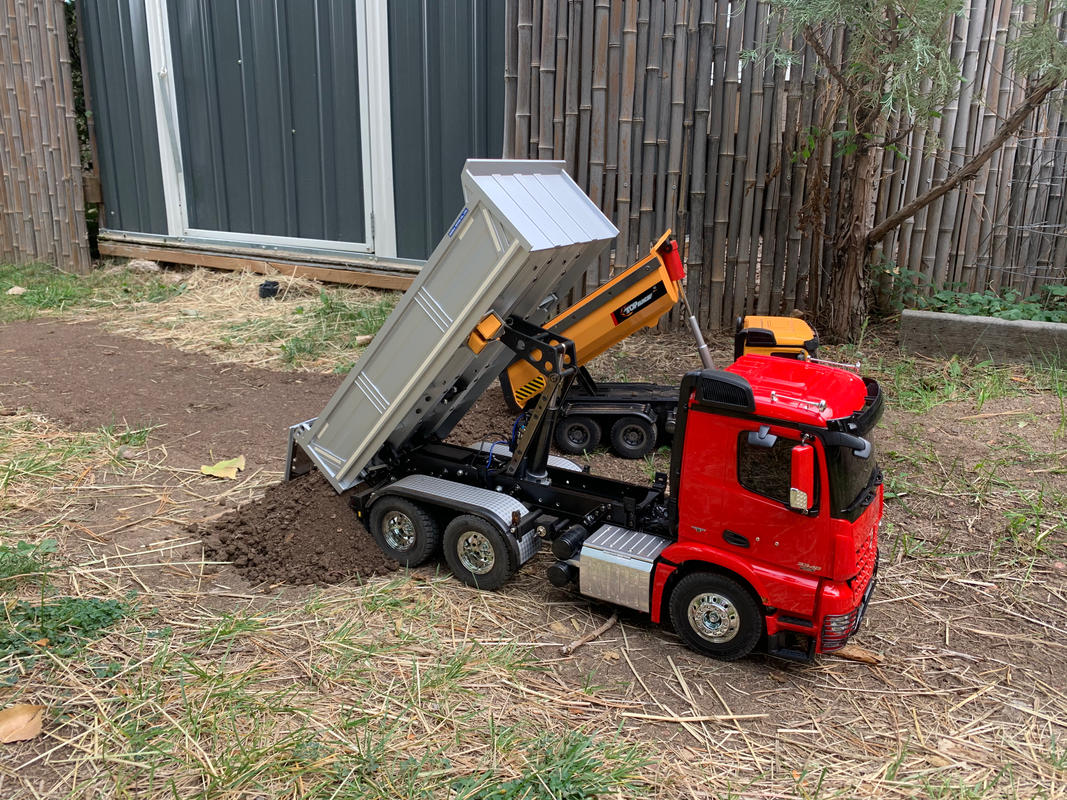

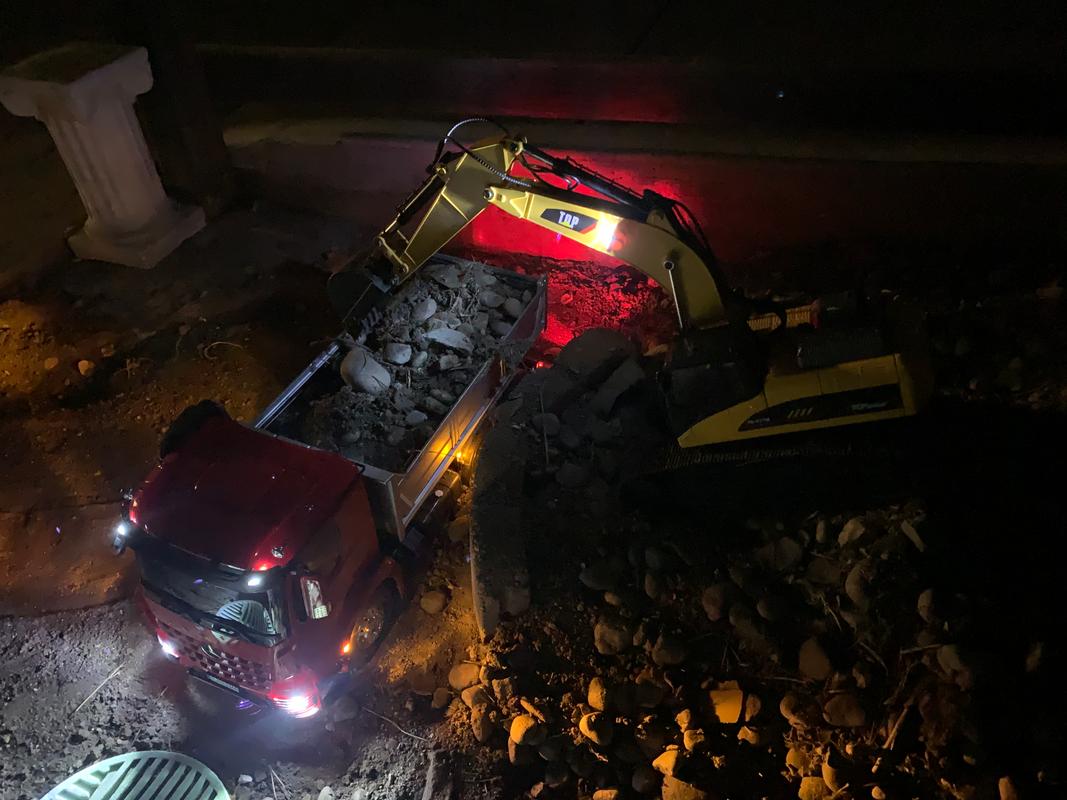

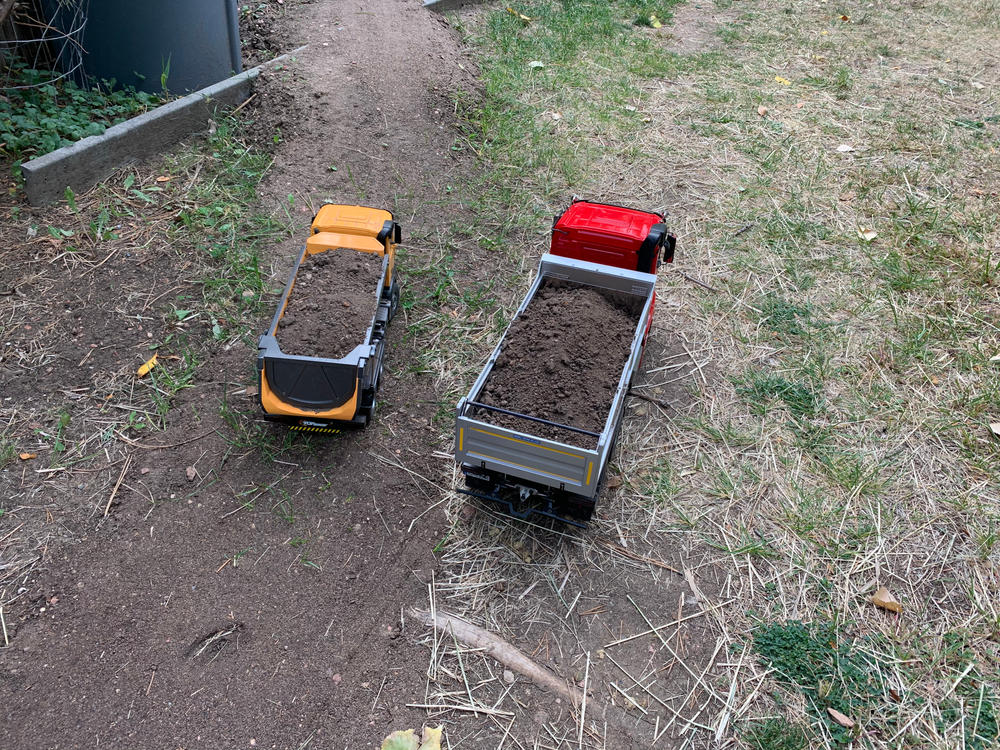

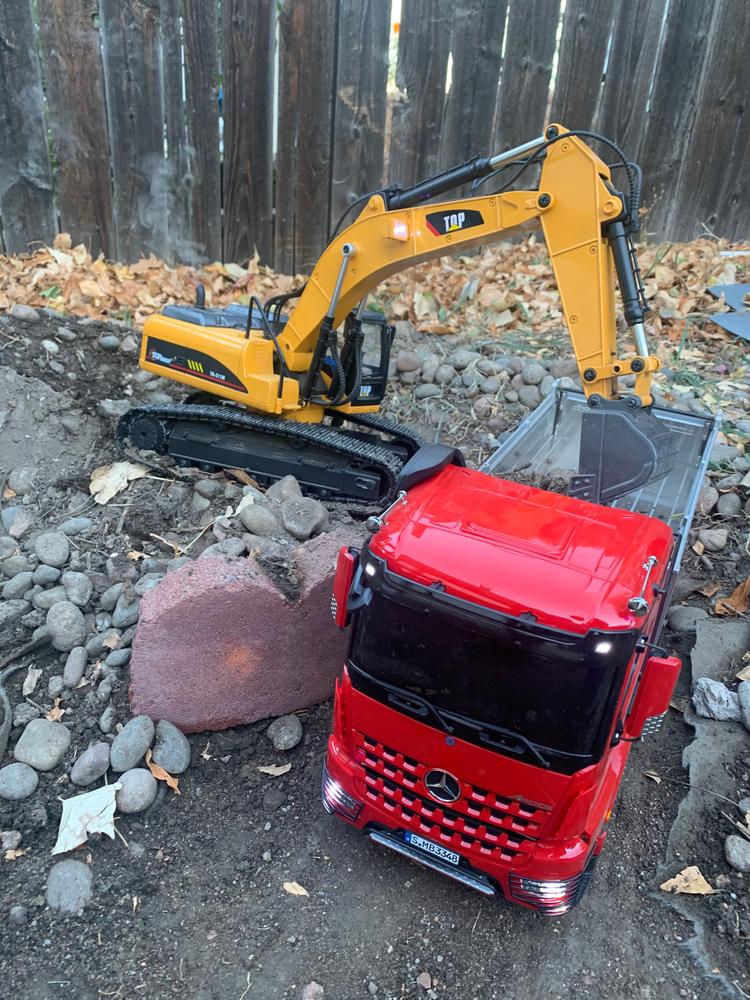

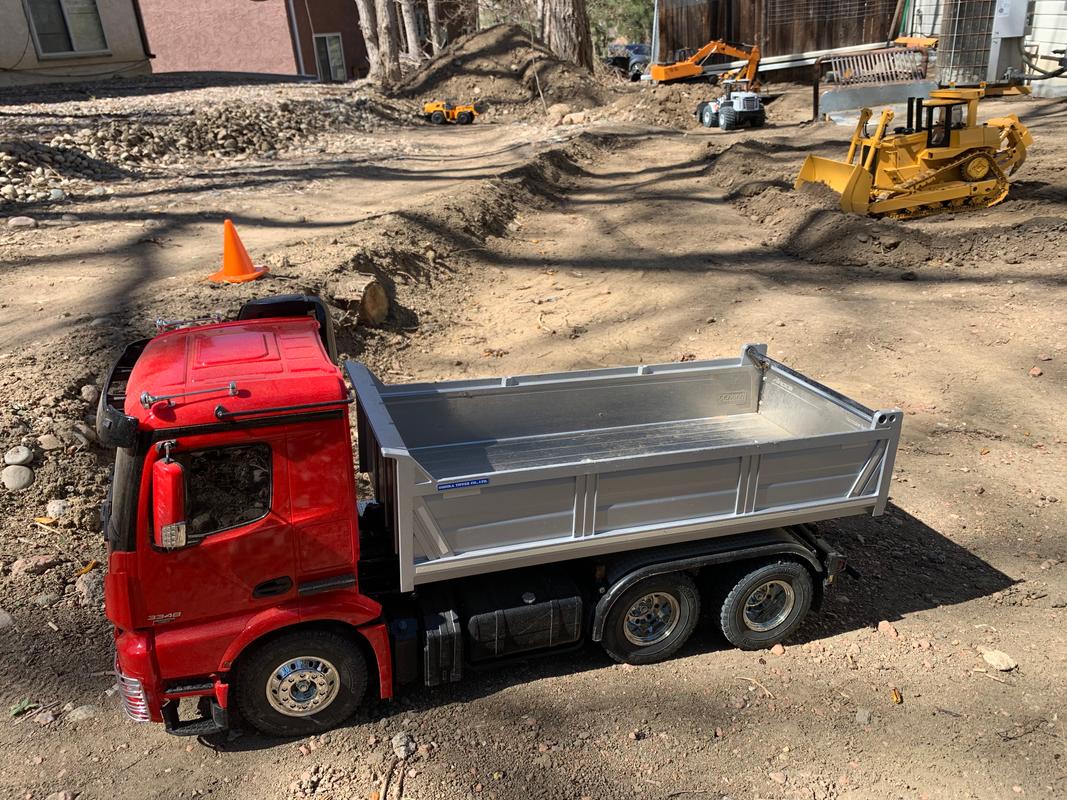

Beautiful euro style tipper truck.
What can I say? Yes! Yes you want it, yes you’ll love it, yes you will smile from ear to ear while operating it! Great quality kit that is a bit...read more
-
