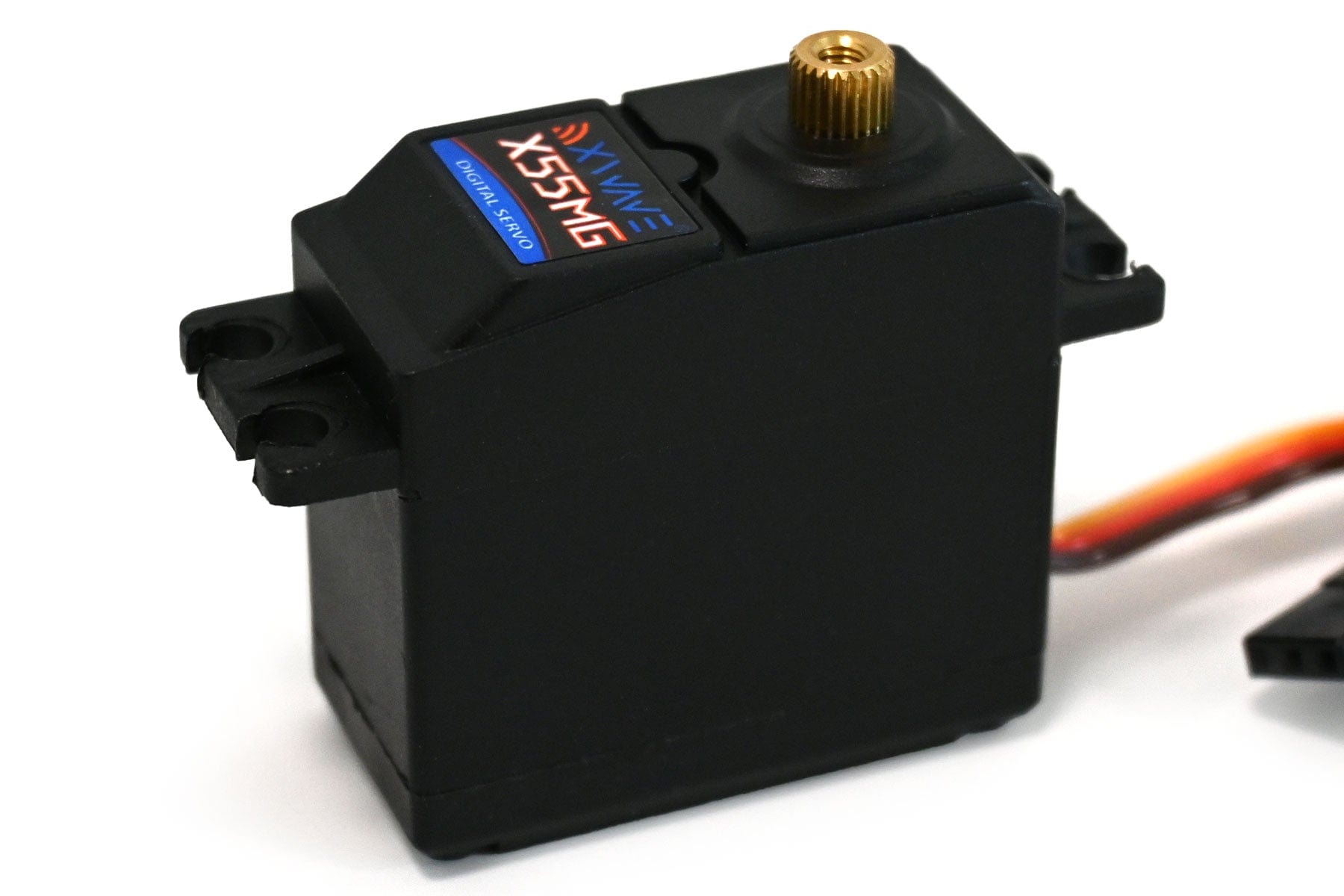

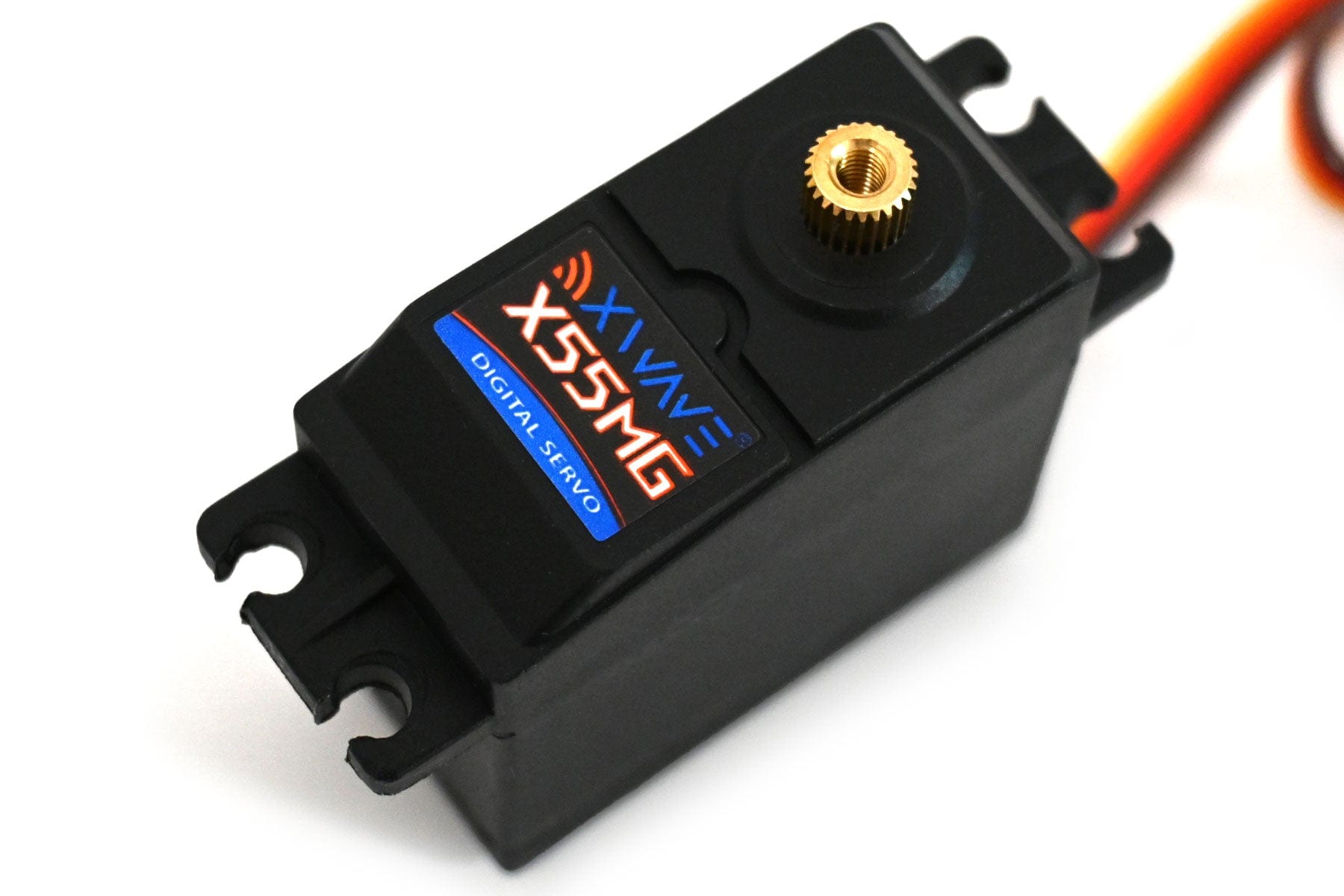

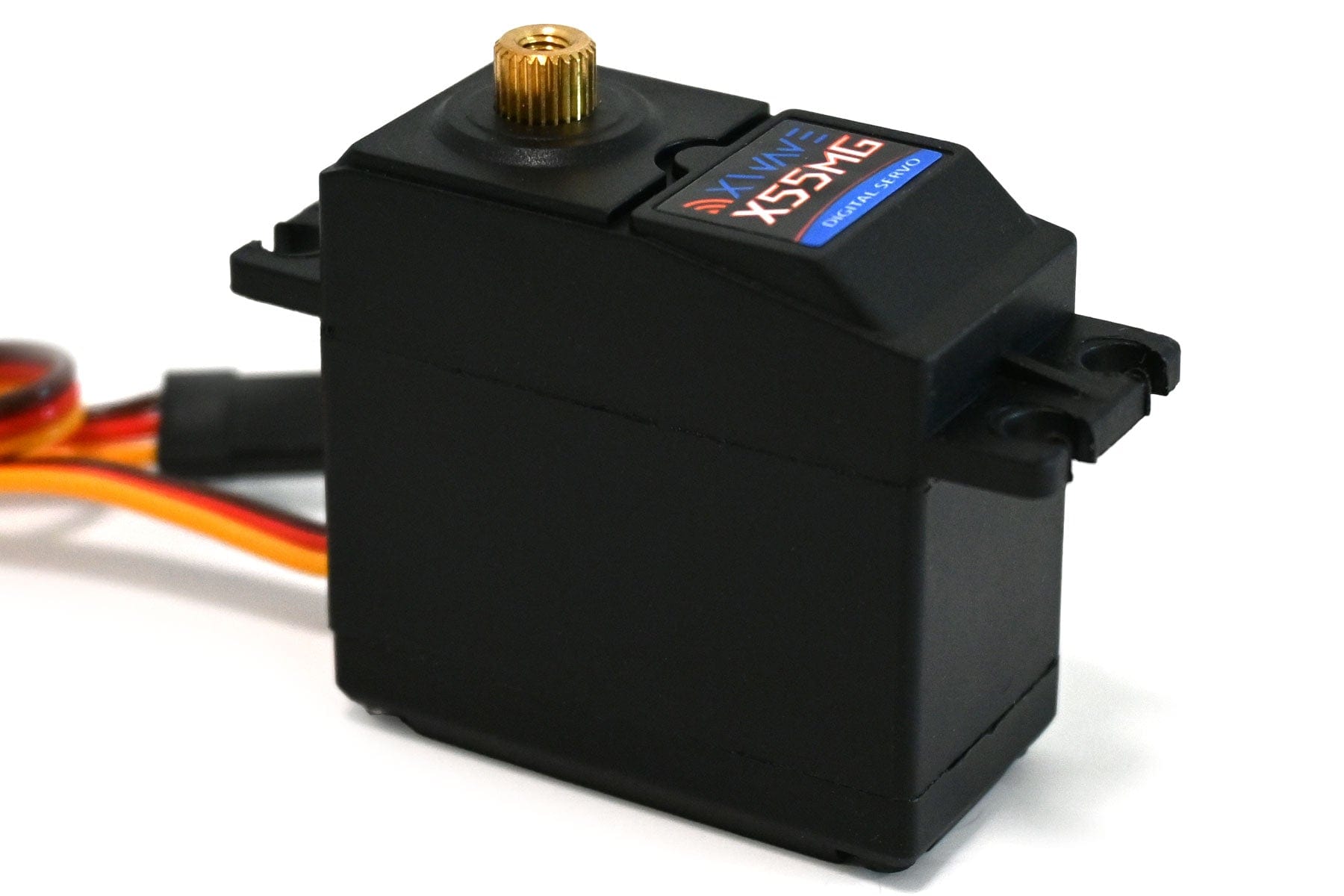

X55MG 58g High Voltage Digital Metal Gear Standard Servo from Xwave - XWA6005-009
Xwave servos deliver precision and reliability for all your RC projects. Our servos ensure responsive control and consistent performance, making them an ideal choice for hobbyists and enthusiasts alike. Built with high-quality materials, Xwave servos guarantee smooth operation and provide excellent value.
What sets Xwave apart is that our servos offer performance comparable to the leading brands, but without the premium price tag. This means you can enjoy high performance and reliability without breaking the bank. Our Xwave servos all feature digital microcontrollers which process signals at a much higher frequency, resulting in faster response times, better precision, and higher torque compared to analog servos. Whether you're executing high-speed aerobatics, flying scale models, or working on your own creative designs, Xwave servos are expertly designed to meet your needs, ensuring reliable performance and exceptional value in every endeavor.
The X55MG’s high torque output and metal gear drivetrain make it ideal for a wide range of surface and air applications, as well as any other use that requires a robust, standard-sized servo!
Features:
- High Voltage standard servo ideal for a wide range of air and surface applications
- Digital microcontroller for improved precision, speed, and torque
- Full metal gear drivetrain for enhanced durability
- Ball bearing-supported output shaft enhances precision and reduces friction
- Wide input voltage range of 6.0V to 7.4V
- Low power consumption for efficient operation and extended battery life
- Universal connector works with virtually any receiver
- 25T output spline
Includes:
- Xwave X55MG 58g High Voltage Digital Metal Gear Standard Servo

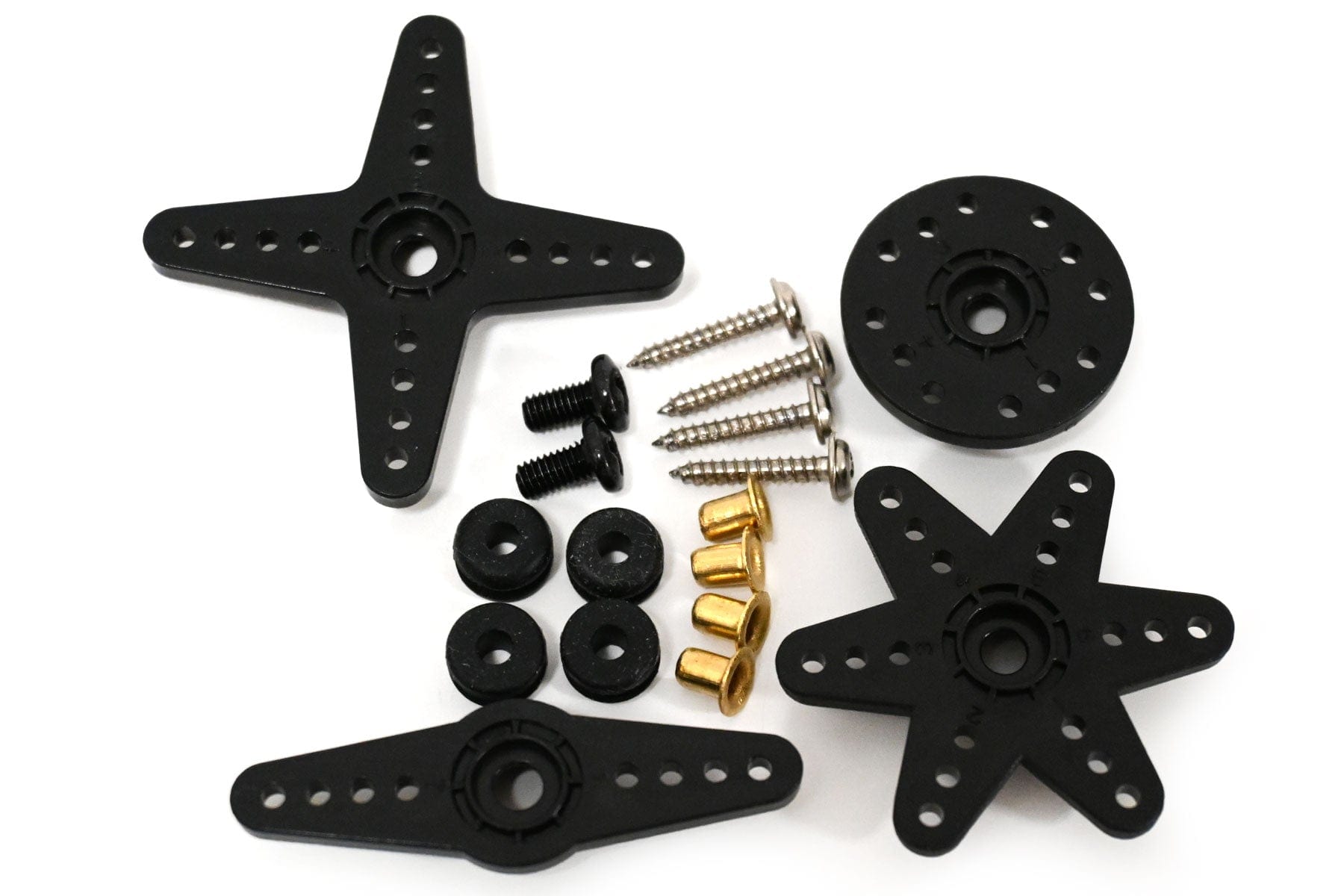

- Servo horns
- Mounting screws and grommets
Product Specifications:
Servo Class |
Standard |
Servo Type |
Digital |
Gear Material |
Metal |
Direction |
Standard / Normal |
Operating Voltage Range |
6.0V - 7.4V |
Speed (6.0V) |
0.16 sec @ 60 deg |
Speed (7.4V) |
0.14 sec @ 60 deg |
Torque (6.0V) |
14 kg/cm (194 oz/in) |
Torque (7.4V) |
15 kg/cm (208 oz/in) |
Current Draw at Idle |
20mA |
Current Draw Operating (No Load) |
200mA @ 6.0V / 300mA @ 7.4V |
Dimensions (L x W x H) |
40.5 x 20 x 38mm |
Weight |
58g (2.05oz) |
Lead Length |
300mm / 11.8in |
