PLAAF J-10A with 12-Blade Ultra Performance 8S 90mm EDF Jet from Freewing - PNP - FJ32121P
Version Note: This is the 8S version which comes with a 90mm 12-Blade EDF 8S Power System with a 4075-1350Kv inrunner brushless motor and a thrust reversing 120A ESC.
The J-10A is a medium-weight, single-engine multirole aircraft designed for air-to-air combat and other various strike missions. Produced by the Chengdu Aircraft Corporation (CAC), the J-10 is used in the People’s Liberation Army Air Force (PLAAF) and became operational in 2006. Utilizing its delta-wing aerodynamic configuration with canards and fly-by-wire system, the J-10A is capable of turning in a much tighter radius than conventional aircraft.
The Freewing J-10A 90mm EDF Jet is a highly detailed, scale version of the real J-10A, and features the J-10 “Red Hawk” livery. One of the most detailed releases from Freewing, the J-10A features 11 daylight bright LED lights, including one to illuminate the Heads Up Display (HUD), many scale detail parts, as well as a quick-release ordnance package. Additionally, the Freewing J-10A utilizes screwless, quick-release wings making transport to and from your flying site a breeze.
Visit the Official Freewing 90mm PLAAF J-10A Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Super Scale Details Throughout The Freewing J-10A is incredibly well appointed for an EPO model with several attention-to-detail scale pieces. |
 |
Screwless, Quick-Release Wings The Freewing J-10A comes with screwless, quick-release wings for fast and easy access for transport or storage. |
 |
Illuminated HUD Panel A hint of a new era in the super scale EPO foam class, the J-10A includes an illuminated HUD panel. |
 |
Ordnance Included The quick-release ordnance comes included right out of the box to finish off that super scale appeal. |
 |
Functioning Canards This J-10A comes with fully-functional canards enhancing the scale detail emulating the full scale version. |
 |
Spring-Loaded Top Cheaters Incorporating an innovative ammenity, Freewing has added spring-loaded top-side cheaters that only open and close based on air pressure differential. |
 |
Retracts with CNC-Machined Shock-Absorbing Struts Another primary scale appeal and feature of any detailed 90mm EDF jet, the J-10A comes with electric retracts including CNC-machined shock-absorbing struts. |
 |
11 Daylight-Bright LED Lights The 11 Daylight-Bright LED lights complete the package of scale detail and appeal in dawn, daylight and dusk hours. |
Features:
- Screwless, quick release wings for fast and easy transport and storage
- Illuminated Heads Up Display (HUD) adds a new level of super scale detail
- 12 Blade factory-balanced 90mm EDF with 3668-1960Kv (6S) or 4075-1350Kv (8S) Inrunner Motor
- 120A ESC with Thrust Reversing to help decrease landing roll out

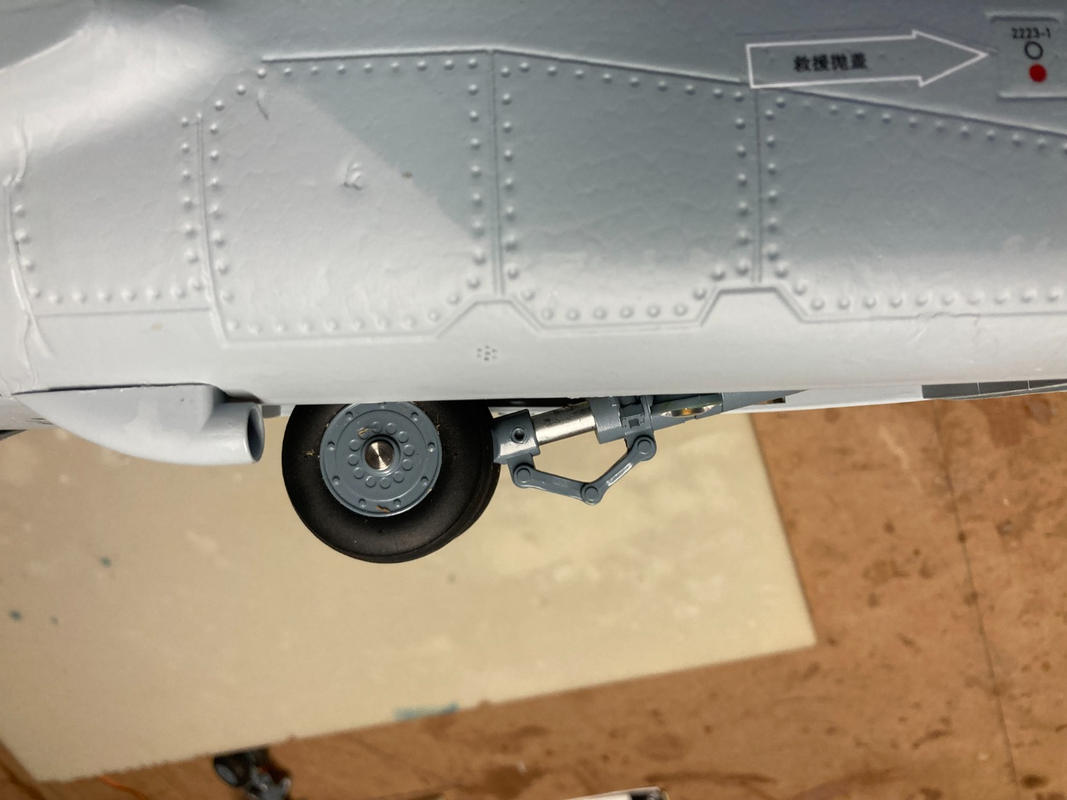

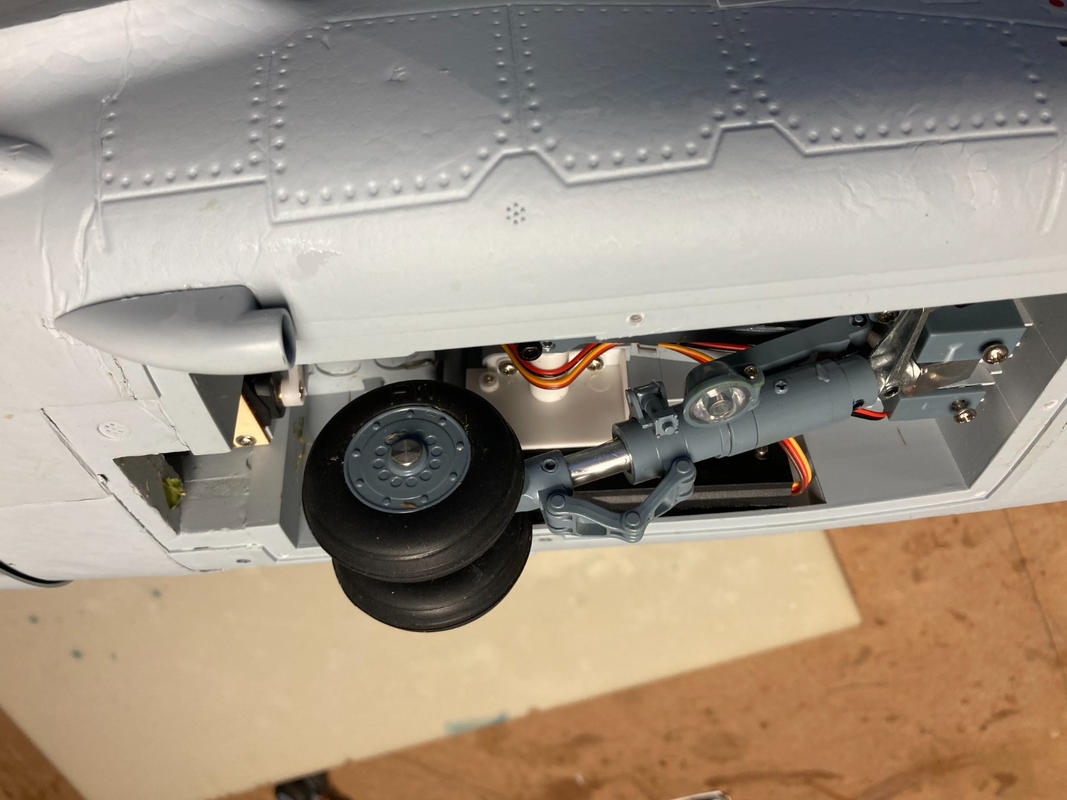

- Electronic, retractable landing gear with CNC-machined aluminum, shock absorbing struts
- Spring-Loaded Top Cheaters
- 11 Daylight bright LED lights
- Scale details include antennas, pitot tube, cockpit detail, lighting and ordnance
- Conveniently designed quick detach ordnance included right out of the box
- Nylon hinges on all control surfaces
- Removable, magnetic nose cone for convenient transport and replacement
Includes:
- Freewing PLAAF J-10A Ultra Performance 8S 90mm EDF Jet - PNP
- 12-Blade EDF power system (installed)
- 4075-1350Kv inrunner brushless motor (installed)
- 120A ESC with thrust reversing and EC5 connector (installed)
- Electronic retractable landing gear (installed)
- Servos, LED Lights (installed)
Requires:
- 5 Channel radio (6 for thrust reversing) - select a minimum 5 channel radio from our Aircraft Radio Collection
- 5 Channel receiver - select a minimum 5 channel receiver from our Aircraft Receiver Collection
- TWO 4 Cell 14.8V 5000 mAh LiPo batteries with EC5 connector - we recommend Admiral Pro 5000mAh 4S 14.8V 60C LiPo Battery with EC5 Connector Multi-Pack (2 Batteries) - OR -
ONE 6 Cell 22.2V 5000 mAh LiPo battery with EC5 connector AND ONE 2 Cell 7.4V 5000 mAh LiPo with EC5 connector - EPR50006 AND EPR50002E - EC5 2-to-1 series adapter - BenchCraft EC5 2 to 1 Series Adapter with 10 Gauge Silicone Wire
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
| Model Scale | 1/10 |
| Wingspan | 940mm / 37.0in |
| Length | 1530mm /60.2in |
| Empty Weight | 3235g / 7lbs 2oz (w/o battery) |
| CG (Center of Gravity) | 163mm (6.4") from the leading edge of the wing at the root |
| Power System | 8S 4075-1350Kv Inrunner Brushless Motor |
| Electronic Speed Control | 120A thrust reversing, EC5 Connector |
| Propeller / EDF | 90mm 12-Blade EDF |
| Servos |
|
| Landing Gear | Electronic retractable main gear and steerable nose gear with all metal shock absorbing struts |
| Required Battery | 6 Cell 22.2V 5000 mAh LiPo and 2 Cell 7.4V 5000 mAh LiPo batteries with EC5 connector in series - OR - Two 4 Cell 14.8V 5000 mAh LiPo batteries with EC5 connector |
| Required Radio | 5 Channel (6 for thrust reverse) (required) |
| Ailerons | Yes |
| Elevator | Yes |
| Rudder | Yes |
| Canard | Yes |
| Flaps | No |
| Lights | Yes |
| Hinge Type | Nylon Reinforced |
| Material | EPO Foam |
| Skill Level | Intermediate/Advanced |
| Build Time | 2 Hours |
| Recommended Environment | Outdoor, 150+ foot paved runway or short manicured grass |
Videos
Product Videos
Spare Parts
Product Spare Parts
1 - 32 of 80 results
Upgrades
Product Upgrades
RunCam 6 Action Camera 4K/30FPS with Lens Protection, ND Filter, and SD Card
SKU: RC-RUNCAM6-4K-ND128G
$12499
1 - 7 of 7 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
If you need any additional assistance, please visit the Motion RC Help Center
RadioMaster 6200mAh 2S 7.4V LiPo Battery with XT30 Connector
SKU: HP0157-BATT-6200-2S
VIEW PRODUCT

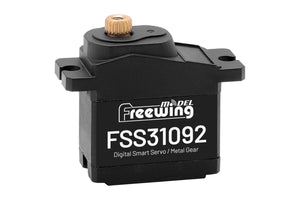

Freewing 9g Digital Metal Gear Smart Servo with 500mm (20") Lead
