PA-22 Tri-Pacer 1620mm (63") Wingspan - ARF from Nexa - NXA1027-001
The PA-22 Tri-Pacer is a light strut-braced high-wing monoplane aircraft built by Piper Aircraft from 1949 to 1964.
The Nexa PA-22 Tri-Pacer is a electric or gas option .60-size civil airplane with a 1620mm wingspan, constructed primarily from balsa wood and covered with a fuel-resistant covering. This ARF requires assembly and installation of your choice of servos and power system, fully functional flaps, fiberglass cowl, wingtip tanks and other scale details. The large battery hatch affords ample room for either electric or gas setups. Impress at your flying field with this fun civil flyer!
Visit the Official Nexa PA-22 Tri-Pacer 1620mm ARF Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |
Fully Covered The Nexa PA-22 Tri-Pacer comes fully covered in an attractive and sporty red and white scheme. |
 |
Scale Details Throughout There is no shortage of scale details with this PA-22 Tri-Pacer including functional flaps, painted canopy and antenna. |
 |
Fiberglass Cowling The cowl is made of fiberglass for both looks and durability. |
 |
Slow Trainer or Aerobatic Charmer The PA-22 Tri-Pacer can both fly slow and easy with trainer-like dependability and stability while also performing aerobatics with ease and style. |
Features:
- Complete Balsa and lite-ply construction for rigidity and durability
- Covered from tip to tail in scale details including functional flaps, plastic seat, antenna, printed simulated panel lines and rivets
- Fiberglass cowling for strength and durability
- All control surfaces come out of the box pre-hinged and installed for convenience
- Large battery hatch allows for your chosen electric or gas setup
Includes:
- Nexa PA-22 Tri-Pacer 1620mm (63") Wingspan - ARF
- Wheels and spinner
- Fuel tank, hardware and decals
Requires:
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 670Kv or equivalent brushless outrunner motor - we recommend the Admiral GP7.5 5020-670Kv Brushless Motor
- 65 Amp brushless ESC - we recommend the ZTW Skyhawk 65A ESC with 8A SBEC
- 4x mini servos for ailerons and flaps - we recommend Hitec HS-82MG Metal Gear Micro Servo Airplane Multi-Pack (4 Servos)
- 2x standard servos for rudder and elevator - we recommend Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Multi-Pack (2 Servos)
- 4 Cell 14.8V 4500 - 5000mAh LiPo Battery - we recommend the Admiral 5000mAh 4S 14.8V 40C LiPo Battery with XT60 Connector
- 2-blade electric propeller - we recommend the Admiral 13x10 Electric Series Wood Propeller
- 4 Cell compatible battery charger - select a minimum 4 cell (4S) charger from our Charger Collection
Gas Requires:
- .46 - .70 (7.45cc - 11.5cc) gas engine - we recommend the NGH GT9 Pro 9cc Two-Stroke Engine
- 2-blade gas propeller - we recommend APC 12x6 Gas Propeller
Nexa ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
Product Specifications:
Model Scale |
1/5 |
Wingspan |
1620mm / 63.7in |
Length |
1209mm / 47.6in |
Empty Weight |
2900g / 102.29oz |
CG (Center of Gravity) |
65-68mm from the leading edge of the wing's root |
Power System |
670Kv or equivalent brushless outrunner motor for electric or .46 - .70 (7.45cc - 11.5cc) for gas (required) |
Electronic Speed Control |
65A (required) |
Propeller / EDF |
13x10 2-blade for electric or 12x6 2-blade for gas (required) |
Servos |
|
Landing Gear |
Aluminum gear (included) |
Required Battery |
4 Cell 14.8V 4500 - 5000mAh LiPo Battery (required) |
Required Radio |
6+ Channel (required) |
Ailerons |
Yes |
Elevator |
Yes |
Rudder |
Yes |
Flaps |
Yes |
Lights |
No |
Hinge Type |
CA fabric |
Material |
Balsa and light plywood |
Skill Level |
Intermediate |
Build Time |
5+ Hours |
Recommended Environment |
Outdoors |
Videos
Product Videos
Spare Parts
Product Spare Parts
Hitec D-645MW High Voltage High Torque Digital Metal Gear Servo Airplane Multi-Pack (4 Servos)
SKU: HRC6005-017
$14900
1 - 25 of 25 results
Q&A
Product questions & answers
NOTE: Questions submitted on this page are answered by customers who have previously purchased this item. If you have a support related question that requires immediate assistance, please visit our Help Center
Support
Product support
Product Manuals:
If you need any additional assistance, please visit the Motion RC Help Center
Customer Reviews
- Reviews
Piper 22 Tripacer
Beautifull Piper Tripacer , Very nice Built , is has some things to improve on my opinion , like the Wheels cover ( should be wider , better quality wheels...read more
Nice Flying Plane
This is the third time trying to add a review about this model. I've been having so much fun with this plane I really have to say something. I put...read more
Nice Flying Plane

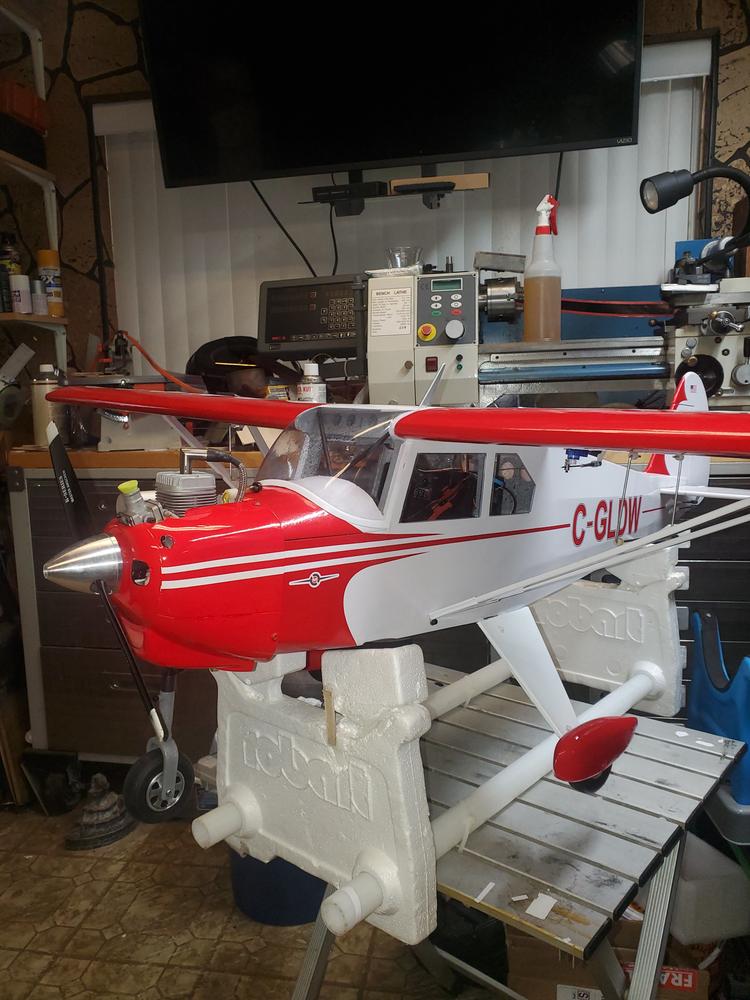

This model has been a pleasure to assemble and fly. I used a NGH 9cc engine. An aluminum spinner and a Robart front wheel to dress it up. I also...read more
