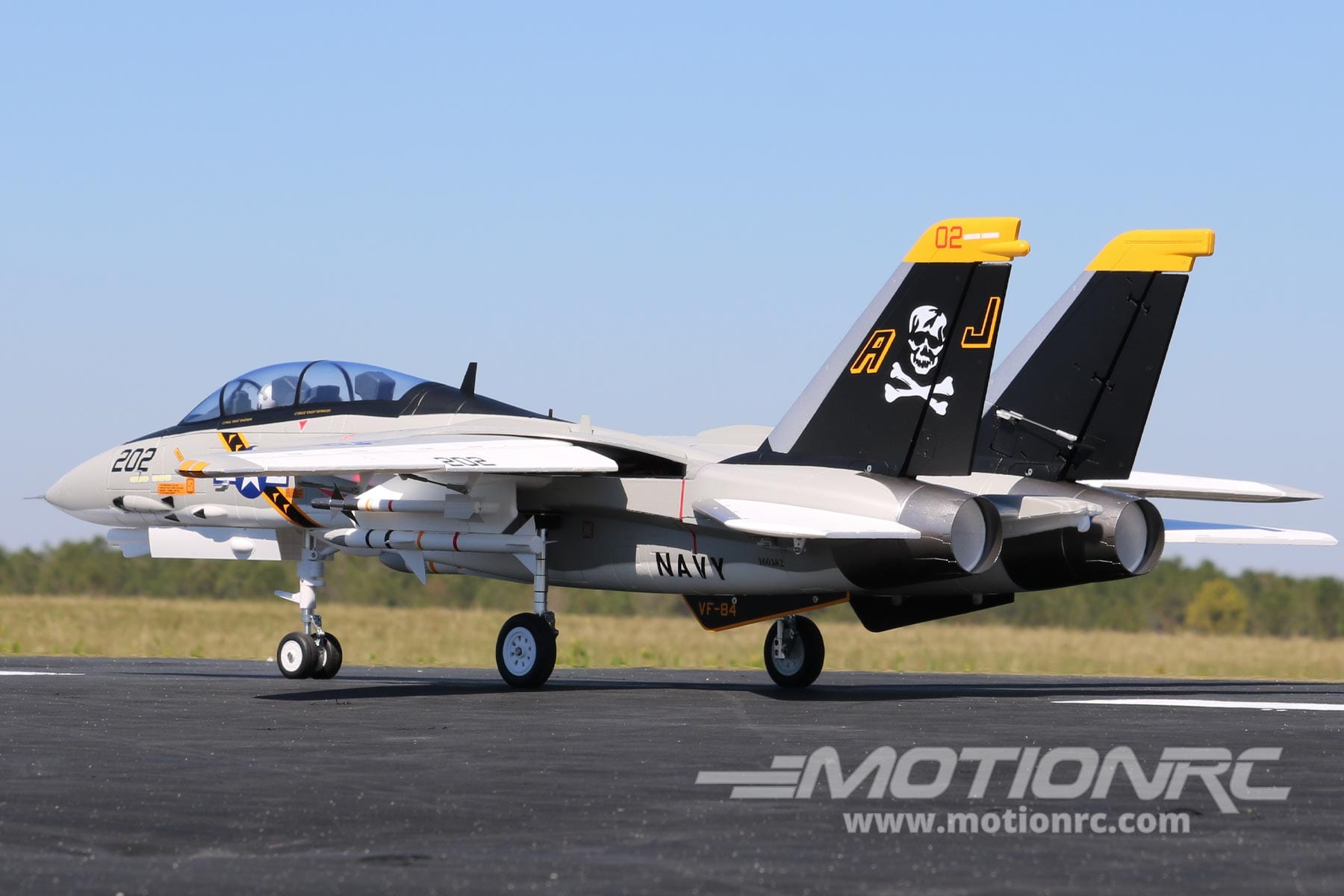

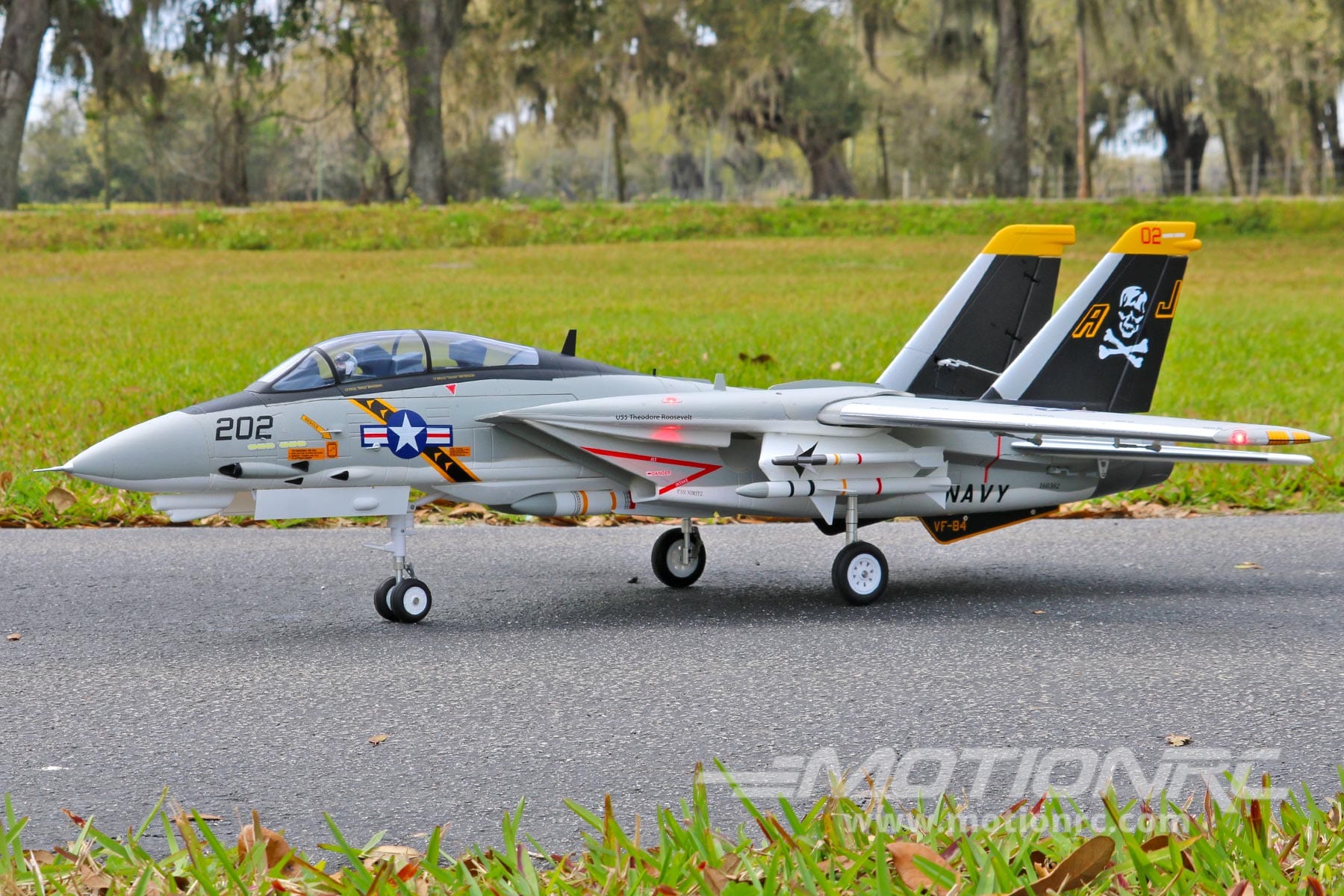

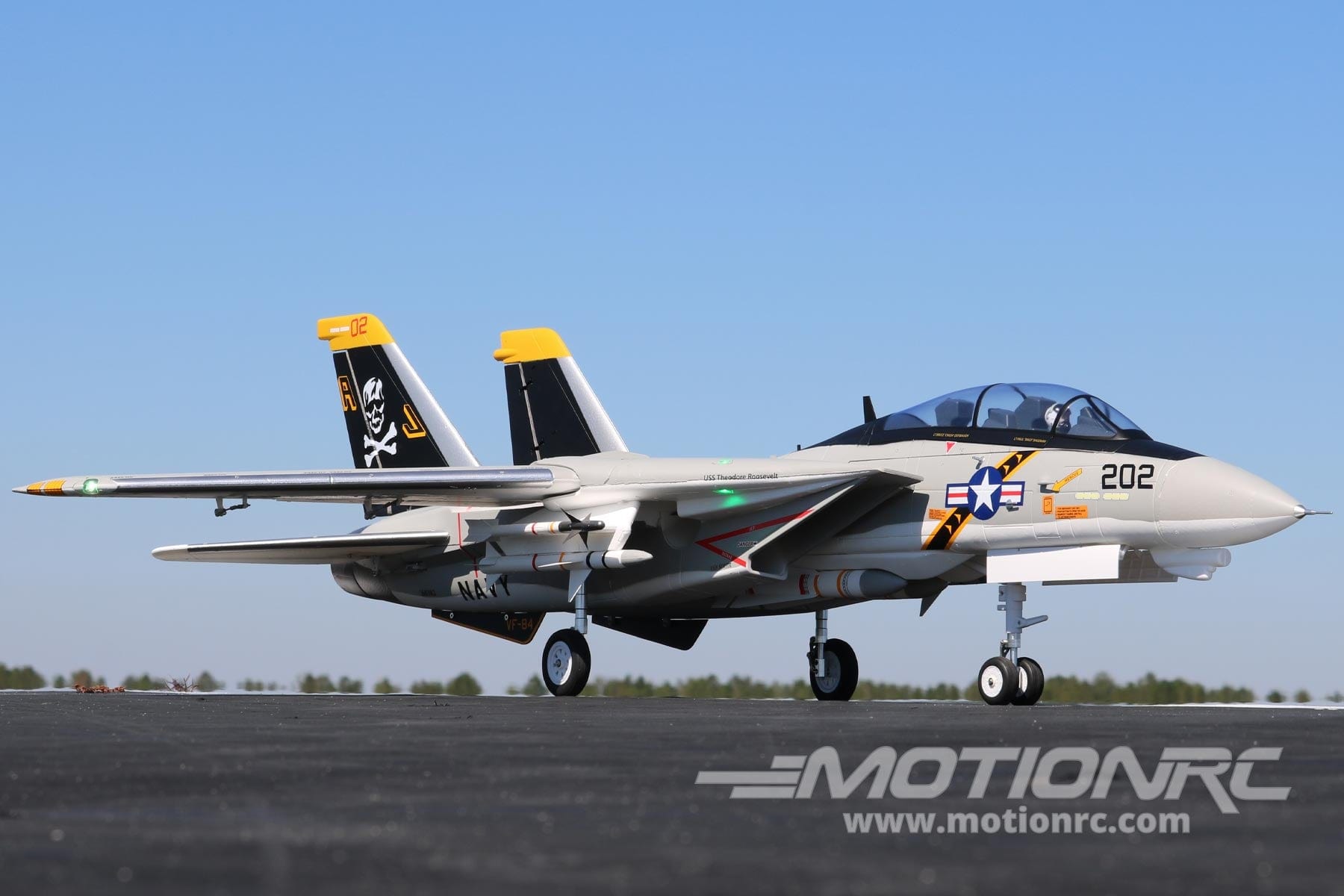

F-14 Tomcat Twin 64mm EDF Jet from Freewing - ARF PLUS - FJ11411AP
Version Info: This is the ARF Plus version of the 64mm F-14 Tomcat for pilots who wish to install their own power system. All primary electronics including servos, landing gear retracts and the E20 gyro/sequencer come pre-installed, just add your own power system (EDF, motor, and ESC) to begin flying.
Easily one of the most iconic jets in history, we’re excited to bring the new, officially licensed, Freewing F-14 Tomcat to market in a twin 64mm EDF size. Featuring sweeping wings, retractable landing gear, full flying stabilizers and a livery based on the Jolly Rogers F-14’s, this jet is sure to bring iconic Tomcat performance and scale detail to flying sites across the world.

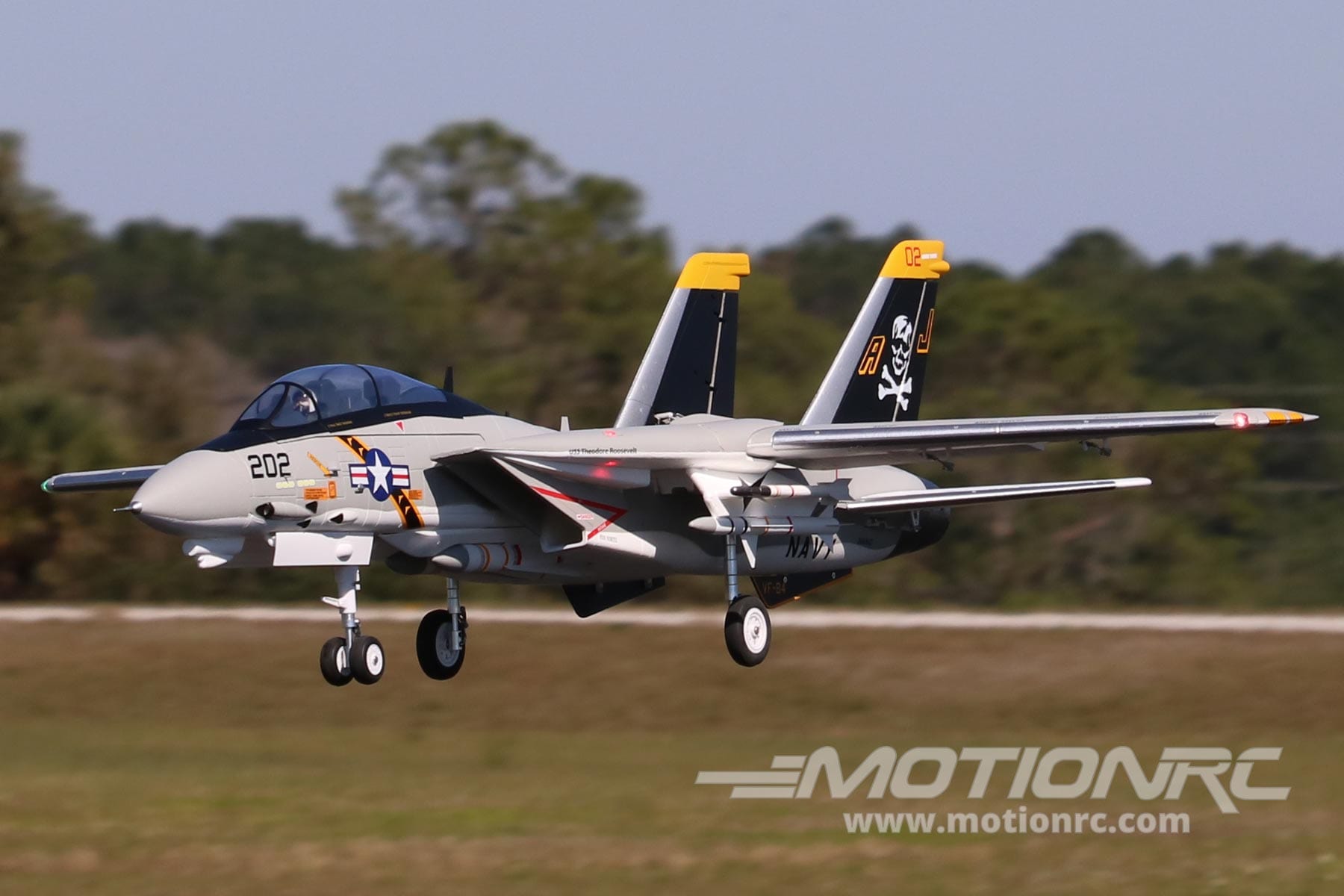

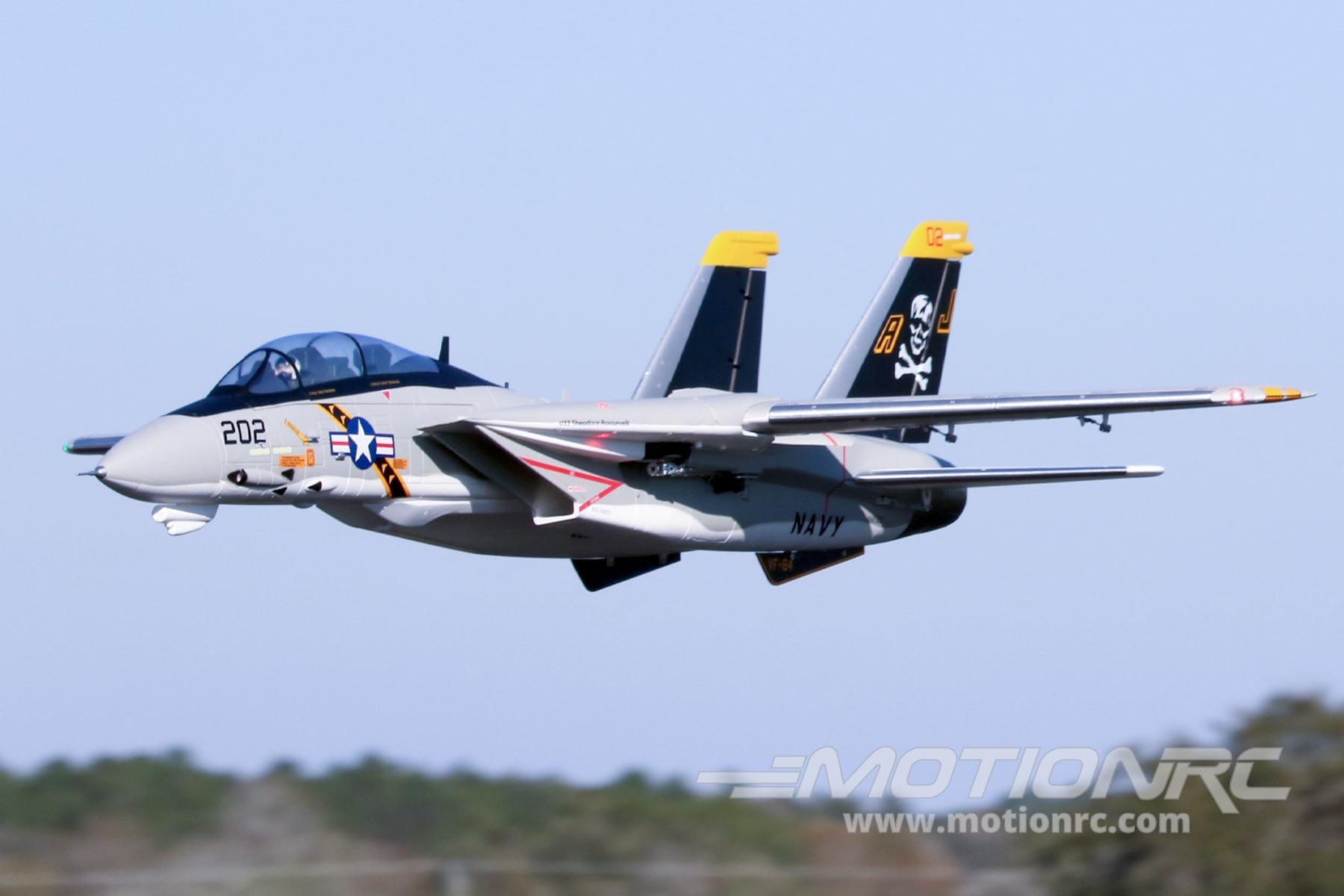

While no scale detail has been spared from this plane, what you are really going to love is the way this plane flies. This plane has loads of power and a much lighter wing loading than typical planes of this size with this level of detail. Normally, a plethora of scale details leads to a plane that is heavy and slow. Despite details like scale shock absorbing landing gear, full nose gear doors, pylons and weapons, LED lights, scale exhaust nozzles, antennas, pitot tubes, and more, this plane flies phenomenally. The wing loading is amazingly light for a plane with this amount of detail which leads to easier landings. The shock absorbing landing gear helps with ultra-smooth landings and the reverse thrust ESC (PNP only) helps slow you down. While flying, you will find the vertical performance is also fantastic. This truly lives up to the legendary Tomcat name.
Leaving no feature unturned, with fully functional sweeping wings, full-flying horizontal stabilizers, ailerons, flaps, retracts and much more, you get a full-house functionality in a conveniently sized twin 64mm package that is designed to work on a single 6S 5000mah sized LiPo battery.
Visit the Official Freewing 64mm F-14 Twin EDF Jet Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
 |

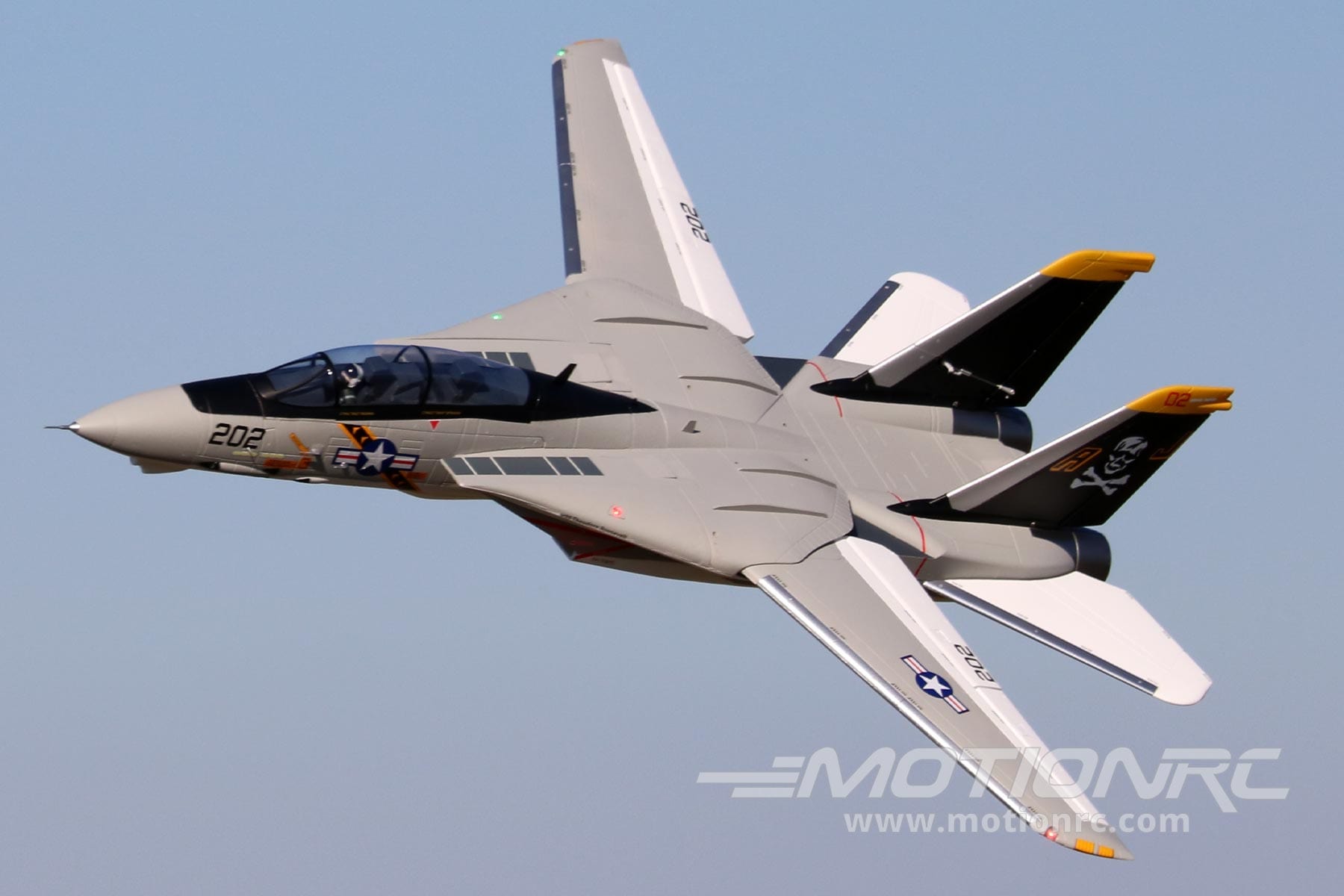

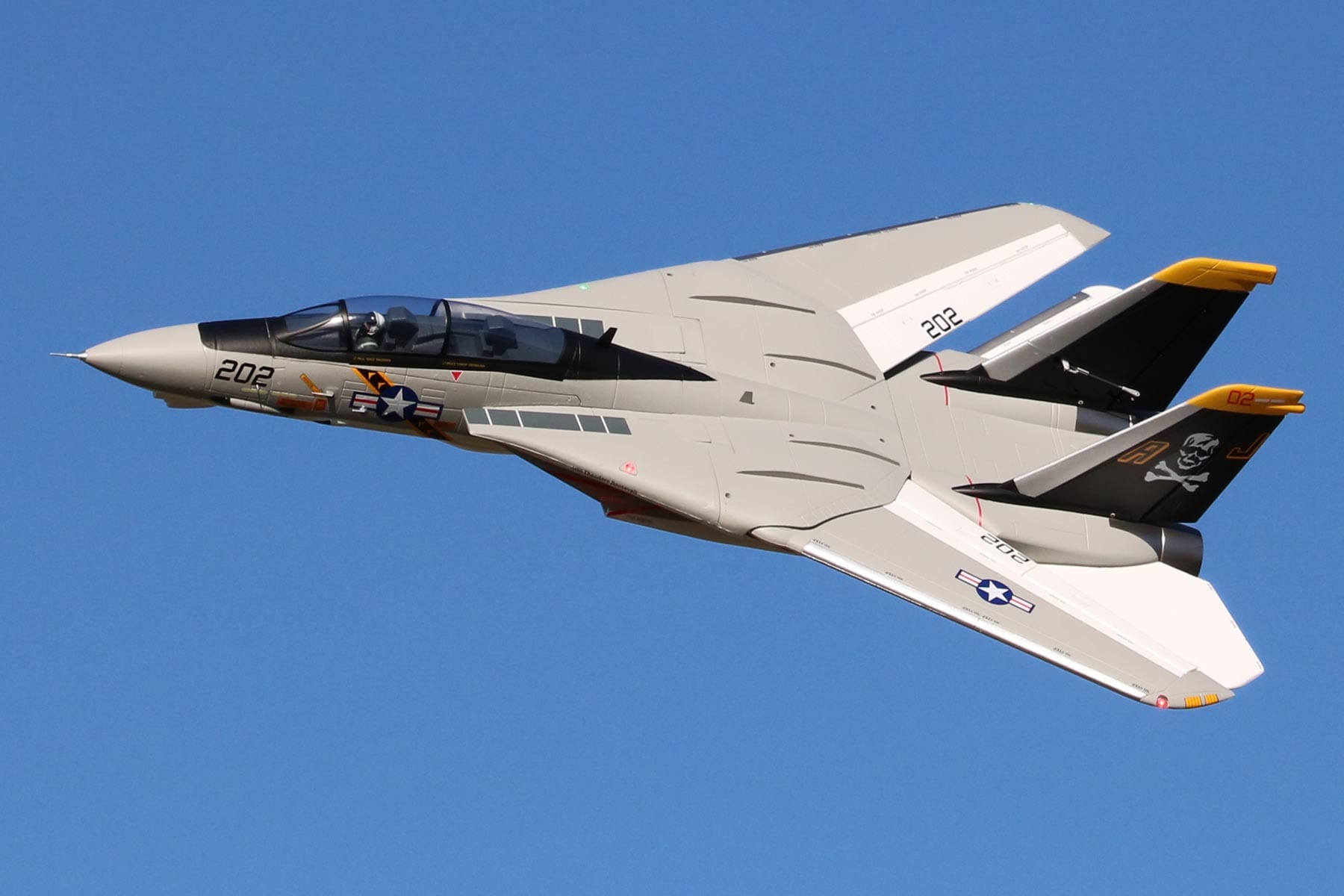

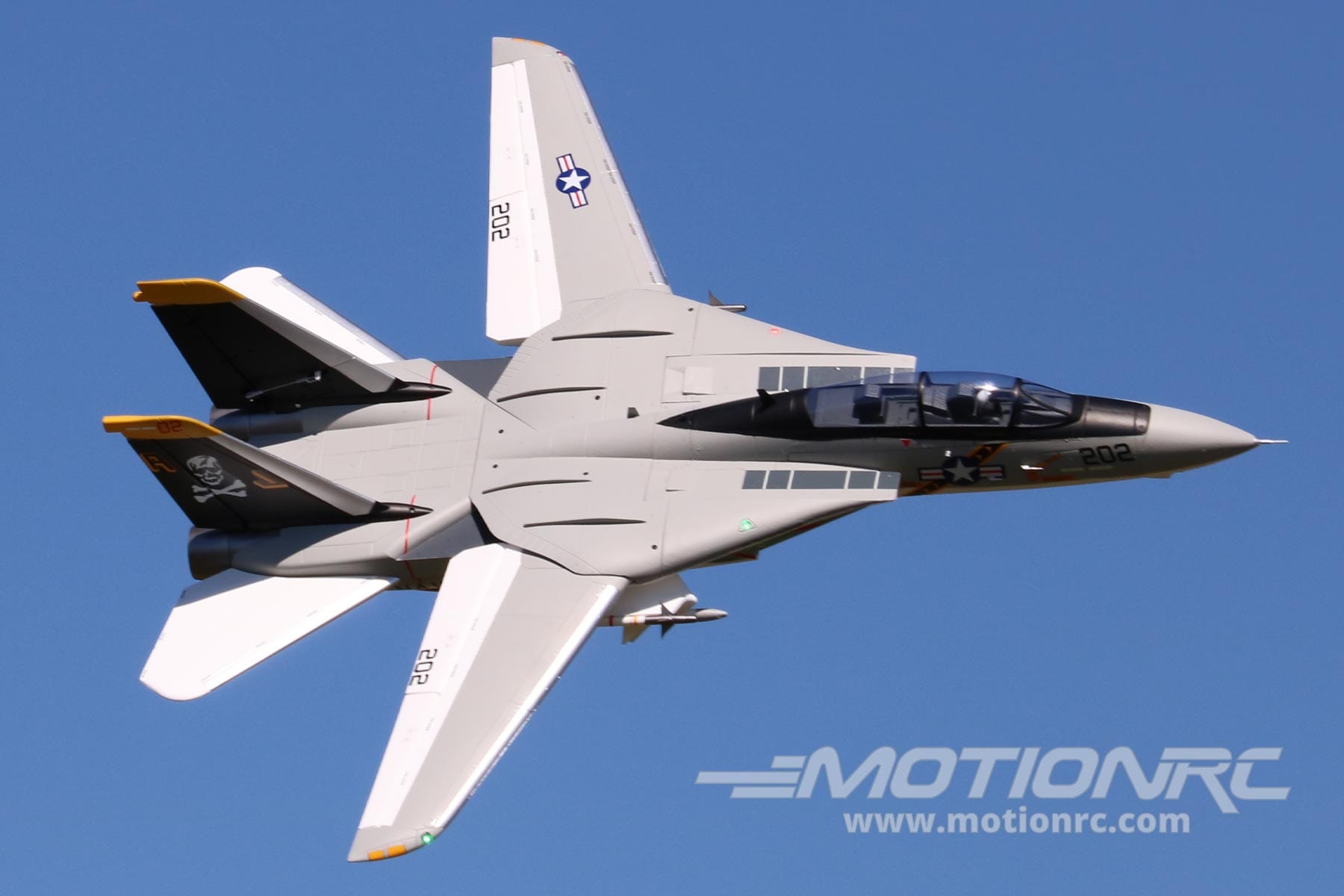

Sweeping Wings The Freewing Twin 64mm F-14 captures the iconic essence of the classic Vietnam-era warbird with functional sweep wing capability. |
 |

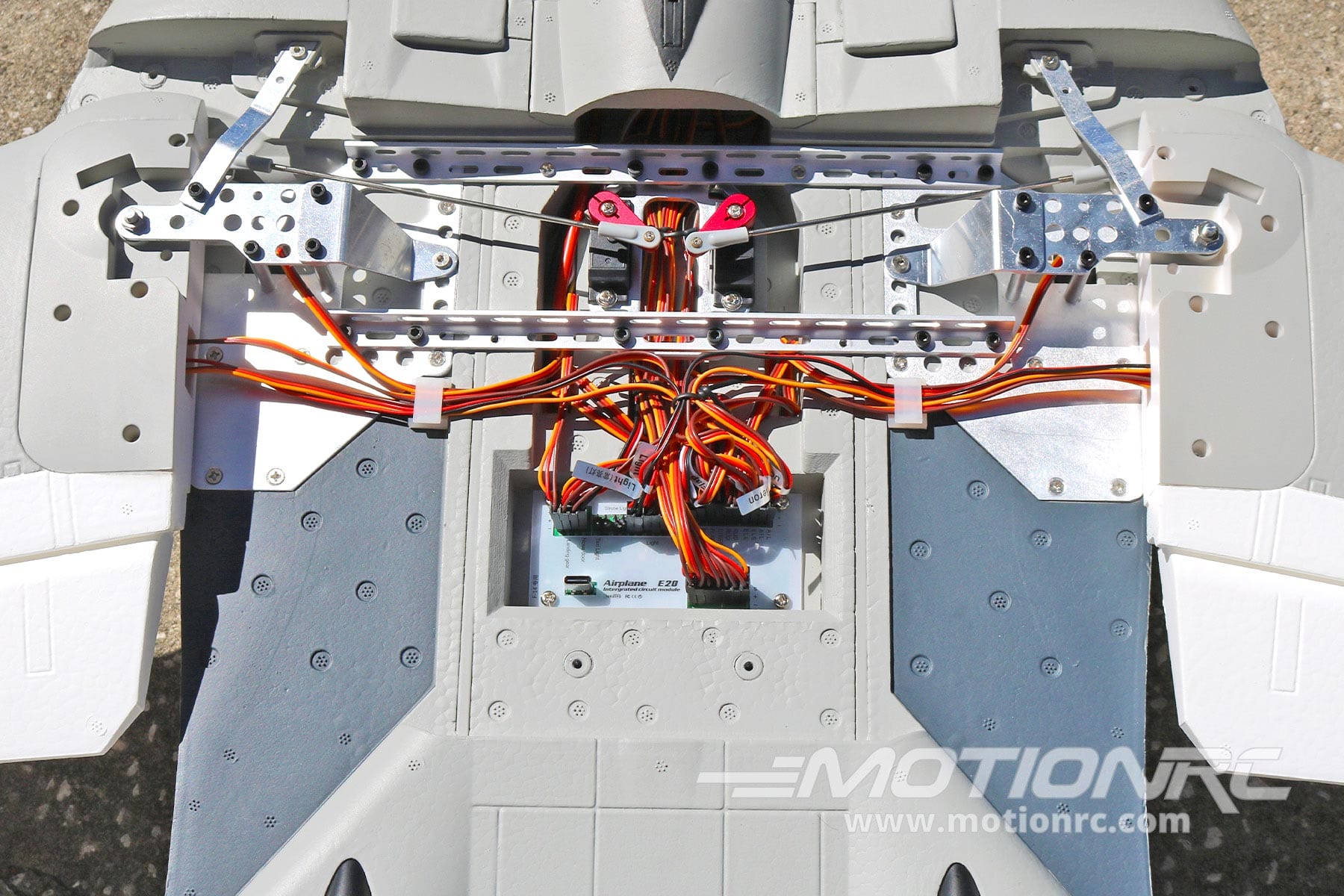

Robust Swing Wing Mechanism The swing wing mechanism is built with quality materials and engineered to perform flawlessly for you whether on the ground or in the air. |
 |
E20 Integrated Controller and 3/6-Axis Gyro With the E20 Integrated Controller and 3/6-Axis Gyro the F-14 comes equiped with onboard electronics that help provide a more stable platform from takeoff to touchdown. |
 |

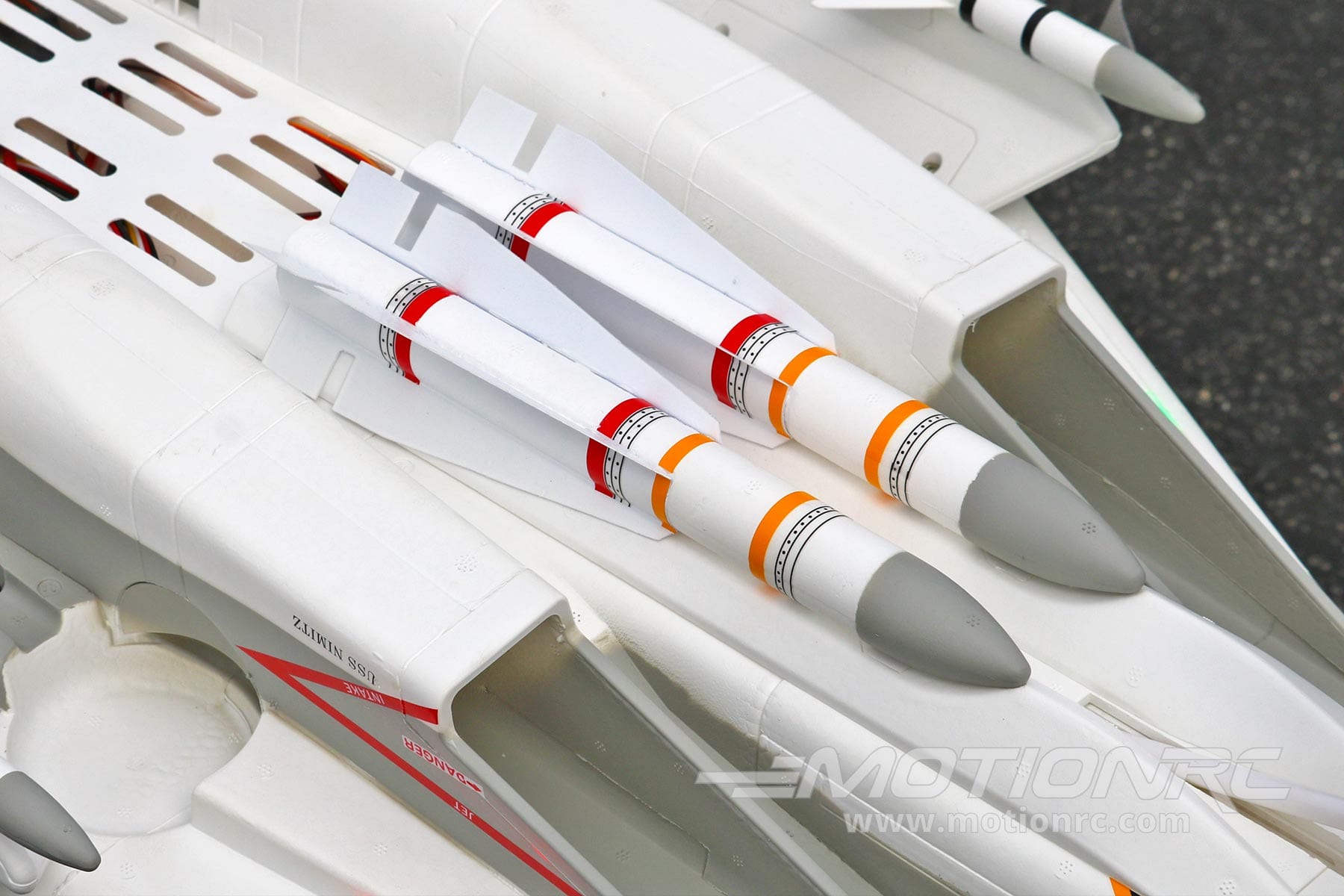

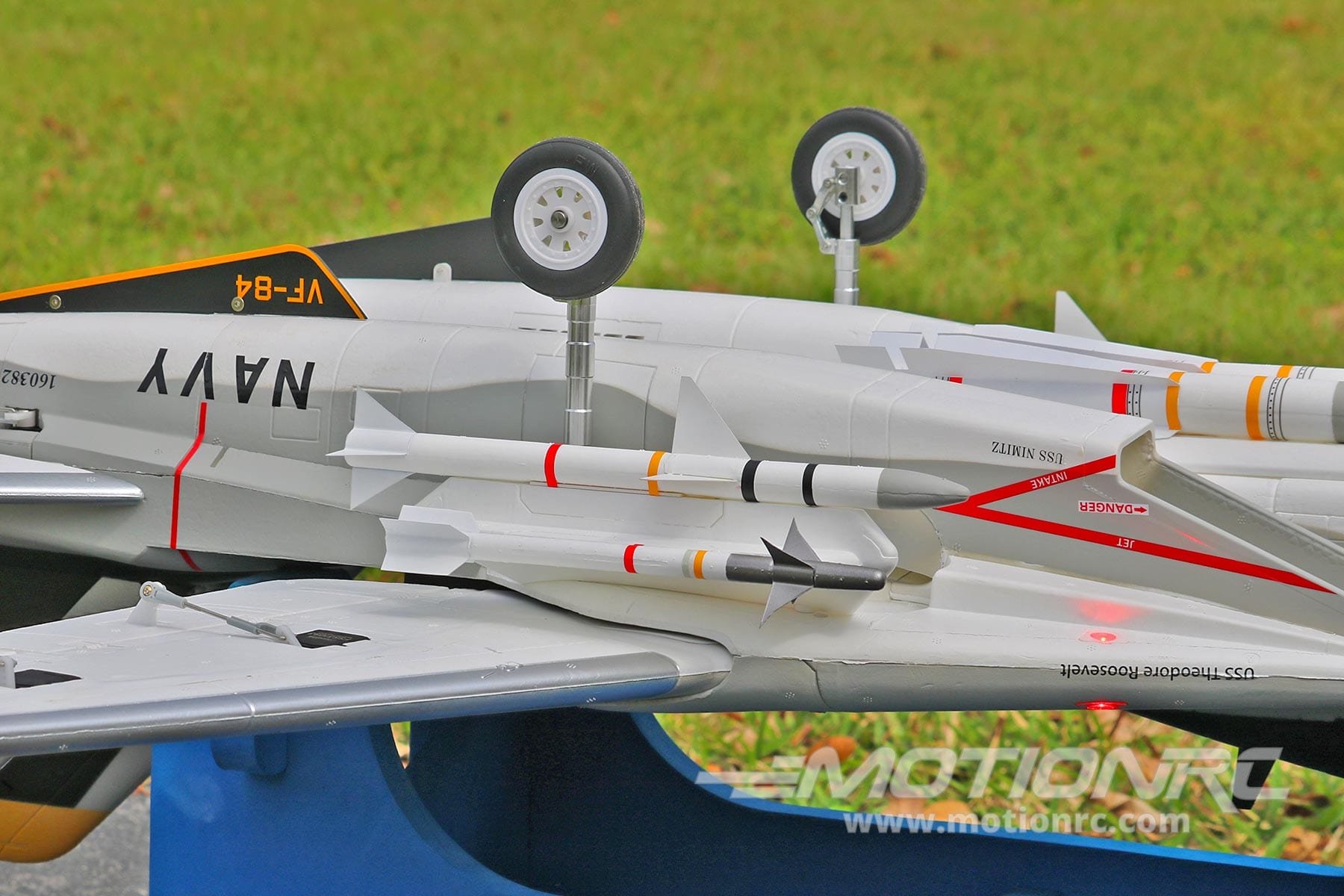

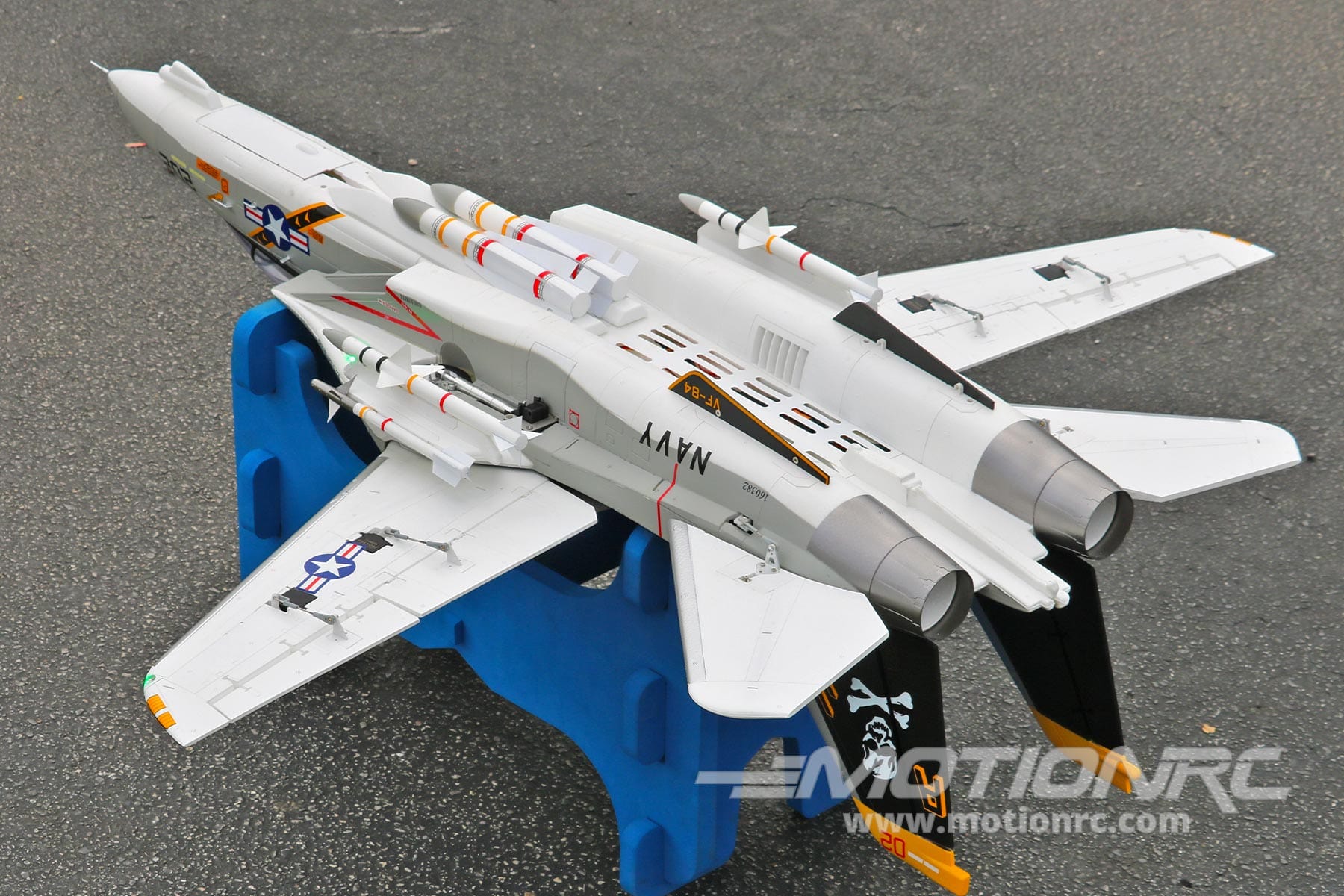

Ordnance Included Sidewinder, Phoenix and Sparrow missiles are included (2 of each) for an impressive profile both while in static display and in flight. |
 |
Full Flying Horizontal Stabilizers For added manueverability and agility the F-14 comes with full flying horizontal stabilizers, maximizing flight performance. |
 |

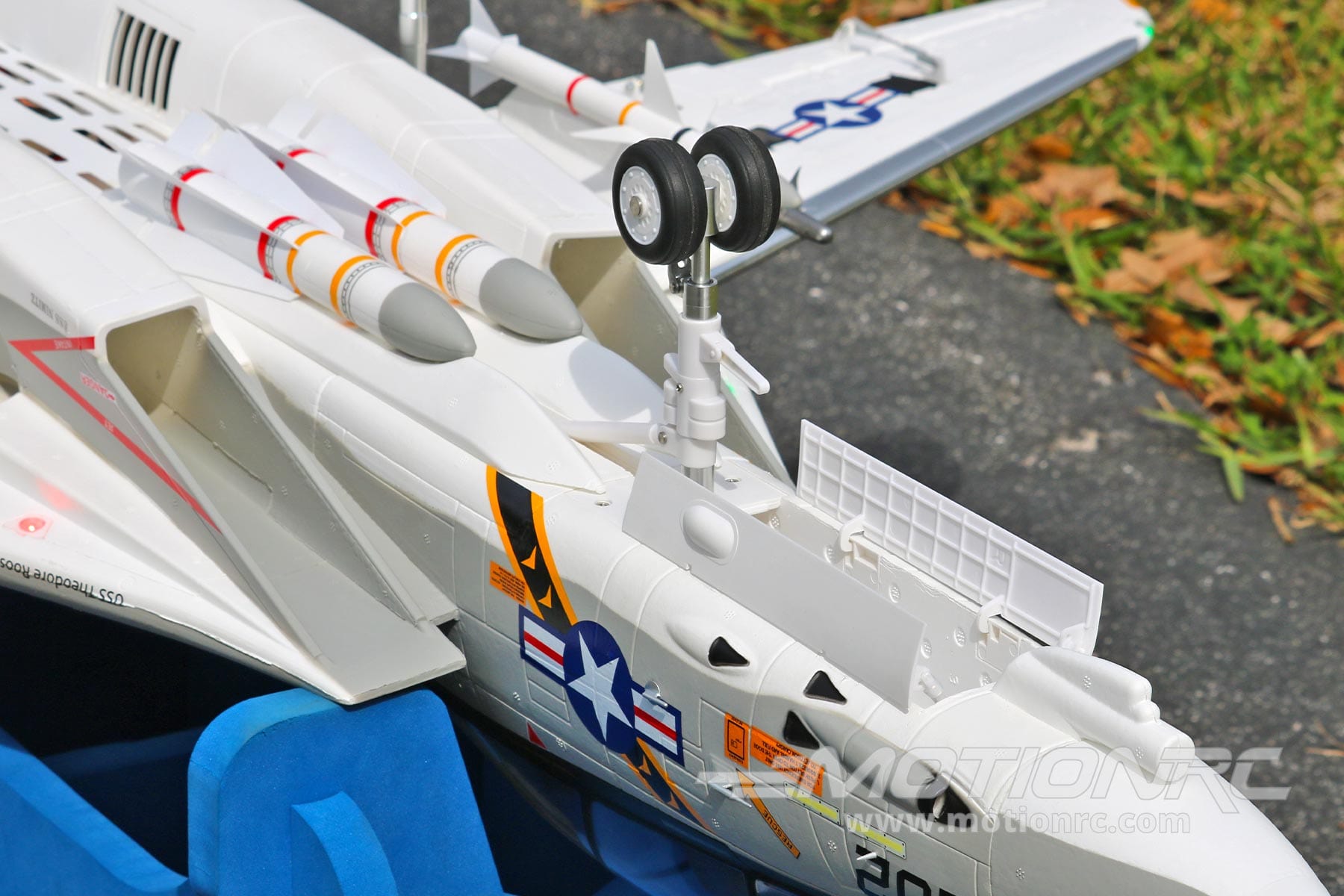

Retracts with CNC-Machined Shock Absorbing Struts Adding to the quality and scale appeal of this model, retracts with CNC-machined shock absorbing struts are included on both PNP and ARF Plus versions. |
Features:
- Fully functional sweeping wings with rigid aluminum wing structure
- E20 Integrated controller with 3/6-axis gyro
- Electronic, retractable landing gear with CNC-machined aluminum, shock absorbing struts
- Full-flying horizontal stabilizers
- 6x Daylight bright LED lights
- Scale details included such as antennas, pitot tubes, missiles and missile pods
- Nylon hinges on all control surfaces
- Removable, magnetic nose cone for convenient transport and replacement
Includes:
- Freewing F-14 Tomcat Twin 64mm EDF Jet - ARF+
- Servos, E20 flight controller/gyro and retracts included and installed
- Instruction manual
Requires:
- Motors, ESCs and EDF units of your choice (see specifications)
- 7-9 Channel radio (9 for thrust reversing and gyro modes) - select a minimum 7 channel radio from our Radio Collection
- 7-9 Channel receiver (9 for thrust reversing and gyro modes) - select a minimum 7 channel receiver from our Receiver Collection
- 6 Cell 22.2V 4000-5000 mAh LiPo Battery with EC5 connector - we recommend the Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Product Specifications:
Wingspan |
1250mm / 49.2in (extended) |
Length |
1217mm / 47.9in |
Weight |
2555g / 90oz (without battery) |
Power System |
2 x 2949-2500Kv brushless inrunner motors (PNP Only) |
Speed Control |
2 x 60A with Thrust Reversing and joint EC5 Connector (PNP Only) |
Propeller / EDF |
64mm 12-Blade EDF (PNP Only) |
Servos |
|
Landing Gear |
CNC-machined, shock absorbing, retractable landing gear |
Required Battery |
6S 22.2V 4000mAh to 5000mAh LiPo with EC5 connector (required) |
Required Radio |
7-9 Channels (9 required for thrust reversing & gyro) |
Rudder |
Yes |
Flaps |
Yes |
Ailerons |
Yes |
Lights |
Yes |
Hinge Type |
Nylon |
Material |
EPO Foam |
Skill Level |
Intermediate/Advanced |
Build Time |
1-2 Hours |
Recommended Environment |
Outdoors |
